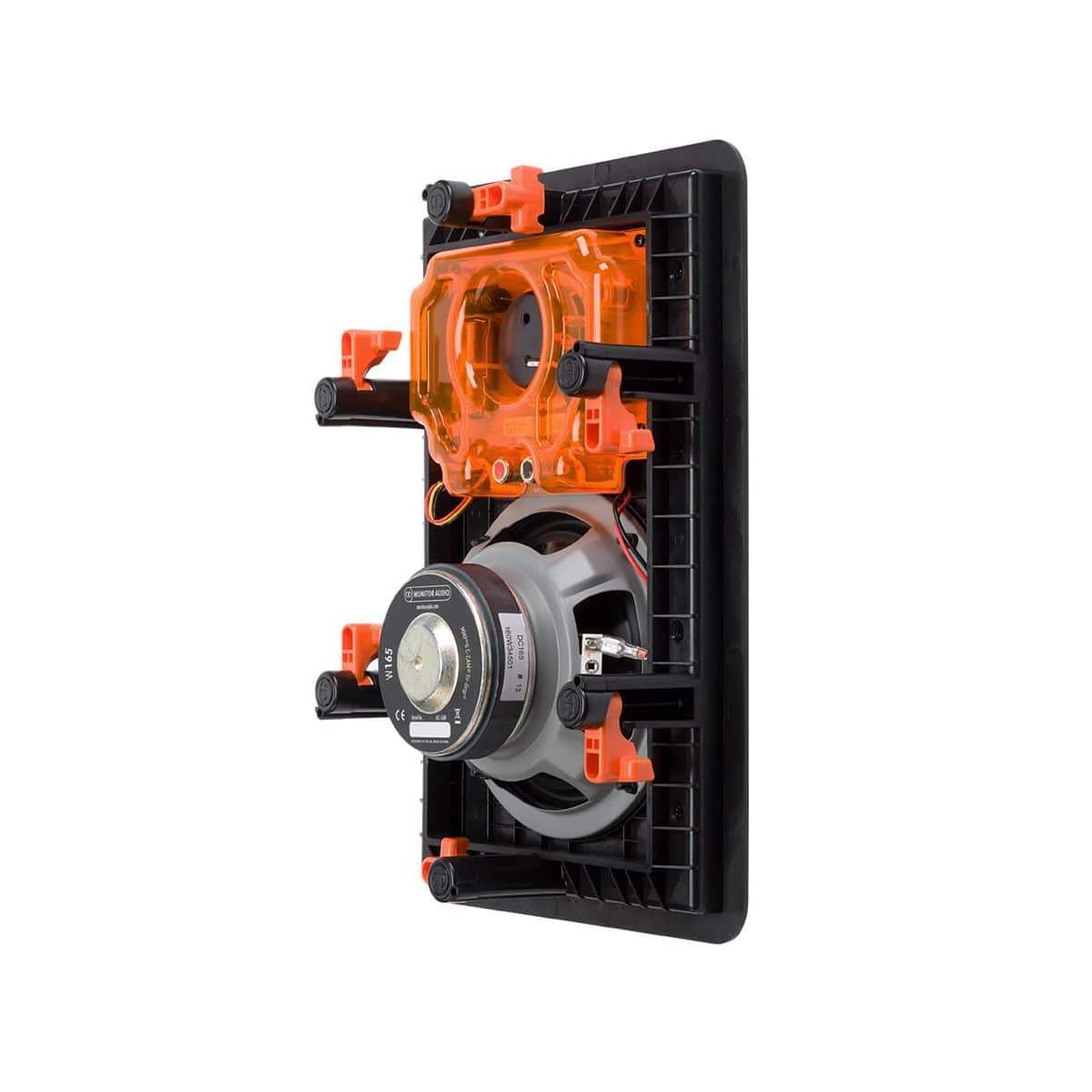

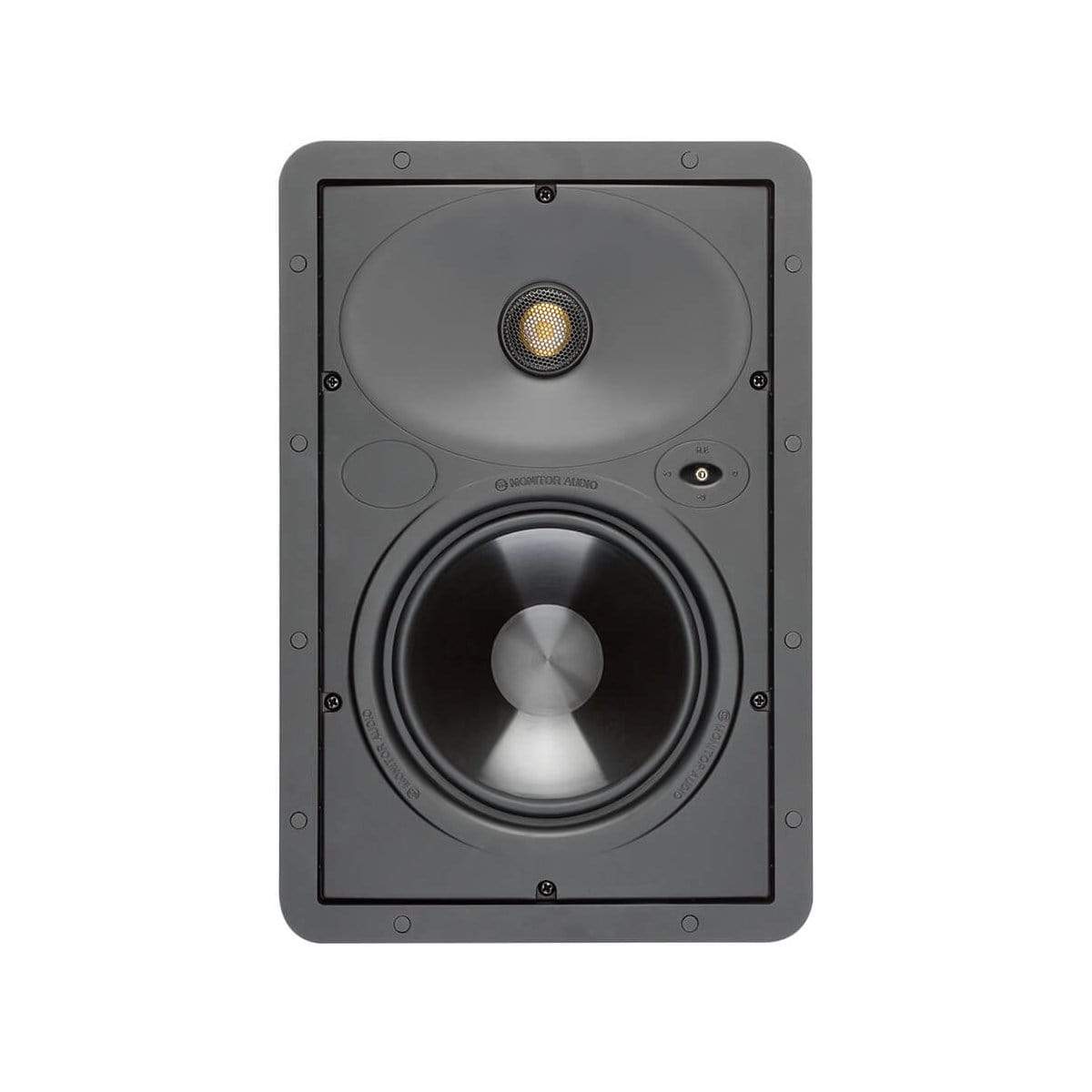

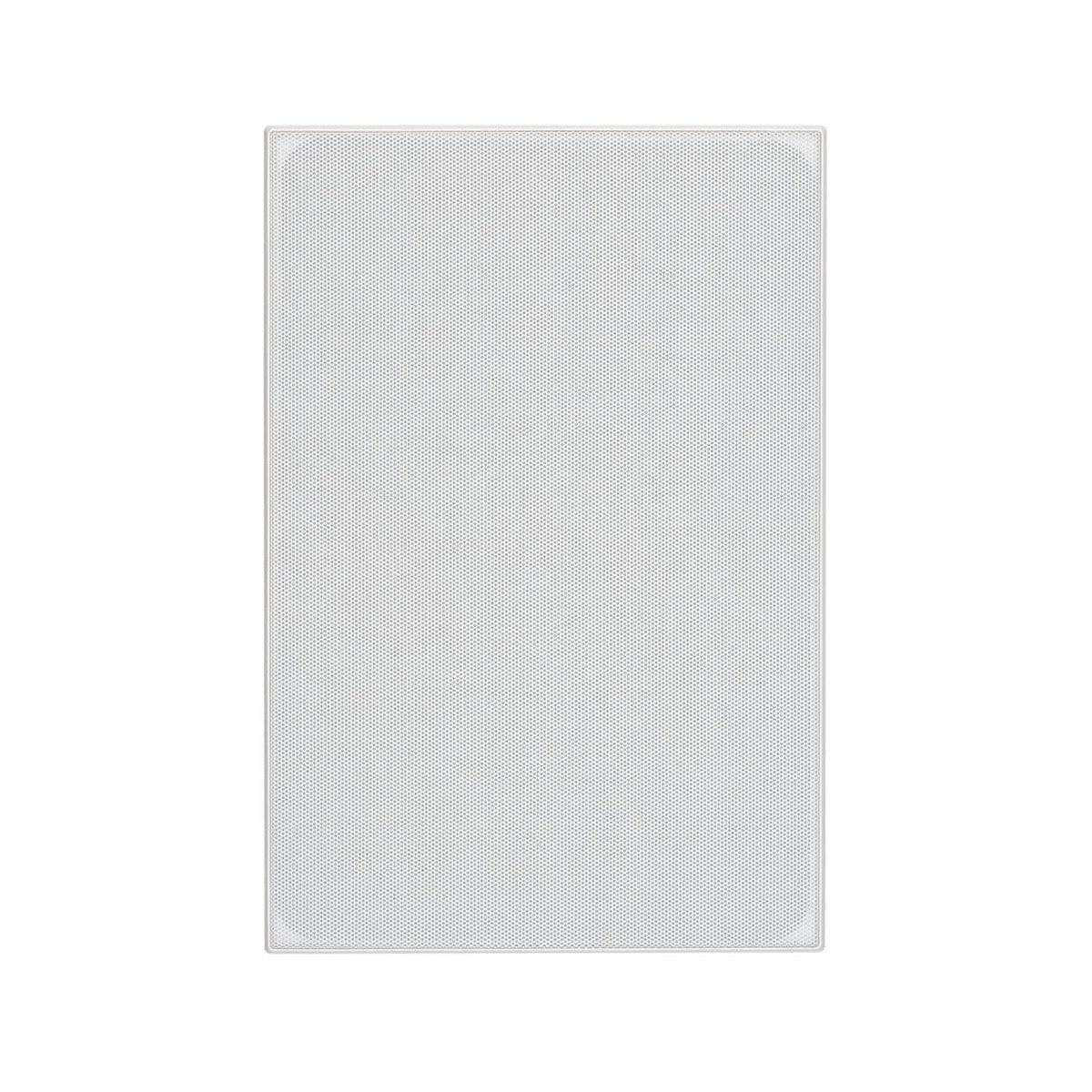

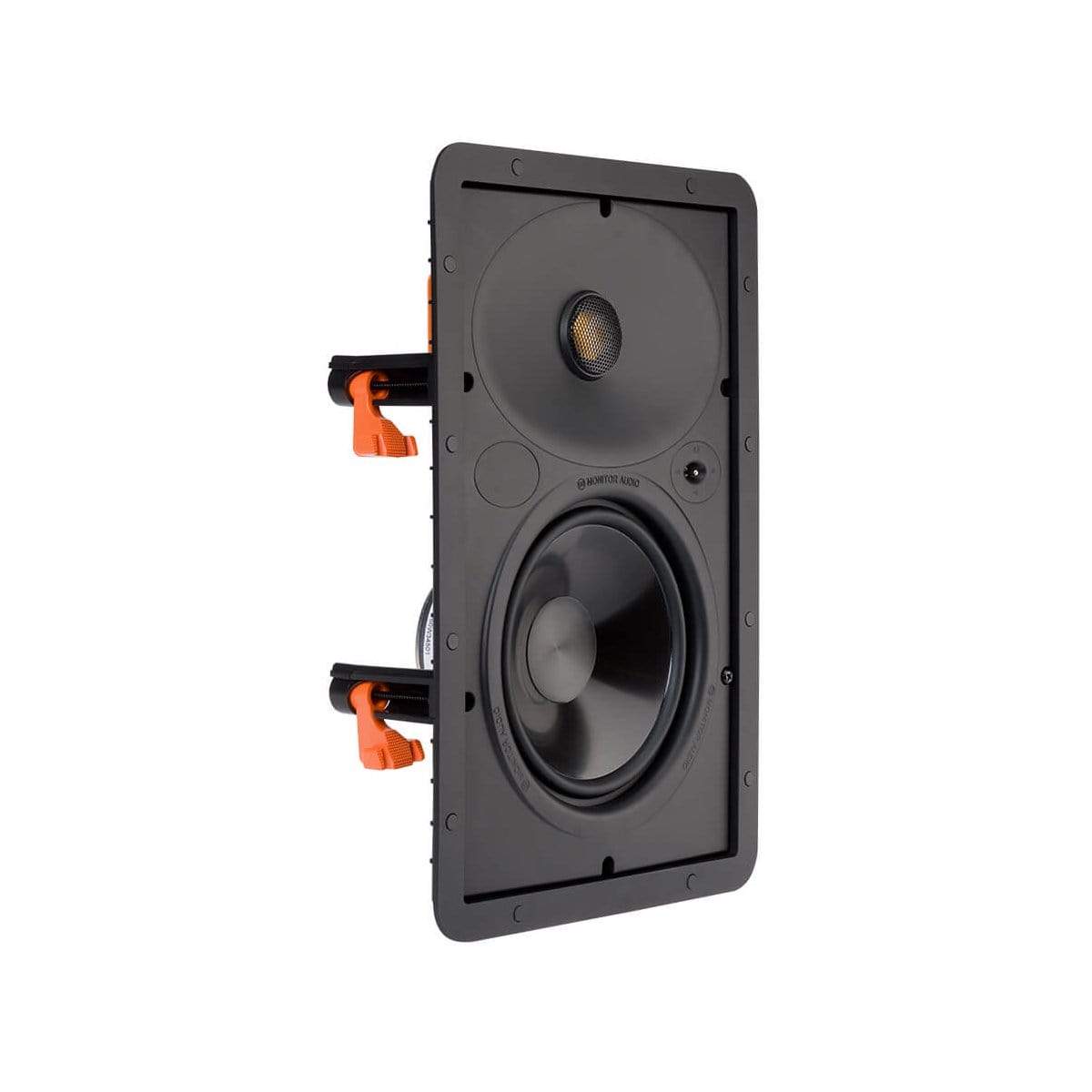

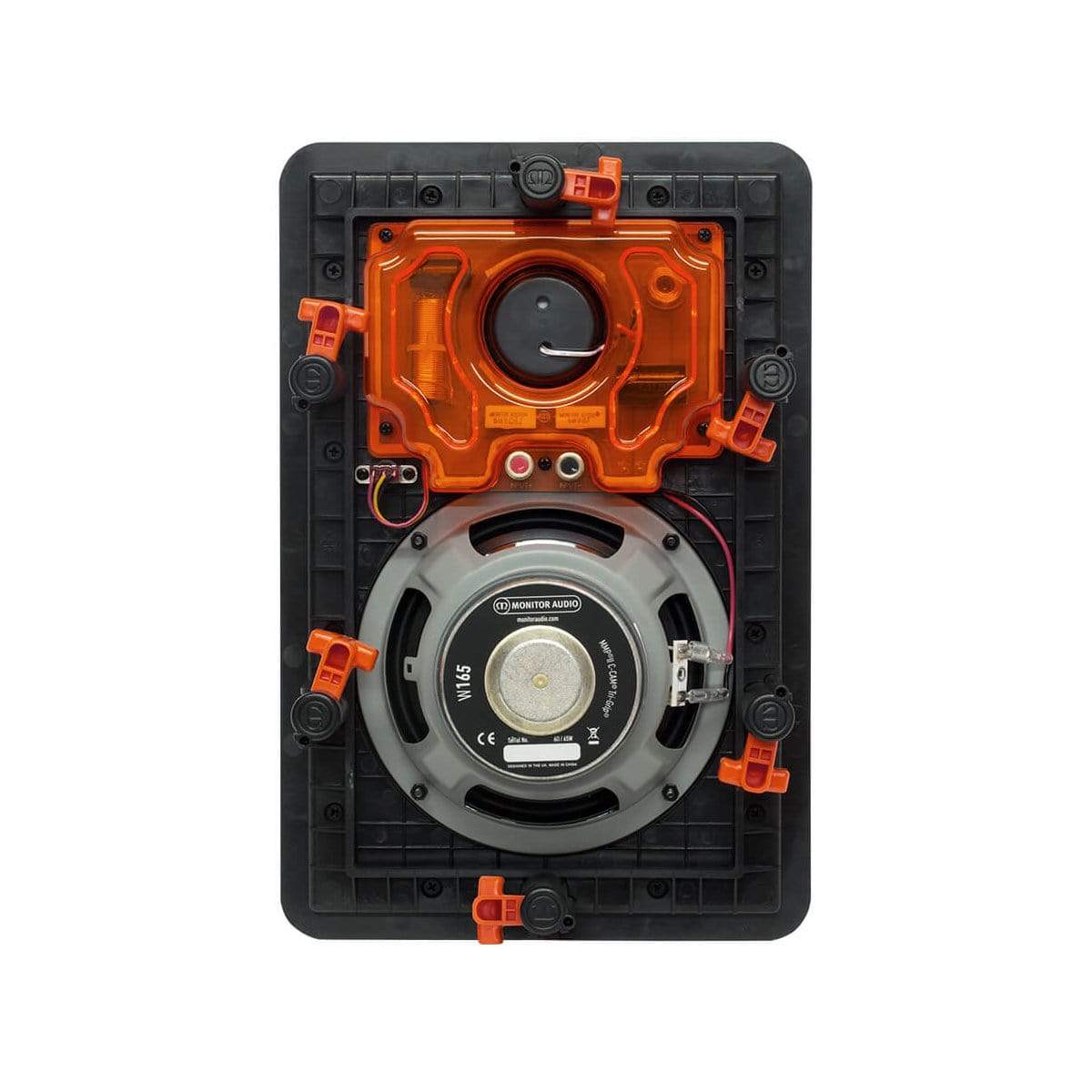

Monitor Audio W165 In-Wall Speaker

Model: W165 | Warranty: 5 Years | Product Type: In-Wall Speakers
Monitor Audio Monitor Audio W165 In-Wall Speaker In-Wall Speakers
Monitor Audio Monitor Audio W165 In-Wall Speaker In-Wall Speakers
Monitor Audio Monitor Audio W165 In-Wall Speaker In-Wall Speakers
Monitor Audio Monitor Audio W165 In-Wall Speaker In-Wall Speakers
Monitor Audio Monitor Audio W165 In-Wall Speaker In-Wall Speakers
  • Free ShippingFree Shipping Australia Wide
  • Secure ShoppingSecure Online Payment
  • $251.00
  • Save $28

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Free ShippingFree Shipping Australia Wide
  • Secure ShoppingSecure Online Payment

Key Information

  • Sensitivity (1W @ 1M):88.5 dB
  • Mounting Depth:92 mm
  • Power Handling (RMS):65 Ws
  • Nominal Impedance:6 ohms
  • Driver Size:6.5 "
  • Cut-Out Width:213 mm
  • Cut-Out Height:332 mm
  • Sold As: Single Speaker

Incorporating a 6 1/2" MMP II bass driver with Monitor Audio’s signature C-CAM Gold Dome tweeter to provide high performance sound, ease-of-drive, and wide frequency response and dispersion.

Optimum imaging and set-up are established via a pivoting tweeter and high-frequency (+3 dB / 0 dB /-3 dB) level adjustment.



Specifications

Frequency Response: 60 Hz – 25 kHz

Nominal Impedance: 6 ohms

Sensitivity (1W@1M): 88.5 dB

Maximum SPL: 107.4 dBA

Power Handling (RMS): 65 W

Recommended Amplifier Requirements: 20 – 65 W

Drive Unit Complement:

6 1/2" MMP II cone bass driver
1" C-CAM pivoting Gold Dome tweeter

Adjustment Controls: HF Level Switch (+3 dB / 0 dB / -3 dB)

Overall Diameter (Including Grille): 370 x 250 mm

Overall Depth (Including Grille): 96 mm

Mounting Depth: 92 mm

Cut-Out Hole Diameter: 332 x 213 mm

Fixing Type: 6 position Tri-Grip dog fixings

Construction Material: Mineral filled ABS, RoHS compliant

Weight: 2.21 kg

Pre-Construction Bracket : WB6 Pre-Construction Bracket (Purple)
