Monitor Audio CP-IW260X In-Wall Speaker

Key Information

• Sensitivity (1W @ 1M):89 dB
• Mounting Depth:96 mm
• Power Handling (RMS):150 Ws
• Nominal Impedance:6 ohms
• Driver Size:6.5 "
• Cut-Out Width:230 mm
• Cut-Out Height:880 mm
• Sold As: Individual Speaker

The luxury CP-IW260X and CP-IW460X in-wall speakers combine Monitor Audio’s latest drivers in compact three-way, five-driver configurations, built into closed-box designs to deliver optimum audio performance.

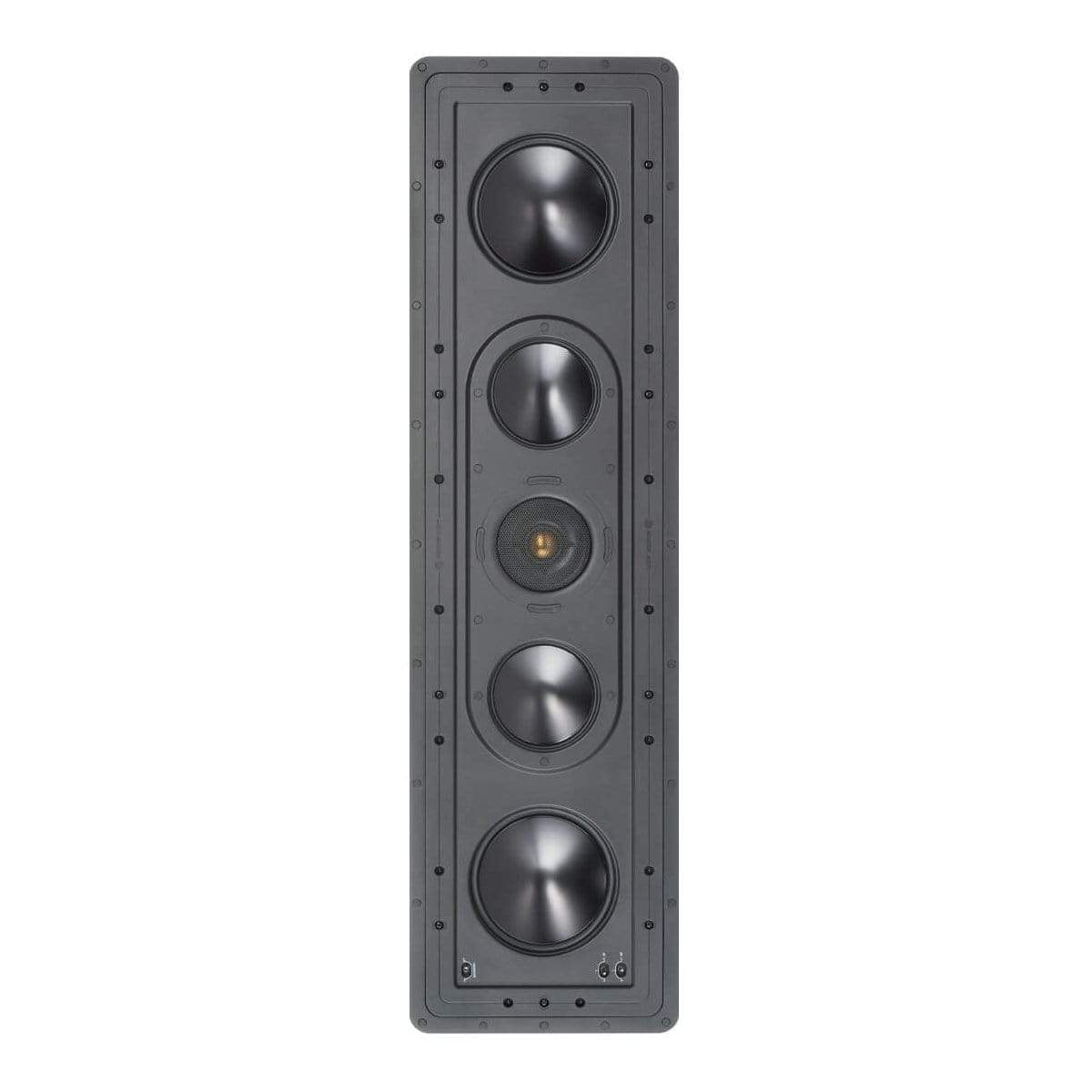

The CP-IW260X features Monitor Audio’s signature C-CAM(Ceramic-Coated Aluminium/Magnesium) cone material deployed in dual 6.5" bass drivers and twin 4" mids astride a Gold Dome tweeter in a symmetrical ‘B-M-T-M-B’ configuration. All within a cast polymer cabinet.

technology

• Dual 4" C-CAM mid-range drivers – featuring underhung voice coil

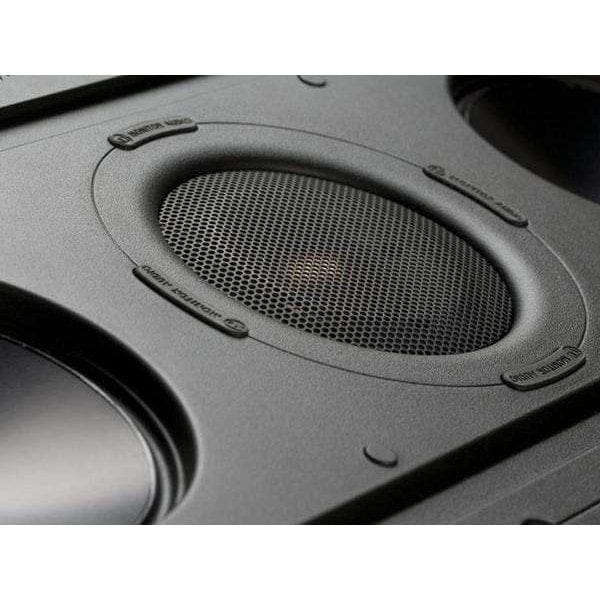

• 25 mm (1") C-CAM Gold Dome tweeter

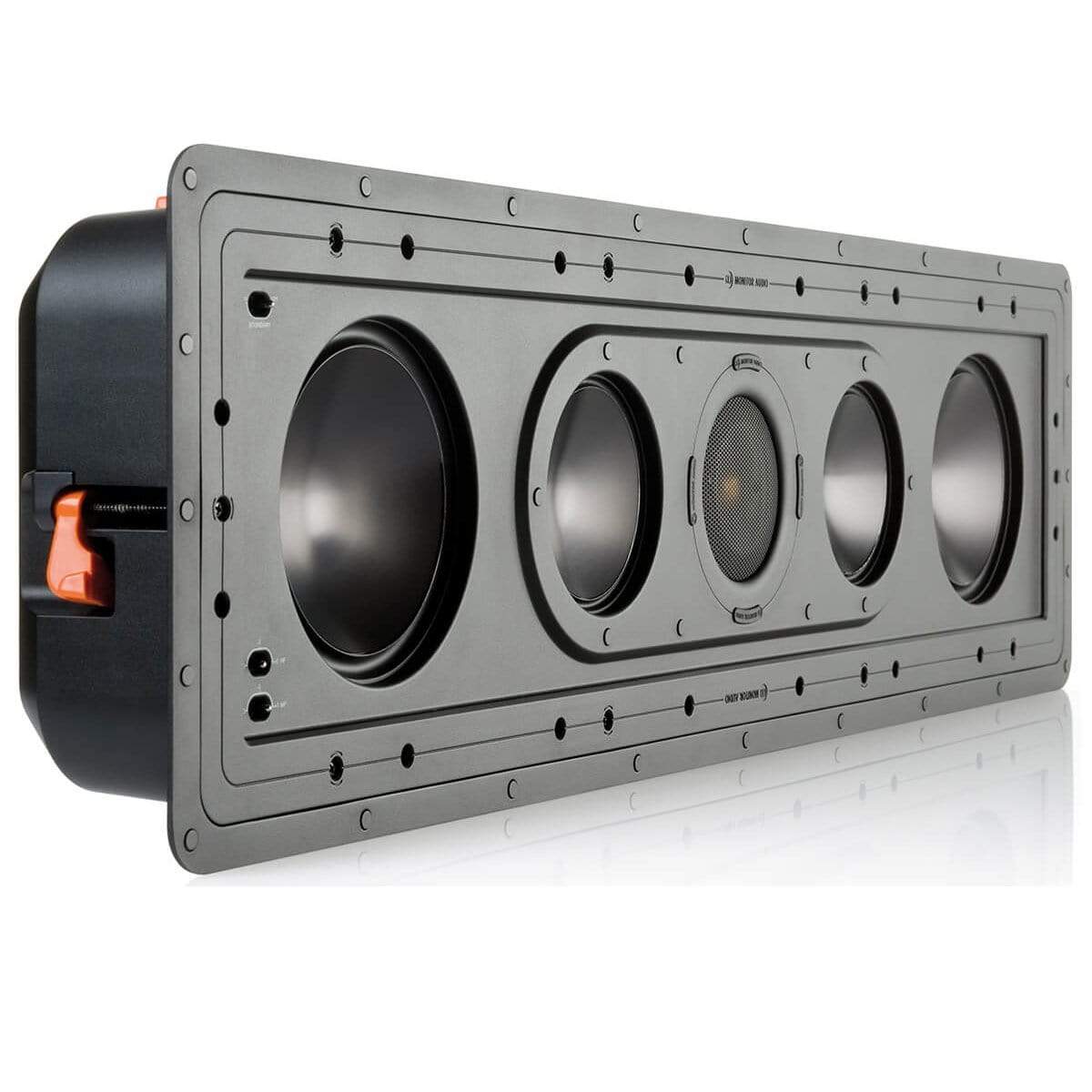

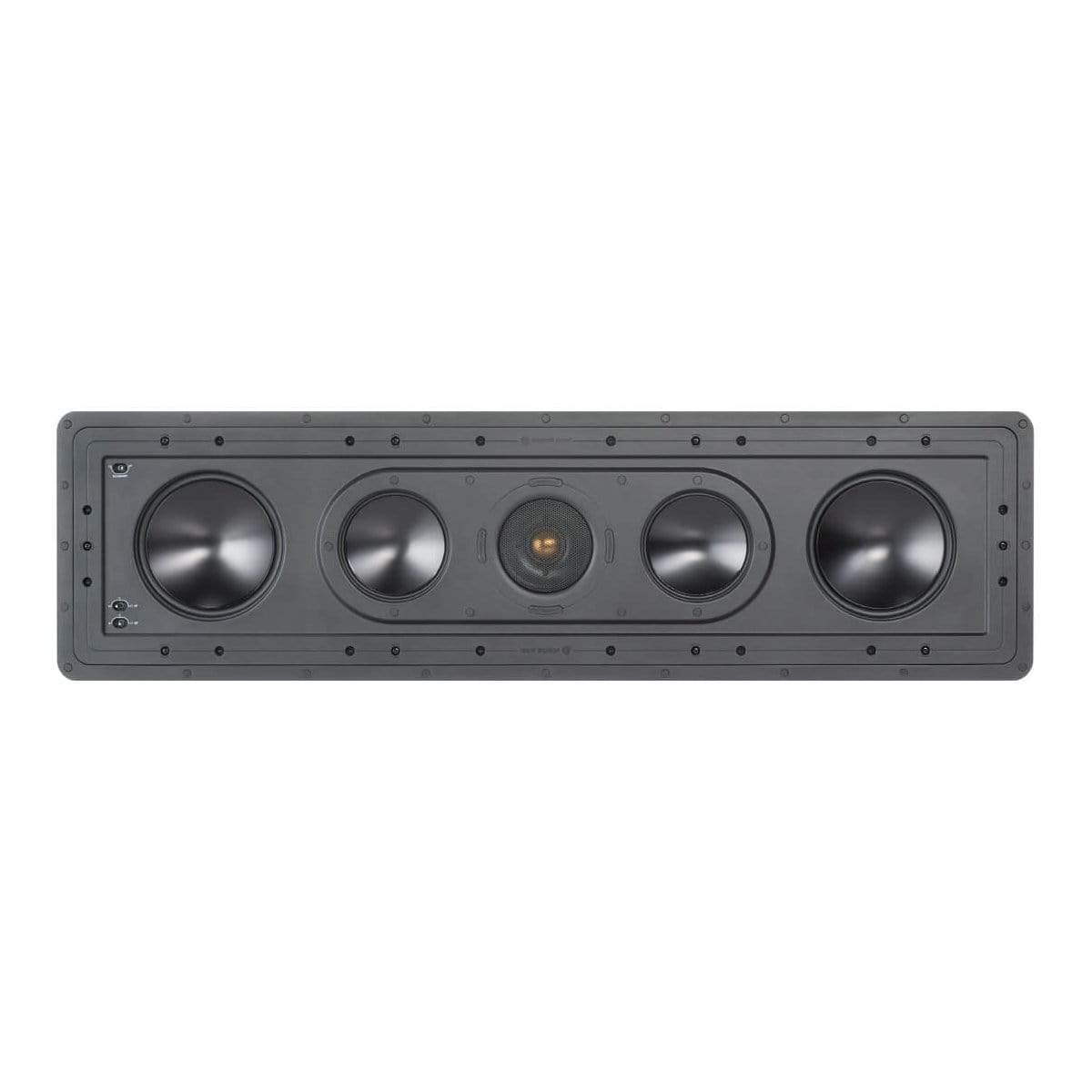

• Portrait or landscape orientation
• Integrated back-box to provide rear sound isolation resulting in ‘controlled performance’
• Cast Polymer enclosure – designed to provide high degree of rigidity and acoustic damping properties
• High overall efficiency and maximum SPL for powerful home theatre installations
• High power handling
• Three-way design in a symmetrical ‘B-M-T-M-B’ configuration
• High-end crossover design – featuring low loss inductors and audiophile grade Polypropylene capacitors

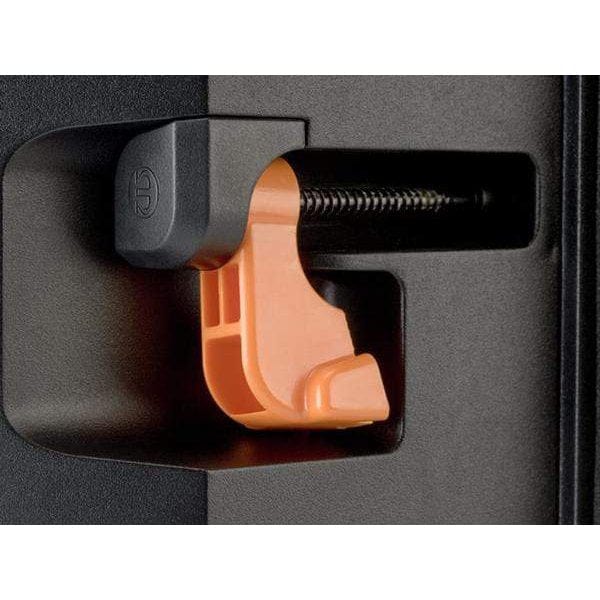

• Patented Tri-Grip fixing system is easier to install than conventional clamping systems providing three times the surface area and improved sealing
• Trim-less, low profile magnetic grilles provide attractive, discreet visual aspect and easy installation and servicing

Specifications

Frequency Response: 50 Hz - 30 kHz (-6 dB typical in room response)

Nominal Impedance: 6 ohms

Sensitivity (1W@1M): 89 dB

Maximum SPL: 113.8 dBA

Power Handling (RMS): 150 W

Recommended Amplifier Requirements: 60 - 150 W

Crossover Frequency:

L.F - 500 Hz @ 12 dB/Octave M.F -500 Hz @ 12 dB/Octave. 3 kHz @ 18 dB/Octave H.F - 3 kHz @ 18 dB/Octave

Drive Unit Complement:

2 x 6.5" C-CAM Bass drivers
2 x 4" C-CAM Mid-range drivers
1 x 25 mm (1") C-CAM Gold Dome tweeter

Adjustment Controls: Boundary Compensation (On/Off) MF Level: +1/0/-1 (dB) HF Level: +1/0/-1 (dB)

Overall Dimensions (H x W x D): 907 x 257 mm

Overall Depth (Including Grille): 102 mm

Cut-Out Dimensions: 880 x 230 mm

Mounting Depth: 96 mm

Fixing Type: 10 x Tri-Grip Dog leg fixings

Construction Material: Cast Polymer enclosure (RoHS2 Compliant)

Weight: 11.98 kg

Pre-Construction Bracket: WB12 Pre-Construction Bracket (Green)
