Regular price$499.00

Buy now, pay later with: Zip Interest Free Afterpay Interest Free Humm Interest Free
  • Free Delivery Australia Wide
  • Local Australian Warranty
  • 1800 100 998 For Assistance

We take pride in our customer service and shipping times. Most products will ship within 1-2 business days. If there are any potential delays with products in your order, we will contact you.

All orders now come with free shipping Australia Wide.

We use a variety of shipping methods depending on the types of items purchased and their delivery location. This helps to ensure your items arrive safely and in a timely manner. If you are on a tight deadline or would like to know an estimated delivery date for your order, contact our friendly staff and they will be happy to assist.

Key Information

  • Sensitivity (1W @ 1M): 86 dB
  • Power Handling (RMS): 50 W
  • Nominal Impedance: 8 ohms
  • Driver Size: 4"
  • Sold As: Single Speaker

The SoundFrame series consists of three sizes of speakers that complement any room. SoundFrame 3 In-Wall is the most compact speaker of the three and it can be used on its own, as a rear to complement the SoundFrame 1 In-Wall and SoundFrame 2 In-Wall, or with a sub-woofer.

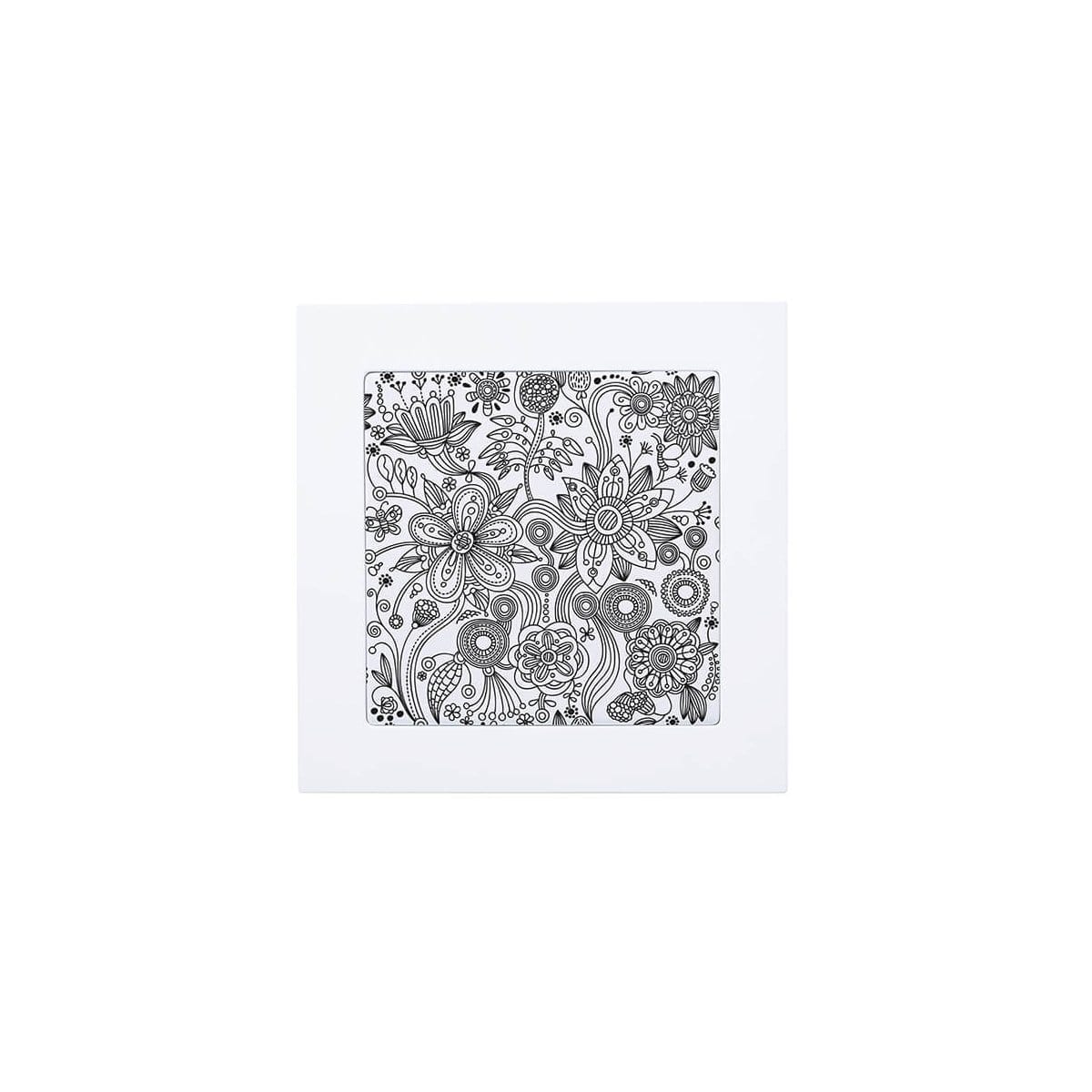

Individual images for the grille cloths can be selected from our library or bespoke speakers can be created using your own high resolution photographs. The cabinet frames are available in high gloss white and high gloss black lacquer.

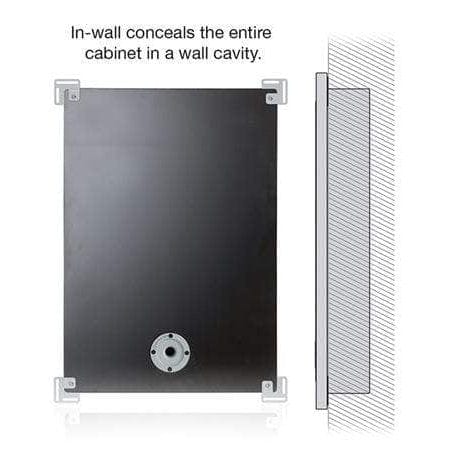

The SoundFrames can be fitted either in-wall or on-wall and with or without a frame using the Frameless grilles option.

The SoundFrame 3 In-Wall has a 2-way configuration with a pivoting 1-inch tweeter module and a 4-inch C-CAM driver.


  • Quick and easy installation.
  • Slender 87 mm (3.5") cabinet depth.
  • Choice of high gloss white or black lacquer frames.
  • SoundFrame 3: 2-way configuration: a pivoting 1 inch tweeter module with a 4-inch C-CAM driver.
  • High frequency attenuation +- 3 dB.
  • Ultra-discreet on-wall/in-wall AV/audio system, suitable for any interior.


Frequency Response: 75 Hz — 35 kHz

Sensitivity (1W@1M): 86 dB

System Configuration: 2-Way

Drive Unit Complement: 1 x 4" C-CAM mid-range driver

1 x 1" pivoting Gold Dome tweeter

Power Handling (RMS): 50 W

Maximum SPL: 102.5 dBA

Recommended Amplifier Requirements: 25 — 50 W

Bass Alignment: Ported Box

Nominal Impedance: 8 ohms

Crossover Frequency: 3.2 kHz

Dimensions (Including Frame (H x W x D)): 301.5 x 301.5 x 77.5 mm (117/8 x 117/8 x 31/16")

Cut-Out Dimensions: 251 x 251 x 59.5 mm (97/8 x 97/8 x 25/16")

Depth From Wall: 18 mm (3/4")

Weight (packaged): 3 kg (6.6 lbs)

Sold As: Single Unit
