Monitor Audio  /  In-Wall Speakers

SF1XXX-IW-SPK-BLK

$999.00
/
Buy now, pay later with: Zip Interest Free Afterpay Interest Free Humm Interest Free
  • Free Delivery Australia Wide
  • Local Australian Warranty
  • 1800 100 998 For Assistance

We take pride in our customer service and shipping times. Most products will ship within 1-2 business days. If there are any potential delays with products in your order, we will contact you.

All orders now come with free shipping Australia Wide.

We use a variety of shipping methods depending on the types of items purchased and their delivery location. This helps to ensure your items arrive safely and in a timely manner. If you are on a tight deadline or would like to know an estimated delivery date for your order, contact our friendly staff and they will be happy to assist.

Orders will usually take between 1-6 days for delivery, depending on your location and shipping method.

If your order has not been delivered within 7 days of shipping we recommend you reach out to us directly to investigate with Australia Post / Courier.

If for any reason you haven't followed up with us within 30 days of shipping, we'll be unable to guarantee your delivery of your item unless it has been returned to sender.

Key Information

  • Sensitivity (1W @ 1M): 86 dB
  • Power Handling (RMS): 100 W
  • Nominal Impedance: 8 ohms
  • Driver Size: 6 1/2"
  • Sold As: Single Speaker


The SoundFrame series consists of three sizes of speakers that complement any room. SoundFrame 1 In-Wall adopts the aspect of a typical portrait picture frame and is designed for music and film audio in a front left/right and surround configuration.

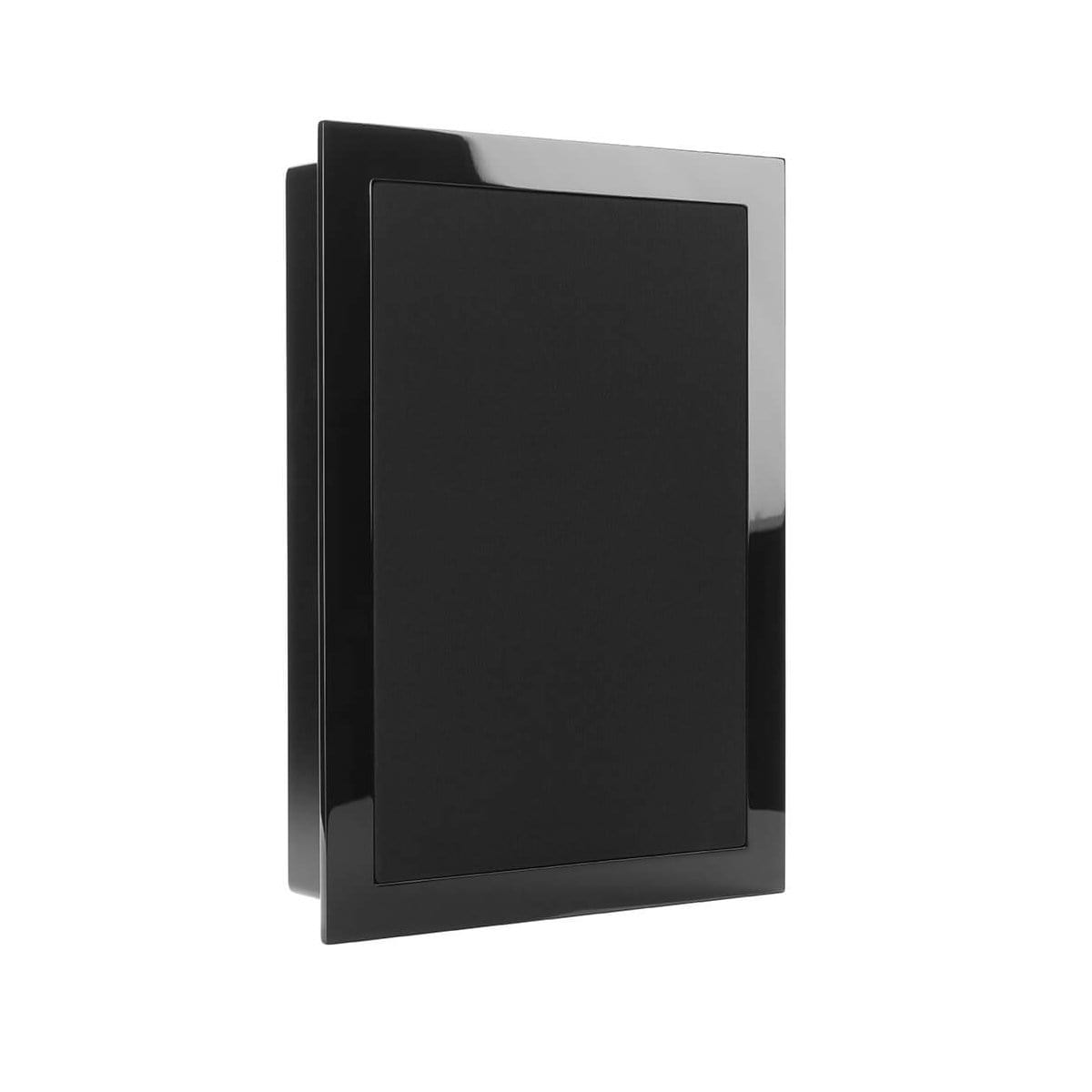

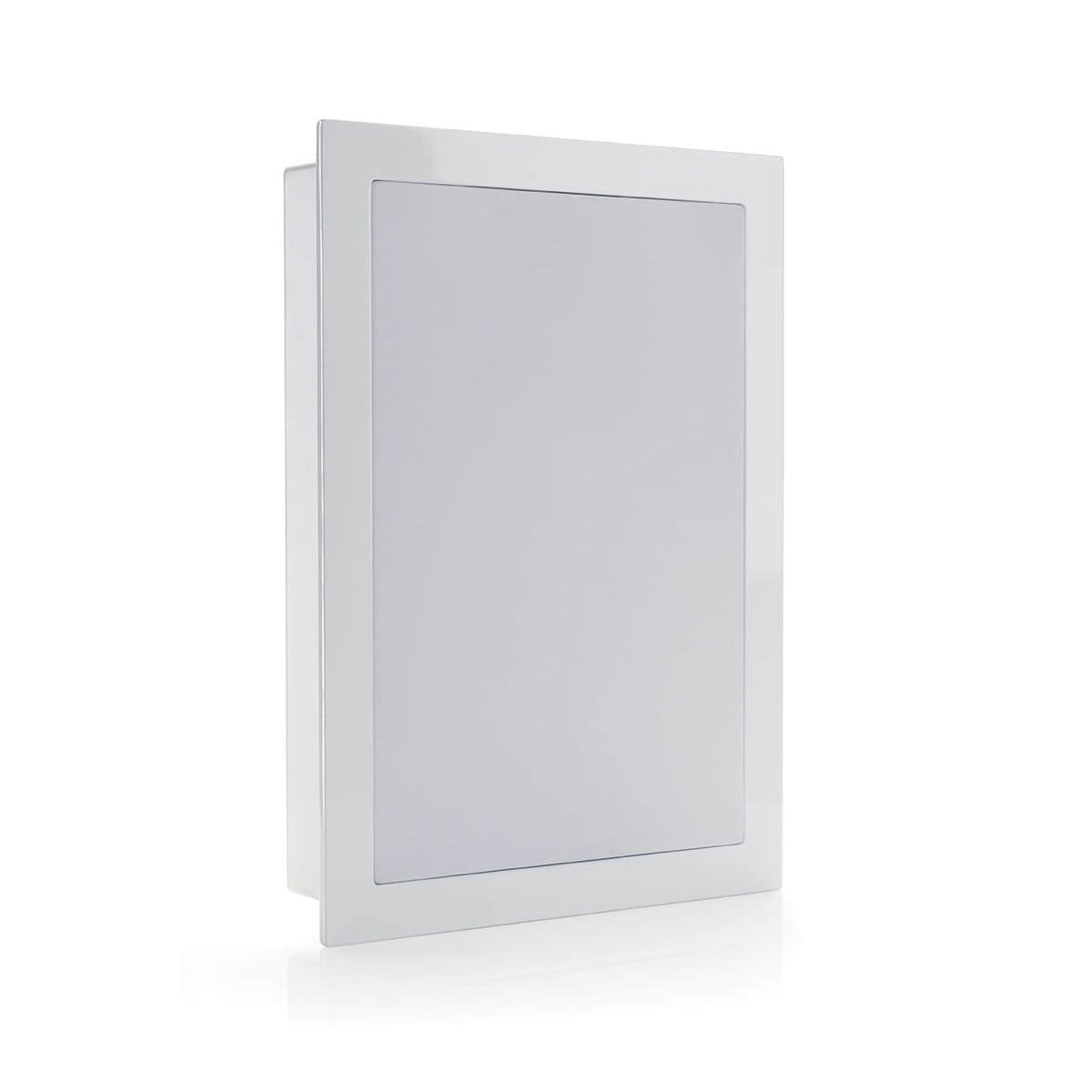

Individual images for the grille cloths can be selected from our library or bespoke speakers can be created using your own high resolution photographs. The cabinet frames are available in high gloss white and high gloss black lacquer.

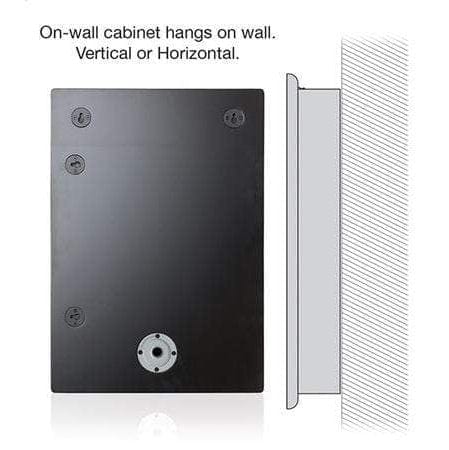

The SoundFrames can be fitted either in-wall or on-wall and with or without a frame using the Frameless grilles option.

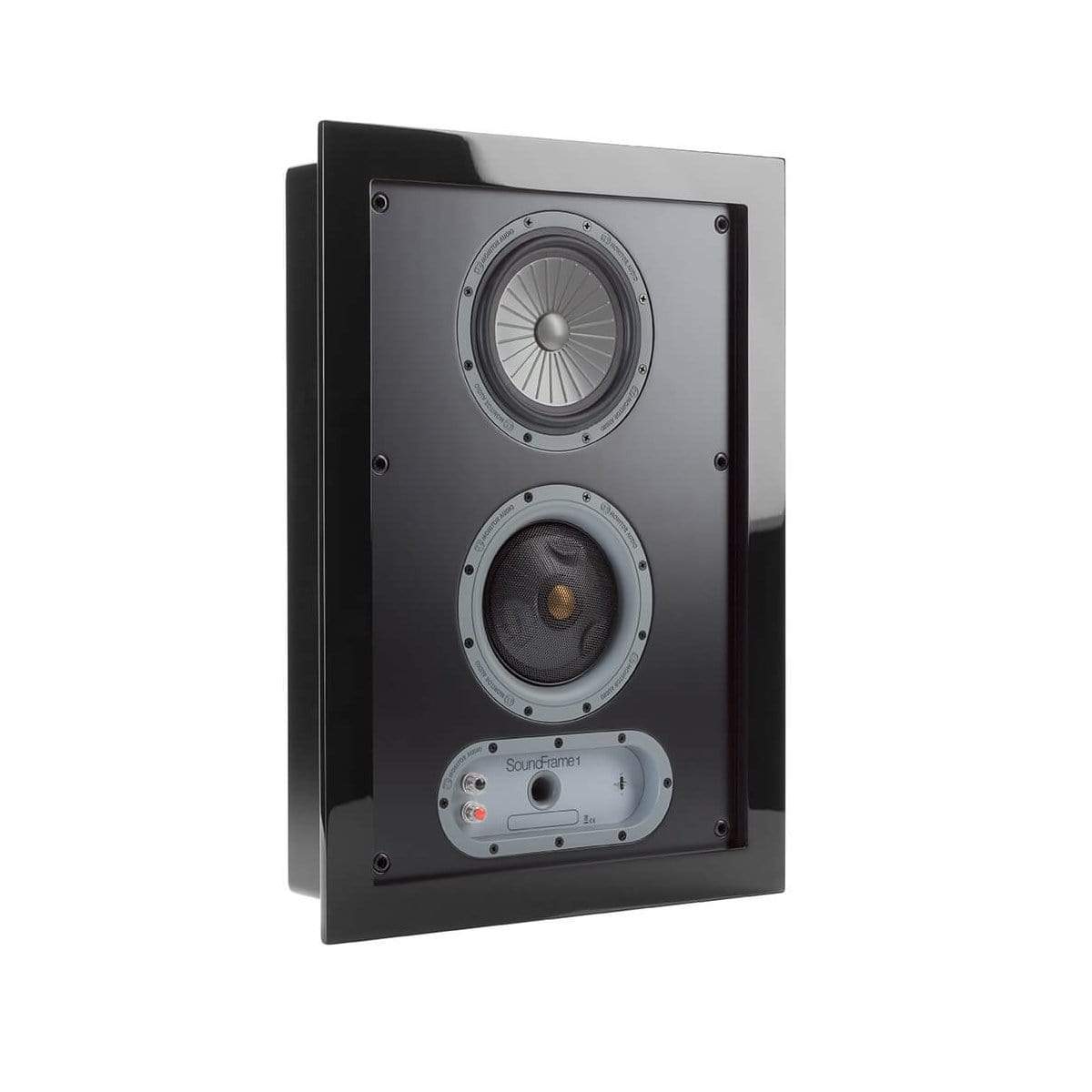

The SoundFrame 1 In-Wall utilises a true 3-way full-range driver configuration featuring a pivoting IDC 4-inch mid-range/1-inch tweeter module and a 6.5-inch C-CAM bass driver.

TECHNOLOGY

  • Quick and easy installation.
  • Slender 87 mm (3.5") cabinet depth.
  • Choice of high gloss white or black lacquer frames.
  • SoundFrame 1 and SoundFrame 2: full range true 3-way configuration: pivoting IDC 100 mm mid-range/25 mm tweeter module, 6.5-inch C-CAM bass driver with RSTcone for a super-fast life-like response.
  • High frequency attenuation +- 3 dB.
  • Ultra-discreet on-wall/in-wall AV/audio system, suitable for any interior.

SPECIFICATIONS

Frequency Response: 55 Hz — 35 kHz

Sensitivity (1W@1M): 86 dB

Nominal Impedance: 8 ohms

Power Handling (RMS): 100 W

Maximum SPL: 106 dBA

Recommended Amplifier Requirements: 25 — 100 W

Bass Alignment: Sealed Box

Crossover Frequency: 550 Hz & 3.3 kHz

System Configuration: 3-Way

Drive Unit Complement: 1 x 165 mm (6.5 inches) C-CAM mid/bass driver with RST
1 x 102 mm (4 inches) IDC mid-range driver with dual concentric 25 mm (1 inches) C-CAM Gold Dome tweeter

Dimensions (Including Frame (H x W x D)): 552 x 402 x 87.5 mm (213/4 x 1513/16 x 37/16")

Cut-Out Dimensions: 500 x 350 x 75 mm (1911/16 x 133/4 x 215/16")

Depth From Wall: 19 mm (3/4")

Weight (packaged): 7.53 kg (16.6 lbs)

Sold As: Single Unit
