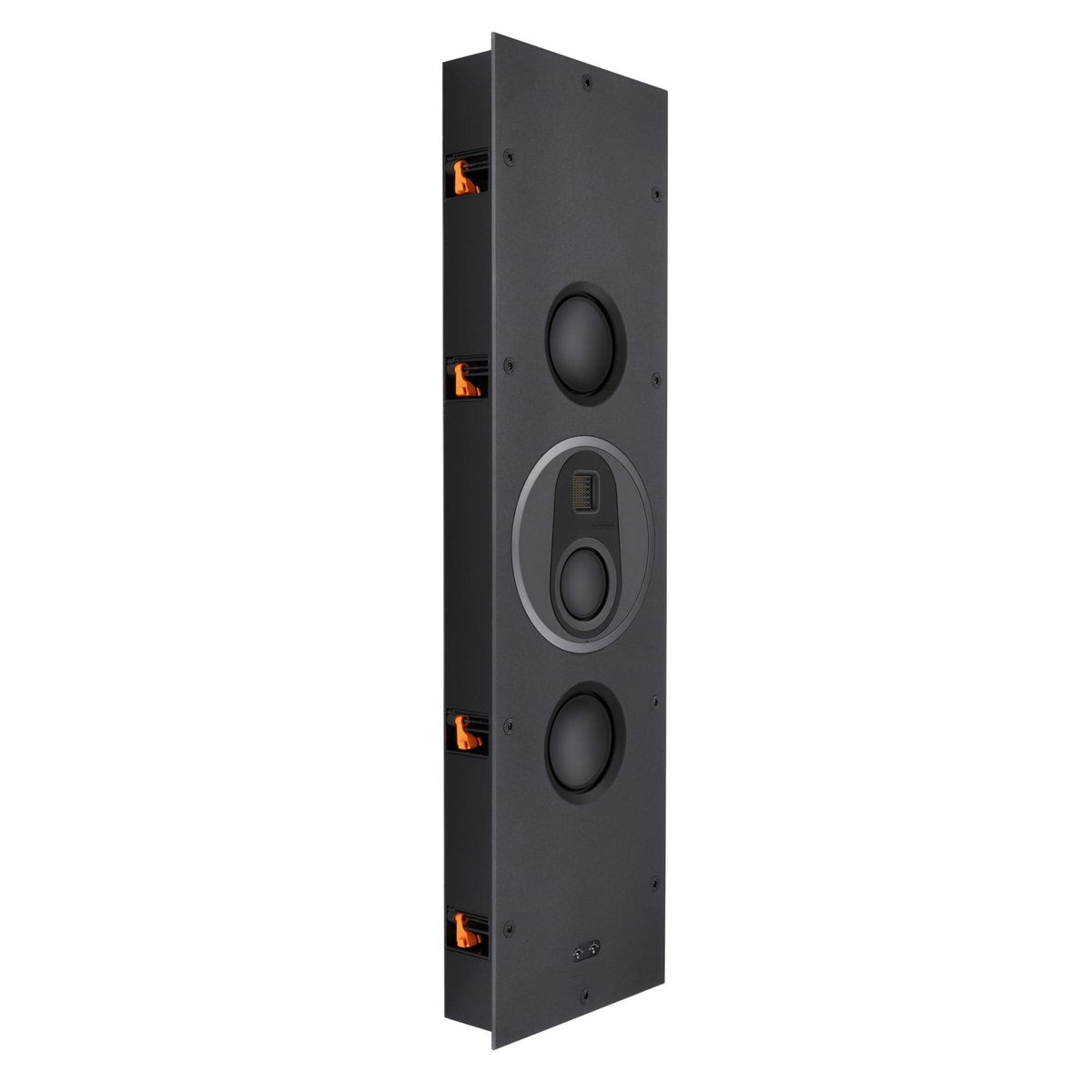

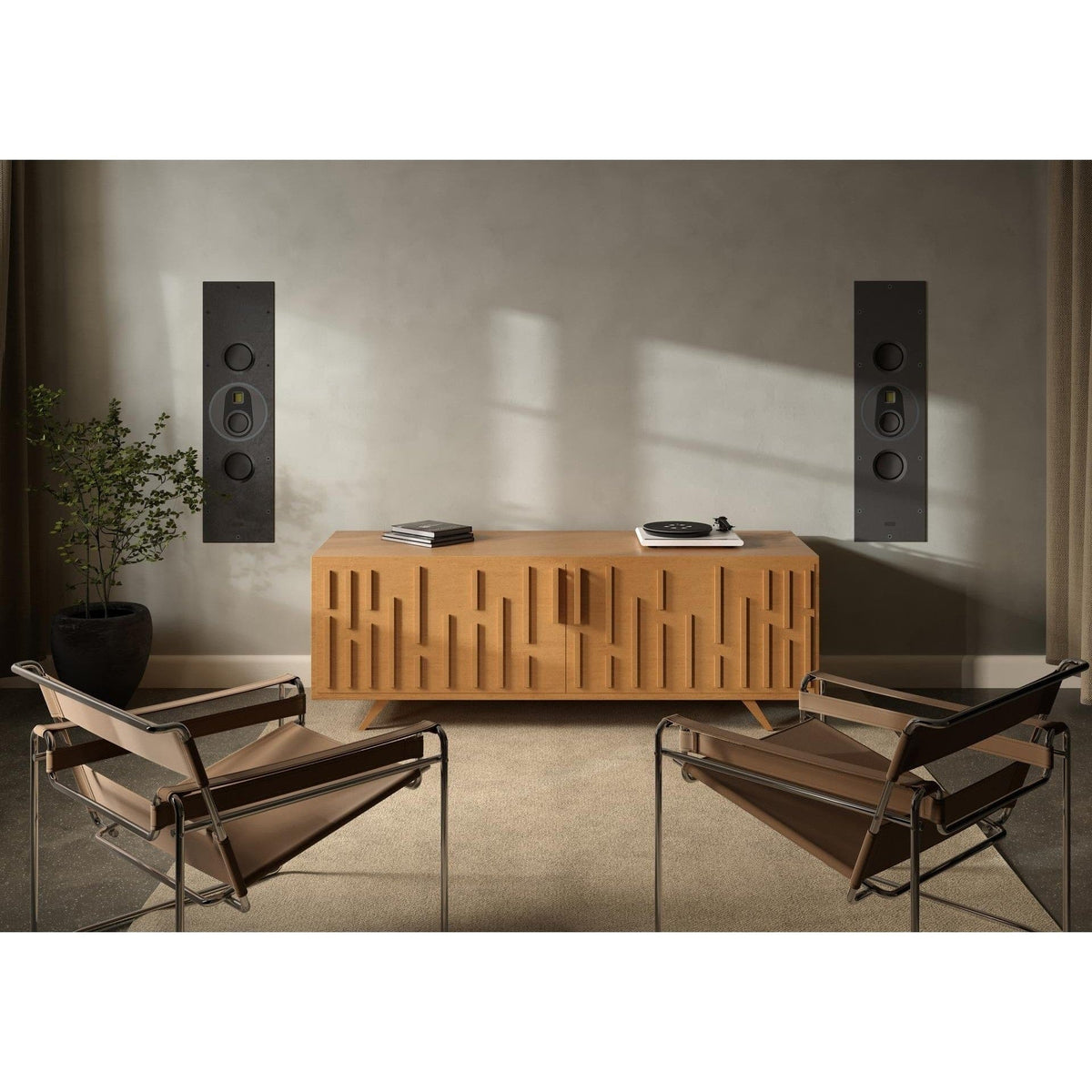

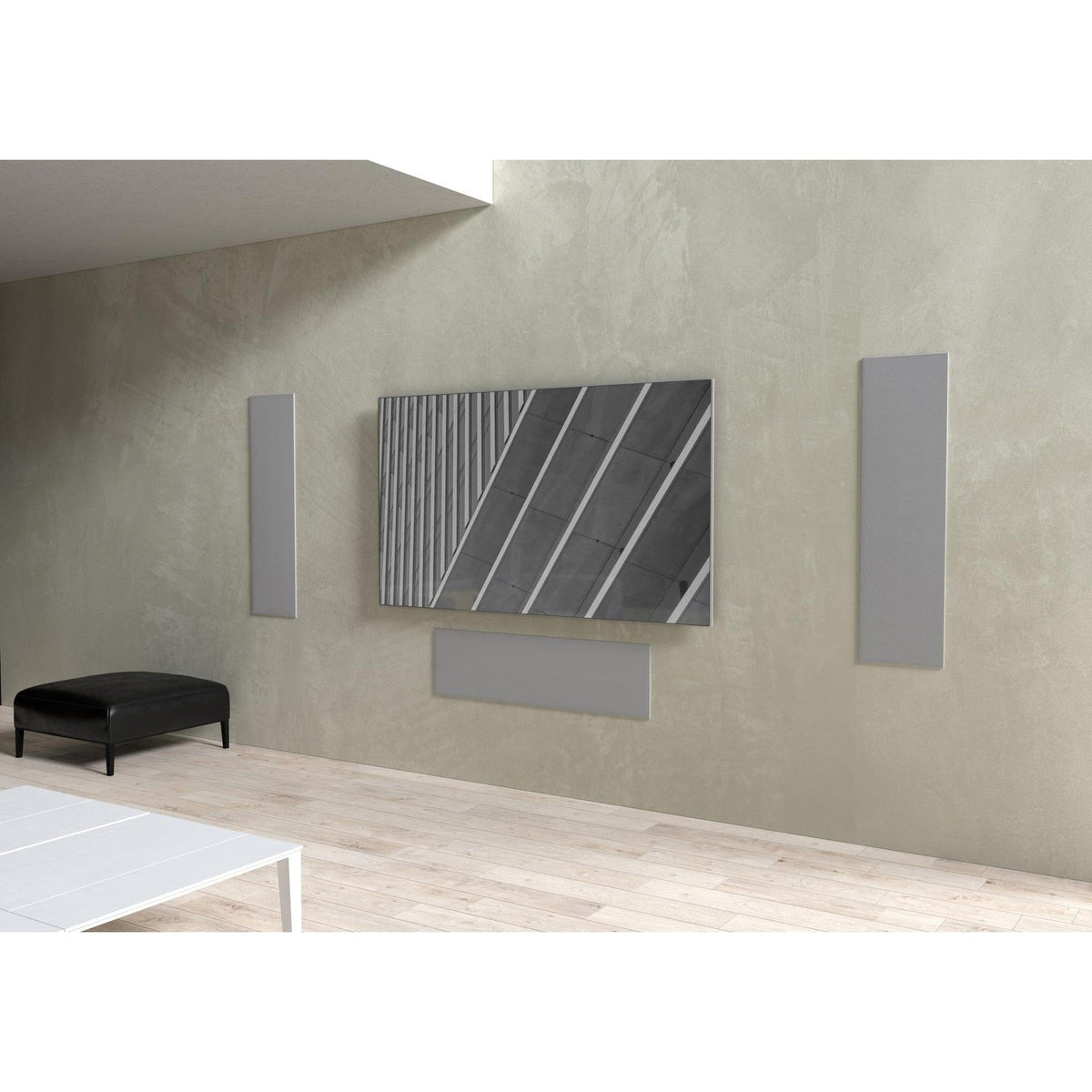

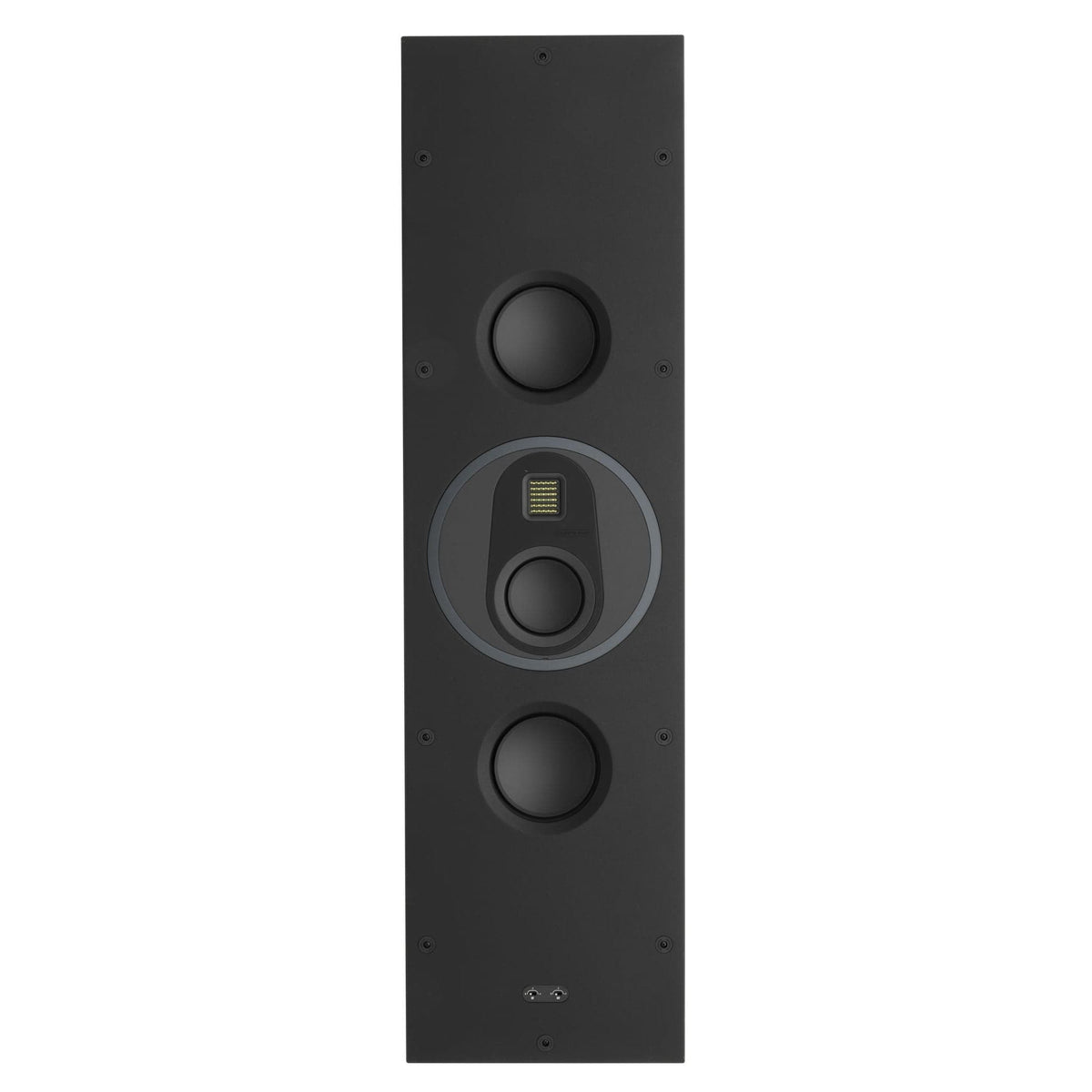

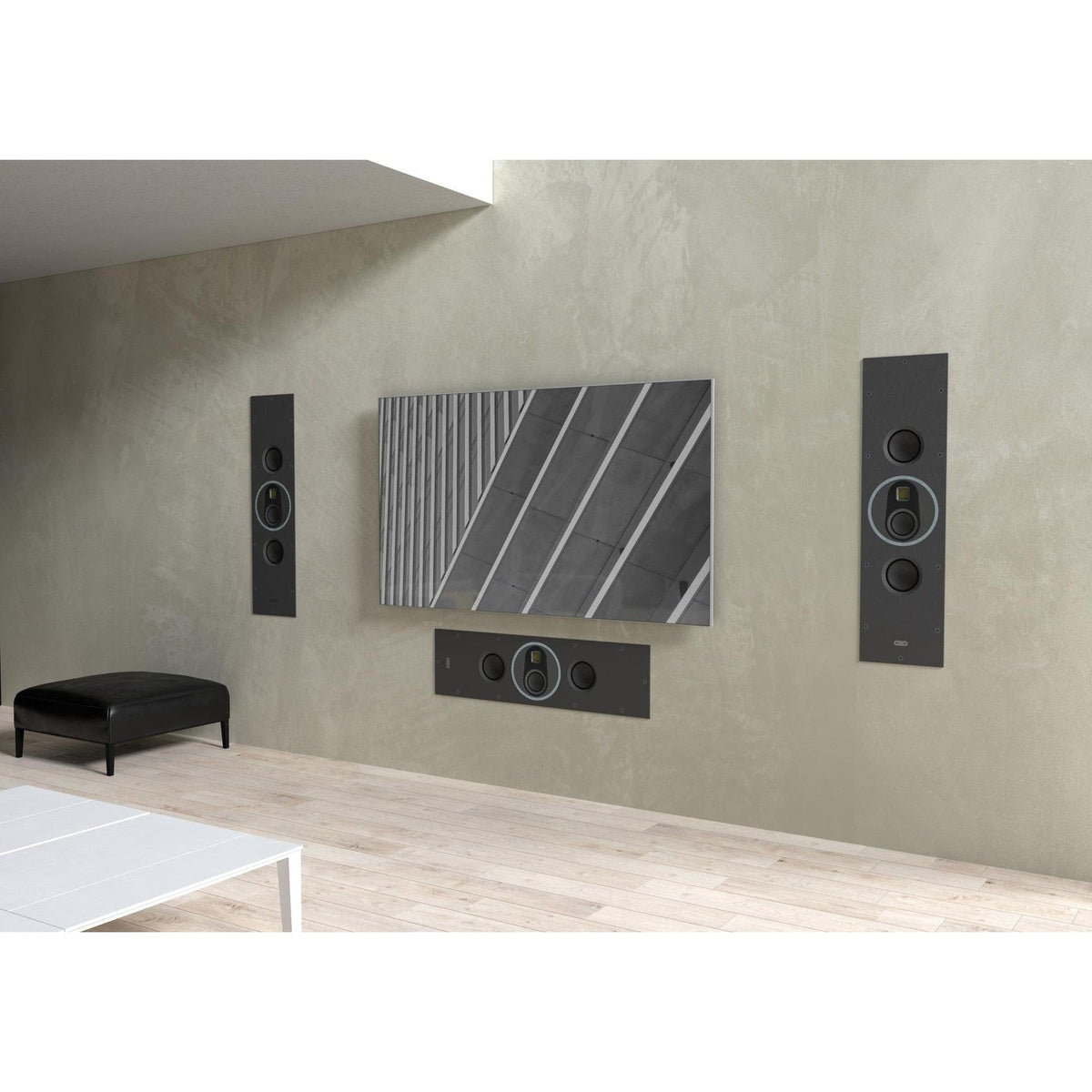

Platinum In-Wall 3G is Monitor Audio’s flagship high-performance, architectural, in-wall speaker. It is designed for use in high-end audio and movie systems, where accurate, clear and lifelike sound is required. With the minimum of room intrusion but with maximum scale and sonic impact. Platinum In-Wall 3G can be installed either vertically or horizontally, which means it can be used on any channel within a system and is ideal for LCR applications and for seamless tonal accuracy within a theatre system.

Key Features

• 1 x MPD III high-frequency transducer for a larger, clearer, and more lifelike sound
• 1 x 4” RDT III mid-bass driver for incredible levels of clarity and scale
• 2 x 6” RDT III bass drivers for exceptional weight and depth
• Patented 'DCF' (Dynamic Coupling Filter) mechanism for more natural sound
• Bespoke speaker terminals and footings
• Underhung, edge-wound voice coils: greater driver efficiency and lifelike dynamics, less distortion
• Rigid cabinet construction made from 25 mm MDF with steel back
• Extensive internal bracing using thick MDF cross bracing techniques

Specifications:

General

• Recommended Power 150-600 watts
• Impedance 4 Ω
• Frequency Response, Free-Field (-6dB) 41 Hz – >60 kHz 41 Hz – 60 kHz
• Frequency Response, In-Room (-6dB) 27 Hz – >60 kHz
• Sensitivity 88.00 dB

Drivers

• MPD III tweeter
• 2 x 6" RDT III bass drivers
• 1 x 4" RDT III mid-range driver
• Bass Alignment Sealed

External Dimensions (Including Grille and Terminals)

Height 120.7 cm Width 33.2 cm Depth 10.6 cm Weight 27.7 kg

Cut-Out Dimensions

Height 117.5 cm Width 30.0 cm Depth 97.5 cm

Crossover Frequency

LF/MF: 825 hz MF/HF: 3 kHz
