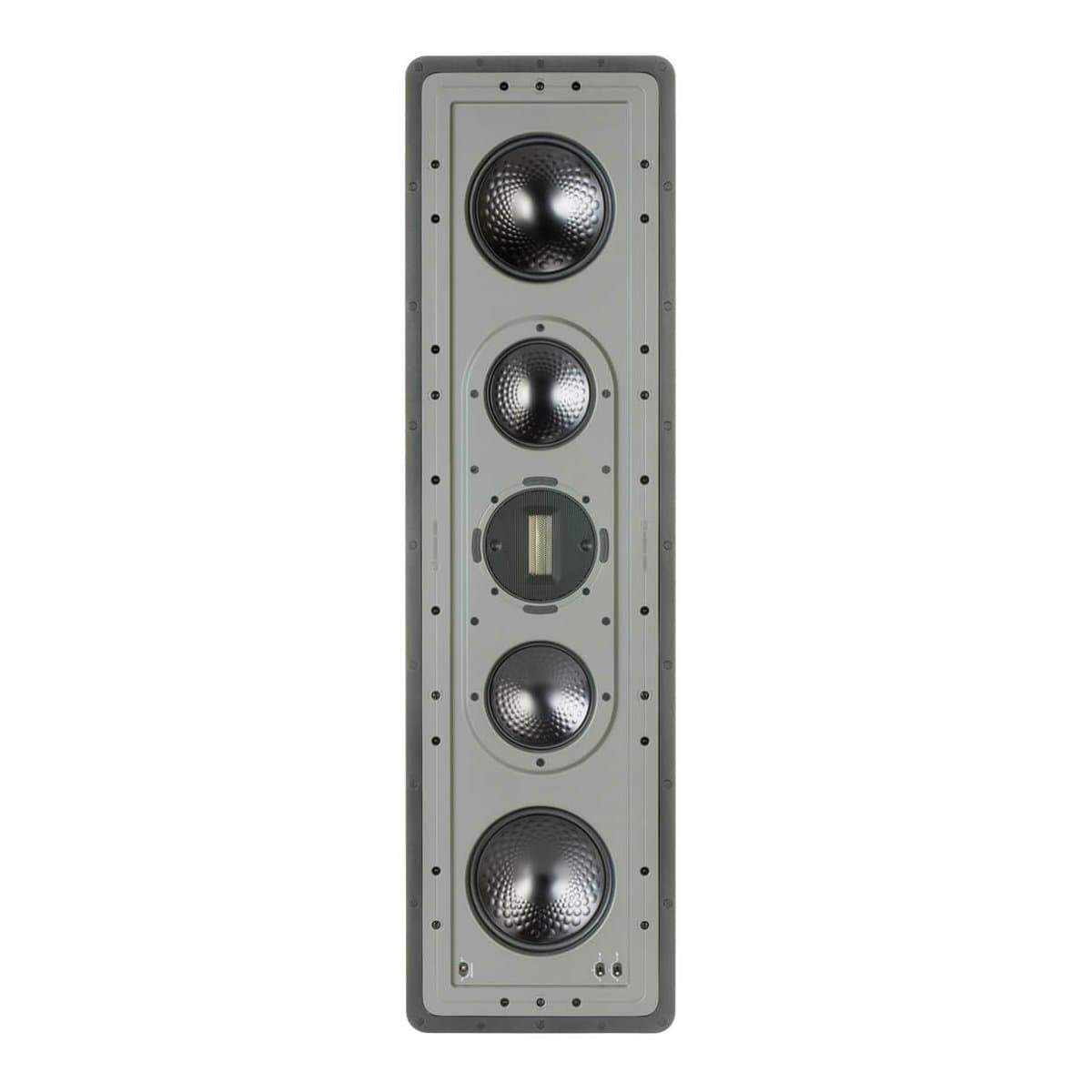

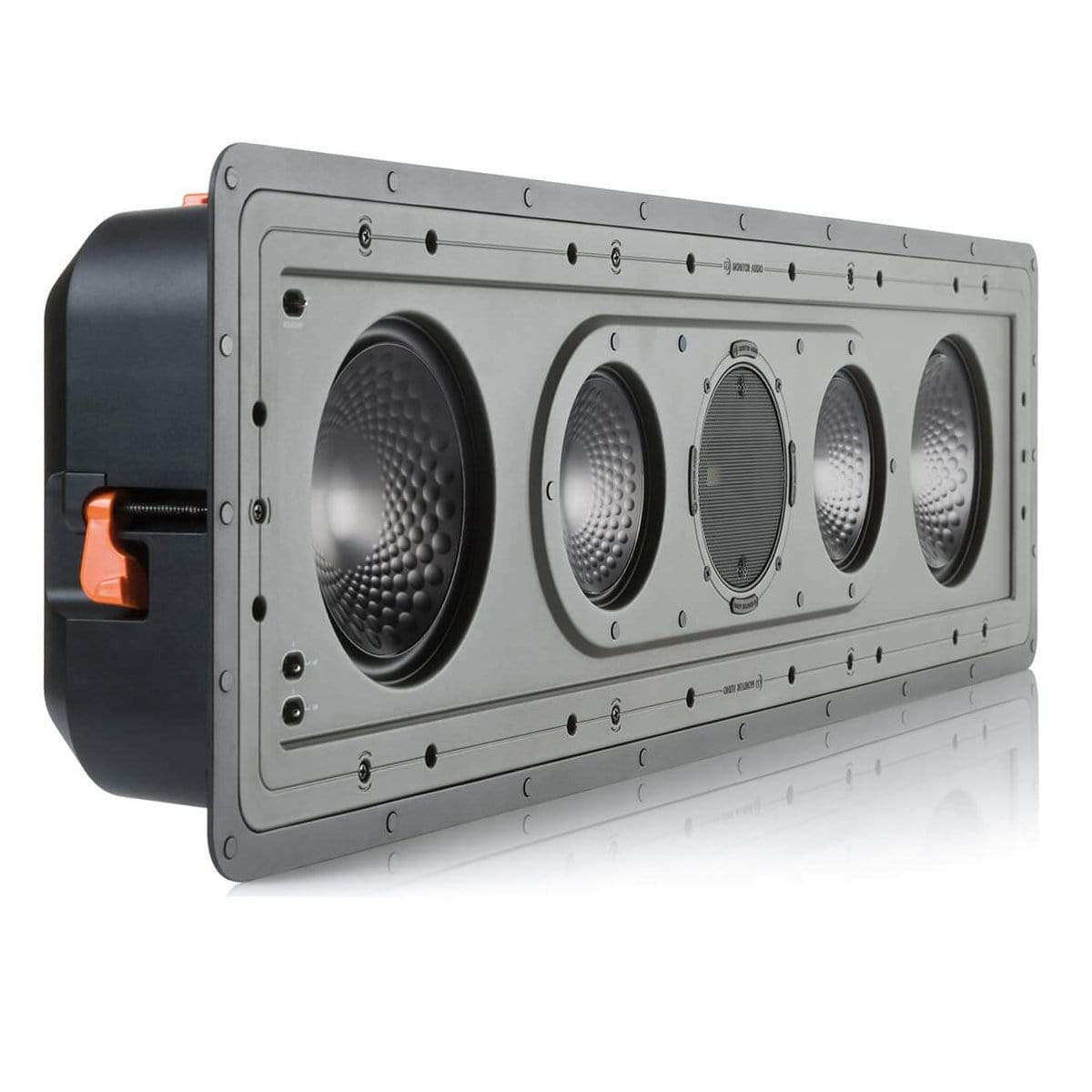

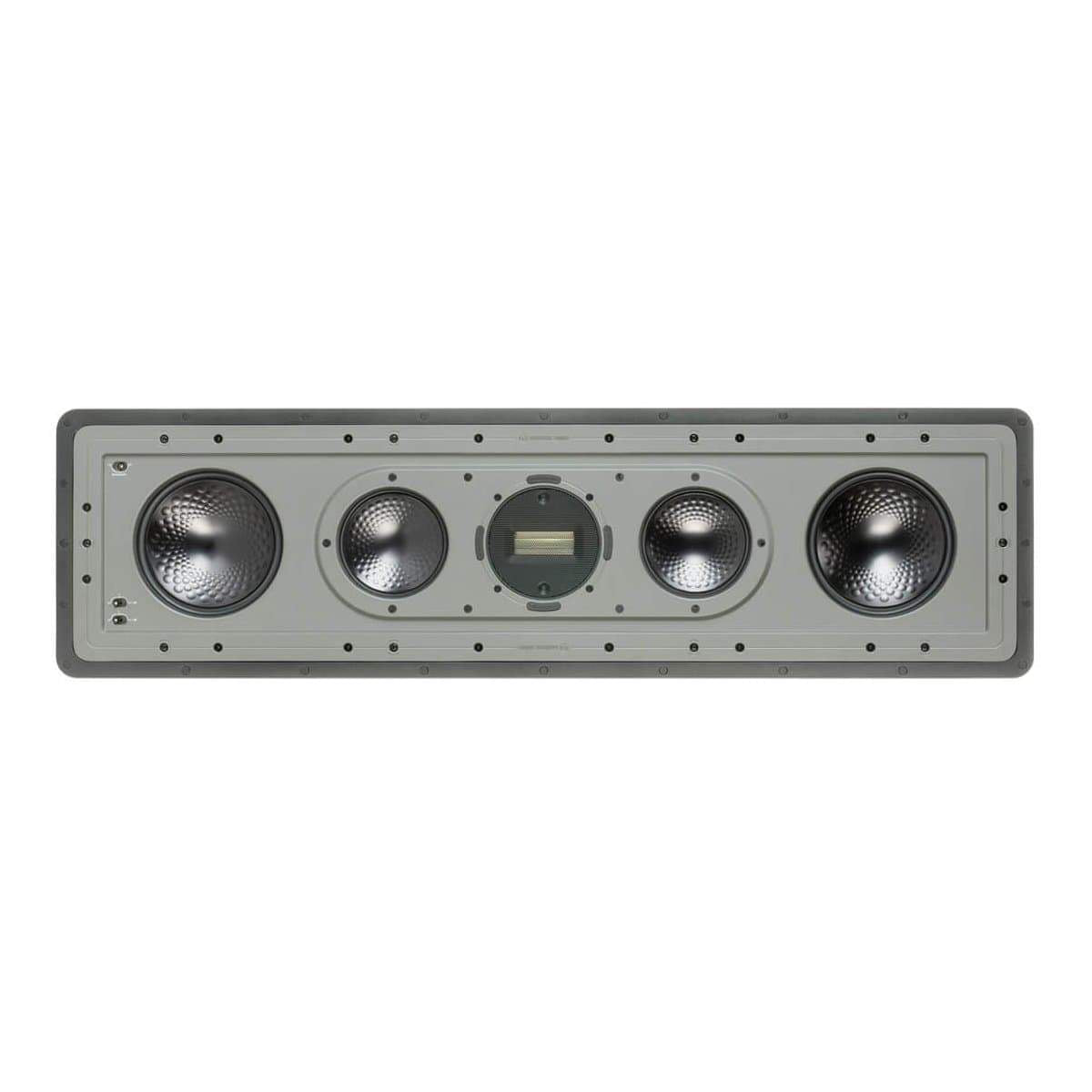

Monitor Audio CP-IW460X In-Wall Speaker

Model: CP-IW460X | Warranty: 5 Years | Product Type: In-Wall Speakers
Monitor Audio Monitor Audio CP-IW460X In-Wall Speaker In-Wall Speakers
Monitor Audio Monitor Audio CP-IW460X In-Wall Speaker In-Wall Speakers
Monitor Audio Monitor Audio CP-IW460X In-Wall Speaker In-Wall Speakers
Monitor Audio Monitor Audio CP-IW460X In-Wall Speaker In-Wall Speakers
Monitor Audio Monitor Audio CP-IW460X In-Wall Speaker In-Wall Speakers
Monitor Audio Monitor Audio CP-IW460X In-Wall Speaker In-Wall Speakers
  • Free ShippingFree Shipping Australia Wide
  • Secure ShoppingSecure Online Payment
  • $2,276.00
  • Save $253

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Free ShippingFree Shipping Australia Wide
  • Secure ShoppingSecure Online Payment

Key Information

  • Sensitivity (1W @ 1M):89 dB
  • Mounting Depth:96 mm
  • Power Handling (RMS):150 W
  • Nominal Impedance:6 ohms
  • Driver Size:6.5 "
  • Cut-Out Width:230 mm
  • Cut-Out Height: 880mm
  • Sold As: Single Speaker

The luxury CP-IW260X and CP-IW460X in-wall speakers combine Monitor Audio’s latest drivers in compact three-way, five-driver configurations, built into closed-box designs to deliver optimum audio performance.

The CP-IW460X features Monitor Audio’s signature C-CAM (Ceramic-Coated Aluminium/Magnesium) cone material with RST (Rigid Surface Technology) deployed in dual 6.5" bass drivers and twin 4" mids astride a high frequency, air motion ribbon tweeter in a symmetrical ‘B-M-T-M-B’ configuration. All within a cast polymer cabinet with die-cast Aluminium baffle.

Monitor Audio CP-IW460X In-Wall Speaker



Technology

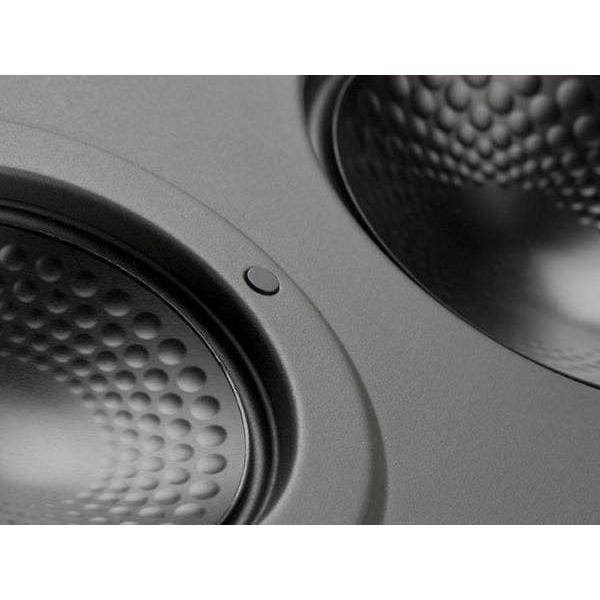

  • Dual 6.5” C-CAM bass drivers featuring RST ‘dimpled’ cone technology
  • Die-cast alloy bass driver chassis provides rigidity; results in punch bass and clean mid-range performance due to reduced transfer of vibrations
  • Dual 4” C-CAM mid-range drivers featuring RST ‘dimpled’ cone and underhung voice coil technologies

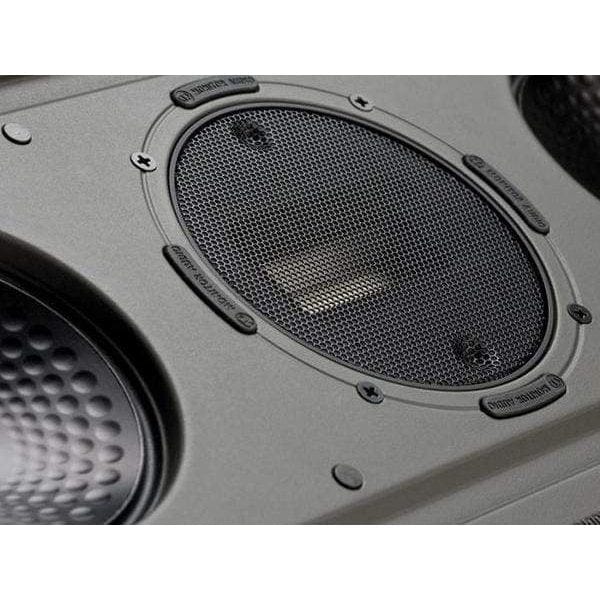

  • C-CAM Ribbon High Frequency transducer
  • Innovative HF rotating system to facilitate portrait or landscape orientation
  • Integrated back-box to provide rear sound isolation resulting in ‘controlled performance’
  • Cast Polymer enclosure – designed to provide high degree of rigidity and acoustic damping properties
  • High overall efficiency and maximum SPL for powerful home theatre installations
  • High power handling
  • Three-way design in a symmetrical ‘B-M-T-M-B’ configuration
  • High-end crossover design – featuring low loss inductors and audiophile grade Polypropylene capacitors

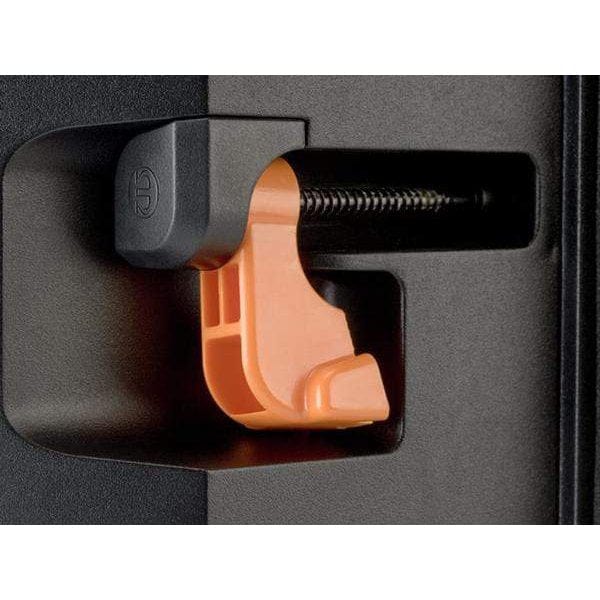

  • Patented Tri-Grip fixing system is easier to install than conventional clamping systems providing three times the surface area and improved sealing
  • Trim-less, low profile magnetic grilles provide attractive, discreet visual aspect and easy installation and servicing

Specifications

Frequency Response: 50 Hz - 60 kHz (-6 dB typical in room response)

Nominal Impedance: 6 ohms

Sensitivity (1W@1M): 89 dB

Maximum SPL: 113.8 dBA

Power Handling (RMS): 150 W

Recommended Amplifier Requirements: 60 - 150 W

Crossover Frequency:

L.F - 500 Hz @ 12 dB/Octave M.F -500 Hz @ 12 dB/Octave. 3 kHz @ 18 dB/Octave H.F - 3 kHz @ 18 dB/Octave

Drive Unit Complement:

2 x 6.5” C-CAM Bass drivers with RST cone technology
2 x 4” C-CAM Mid-range drivers with RST cone technology
1 x C-CAM H.F ribbon transducer

Adjustment Controls:

Boundary Compensation (On/Off)
MF Level: +1/0/-1 (dB)
HF Level: +1/0/-1 (dB)

Overall Dimensions (H x W x D): 907 x 257 mm

Overall Depth (Including Grille): 102 mm

Cut-Out Dimensions: 880 x 230 mm

Mounting Depth: 96 mm

Fixing Type: 10 x Tri-Grip Dog leg fixings

Construction Material: Cast Polymer enclosure with die-cast Aluminium baffle (RoHS2 Compliant)

Weight: 12.98 kg

Pre-Construction Bracket : WB12 Pre-Construction Bracket (Green)
