Key Features
  • Driver | 12"
  • Amplifier | 325 watts RMS (820+ watts peak)
  • Freq. Response | 17-260 Hz ±3 dB



  • Dimensions HxWxD (w/ grille): 479mm x 380mm x 509mm
  • Dimensions HxWxD (without grille): 479mm x 380mm x 488mm

    Overview

    Room-shaking output well below the threshold of audibility, with pinpoint control and accuracy, the PB-1000 Pro obliterates performance expectations for subwoofers anywhere near the price. A reimagined 12-inch high-excursion SVS driver is married to a reference 325+ watts RMS, 820+ watts peak power Sledge amplifier with fully discreet MOSFET output for stunningly immersive cinematic bass. PB-1000 Pro is optimized with a new dual-port cabinet design for effortless bass with vanishingly low distortion and features the SVS Subwoofer DSP smartphone app for convenient tuning and control.



    Reference Subwoofer Performance Hits an All-Time Low.

    The original SVS PB-1000 rocked the subwoofer world with unparalleled performance at its price and beyond. Now, the PB-1000 Pro raises the bar even higher with greater low frequency output, deeper bass extension down to a guttural 17Hz, performance-enhancing dual port cabinet design, and a massive upgrade to the user experience.

    A complete reimagination of the original 10-inch driver, the PB-1000 Pro features an all-new 12-inch high-excursion driver with dual high-grade ferrite magnets and FEA-optimized internal motor architecture for extreme excursion and massive, pristine output. With innovations to the cone, surround, voice coil, and motor assembly, the unflappable 12-inch driver unleashes room-shaking bass never-before-heard from a ported subwoofer anywhere near the price.

    Using the same amplifier technology as the flagship SVS 16-Ultra Series, PB-1000 Pro features a 325 watts RMS, 820+ watts peak power Sledge STA-325D amplifier with fully discrete MOSFET output. Harnessing the massive power while ensuring accuracy and control is a 50 MHz Analog Devices Audio DSP with frequency response curves precisely tuned for the PB-1000 Pro.

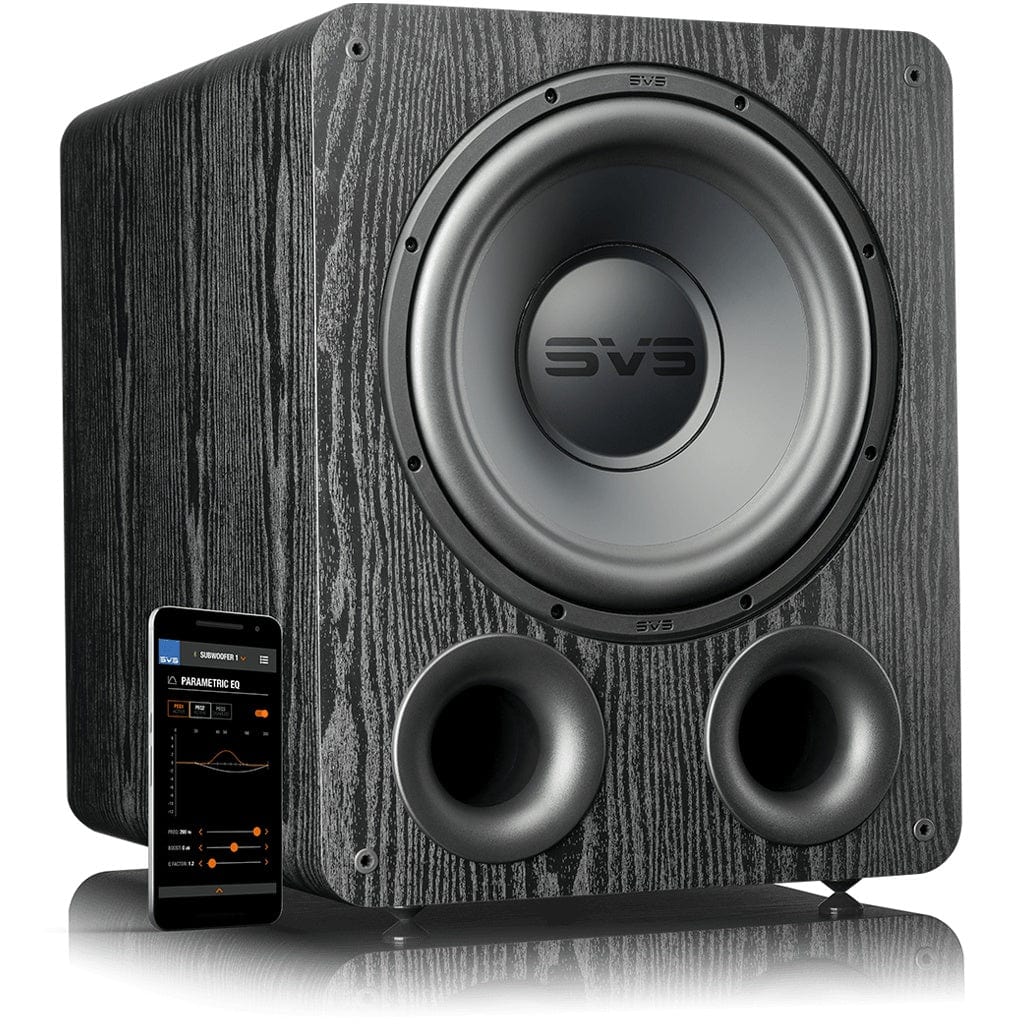

    PB-1000 Pro also features the SVS subwoofer smartphone app, the most convenient way to control volume, access multiple DSP functions, and program custom presets for one-touch tuning profiles optimized for music, movies, gaming, and more. Adjust crossover frequencies, a three-band parametric EQ, polarity, room gain and more, all from your favorite seat.

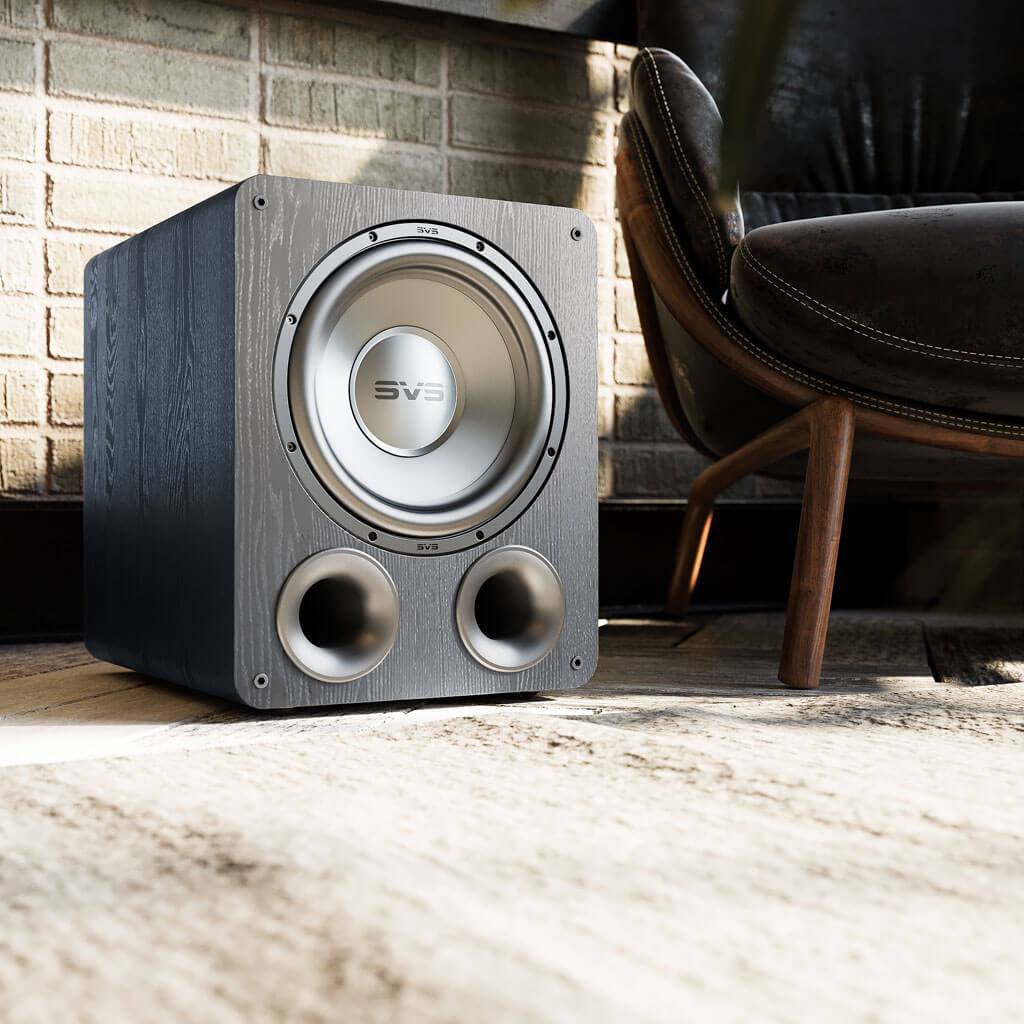

    New to the PB-1000 Pro is a dual port configuration that enables greater output with much lower distortion compared to the original 1000 Series model.

      Specifications

      Frequency Response / Acoustic Data:

      * Frequency response graph does not denote maximum output capability
      • 17-260 Hz +/- 3 dB (standard mode)
      • 19-260 Hz +/- 3 dB (sealed mode)
      • Expect 2-3 Hz deeper extension in small to mid-size rooms.
      • 2-meter ground plane away from reflective structures (quasi-anechoic).
      • Roll-off slope specifically optimized to take maximum advantage of available room gain.

      Subwoofer Specs:

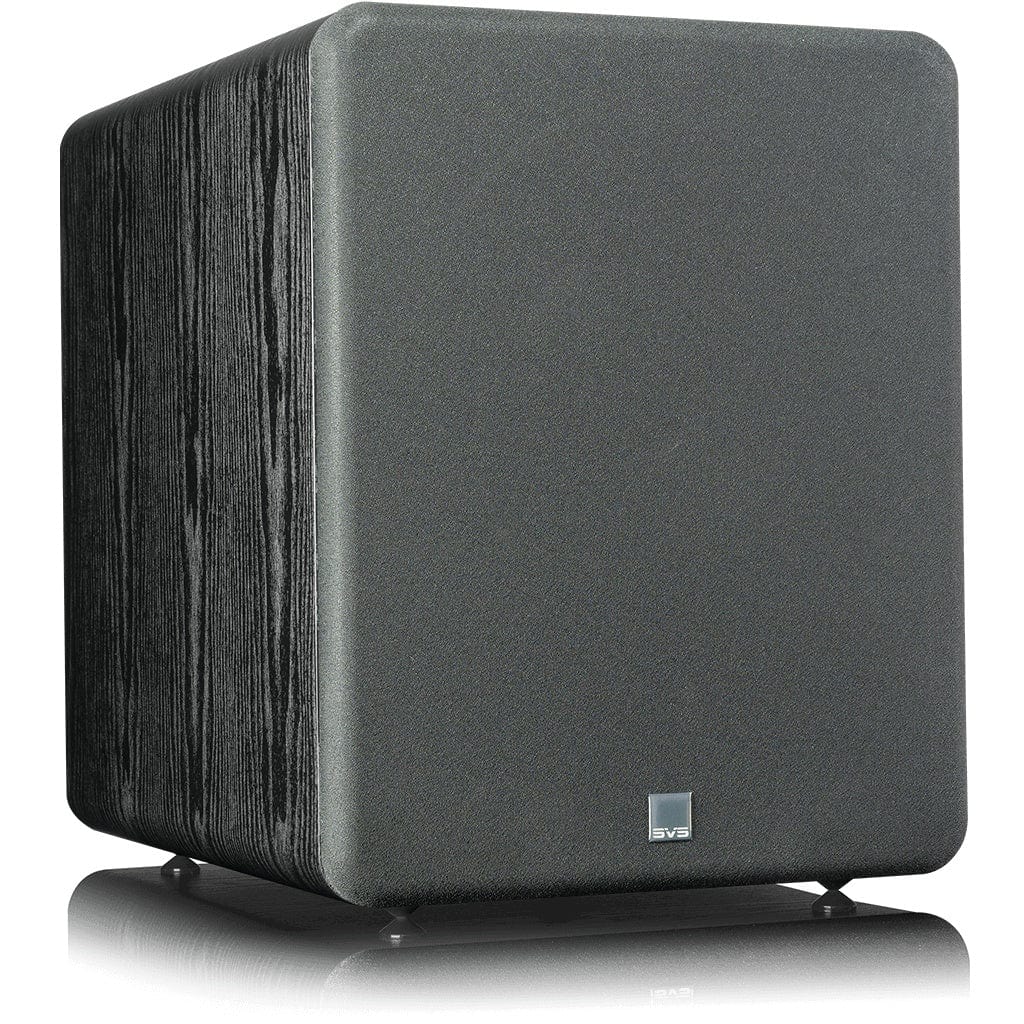

      • Protective non-resonant extra-thick ABS fabric mesh grille
      • Iso-elastomer feet included
      • Extra heavy-duty, high current power cord 6'
      • Quick Start Guide
      • Port Plugs (free upon request)

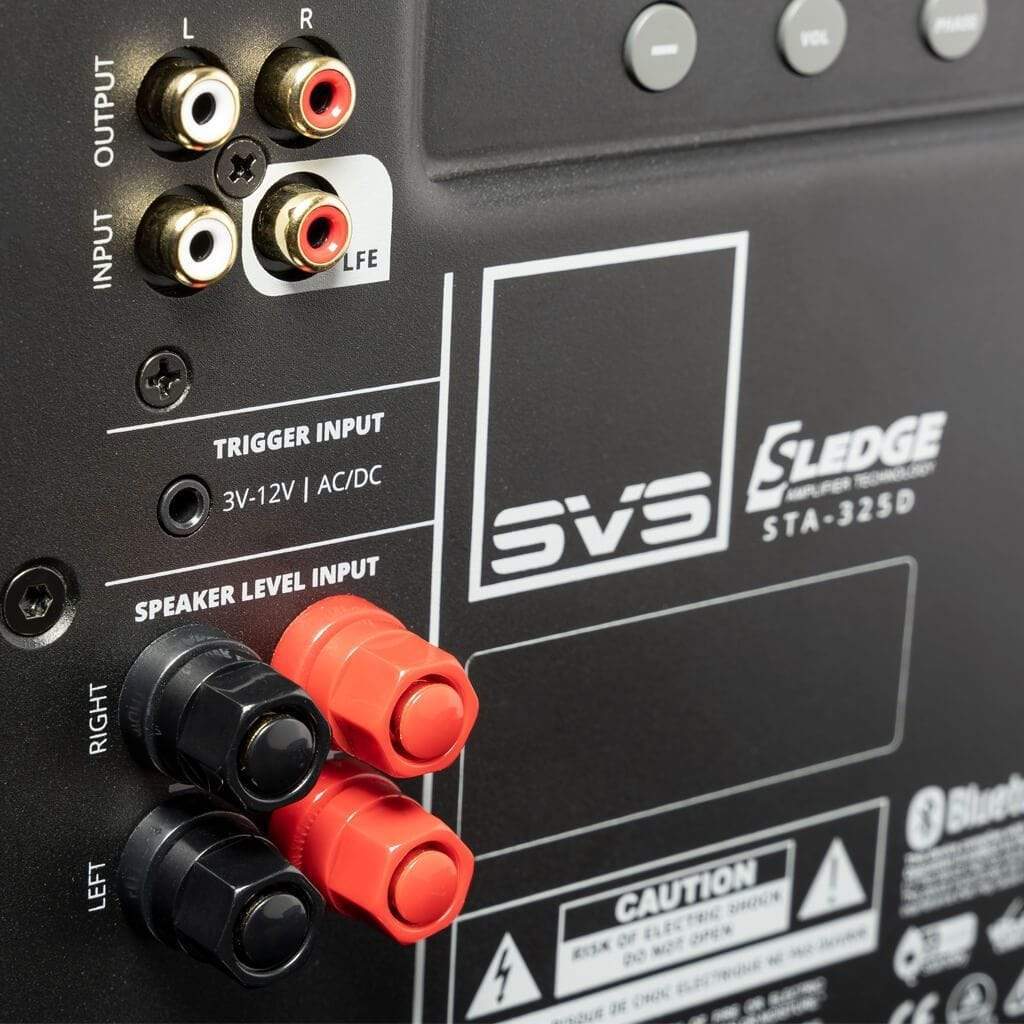

      • Unbalanced stereo input/output
      • Speaker Level Stereo Input
      • Auto/On and Trigger options through app, 3-12V AC/DC trigger
      • RoHS compliant, lead-free construction, world-wide safety certifications
      • Green 0.5-watt low standby power consumption
      • Dimensions (w/ grille): 18.9” (479mm) H X 15” (380mm) W X 20” (509mm) D
      • Dimensions (without grille): 18.9” (479mm) H X 15” (380mm) W X 19.2” (488mm) D
      • Shipped Dimensions: 23.4” (594mm) H 19.9” (506mm) W X 24.4” (619mm) D
      • Weight (unboxed): 42.5lbs (19.3kg) with Grille
      • Shipped Weight: 51.6lbs (23.4kg)

      Driver Specs:

      • All-new proprietary 12-inch long-throw driver with high-precision tuned overhung motor configuration.
      • 9.26lb (4.2kg) pound Woofer with 6.91lb (3.14kg) pounds motor
      • 13.1mm Xmax, 26.8mm Xmech precision aligned excursion
      • 1.5” diameter Voice Coil with high current 6-layer high-purity copper wire windings
      • Premium high-purity copper voice coil winding design minimizes distortion and power compression with maximum heat dissipation, linearity, and tuned magnetics for high excursion
      • Two-piece high grade oversized Y35 Ferrite magnet motor
      • High Temperature 3003-H18 aluminum former/bobbing
      • 6” composite cotton-poly extreme excursion linear spider
      • Dual 24-strand copper-alloy high-temperature leads
      • Proprietary injection molded gasket and NBR extreme-excursion surround
      • Lightweight treated Fiber Composite cone for enhanced sensitivity and transient response
      • Top plate assembly with low carbon 1010 steel for optimal magnetics
      • Oversized low carbon 1008 steel T-yoke with integrated pole piece extension for maximum cooling and electromagnetics
      • 12” premium powder coated basket with FEA optimized analysis for maximum rigidity, tensile strength, and energy transference
      • Oversized motor system for driving full excursion and industry best SPL, with pinpoint transient speed
      • Precision machining for motor and narrow tolerance suspension parts ensure flawless linearity at full range of excursion

      SVS Sledge-325D Amplifier Specs:

      • 325 watts RMS, 820+ watts peak power output Class D design
      • 50Mhz Analog Devices Audio DSP, high resolution double precision 56bit filtering
      • Wide input voltage bandwidth compliant for consumer and pro audio up to 4V line level input.
      • High efficiency LLC resonant SMPS with 17A 650V MOSFET, resonant switching results in lower EMI and highest efficiency.
      • Cool-running Class D amplifier switching topology with massive 34A 120V MOSFET’s
      • SVS BLE control app for iOS and Android contains 3 complete name-able and customizable User presets, supports IOS (iphone5 or newer or Android (4.42 or newer), 3 PEQ's per preset, adjustable low pass, phase, polarity, room gain compensation, and control for best alignment with speakers.
      • Customer EQ and DSP limiter settings specifically for the 1000 Pro
      • Input impedance 16kohm (unbalance RCA)
      • Input impedance 20kohm (speaker level)
      • New Intelligent Feature control (IFC) user interface on the amplifier with bright blue 11 LED bar display and easy push-button controls.

      SVS App Specs:

      • Bluetooth controlled subwoofer DSP smartphone app works with iOS, Android and Amazon operating systems.
      • Easiest and most convenient way to adjust crossover frequencies, parametric EQ, polarity, room gain and all other bass management functions.
      • Three convenient custom presets allow for perfect tuning in any room or system, from your favorite seat.
      • Unique bidirectional feedback shows adjustments in real time on both app and subwoofer interface.
      • Easy-to-follow tutorial provides clear guidance for all functions.

      Accessories:

      • Protective non-resonant extra-thick ABS fabric mesh grille
      • Iso-elastomer feet included
      • Extra heavy-duty, high current 6-foot power cord
      • Quick Start Guide
