SPL Elector Analog Preamplifier

Regular price$4,599.00
/

Buy now, pay later with: Zip Interest Free Afterpay Interest Free Humm Interest Free
  • Free Delivery Australia Wide
  • Local Australian Warranty
  • 1800 100 998 For Assistance

We take pride in our customer service and shipping times. Most products will ship within 1-2 business days. If there are any potential delays with products in your order, we will contact you.

All orders now come with free shipping Australia Wide.

We use a variety of shipping methods depending on the types of items purchased and their delivery location. This helps to ensure your items arrive safely and in a timely manner. If you are on a tight deadline or would like to know an estimated delivery date for your order, contact our friendly staff and they will be happy to assist.

Orders will usually take between 1-6 days for delivery, depending on your location and shipping method.

If your order has not been delivered within 7 days of shipping we recommend you reach out to us directly to investigate with Australia Post / Courier.

If for any reason you haven't followed up with us within 30 days of shipping, we'll be unable to guarantee your delivery of your item unless it has been returned to sender.

SPL products are currently ordered on demand with an approx 2 week lead time.

Elector

THE ANALOG PURIST

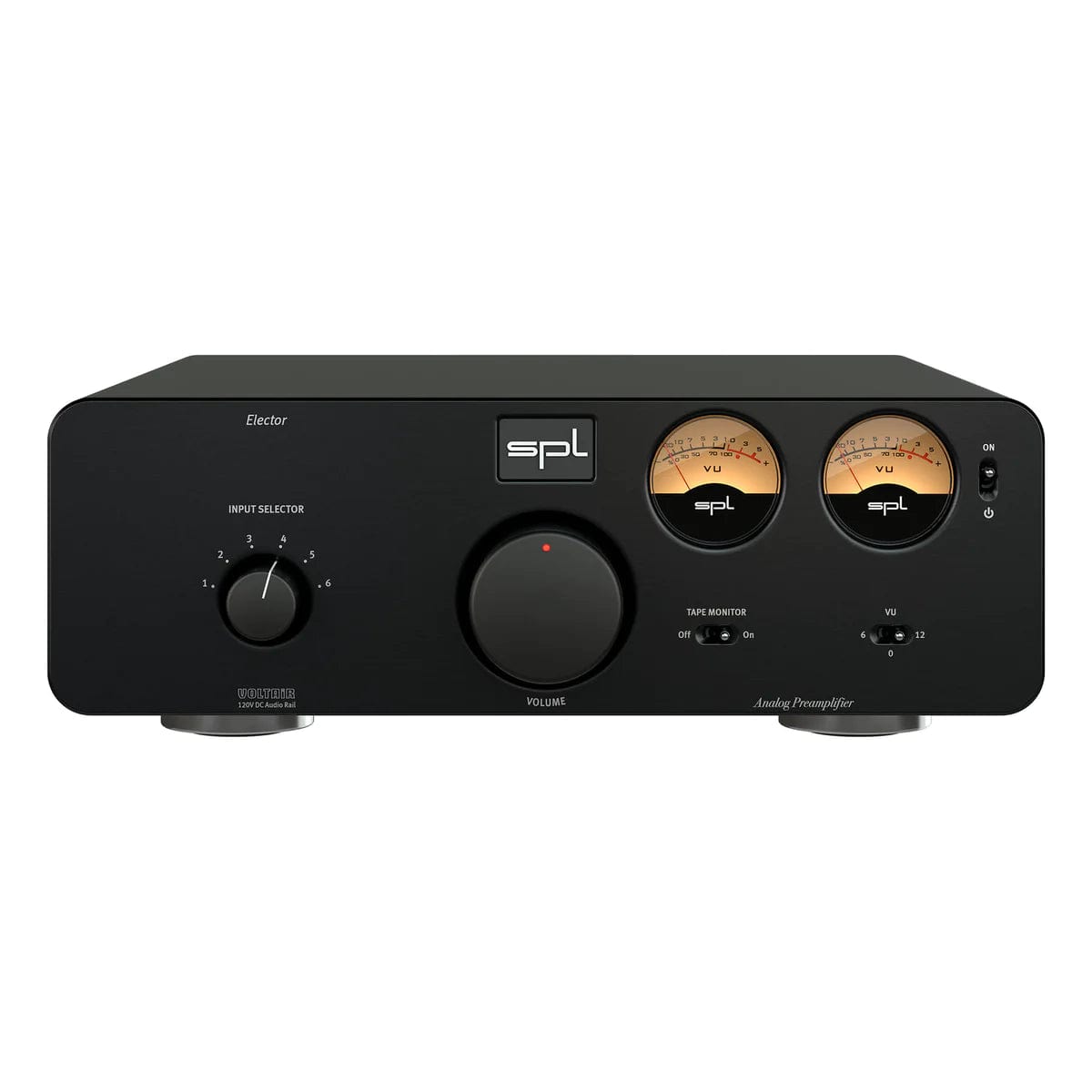

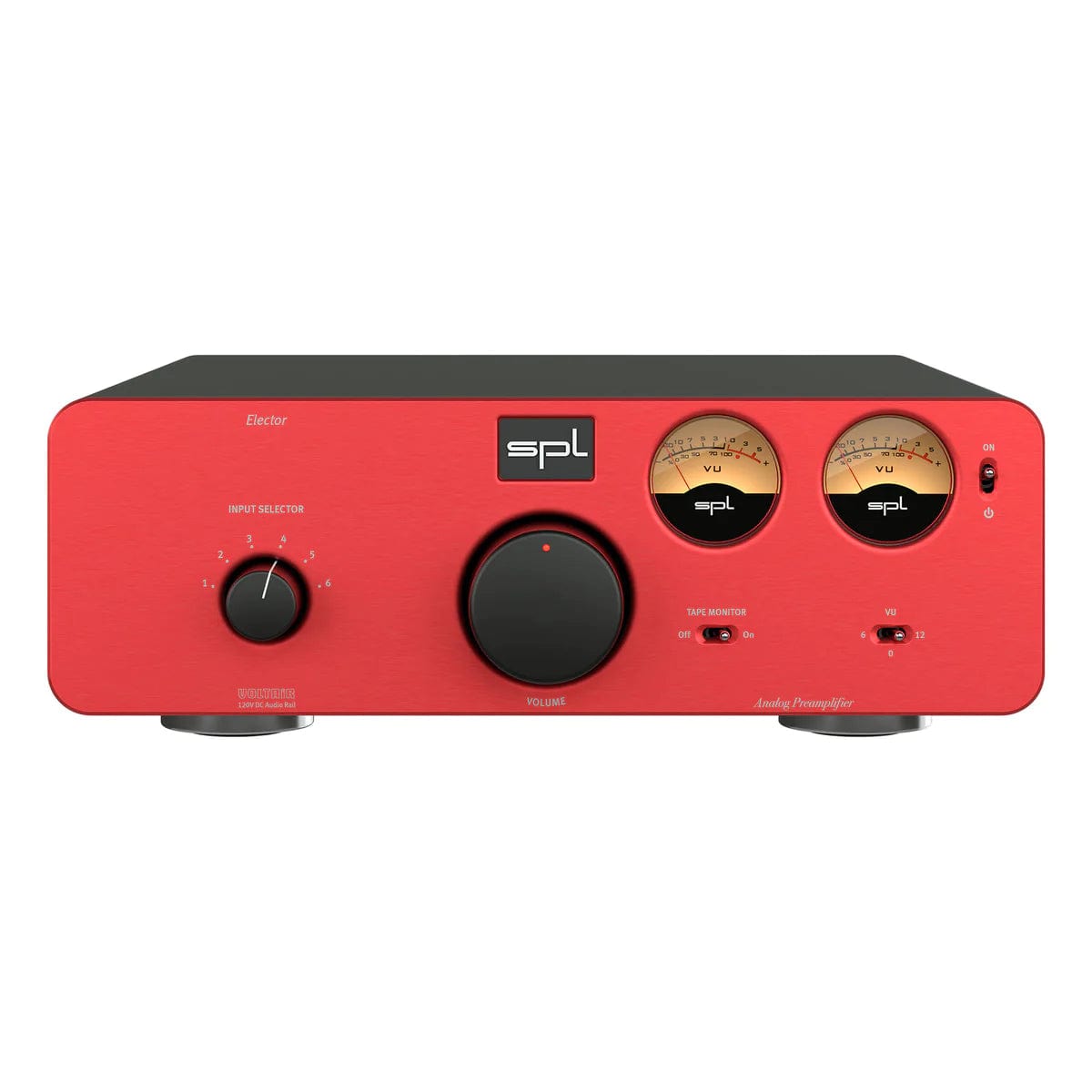

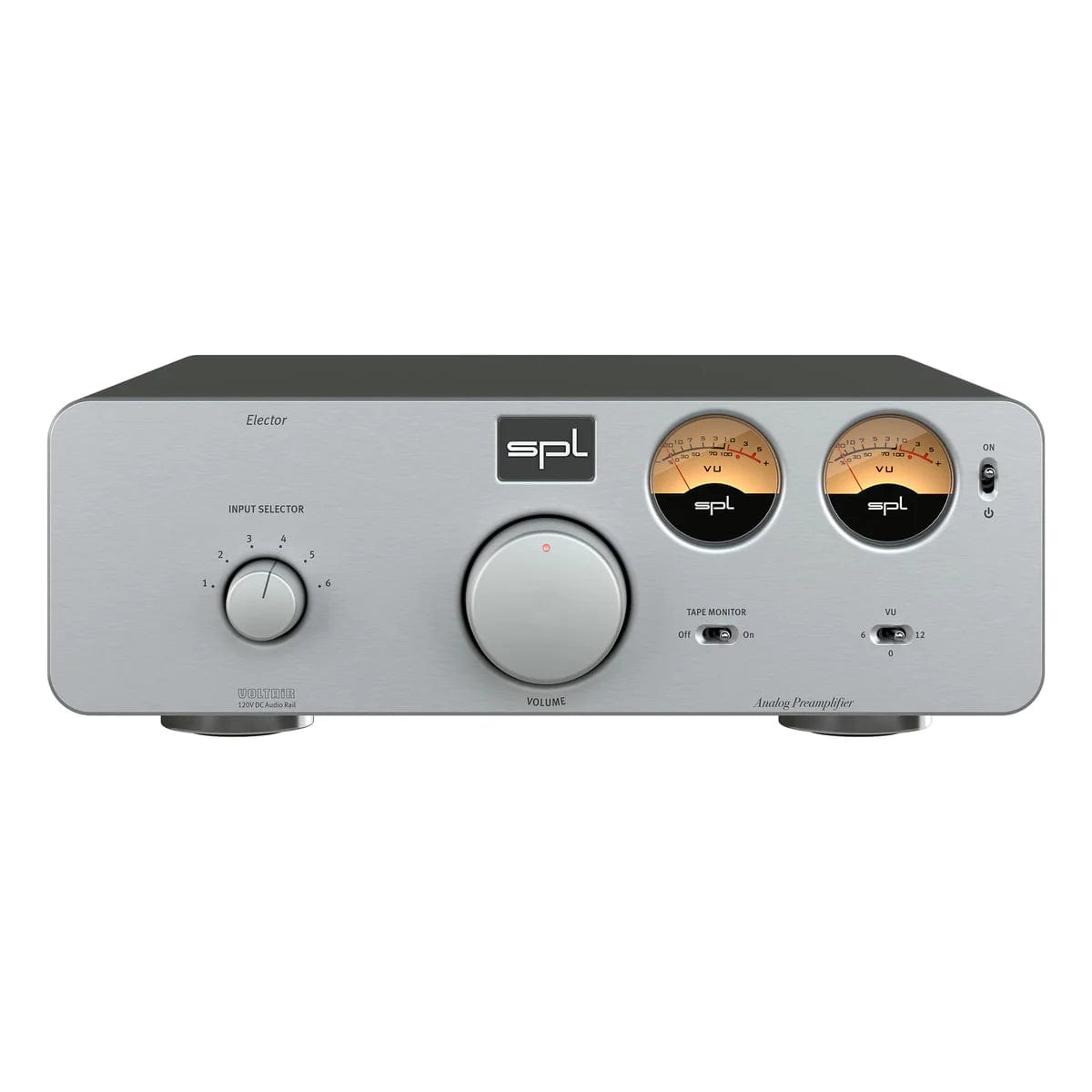

The Elector is the perfect preamplifier for the lover of pure analog technology. With motorized, remote volume control, tape monitor path, retro-look-VU-meter and the all superior VOLTAiR technology the Elector brings analog sources to new life.

Milled from solid

The massive 45mm volume control knob milled from aluminum is a haptic highlight. Its mass together with the motorized Alps RK27 “Big Blue” potentiometer enhances the “spoon in the honey” feeling even further.

The red marker LED ensures good visibility of the volume parameter even in darkened environments.

Remote control

The volume control can be remotely controlled with any infrared remote control.

The Elector learns to communicate with it with the simple push of a button.





Learning made easy

This video explains how you can use any infrared remote control to remotely control the volume and the source selection.

Source of joy

Up to six (6 !) analog stereo sources can be connected to the Elector.

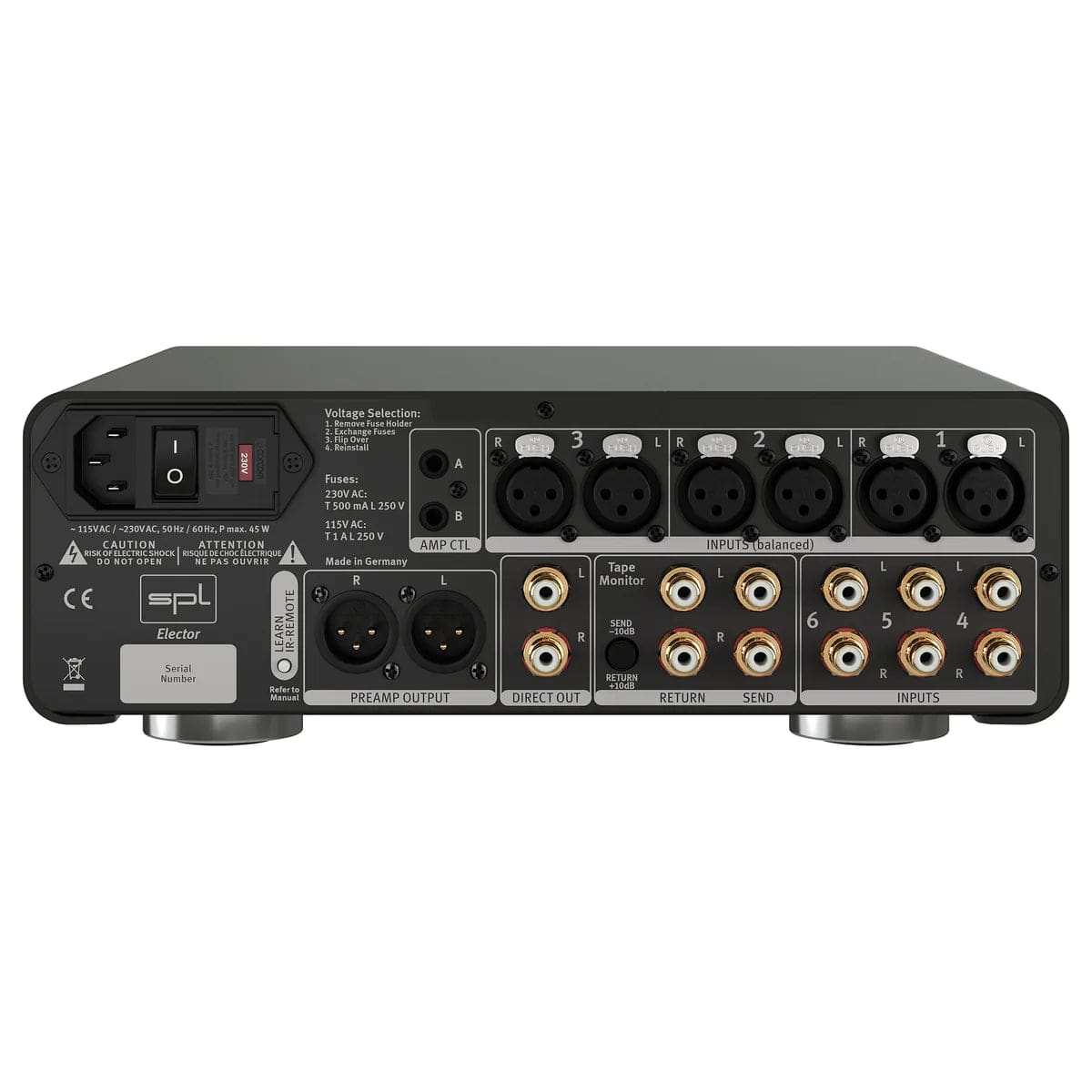

The Elector offers three pairs of balanced inputs with XLR jacks and three standard inputs with gold-plated RCA jacks.

Good ol' times

Two mechanical VU meters visualize the input levels for the left and right audio channel.

With the VU switch you can optimize the display for different signal levels.

Tape Monitor

A tape monitor circuitry is quite retro.
Who still owns a cassette recorder or a tape machine?
Who else loops in an equalizer?

To put it another way:
Who would like to do it and cannot do it because no manufacturer offers a tape monitor circuit anymore?

Well, those who want can again.



Today’s audio levels are much higher than in the past and many recorders will be overloaded by them.
In that case simply press the switch and the level to the recorder is lowered by 10 dB.

To compensate, the level from the recorder is increased by 10 dB. Et voilà.


Everything under control – AMP CTL

The standby mode of devices with 12V trigger input, can be switched on and off via AMP CTL, together with the Elector. This allows, for example, the SPL Performer s800, Performer m1000 or Performer s1200 power amplifiers to be ideally integrated into the set-up.

Sounds good

With all devices of the Professional Fidelity series we develop not only according to plan, but also by ear. Many important components are installed on the circuit boards using Through-hole technology. This way we can ensure that we can use the best sounding components.

The VOLTAiR Technology

The 120V technology is our reference technology. The 120V technology is unique in the world. It operates at a DC voltage of 120 volts. This is four times that of IC-based semiconductor op-amps. In our Professional Fidelity series, we refer to this unsurpassed technology as VOLTAiR technology.



The highest possible audio quality requires the highest possible audio operating voltage.
The 120V technology works with +/-60 V. To be able to handle such a high voltage, we have developed special proprietary operational amplifiers that can operate with a DC voltage of +/-60 V: the SPL 120V SUPRA operational amplifiers.

This high voltage would destroy conventional components and operational amplifiers.

By the way, the “120V” in the name of the technology has nothing to do with the local mains voltage from the mains power socket. This is about the operating voltage inside the device with which the audio signals are processed.
The mains voltage from the mains power socket is transformed to the required secondary voltage in the device’s internal linear power supply with toroidal transformer. Rectifiers convert this AC voltage into DC voltage required in the audio device.





Specifications

Analog Inputs & Output; XLR (balanced) and RCA

  • Maximum input & output gain: 32.5 dBu
  • Input impedance (RCA): 47 kΩ
  • Input impedance (XLR): 20 kΩ
  • Output impedance: 75 Ω
  • Common mode rejection (XLR): -82 dBu
  • Frequency range (-3 dB): 4 Hz – 300 kHz
  • Crosstalk (1 kHz): -108 dBu
  • THD (0 dBu, 1 kHz): 0.000992 %
  • Noise (A-weighted): -102.5 dBu
  • Dynamic range: 135 dB

Internal Linear Power Supply with Shielded Toroidal Transformer

  • Operating voltage for analog audio: +/- 60 V
  • Operating voltage for relays and LEDs: + 12 V

Mains Power Supply

  • Mains voltage (selectable, see fuse chamber): 230 V AC / 50; 115 V AC / 60 Hz
  • Fuse for 230 V: T 500 mA
  • Fuse for 115 V: T 1 A
  • Power consumption: max. 40 VA
  • Stand-by power consumption: < 0,3 W

Dimensions & Weight

  • W x H x D (width x height incl. feet x depth)
    • 278 x 100 x 300 mm
    • 11 x 4 x 11.81 inch
  • Unit weight
    • 4.25 kg
    • 9.37 lbs
  • Shipping weight (incl. packaging)
    • 5.4 kg
    • 11.9 lbs
