Reference audio systems deserve reference audio equipment. The Rotel RC-1590MKII is exactly that - a reference preamplifier rending analog and digital sources with natural expression in a wide and open sound stage in stunning clarity.

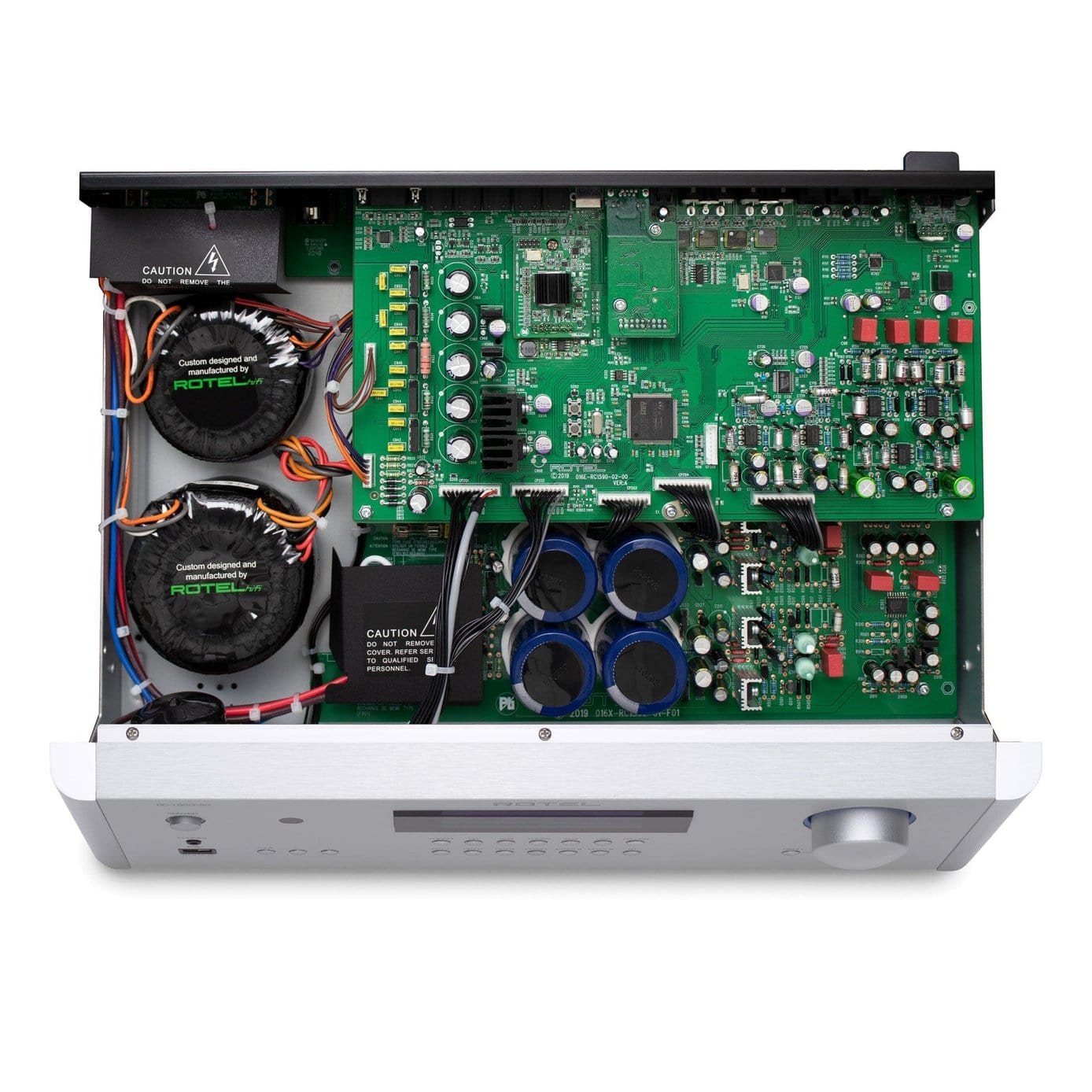

The heart of the RC-1590MKII begins with the power supply featuring dual in-house manufacture toroidal transformers. The transformers are physically and electrically isolated supplying dedicated analog and digital supply voltages to all critical circuits through low ESR slit-foil capacitors eliminating unwanted distortion and an extremely low noise floor.
Digital source inputs are processed utilising an audiophile grade Texas Instruments 32-bit/384kHz Digital to Audio Converter (DAC) with custom engineered, proprietary acoustically tuned external output filter circuits rendering even the finest details with exceptional clarity and exact positing.
Analog signal paths feature DIRECT-PATH bypass modes eliminating unnecessary circuits maintaining signal integrity and further eliminating unwanted noise and distortion drawing you even closer and immersing you in the music.

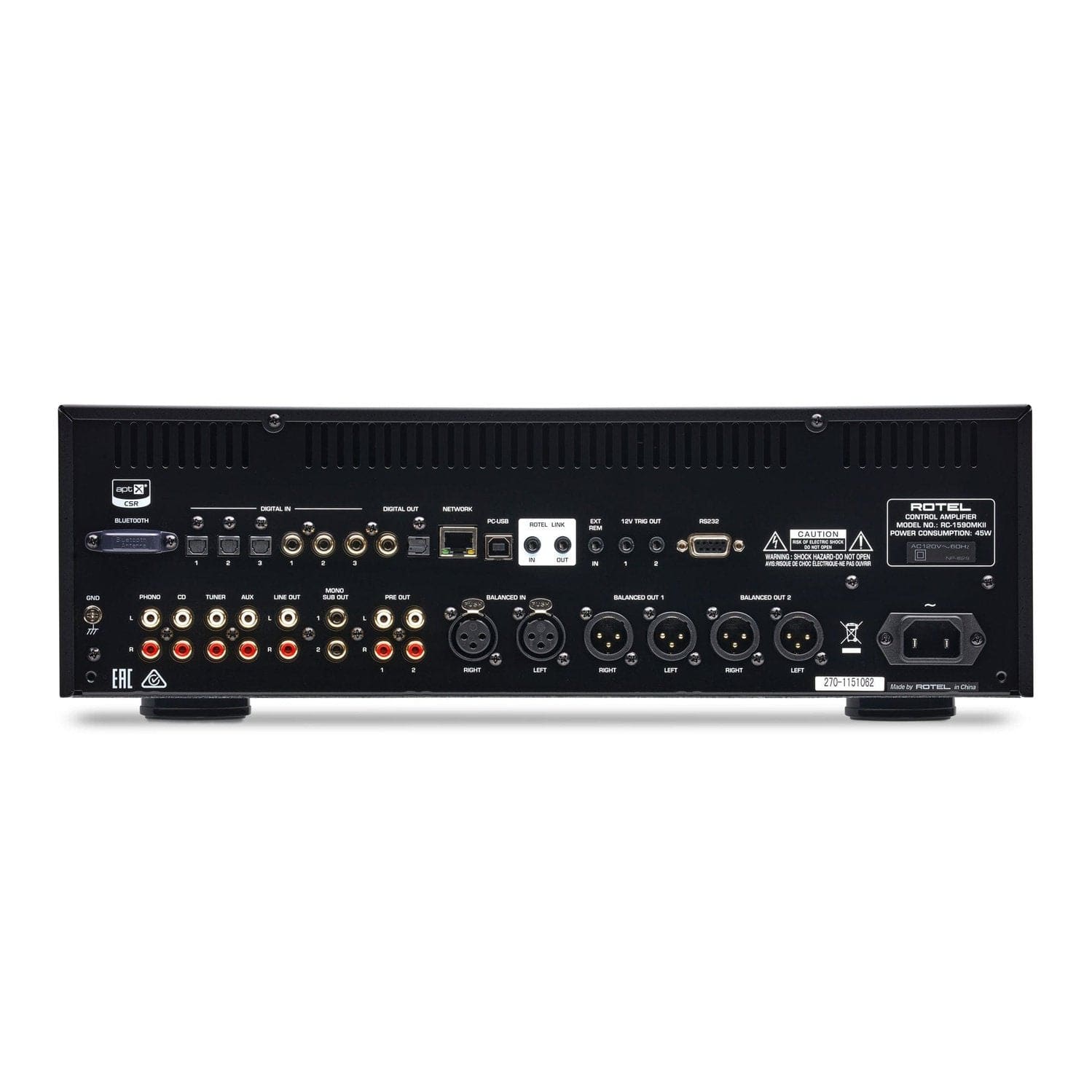

The RC-1590MKII supports a full array of inputs ensuring connection to your favourite sources including a Moving Magnet Phono input for vinyl lovers, Analog, Digital, XLR Balanced, high quality apt XTM and AAC wireless Bluetooth, and PC-USB (32-bit/384kHz) supporting MQA unfolding and rendering as well as certified Roon Tested.
Dual RCA and XLR output connection provide the ultimate flexibility including bi-amplification installations.A subwoofer output is also included.
The RC-1590MKII proudly continues Rotel’s 60-year legacy and heritage with our ongoing promises of performance, value, and unwavering commitment to quality. Authentic, engaging, and spacious – the RC-1590MKII proudly represents this iconic brand.
Features
- Balanced XLR inputs and output
- Moving Magnet Phono input for turntable connection
- Wireless aptX™ and AAC Bluetooth
- Texas Instruments premium 32-bit/384kHz Digital to Analog Converter
- Supports MQA and MQA Studio
- Certified Roon Tested
Specifications
Total Harmonic Distortion (THD) | 20 Hz – 20 kHz <0.004% |
Frequency Response | Line Level Inputs: 10 Hz - 100 kHz (+0 dB, -0.2 dB), Digital Inputs: 20 Hz - 20 kHz (0±0.5 dB, Max.), Phono Input: 20 Hz - 20 kHz (+0.3 dB, -0.2 dB) |
S/N Ratio (IHF "A" Weighted) | Line Level Inputs: 118 dB, Digital Inputs: 100 dB, Phono Input: 80 dB |
Intermodulation Distortion (60 Hz:7 kHz, 4:1) | <0.004% |
Input Sensitivity | Line Level Inputs (RCA): 200 mV, Line Level Inputs (XLR): 300 mV, Digital Inputs: 0dBFs, Phono Input (MM): 3 mV |
Input Impedance | Line Level Inputs (RCA): 100 kΩ, Line Level Inputs (XLR): 100 kΩ, Digital Inputs: 75 Ω, Phono Input (MM): 47 kΩ |
Input Overload | Line Level Inputs (RCA): 4 V, Line Level Inputs (XLR): 5 V, Phono Input: 63 mV |
Output Level | Unbalanced (RCA): 1 V, Balanced (XLR): 2 V |
Channel Separation | Line Level Inputs (RCA): >85 dB, Line Level Inputs (XLR): >75 dB, Phono Input: >85 dB |
Tone Controls | ±10 dB at 100 Hz / 10 kHz |
Preamplifier Output Level | 1.44 V (at -20 dB) |
Coax/Optical Digital Input Signals | LPCM (Up to 24-bit/192 kHz) |
PC-USB | USB Audio Class 1 (up to 24-bit/96 kHz), USB Audio Class 2 (up to 32-bit/384 kHz) (Driver Installation Required), MQA and MQA Studio (up to 24-bit/384 kHz), Roon Tested |
Dimensions (W x H x D) | 431 x 99 x 338 mm (17" x 3.9" x 13.5") |
Front Panel Height | 2U / 88.1 mm (3.5") |
Power Requirements | 230 V, 50 Hz |
Power Consumption | 35 W |
Standby Power Consumption | <0.5 W |
Net Weight | 8.4 kg (18.5 lb) |
BTU Rating | 65 BTU/h |
