Affordable high-end begins with Rotel’s RC-1572MKII Preamplifier including multiple acoustic upgrades and refinements processing your favourite analog and digital sources to an even higher level of performance in stunning clarity with a natural, enveloping sound stage.

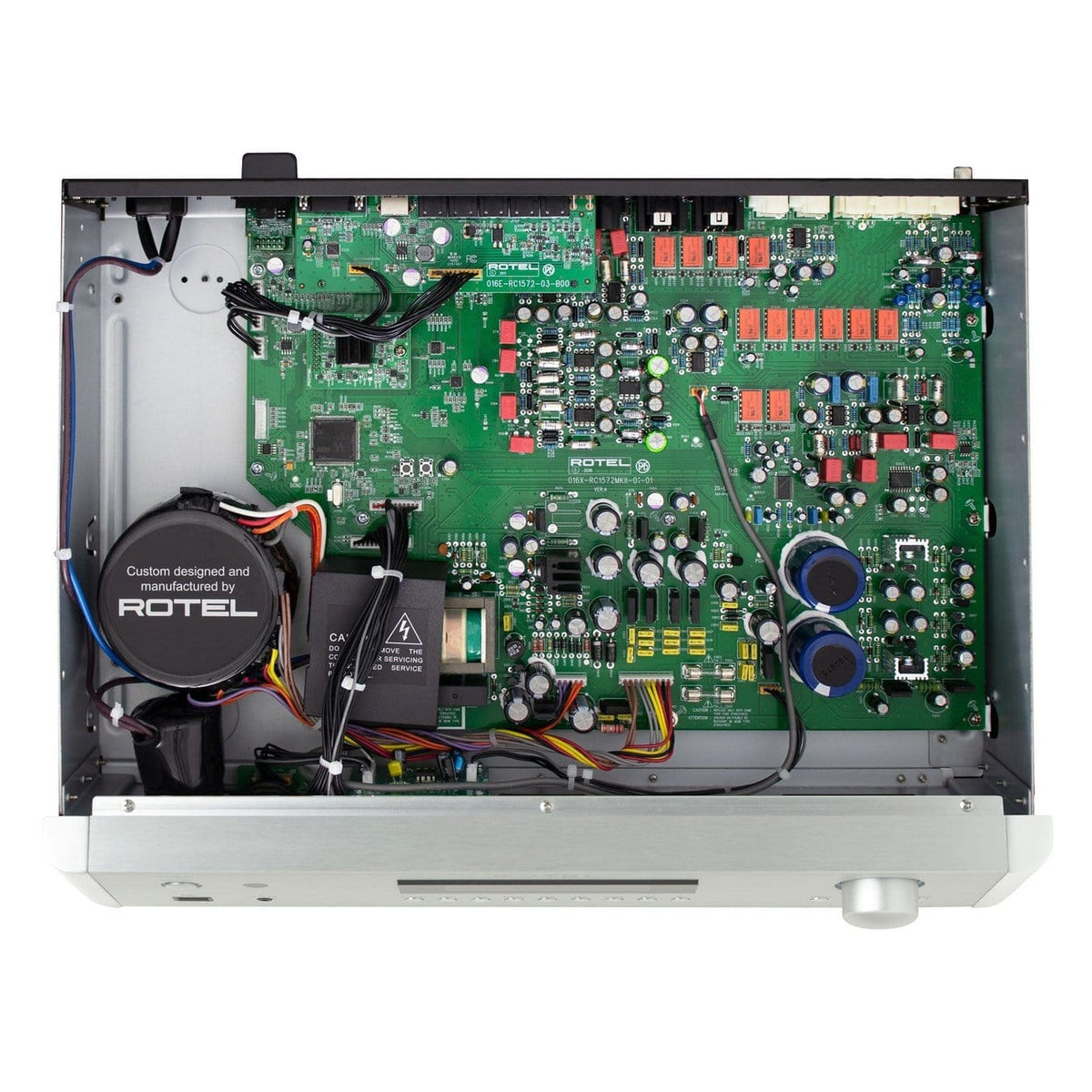

As an essential component in a Hi-Fi audio stack the RC-1572MKII’s precision engineering begins with Rotel’s ultra-low noise power supply including a large, in-house manufactured toroidal transformer. The transformer design reduces stray radiated emissions and feeds a bank of slit-foil, low ESR capacitors delivering stable current to all sensitive circuits reducing noise and distortion with an ultra-quiet noise floor.
A premium Texas Instruments 32-bit Digital to Analog converter (DAC) renders the digital sources supported by custom tuned, proprietary external output filters ensuring the audio is effortlessly presented with exceptional dynamic detail and musical expression.
Analog, Digital, XLR, aptXTM and AAC Wireless Bluetooth and Moving Magnet Phono Stage inputs ensure connection to your favourite music sources. Digital media files are supported via a 32-bit/384kHz PC-USB connection supporting MQA and is fully certified Roon Tested for graceful access to the near limitless catalog of online music.

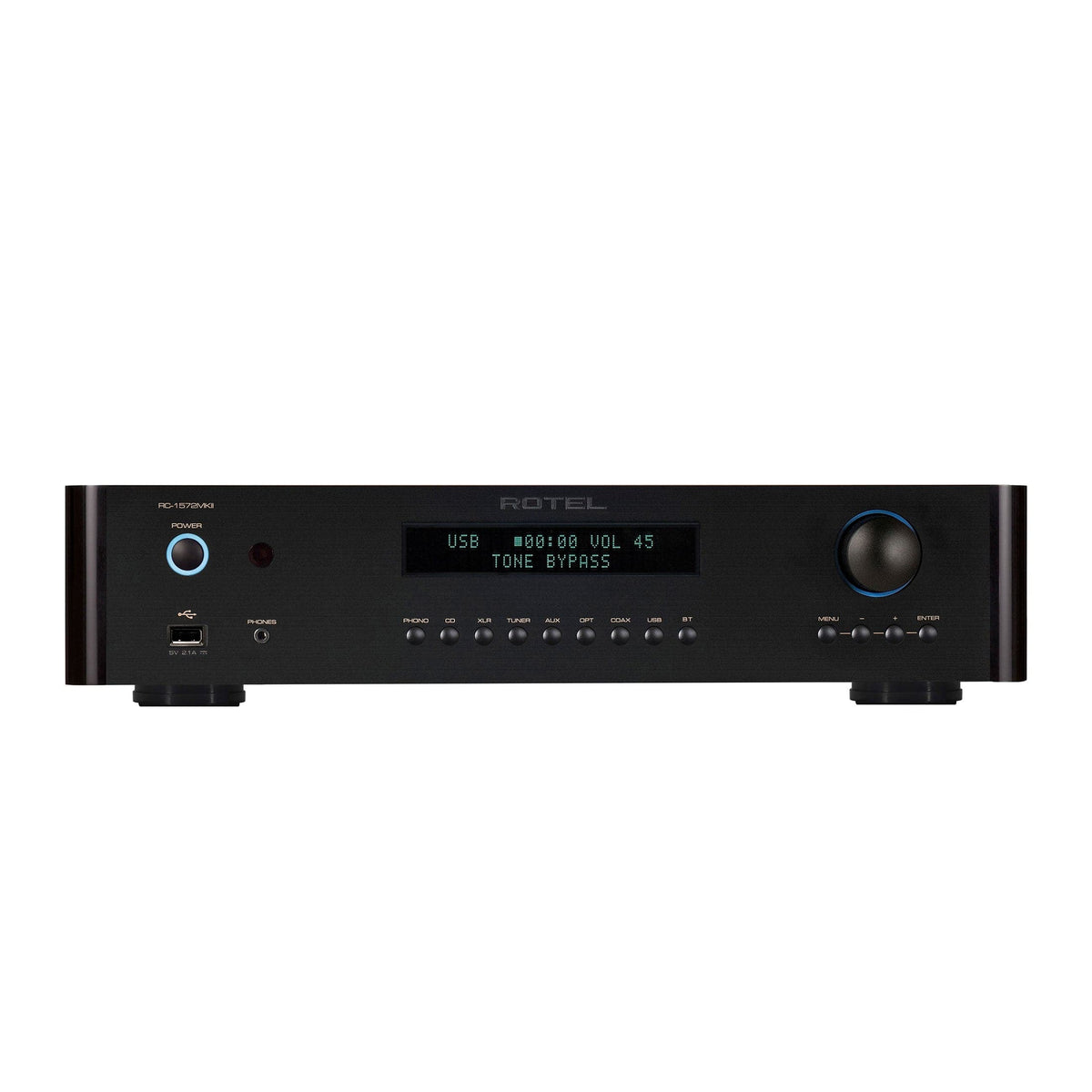

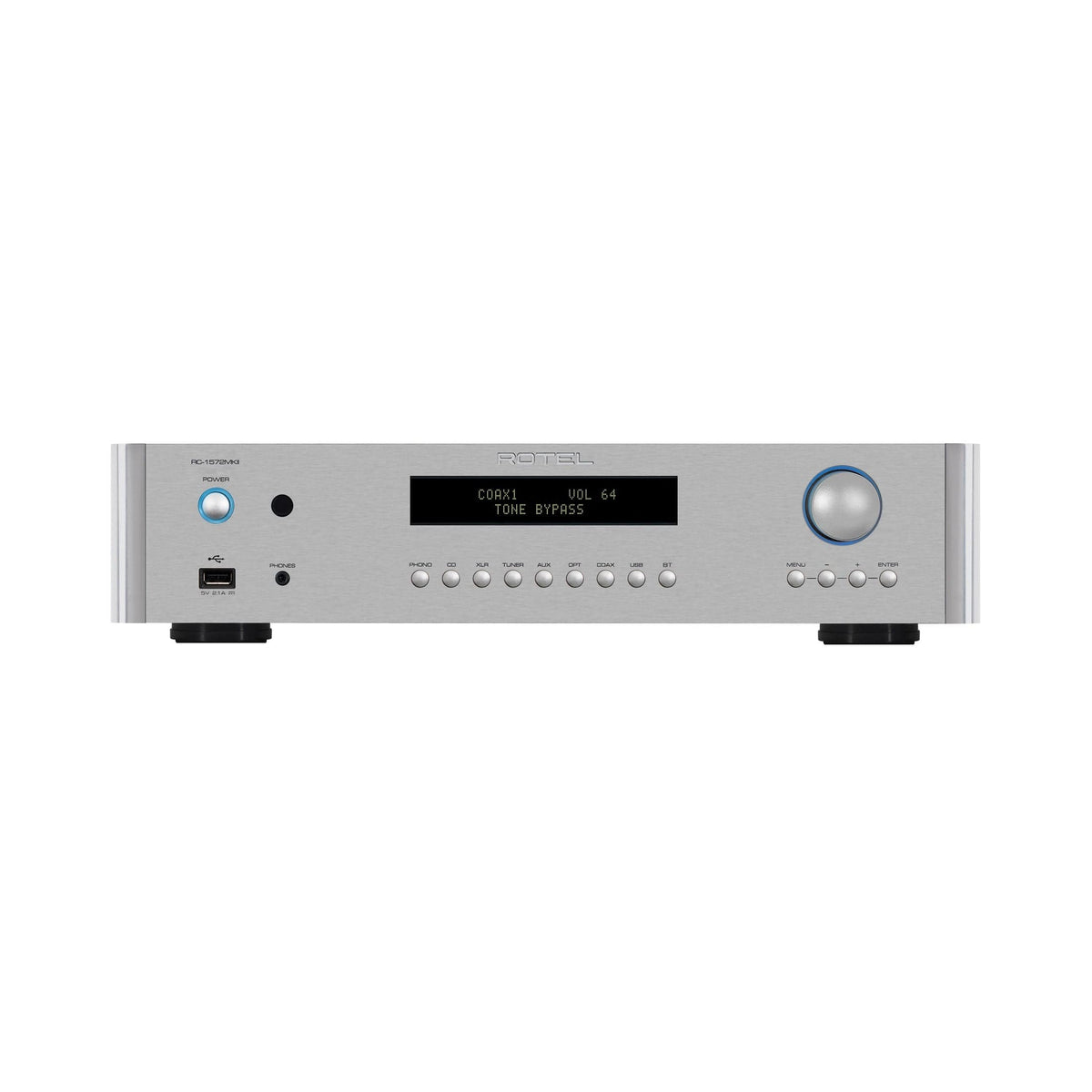

The RC-1572MKII is easy to operate using the included remote control and front panel display. Automatic power controls, signal sensing, fixed volume settings and tone adjustments optimise customisation settings.

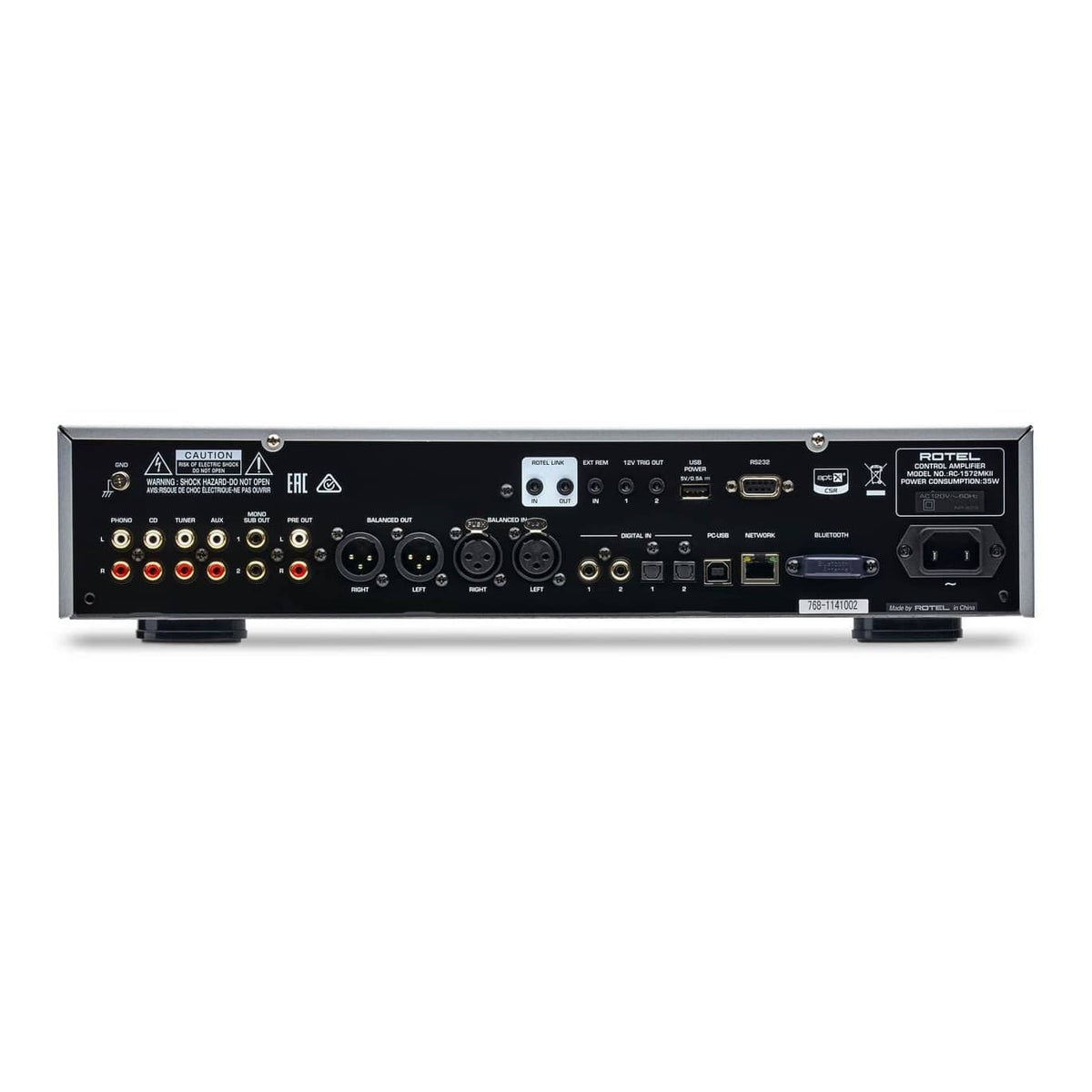

RCA, XLR and subwoofer outputs are provided for installation flexibility. Ethernet and RS232 ensure simple integration with control systems and software updates.
Bring your CD’s, Digital Files and Vinyl allowing the RC-1572MKII to bridge generations of music and music lovers.
- Balanced XLR inputs and outputs
- Moving Magnet Phono input for turntable connection
- Wireless aptX™ and AAC Bluetooth
- Texas Instruments premium 32-bit/384kHz Digital to Analog Converter
- Supports MQA and MQA Studio
- Certified Roon Tested
|Total Harmonic Distortion (THD)||20 Hz – 20 kHz <0.004%|
|Frequency Response||Line Level Inputs: 10 Hz - 100 kHz (+0 dB, -0.2 dB), Digital Inputs: 20 Hz - 20 kHz (0±0.5 dB, Max.), Phono Input: 20 Hz - 20 kHz (+0.3 dB, -0.2 dB)|
|S/N Ratio (IHF "A" Weighted)||Line Level Inputs: 118 dB, Digital Inputs: 100 dB, Phono Input: 80 dB|
|Intermodulation Distortion (60 Hz:7 kHz, 4:1)||<0.004%|
|Input Sensitivity||Line Level Inputs (RCA): 200 mV, Line Level Inputs (XLR): 300 mV, Digital Inputs: 0dBFs, Phono Input (MM): 3 mV|
|Input Impedance||Line Level Inputs (RCA): 100 kΩ, Line Level Inputs (XLR): 100 kΩ, Digital Inputs: 75 Ω, Phono Input (MM): 47 kΩ|
|Input Overload||Line Level Inputs (RCA): 4 V, Line Level Inputs (XLR): 5 V, Phono Input: 63 mV|
|Output Level||Unbalanced (RCA): 1 V, Balanced (XLR): 2 V|
|Channel Separation||Line Level Inputs (RCA): >85 dB, Line Level Inputs (XLR): >75 dB, Phono Input: >85 dB|
|Tone Controls||±10 dB at 100 Hz / 10 kHz|
|Preamplifier Output Level||1.44 V (at -20 dB)|
|Coax/Optical Digital Input Signals||LPCM (Up to 24-bit/192 kHz)|
|PC-USB||USB Audio Class 1 (up to 24-bit/96 kHz), USB Audio Class 2 (up to 32-bit/384 kHz) (Driver Installation Required), MQA and MQA Studio (up to 24-bit/384 kHz), Roon Tested|
|Dimensions (W x H x D)||431 x 99 x 338 mm (17" x 3.9" x 13.5")|
|Front Panel Height||2U / 88.1 mm (3.5")|
|Power Requirements||230 V, 50 Hz|
|Power Consumption||35 W|
|Standby Power Consumption||<0.5 W|
|Net Weight||8.4 kg (18.5 lb)|
|BTU Rating||65 BTU/h|
