Monitor Audio IA800-2C Amplifier

Key Information

• Number Of Channels: 2 (1 Stereo Pair)
• Power (W / Channel) @ 4 ohms: 800 W
• Power (W / Channel) @ 8 ohms: 500 W

IA800-2C brings our Connect IP interface, which can be accessed by any device connected to the internet with a web browser on the same network. Delivering up to 800 watts per channel, this 2-channel will directly drive 70 V line speakers without a line matching transformer.

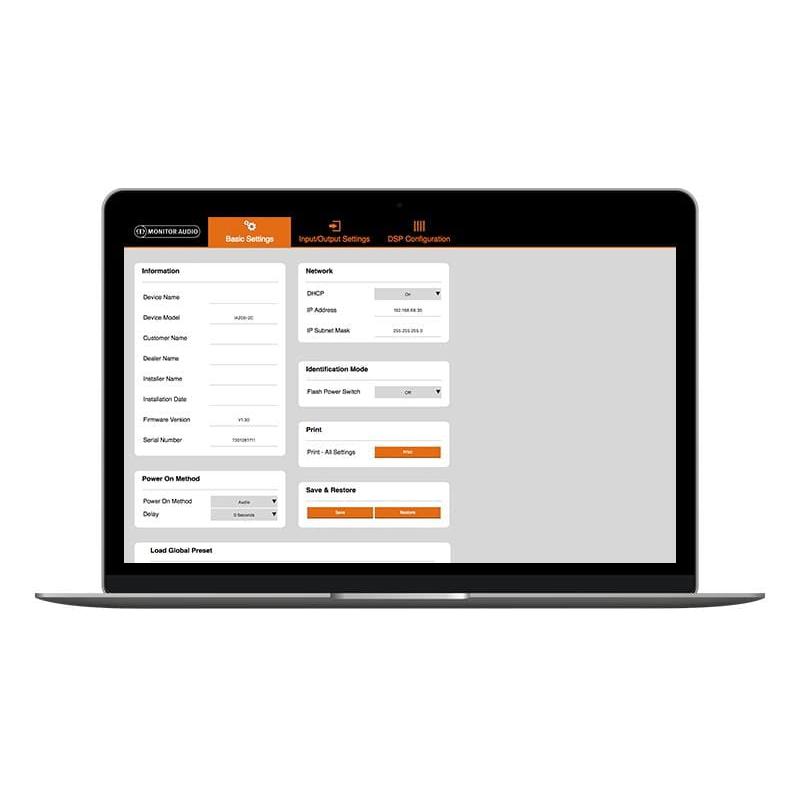

The IA800-2C is part of our Connect Amplifiers division, bringing our Connect IP interface, a web application which can be accessed by any device connected to the internet with a web browser on the same network.

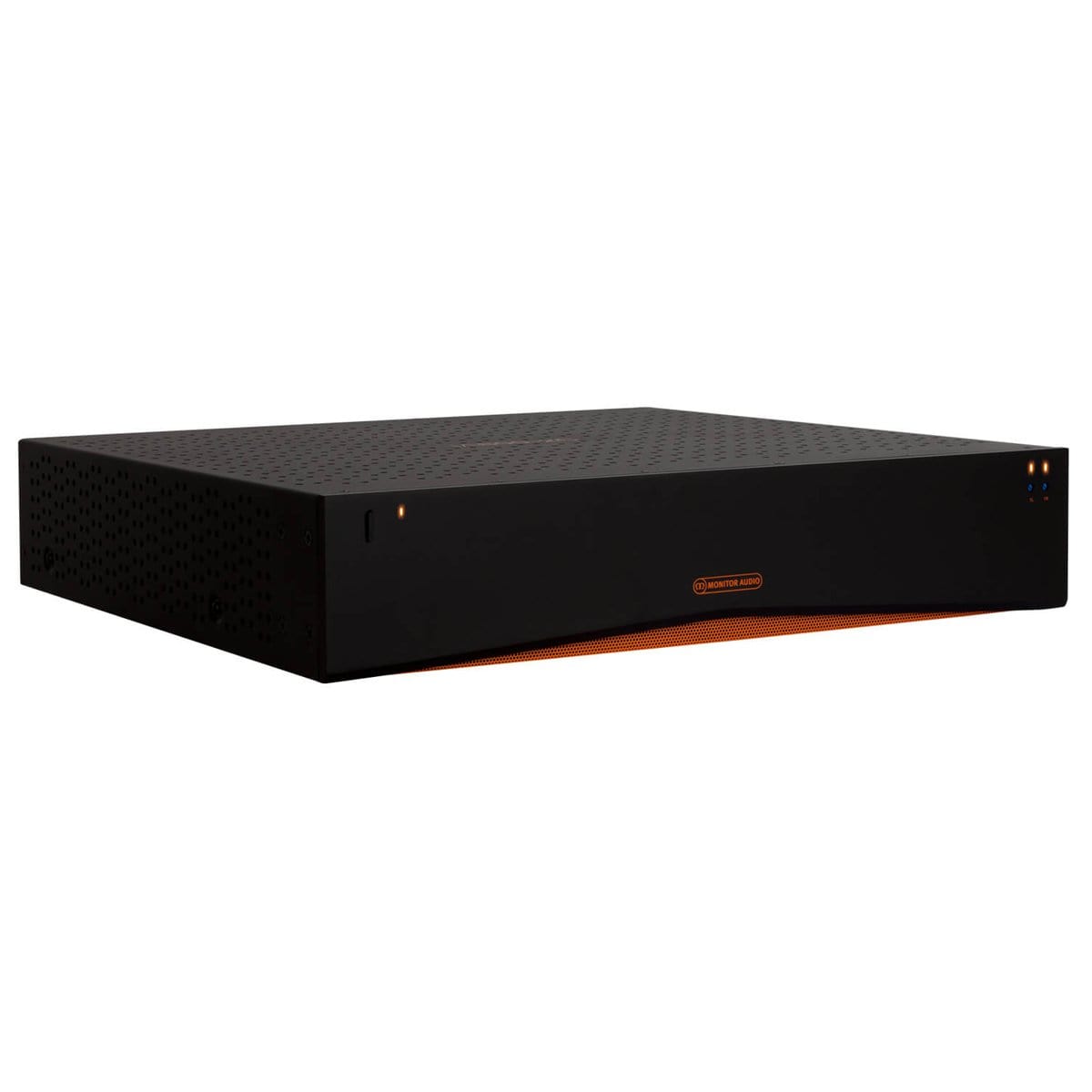

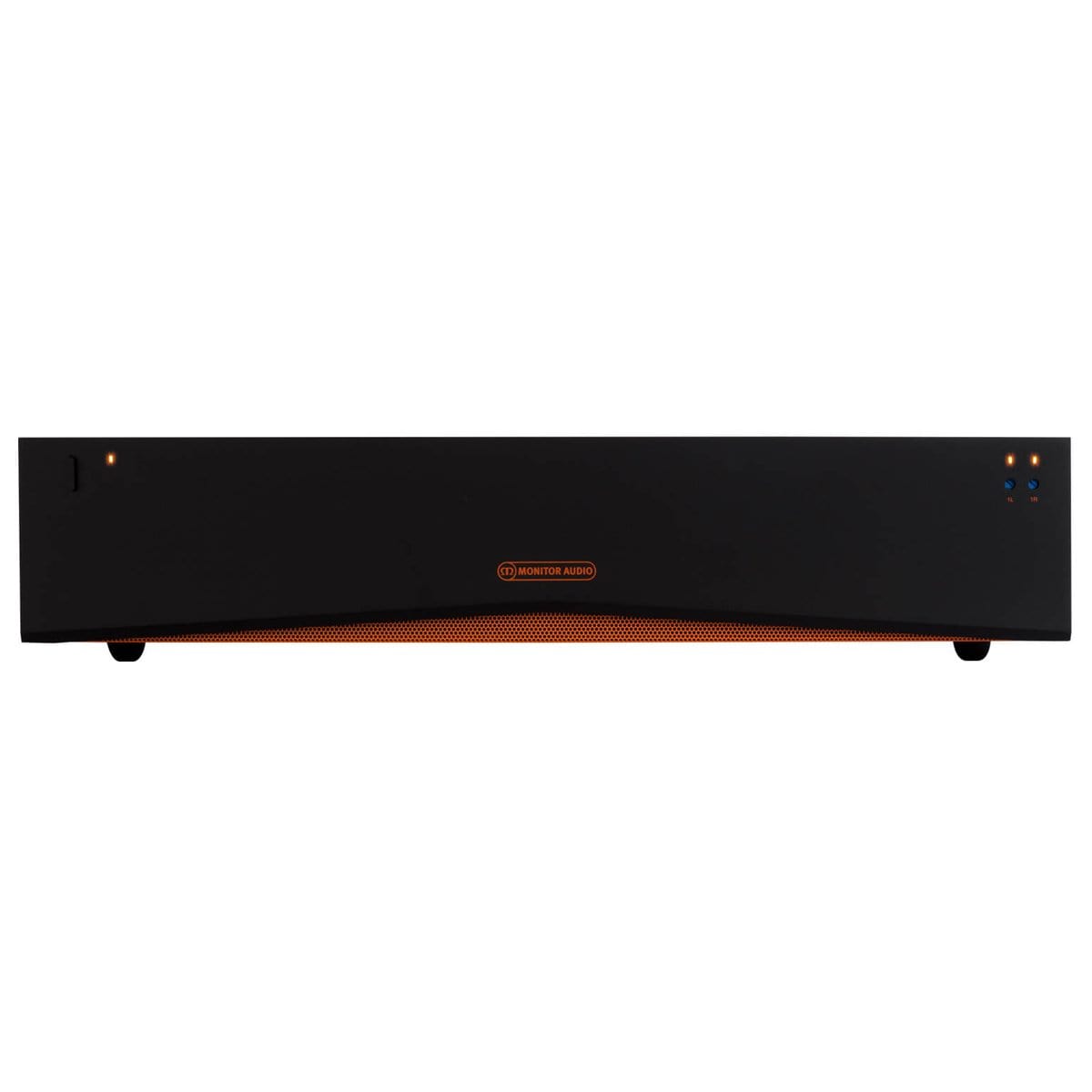

Fluently delivering up to 800 watts per channel, this two-channel powerhouse can directly drive 70 V line speakers without a line matching transformer. Each channel has a volume adjustment on the front panel and the 2U high case universally fit into most racks whilst delivering 93% energy efficiency. And even though its likely to live its live on the rack, our design team have produced an especially handsome Installation Amplifier. Ready and waiting for any project.

SPECIFICATIONS

Connect' IP Control: Yes

Channel Number: 2 (1 Stereo Pair)

Power (W / Channel) | 4 ohms: 800 W

Power (W / Channel) | 8 ohms: 500 W

Power (W / Channel) | Bridge (8 ohms): 2000 W (1CH)

Power (W / Channel) | 70V: 800 W

Input Impedance: 20 K ohms

Output Impedance (Loop RCA): 600 ohms

Input Sensitivity: 100 mV / 1 W, 2200 mV – Full power

Maximum Input Voltage: 2.9 V

Signal to Noise (SN:R): -100 dB (20 Hz – 20 kHz)

Frequency Response: 5 Hz – 50 kHz

Total Harmonic Distortion THD + N@1 KHz: 0.03%

Rack Height: 2U

Dimensions (Excluding Feet (H x W x D)): 86.8 x 438 x 438 mm (3^7/16 x 17^1/4 x 16^13/16")

Dimensions (Including Feet (H x W x D)): 97.2 x 438 x 438 mm (3^13/16 x 17^1/4 x 16^13/16")

Width (including rack brackets): 482 mm (19")

IP Communication: TCP/IP (RJ-45 10/100 Base T)

Mains Operating Voltage: 100 –120 V @ 60 Hz | 220 – 240 V @ 50 Hz

Fuse Rating: 100-120VAC: T15AL/250V AC | 220-240VAC: T10AL/250V AC

Standby Power Consumption: <0.5 W (green mode)

Networked Standby Power Consumption: <2 W

Weight: 9.2 kg (20 lb 4 oz)
