Monitor Audio IA150-2 Amplifier

Key Information

• Number Of Channels:2 (1 Stereo Pair)
• Power (W / Channel) @ 4 ohms: 150 W
• Power (W / Channel) @ 8 ohms: 100 W

The IA150-2 installation amplifier delivers 150 watts per channel at 4 ohms, powering one stereo pair. Part of Monitor Audio’s cutting-edge Installation Amplifiers range, it offers both Line Inputs and Loop Outputs.

Monitor Audio Installation Amplifiers are built to do more and use less space. Our distribution amplifiers offer full connectivity with simple wired voltage trigger or signal sense.

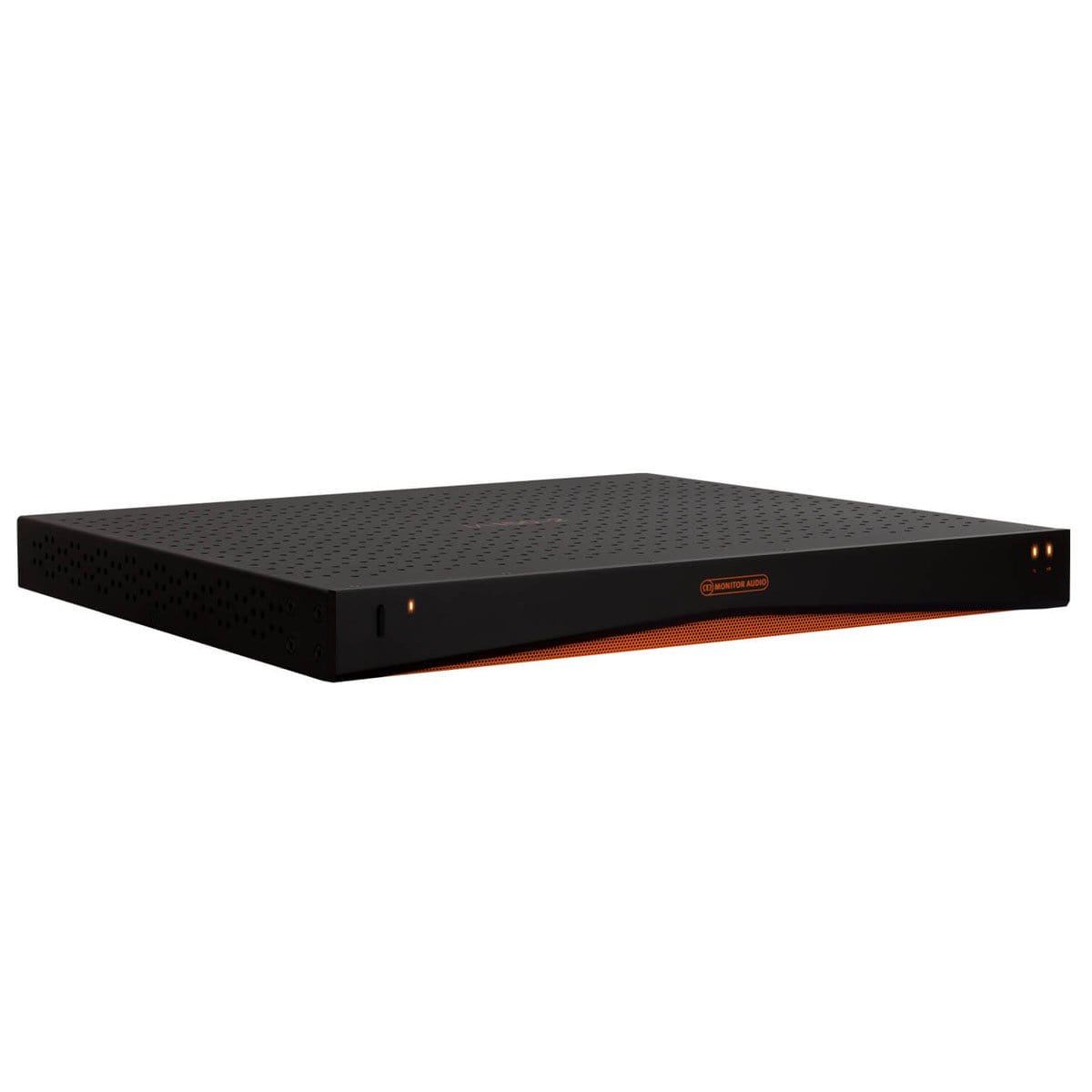

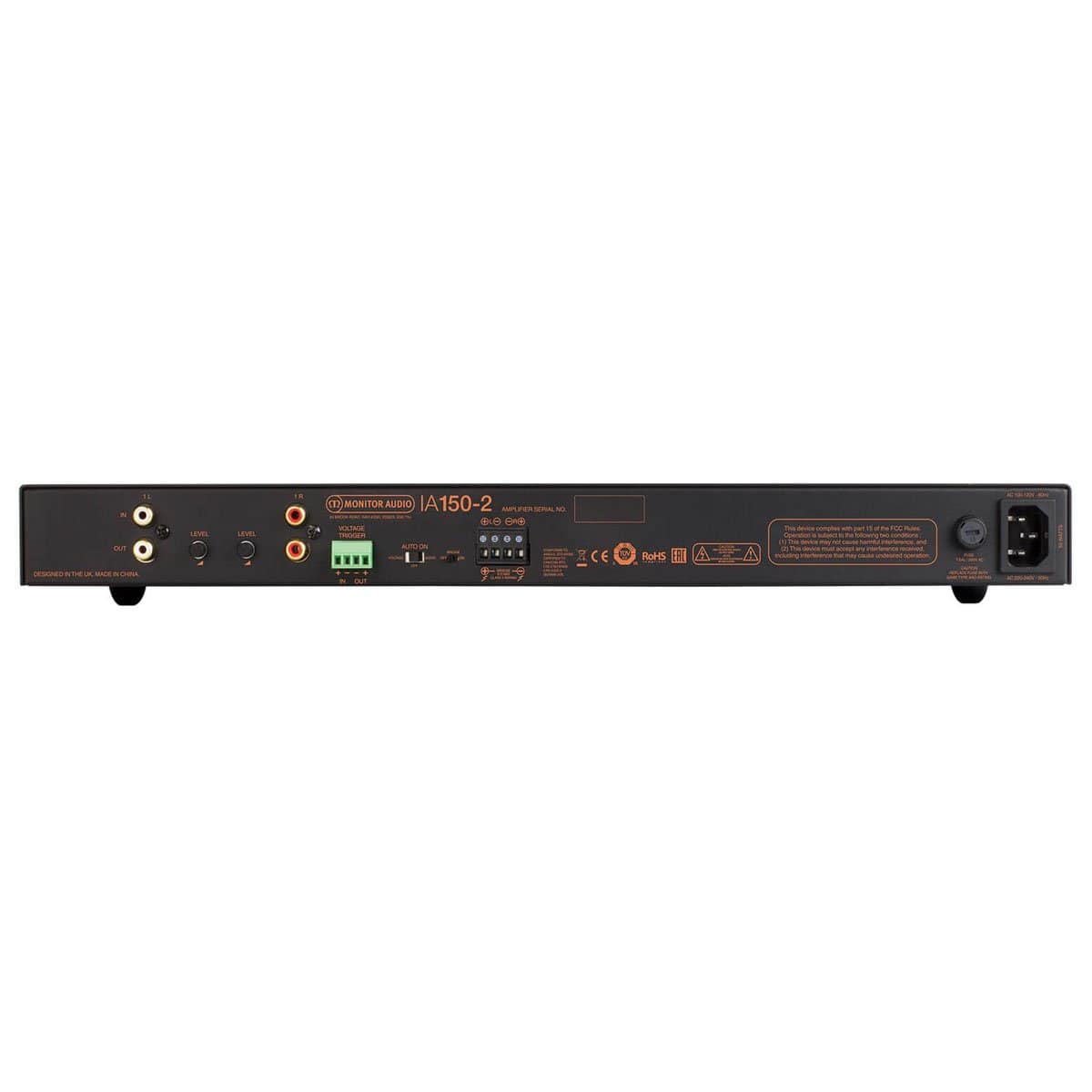

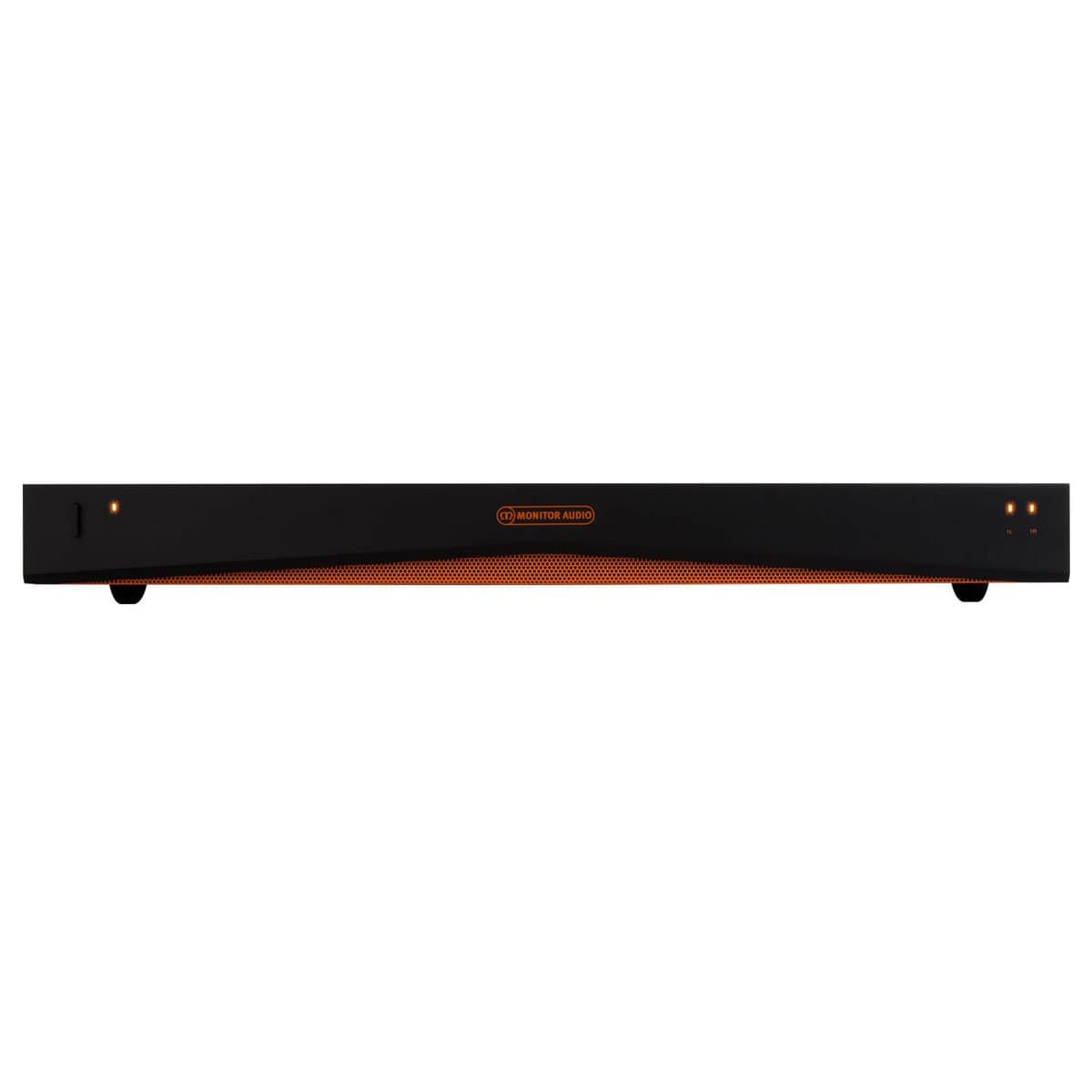

The IA150-2 powers a stereo pair, with rear panel-located volume adjustment for each channel. Just 42 mm high, 438 mm wide, and 427 mm deep, the handsome 1U sized case houses world renowned Hypex amplifiers, selected by us to guarantee reliability and the great sound quality the world has come to expect from Monitor Audio.

SPECIFICATIONS

Connect' IP Control: N/A

Channel Number: 2 (1 Stereo Pair)

Power (W / Channel) | 4 ohms: 150 W

Power (W / Channel) | 8 ohms: 100 W

Power (W / Channel) | Bridge (8 ohms): 320 W (1CH)

Power (W / Channel) | 70V: N/A

Input Impedance: 20 K ohms

Output Impedance (Loop RCA): 600 ohms

Input Sensitivity: 100 mV / 1 W, 1000 mV – Full power

Maximum Input Voltage: 2.9 V

Signal to Noise (SN:R): -100 dB (20 Hz – 20 kHz)

Frequency Response: 5 Hz – 50 kHz

Total Harmonic Distortion THD + N@1 KHz: 0.03%

Rack Height: 1U

Dimensions (Excluding Feet (H x W x D)): 42.4 x 438 x 427 mm (1^11/16 x 17^1/4 x 16 ^13/16")

Dimensions (Including Feet (H x W x D)): 52.8 x 438 x 427 mm (2^1/16 x 17^1/4 x 16^13/16")

Width (including rack brackets): 482 mm (19")

IP Communication: N/A

Mains Operating Voltage: 100 – 120 V @ 60 Hz

220 – 240 V @ 50 Hz

Fuse Type: 5 A (T5AL ~ 250VAC)

Standby Power Consumption: <0.5 W (green mode)

Networked Standby Power Consumption: N/A

Weight: 5.29 kg (11 lb 10 oz)
