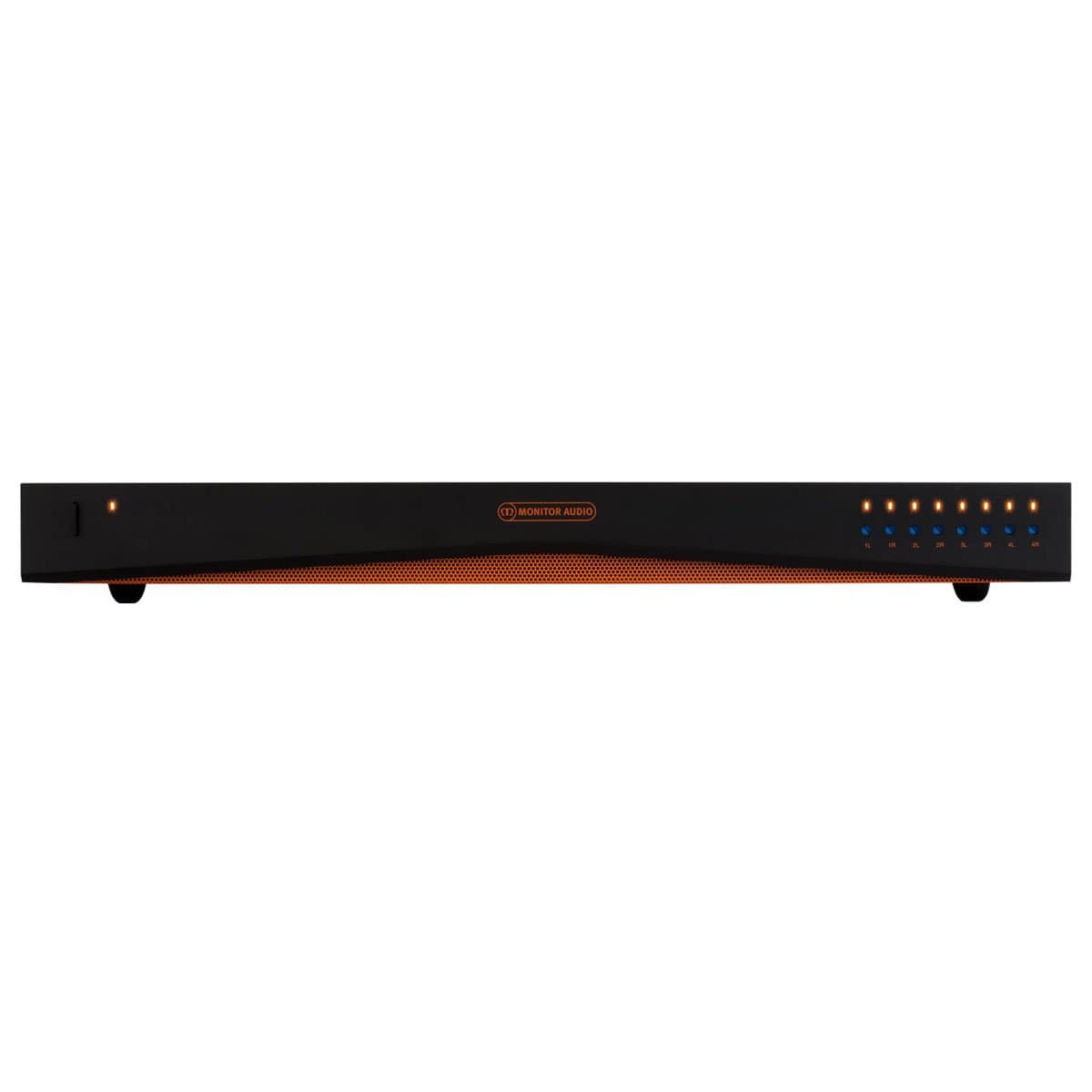

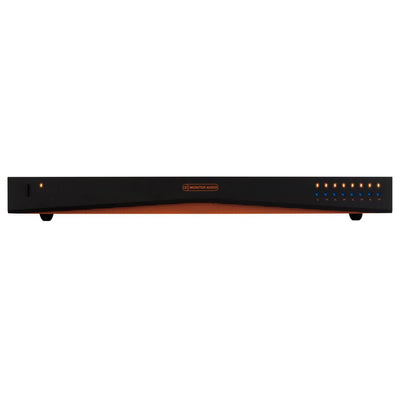

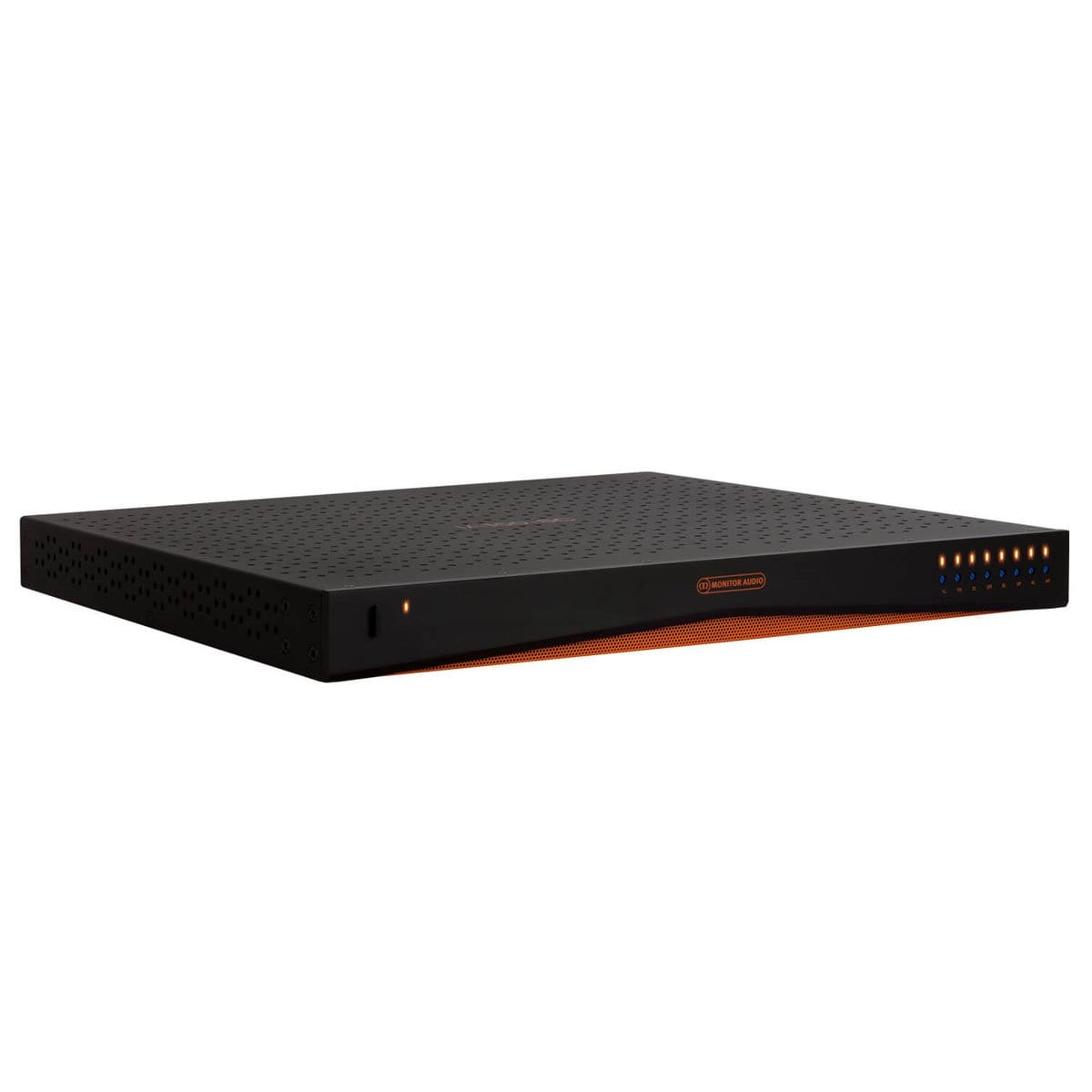

Monitor Audio IA150-8C Amplifier

Key Infomation

• Number Of Channels: 8 (4 Stereo Pairs)
• Power (W / Channel) @ 4 ohms: 150 W
• Power (W / Channel) @ 8 ohms: 140 W

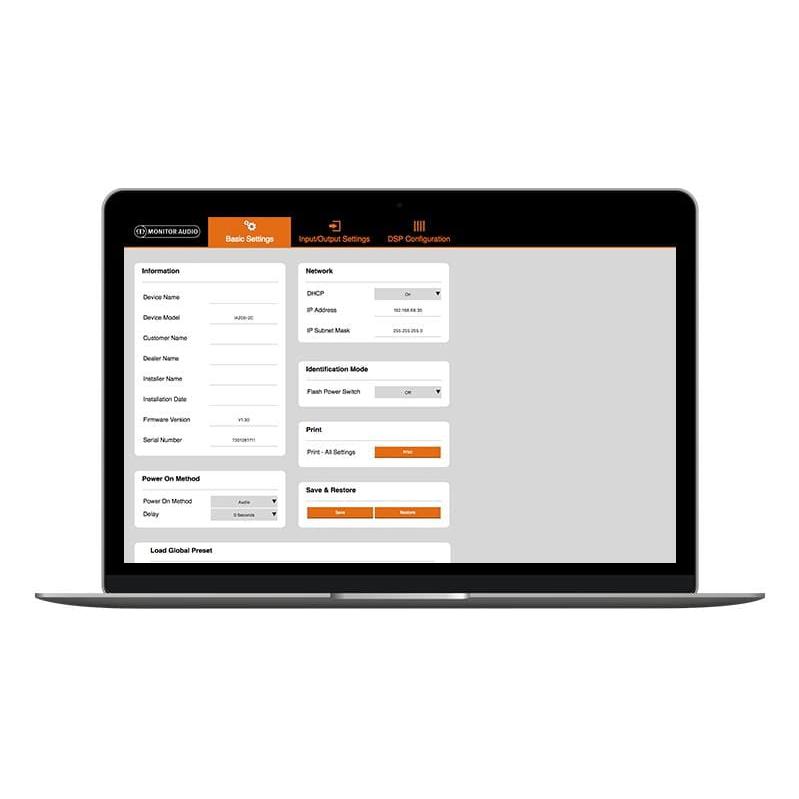

The IA150-8C enables up to eight (4 stereo pairs) channels of 150 watts of power at 4 ohms. It’ll fit 1U rack height and, it employs our Connect IP interface, a web application, which can be accessed by any device connected to the internet with a browser on the same network.

The Monitor Audio Installation Amplifiers are configurable to 1, 2, 3, 4, 5, 6, or 12 channels. The IA150-8C enables up to eight (four stereo pairs) channels of 150 watts of power at four ohms. It’ll fit 1U rack height and, as a member of the Monitor Audio ‘Connect’ division, it employs our Connect IP interface, a web application which can be accessed by any device connected to the internet with a web browser on the same network.

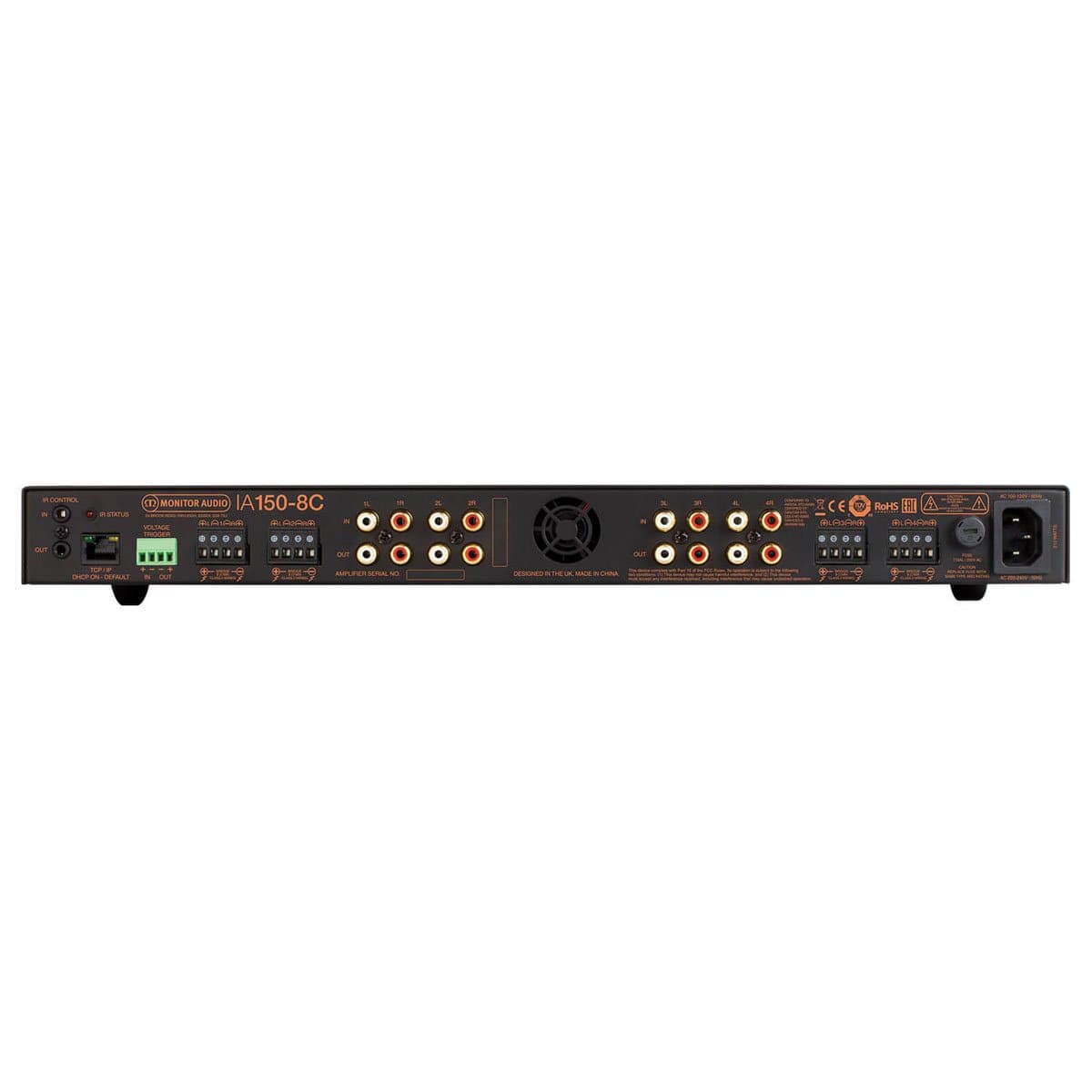

The IP control is via the RJ-45 input, controlling power On/Off, volume, muting, and input source selections. Perfectly prepared for any project, the IA150-8C’s industry standard removable block connectors accept up to 12-gauge (3.5 mm2) cable. Together with the rest of the Installation Amplifier range, the IA150-8C provides the brain as well as the brawn for the mightiest of projects.

SPECIFICATIONS

'Connect' IP Control: Yes

Channel Number: 8 (4 Stereo Pairs)

Power (W / Channel) | 4 ohms: 150 W

Power (W / Channel) | 8 ohms: 140 W

Power (W / Channel) | Bridge (8 ohms): 300 W (4CH)

Power (W / Channel) | 70V: N/A

Input Impedance: 20 K ohms

Output Impedance (Loop RCA): 600 ohms

Input Sensitivity: 100 mV / 1 W, 1140 mV – Full power

Maximum Input Voltage: 2.9 V

Signal to Noise (SN:R): -100 dB (20 Hz – 20 kHz)

Frequency Response: 5 Hz – 50 kHz

Total Harmonic Distortion THD + N@1 KHz: 0.03%

Rack Height: 1U

Dimensions (Excluding Feet (H x W x D)): 42.4 x 438 x 427 mm (1^11/16 x 17^1/4 x 16^13/16")

Dimensions (Including Feet (H x W x D)): 52.8 x 438 x 427 mm (2^1/16 x 17^1/4 x 16^13/16")

Width (including rack brackets): 482 mm (19")

IP Communication: TCP/IP (RJ-45 10/100 Base T)

Mains Operating Voltage: 100 –120 V @ 60 Hz

220 – 240 V @ 50 Hz

Fuse Rating: 10 A (T10AL ~ 250VAC)

Standby Power Consumption: <0.5 W (green mode)

Networked Standby Power Consumption: <2 W

Weight: 7.45 kg (16 lb 6 oz)
