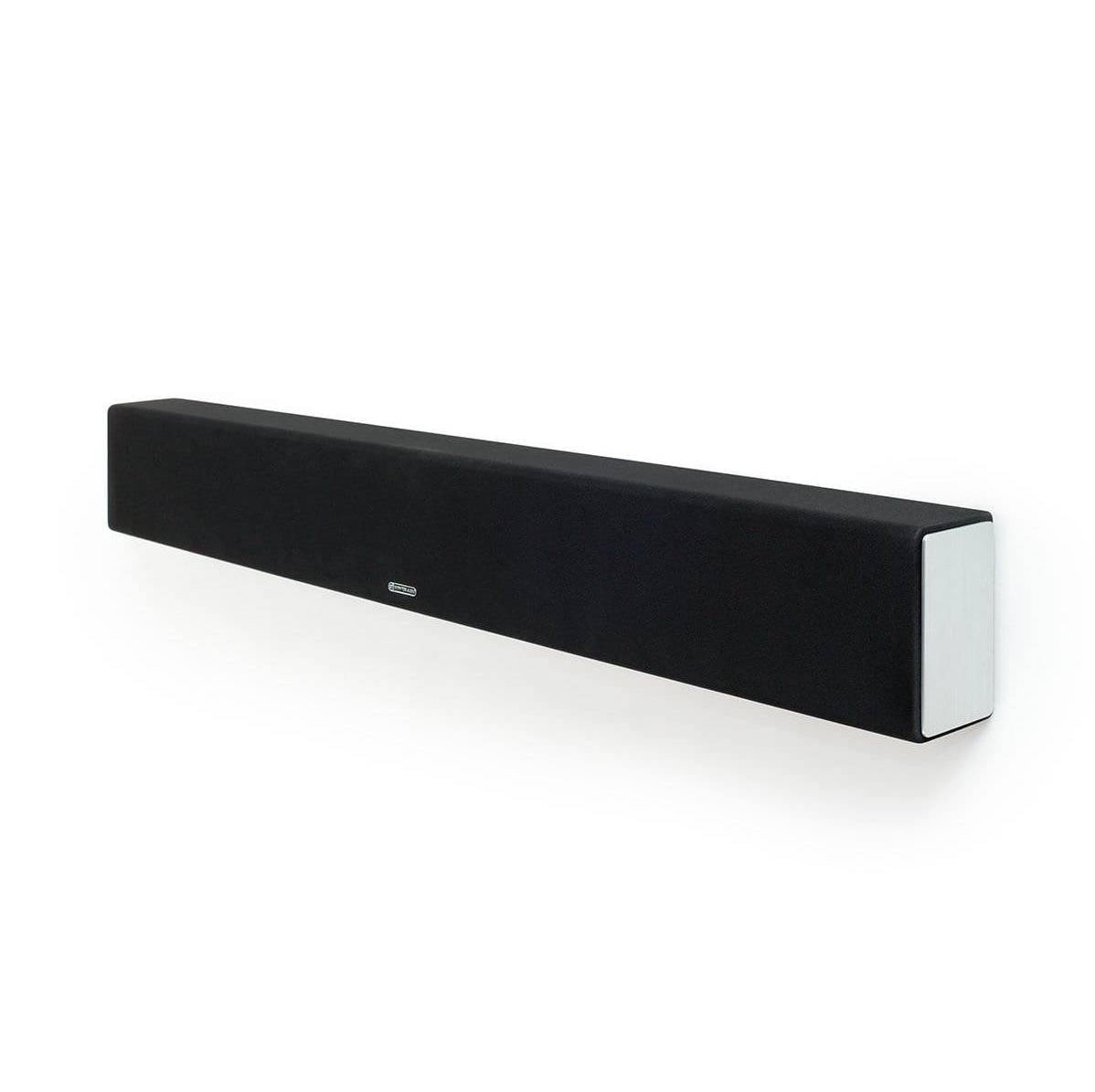

Monitor Audio SB-2 Passive Soundbar

Model: SB-2 | Warranty: Lifetime | Product Type: Sound Bars
Monitor Audio Monitor Audio SB-2 Passive Soundbar Sound Bars
Monitor Audio Monitor Audio SB-2 Passive Soundbar Sound Bars
Monitor Audio Monitor Audio SB-2 Passive Soundbar Sound Bars
  • Free ShippingFree Shipping Australia Wide
  • Secure ShoppingSecure Online Payment
  • $999.00
  • Save $100

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Free ShippingFree Shipping Australia Wide
  • Secure ShoppingSecure Online Payment

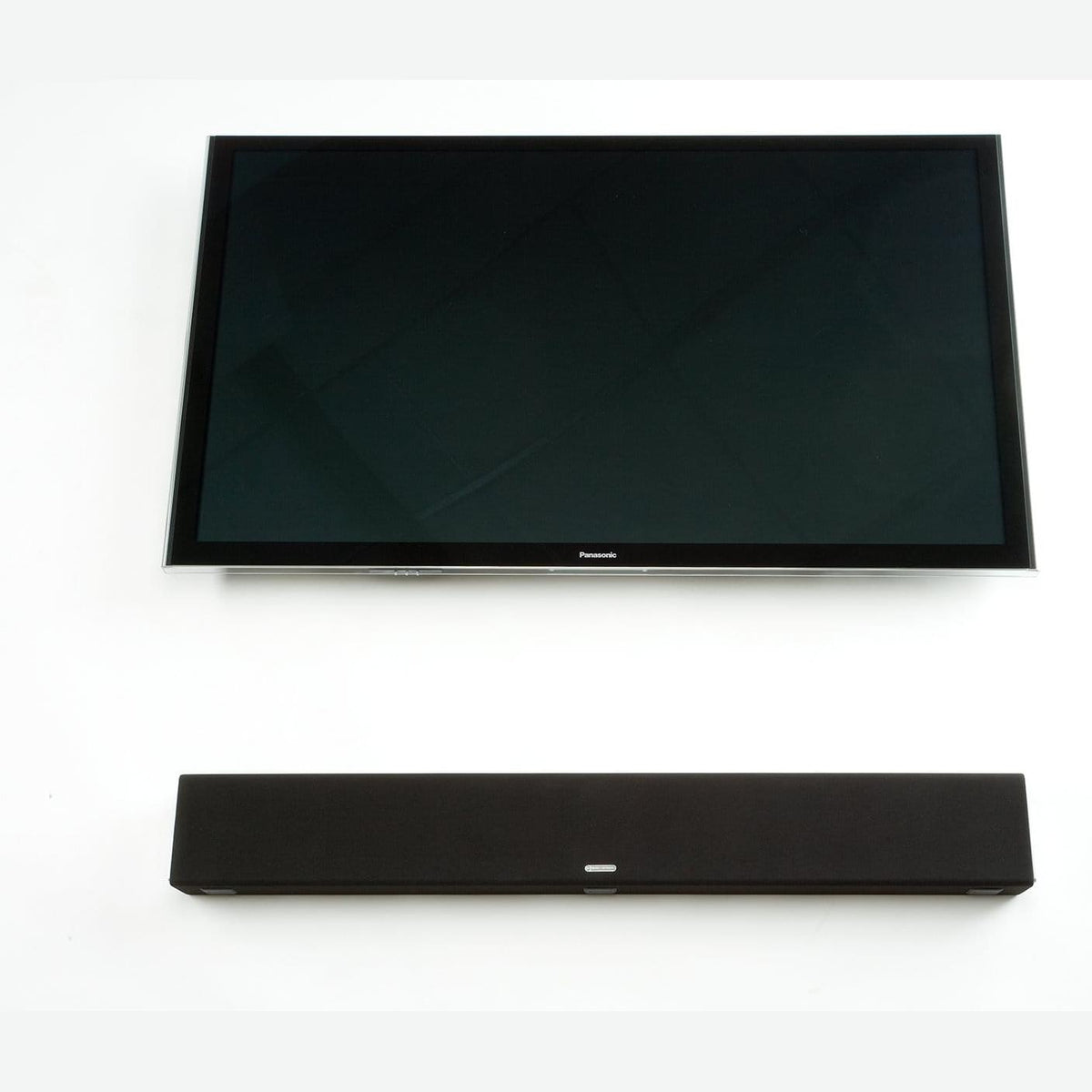

The compact SB-2 is engineered for seamless integration with 50-60 inch TVs, featuring three separate driver arrays for left, centre, right channels in a single cabinet.

The SB-2 employs individual 4 inch C-CAM mid-bass, 1 inch C-CAM tweeter and sealed ABR (Auxiliary Bass Radiator) drivers per section.

In larger rooms the SB-2 can be used with a partnering Monitor Audio subwoofer to deliver the best possible audio experience. Within smaller environments and systems, the SBs will deliver effortless full range audio way beyond the limits of any TV's sound system.



TECHNOLOGY

  • C-CAM (Ceramic-Coated Aluminium/Magnesium) bass/mid driver per channel
  • C-CAM gold dome tweeters per channel
  • Auxiliary Bass Reflex (ABR) per channel
  • Three separate driver arrays for left, centre, right channels in a single cabinet
  • Optional dedicated wall bracket
  • Integrated Silicon feet provide a secure cabinet-top mounting alternative.

SPECIFICATION

Frequency Response (-3dB)

90Hz – 30kHz

Sensitivity (1W@1M)

84dB

Nominal Impedance (ohms)

8

Power Handling Single - R.M.S. (W)

40



System Power Handling - R.M.S. (W)

100 (High pass filter set to 100Hz)

Recommended Amp Requirements (W)

30 - 100

Recommended High Pass Crossover Frequency

80 - 120Hz

Maximum SPL (dBA)

104 (108.8 all channels driven)



Bass Alignment

3 x Auxiliary Bass Reflex (ABR) Loading

Drive Unit Complement

3 x 4” (100mm) C-CAM cone bass/mid driver
3 x 1” (25mm) C-CAM gold dome tweeter

Cabinet Dimensions (HxWxD)

145 x 1110 x 89mm

External Dimensions Inc Bracket (HxWxD)

145 x 1110 x 100mm



Weight (Kg)

7.64Kg
