- The series is the lowest-mass range of moving magnet cartridges offered by Ortofon.
- The OM cartridges bodies have been designed to provide easy mounting and alignment on both top mount and bottom mount headshells.
- The OM 5 Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.
For more than 50 years, Ortofon has been designing and manufacturing Moving Magnet cartridges. Along with their well-regarded Moving Coil cartridges, Moving Magnet models have established a good reputation among music lovers and Hi-Fi enthusiasts the world over.
The new Ortofon OM 5 series encompasses three basic cartridges: OM 5S, OM 5E and Super OM 5E.

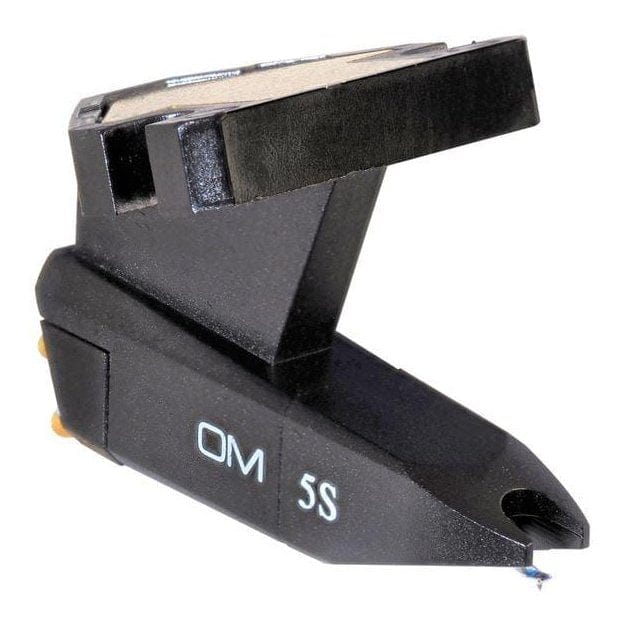

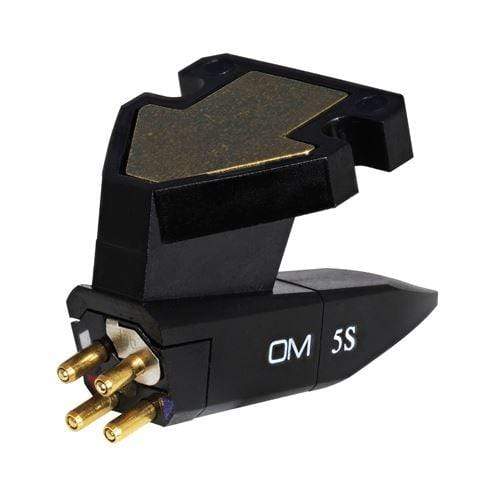

The OM 5S is a Moving Magnet Cartridge for General Purpose Application
If your tonearm has a standard headshell or a cartridge mount, then step up to optimal sound reproduction with OM’s. A glance at anyone of these cartridges will reveal Ortofon's answer to perfect tonearm matching. Ingeniously tucked into the top of the mounting bracket is a tiny, removable weight-plate.
If your tonearm is an standard tonearm, just leave the weight-plate. If your tonearm is one of the low mass types, then simply remove the weight. The mass of your OM cartridge is now a mere 2.5 g.
The OM 5S features a Spherical stylus, which is a robust and economic solution for play back of vinyl records.
Styli Types and Interchangeability
By adopting a wide range of replacement styli, the OM 5 Series can provide an optimum match for your home system, application and budget.
In the development of OM cartridges, a major objective was to provide the music lover with the opportunity to optimize sound reproduction without having to replace the entire cartridge. Instead of being merely intended for replacement purposes following wear or damage, the OM 5 Series allows you to step up to better sound by simply upgrading the stylus. Depending on your preference, styli for the OM 5 Series are easily interchanged and include: styli 3E, 5E, 10, 20, 30, 40 & 78 and D 25 M.
|OM 5S Technical Data|
|Output Voltage at 1 kHz, 5 cm/sec.||4.5 mV|
|Channel Balance at 1 kHz||2 dB|
|Channel Separation at 1 kHz||20 dB|
|Channel Separation at 15 kHz||12 dB|
|Frequency Response||20-20,000 Hz|
|Tracking Ability at 315 Hz at Recommended Tracking Force||60 µm|
|Compliance, Dynamic, Lateral||20 µm/mN|
|Stylus Tip Radius||R 18 µm|
|Tracking Force Range||1.5-2.0 g (15-20 mN)|
|Tracking Force, Recommended||1.75 g (17.5 mN)|
|Internal Impedance, DC Resistance||750 Ohm|
|Internal Inductance||450 mH|
|Recommended Load Resistance||47 kOhm|
|Recommended Load Capacitance||200-500 pF|
|Cartridge Colour, Body/Stylus||Black/Black|
|Cartridge Weight Including Extra Weight||5 g|
|Cartridge Weight Excluding Extra Weight||2.5 g|
|Replacement Stylus Unit||5S|
