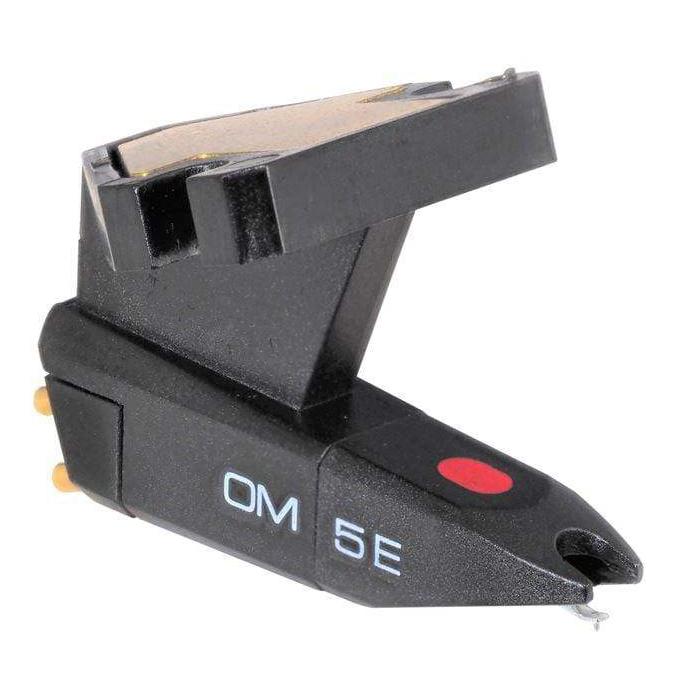

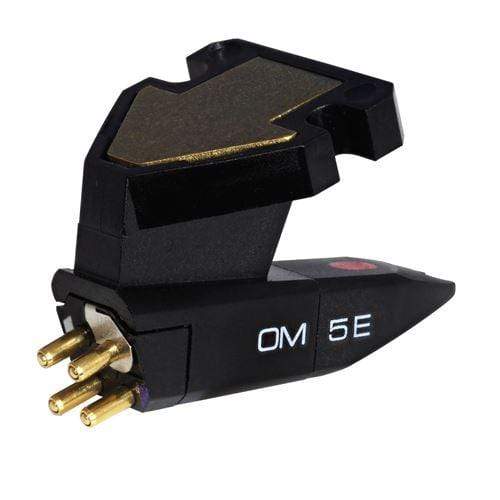

Ortofon Hi-Fi OM 5 E Moving Magnet Cartridge

Model: ORT-OM5EXX-MM-CTG-XXX | Warranty: 2 Years | Product Type: Turntable Cartridges
Ortofon Ortofon Hi-Fi OM 5 E Moving Magnet Cartridge Moving Magnet Cartridges
Ortofon Ortofon Hi-Fi OM 5 E Moving Magnet Cartridge Moving Magnet Cartridges
  • Local ShippingProduct Sent From Australia
  • Free ShippingFast Free Australian Shipping
  • Australian WarrantyLocal Australian Warranty
  • Secure ShoppingSecure Online Payment
  • $109.00

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • Apple Pay
  • Bitcoin
  • Ethereum
  • Local ShippingProduct Sent From Australia
  • Free ShippingFast Free Australian Shipping
  • Australian WarrantyLocal Australian Warranty
  • Secure ShoppingSecure Online Payment

Key Features

  • The series is the lowest-mass range of moving magnet cartridges offered by Ortofon.
  • The OM cartridges bodies have been designed to provide easy mounting and alignment on both top mount and bottom mount headshells.
  • The OM 5 Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.



For more than 50 years, Ortofon has been designing and manufacturing Moving Magnet cartridges. Along with their well-regarded Moving Coil cartridges, Moving Magnet models have established a good reputation among music lovers and Hi-Fi enthusiasts the world over.

The new Ortofon OM 5 series encompasses three basic cartridges: OM 5S, OM 5E and Super OM 5E.

Optimal Fit and Sound Reproduction

If your tonearm has a standard headshell or a cartridge mount, then step up to optimal sound reproduction with OM’s. A glance at anyone of these cartridges will reveal Ortofon's answer to perfect tonearm matching. Ingeniously tucked into the top of the mounting bracket is a tiny, removable weight-plate.

If your tonearm is an standard tonearm, just leave the weight-plate. If your tonearm is one of the low mass types, then simply remove the weight. The mass of your OM cartridge is now a mere 2.5 g.

OM 5E features an Elliptical stylus that provides balanced and distortion-free playback. Elliptical diamonds are able to follow the groove oscillations more accurately than spherical diamonds due to their contoured shape. This results in better tracking and less distortion.

Styli Types and Interchangeability

By adopting a wide range of replacement styli, the OM 5 Series can provide an optimum match for your home system, application and budget.

In the development of OM cartridges, a major objective was to provide the music lover with the opportunity to optimize sound reproduction without having to replace the entire cartridge. Instead of being merely intended for replacement purposes following wear or damage, the OM 5 Series allows you to step up to better sound by simply upgrading the stylus. Depending on your preference, styli for the OM 5 Series are easily interchanged and include: styli 3E, 5E, 10, 20, 30, 40 & 78 and D 25 M.

Specifications



OM 5E Technical Data
Output Voltage at 1 kHz, 5 cm/sec. 4 mV
Channel Balance at 1 kHz 2 dB
Channel Separation at 1 kHz 22 dB
Channel Separation at 15 kHz 15 dB
Frequency Response 20-20,000 Hz +3 / -3 dB
Tracking Ability at 315 Hz at Recommended Tracking Force 60 µm
Compliance, Dynamic, Lateral 20 µm/mN
Stylus Type Elliptical
Stylus Tip Radius r/R 8/18 µm
Tracking Force Range 1.5-2.0 g (15-20 mN)
Tracking Force, Recommended 1.75 g (17.5 mN)
Tracking Angle 20°
Internal Impedance, DC Resistance 750 Ohm
Internal Inductance 450 mH
Recommended Load Resistance 47 kOhm
Recommended Load Capacitance 200-500 pF
Cartridge Colour, Body/Stylus Black/Black
Cartridge Weight Including Extra Weight 5 g
Cartridge Weight Excluding Extra Weight 2.5 g
Replacement Stylus Unit
