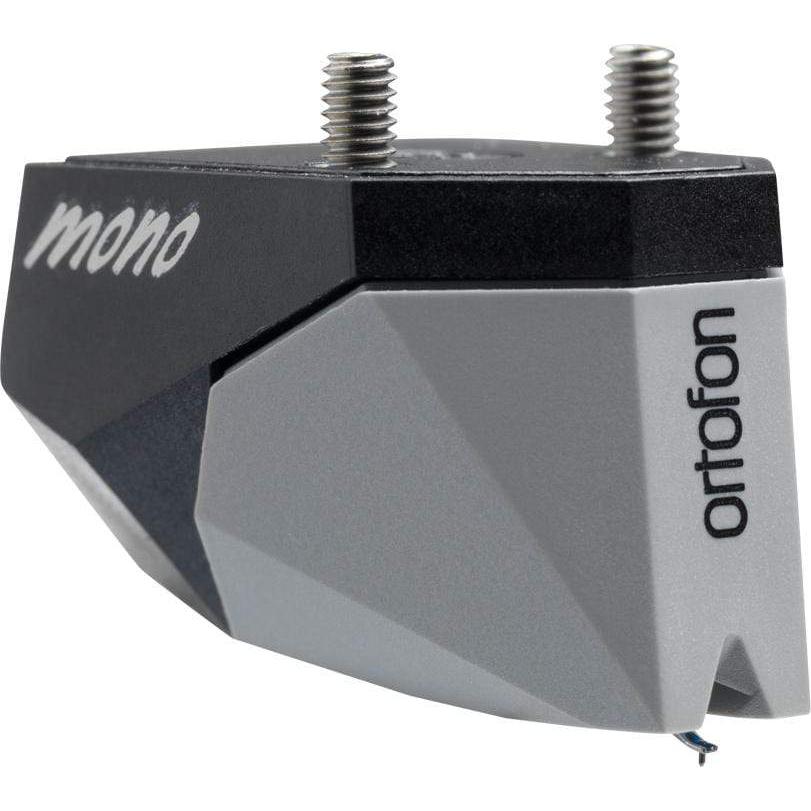

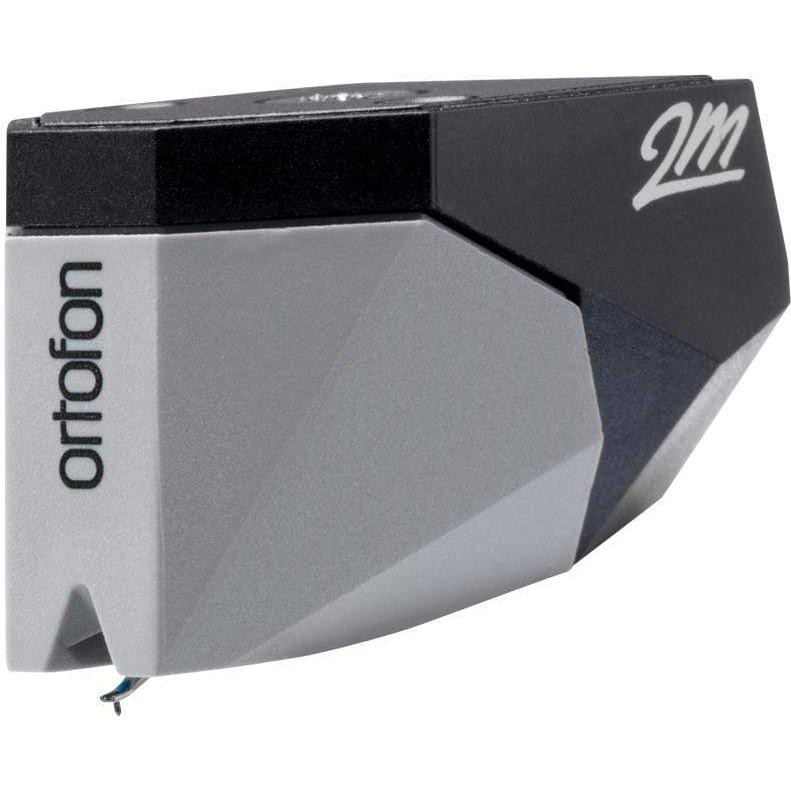

Ortofon Hi-Fi 2M 78 Moving Magnet Cartridge
Ortofon has optimised the design for ease of mounting the cartridge, and the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.
The 2M Series is developed in conjunction with the Danish Industrial designer Møller Jensen Design – the same designer who designed the award winning MC Jubilee and Kontrapunkt series. Inspired by the facets of a diamond, whose contours gracefully trace the grooves on a record’s surface, the 2M’s handsome elegance establishes a great combination of form and functionality.
The name 2M was selected from among several ideas. We wanted a modern name that would be easy to pronounce and remember, and therefore an alphanumerical name was chosen. 2M means MM, which is the abbreviation for moving magnet.
Of course the 2M isn’t just another pretty face. It has been engineered to the highest standards and is congruent with Ortofon’s unrelenting commitment to providing the most precise and accurate reproduction possible without coloration.
The 2M series of cartridges features Ortofon’s trademark split pole pins, an invention that enables moving magnet cartridges to have a flat frequency response, as with a moving coil cartridge. Split pole pins were invented by Ortofon, and were originally presented in the 500 series and OM Super series.
We have optimised the design for ease of mounting the cartridge, and the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.
|2M 78 Technical Data|
|Output Voltage at 1 kHz, 5 cm/sec.||4 mV|
|Frequency Response||20-20,000 Hz +3 / -1 dB|
|Tracking Ability at 315 Hz at Recommended Tracking Force||70 µm|
|Compliance, Dynamic, Lateral||18 µm/mN|
|Stylus Tip Radius||R 65 µm|
|Tracking Force Range||1.6-2.0 g (16-20 mN)|
|Tracking Force, Recommended||1.8 g (18 mN)|
|Internal Impedance, DC Resistance||700 Ohm|
|Internal Inductance||350 mH|
|Recommended Load Resistance||47 kOhm|
|Recommended Load Capacitance||150-300 pF|
|Cartridge Colour, Body/Stylus||Black/Grey|
|Cartridge Weight Without Screws||7.2 g|
|Replacement Stylus Unit||2M 78 (Interchangeable with 2M Mono)|
|Stylus Lifetime||Up to 1000 Hours without Degradation of Performance (with Proper Care)|
