Rotel S14 Integrated Streaming Amplifier

$2,474$2,749Save $275

Seen it cheaper? Talk to us.Trade in your old amplifier typically $400–$900 toward this

In stock SKU: ROT-S14XXX-XX-STR-BLK
Colour: Black

Pickup available at Alexandria Showroom · Usually ready in 2-4 days

Ships from SydneyIn stock · free insured AU shipping · we confirm your dispatch date within one business day·
Australian warrantyAuthorised dealer, local support
Installation availableSydney metro, quoted with the gear

The Rotel S14 Integrated Network Streamer is an all-in-one solution providing the ultimate in convenience to the near limitless catalog of music delivering 150 Watts of Class AB power.

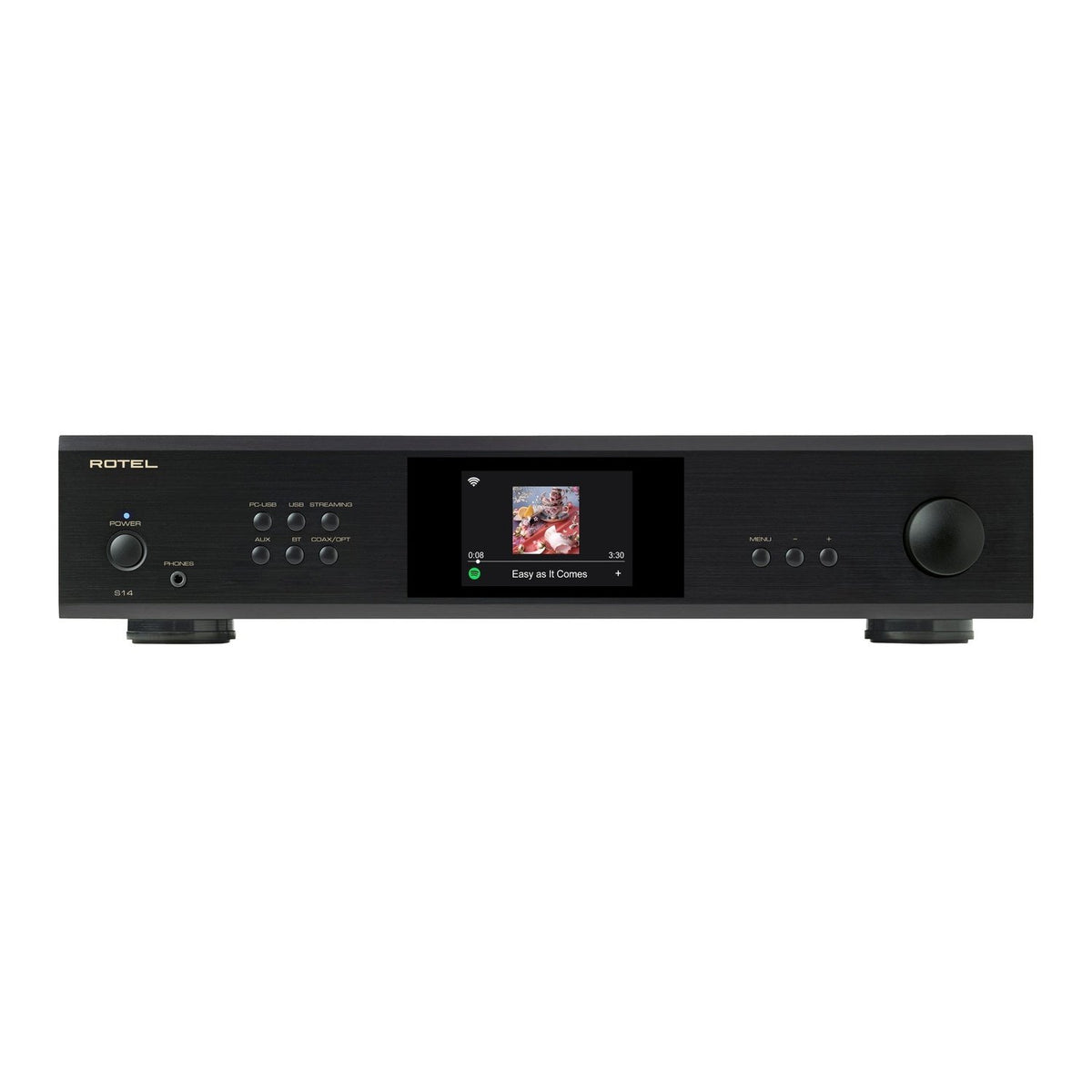

Album artwork on the front display, included remote, simple operation and intuitive setup ensures the S14 becomes the heart of your music system.

  • Certified Roon Read
  • Supports MQA and MQA Studio
  • 2 x 150 Watts of robust Class AB power,  4 Ohms
  • ESS premium 32-bit  Digital to Analog Converter
  • Wireless aptX™ HD and AAC Bluetooth

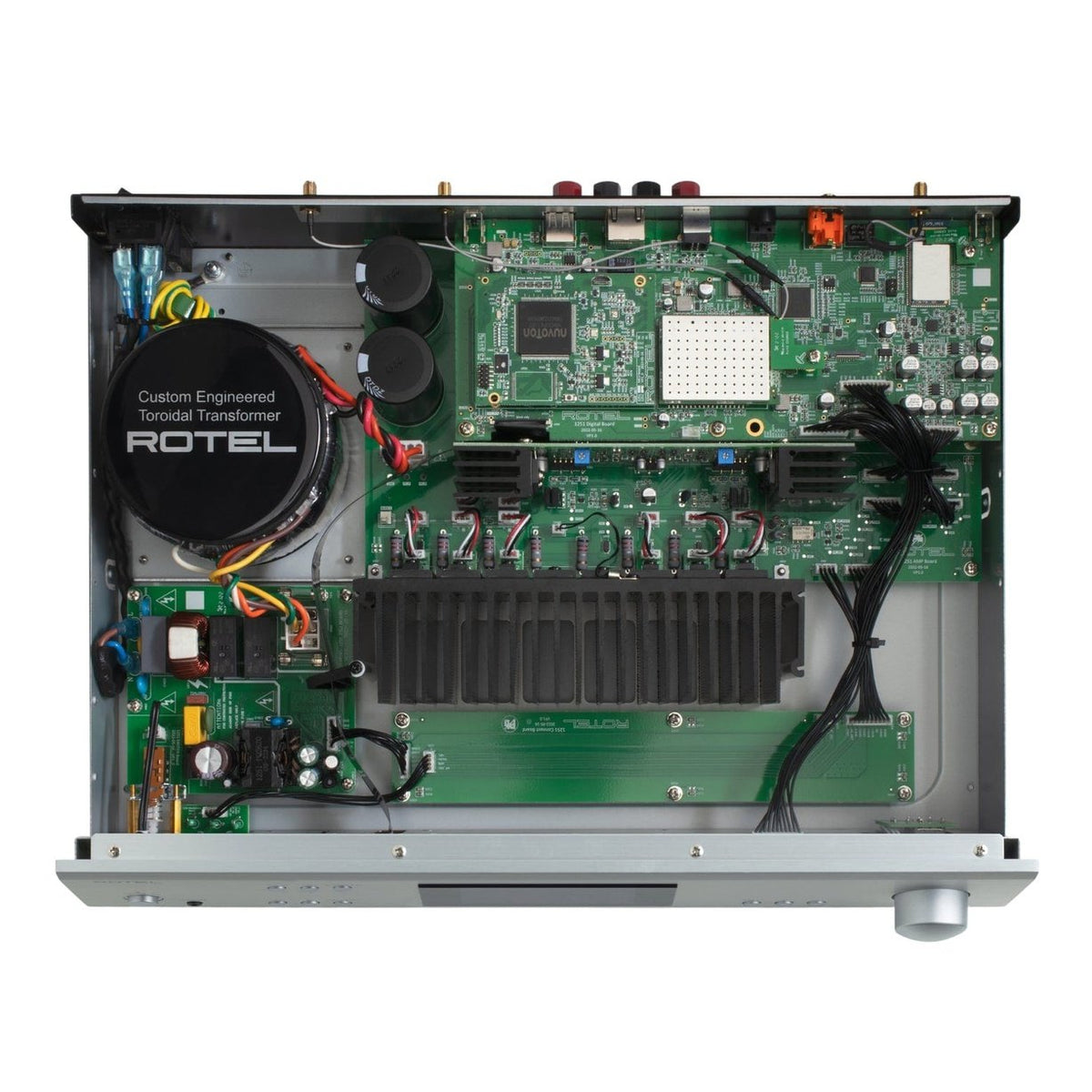

Leveraging over 60 years of design experience, the S14 delivers high performance music rendered through a 32-bit ESS Sabre digital-to-analog converter, feeding high current output transistors powered by an oversized toroidal transformer, delivering precision and control.

With the S14, users can stream music directly from popular streaming services including Spotify, Tidal, Qobuz, and podcasts as well as thousands of Internet Radio stations. Fully certified Roon Ready, AirPlay 2 and Google Cast are also supported as well as coaxial, optical, aptXTM HD Bluetooth, analogue RCA and PC-USB source inputs for legacy devices.

The all-in-one product streams music directly from popular music services, rendering the audio with precision, delivering 150 Watts of Class AB power at 4 Ohms directly to loudspeakers via 5-way binding posts and a front panel headphone connection. The S14 also comes with a newly engineered aluminium remote control for easy use in a design-forward package.

Specifications

DIMENSIONS (W × H × D)
430 × 93 × 345mm
17" × 3 5/8" × 13 1/2"

POWER REQUIREMENTS
120V, 60Hz

POWER CONSUMPTION
280W

STANDBY POWER CONSUMPTION
<0.5W

NET WEIGHT
9.15kg (20.17lbs.)
MAXIMUM POWER OUTPUT
150W/Ch (4Ω)

CONTINUOUS POWER OUTPUT
80W/Ch (8Ω)

TOTAL HARMONIC DISTORTION
(THD)
<0.04%

FREQUENCY RESPONSE
Line Level Inputs:
10Hz - 100kHz, ±0.5dB
Digital Inputs:
10Hz - 90kHz, ±2.0dB, Max

S/N RATIO (IHF "A" Weighted)
Line Level Inputs: 100dB
Digital Inputs: 98dB
INTERMODULATION DISTORTION
(60Hz:7kHz, 4:1)
<0.03%

DAMPING FACTOR
400

INPUT SENSITIVITY
Line Level Inputs: 200mV
Digital Inputs: -20dBfs
INPUT IMPEDANCE
Line Level Inputs: 47kΩ
Digital Inputs: 75Ω

INPUT OVERLOAD
Line Level Inputs: 4.5V

TONE CONTROLS
±10dB at 100Hz / 10kHz
COAX/OPTICAL DIGITAL INPUT SIGNALS
SPDIF LPCM (Up to 24-bit/192kHz)

PC-USB
USB Audio Class 2.0 (up to 24-bit/384kHz)*
*Driver installation required
MQA and MQA Studio (up to 24-bit/384kHz )
INTERMODULATION DISTORTION
(60Hz:7kHz, 4:1)
<0.03%

DAMPING FACTOR
400

INPUT SENSITIVITY
Line Level Inputs: 200mV
Digital Inputs: -20dBfs
INPUT IMPEDANCE
Line Level Inputs: 47kΩ
Digital Inputs: 75Ω

INPUT OVERLOAD
Line Level Inputs: 4.5V

TONE CONTROLS
±10dB at 100Hz / 10kHz
COAX/OPTICAL DIGITAL INPUT SIGNALS
SPDIF LPCM (Up to 24-bit/192kHz)

PC-USB
USB Audio Class 2.0 (up to 24-bit/384kHz)*
*Driver installation required
MQA and MQA Studio (up to 24-bit/384kHz )
