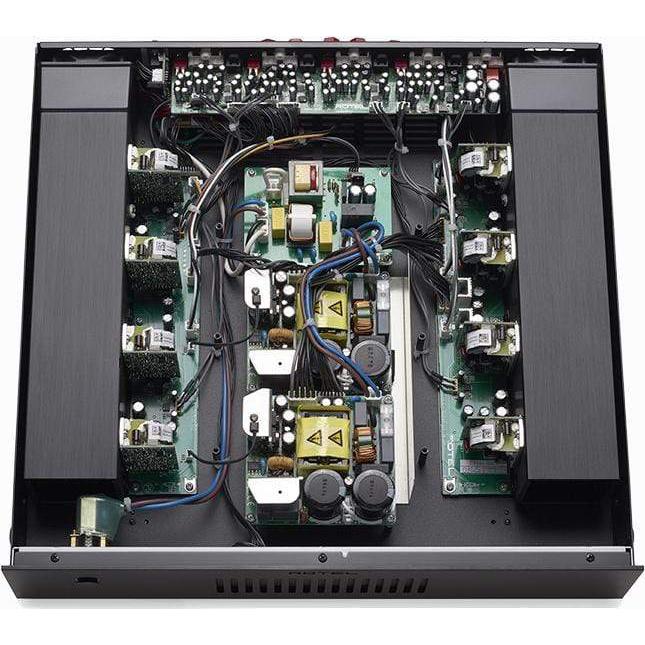

RKB-D8100 features the same performance and feature set as the RKB-8100 but adds digital inputs for increased functionality with any digital source component. Both models feature dual SMPS power supplies partnered with a high efficiency, low heat, Class D operation and no compromise audio engineering setting new standards for the custom installation amplifier category.

One of the many custom-friendly features the RKB-D8100 offers is input linking. A second input can source from any ‘upstream’ input - so B can source from A, C can source from B and D can source from C. You can create four individual stereo zones, two dual zones or three common zones plus an individual zone. In other words, two Sonos Connects (for instance) might be divided between kitchen and patio (A+B zones) and Master Bedroom and Bath (C+D).

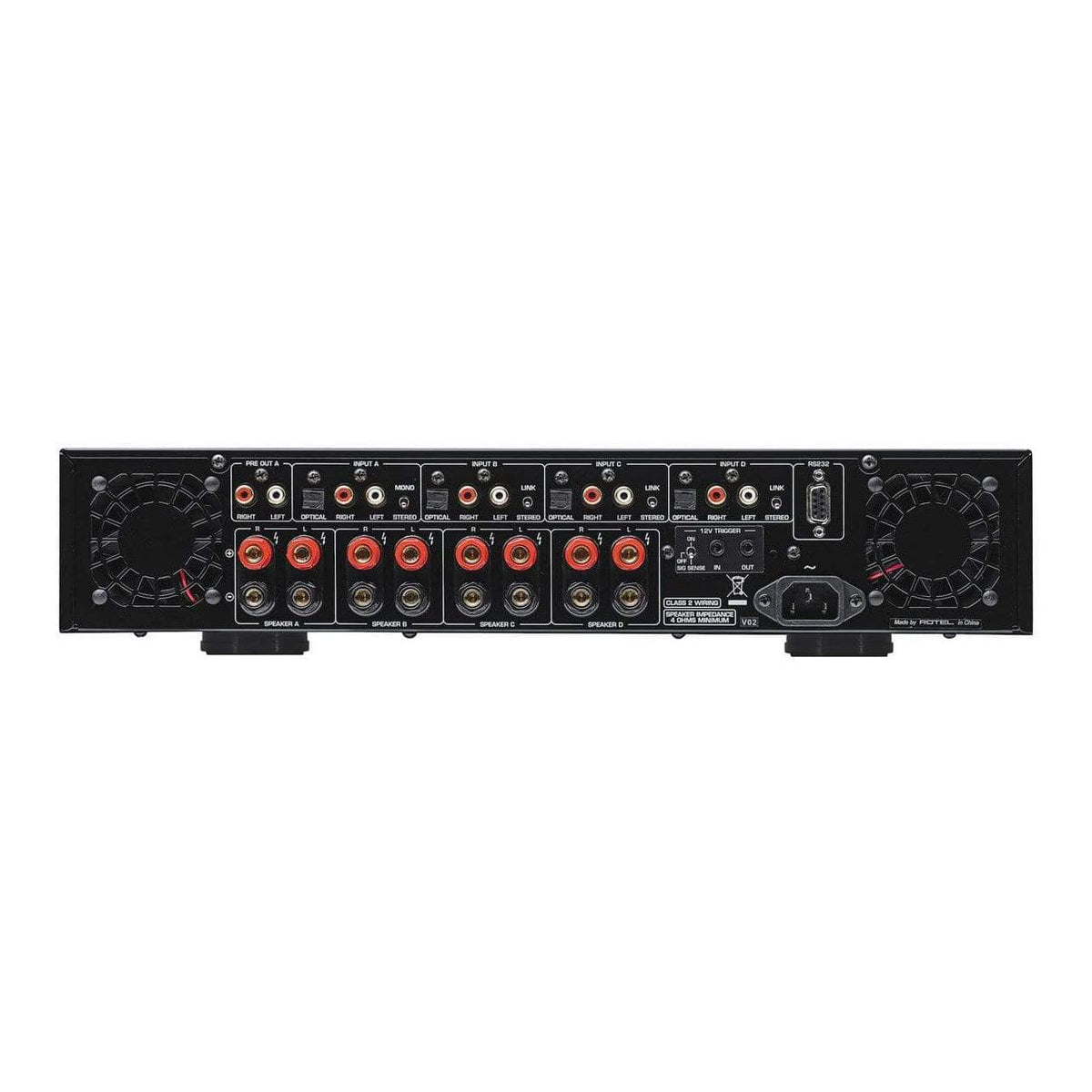

Other features include input signal sensing, buffered link output, a sum-to-mono feature, a rear panel RS232 connection allowing connection to automation systems to provide full control and feedback, and four front panel trim pots to allow easy level adjustment to balance zones.



Overview

  • 8 x 100W/ch @ 8ohms
  • Optical and RCA Inputs

Specifications

CONTINUOUS POWER OUTPUT
100W/Ch (All channels driven, 8Ω)

TOTAL HARMONIC DISTORTION (THD)
(20Hz–20kHz) <0.08%

FREQUENCY RESPONSE
10Hz - 100kHz +0dB, -1.4dB

S/N RATIO (IHF "A" Weighted)
Line Level Inputs: 108dB
Digital Inputs: 95dB

GAIN
30dB



DIMENSIONS (W × H × D)
430 × 97 × 424mm
17" × 3.9" × 16.7"

FRONT PANEL HEIGHT
2U / 88.1mm (3.5")

POWER REQUIREMENTS
120V, 60Hz

POWER CONSUMPTION
300W

STANDBY POWER CONSUMPTION
<0.5W

NET WEIGHT
9.6kg (21lbs.)

BTU RATING (4Ω, 1/8th power)
279 BTU/h
