Since 1982, when the CD was introduced, Rotel has been refining technology and evolving circuitry to bring you extraordinary sound from the familiar silver disc. As most music lovers have a substantial collection of compact discs, a high quality CD player is still an important part of most music systems. The RCD-1572, the outstanding CD player in Rotel‘s 15 series, focuses careful refinements to reveal even the most subtle nuances buried in a CD’s pit spiral.
The RCD-1572 elevates performance by utilizing a purpose designed and built CD mechanism along with other circuit refinements. One of the RCD-1572’s most important features is the Wolfson WM8740 digital filter/stereo digital-to-analog converter. Originally developed for high resolution sources, it is the product of extensive research and real world testing and processes digital signals up to 24-bits in length at sampling rates from 8 kHz to 192 kHz.
While word lengths and sampling speed may seem excessive for CDs delivering data at far lower rates, this high speed facility adds reserve capability to ensure proper reproduction under all circumstances. As the most crucial link between a CD’s digital data and the analog world in which we listen, this converter boasts significant attributes in addition to its superb high resolution capabilities.
The post-converter analog circuitry benefits from Rotel‘s decades-long experiences in crafting the finest sounding pathway from the DAC’s internal output to RCA and XLR rear panel connectors that bridge the gap between the RCD-1572 and down-stream components. All circuit components – resistors, capacitors, inductors – are chosen only after their positive contribution to sound quality were quantified and verified qualitatively by extensive listening sessions.
All of these circuits draw on a power supply based on an oversized custom Rotel-designed and precision-manufactured toroidal power transformer that, in turn, feeds precise rectifiers, tight-tolerance voltage regulators, and advanced Slit-Foil low-ESR storage capacitors, all globally sourced to ensure musically accurate operation under even the most demanding conditions.

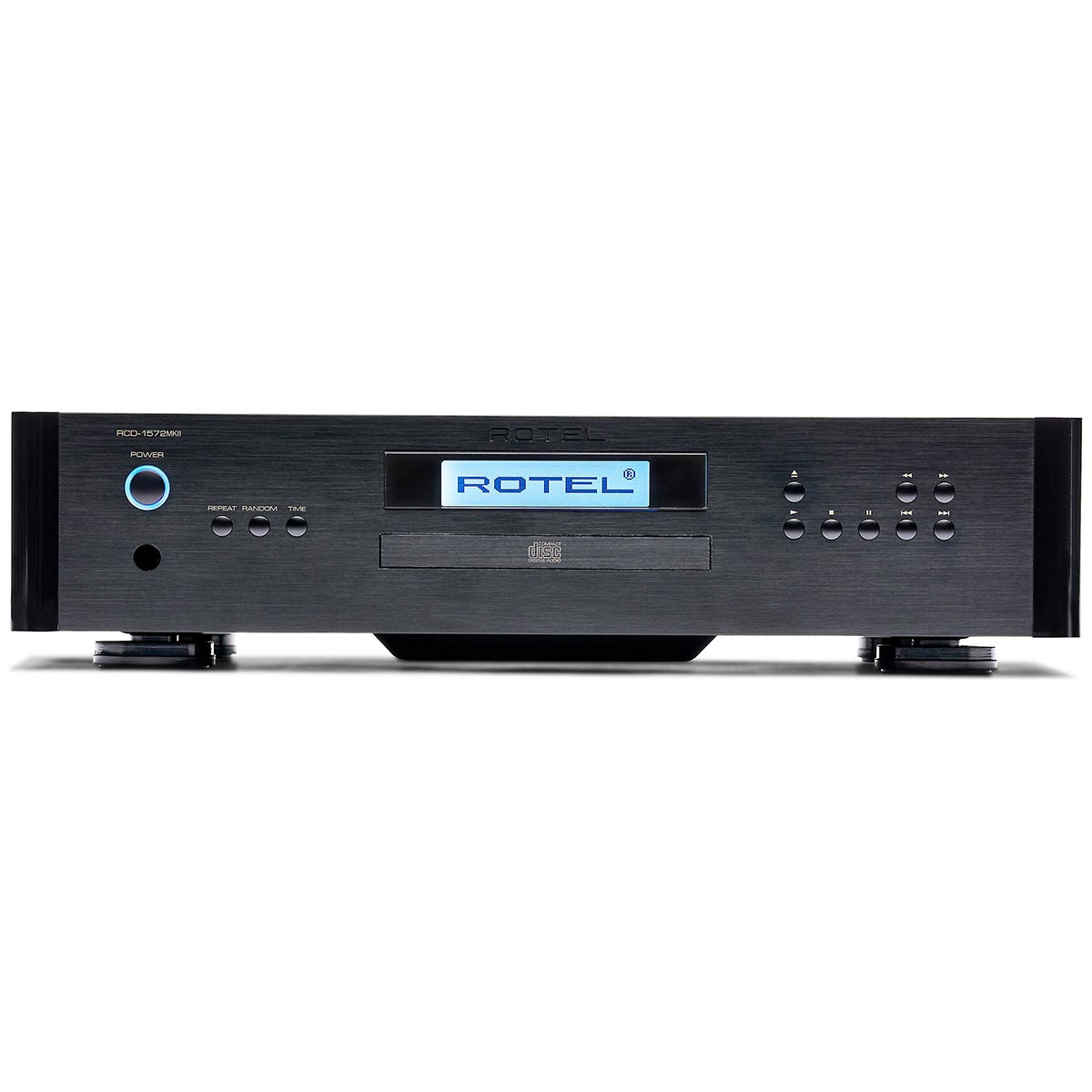

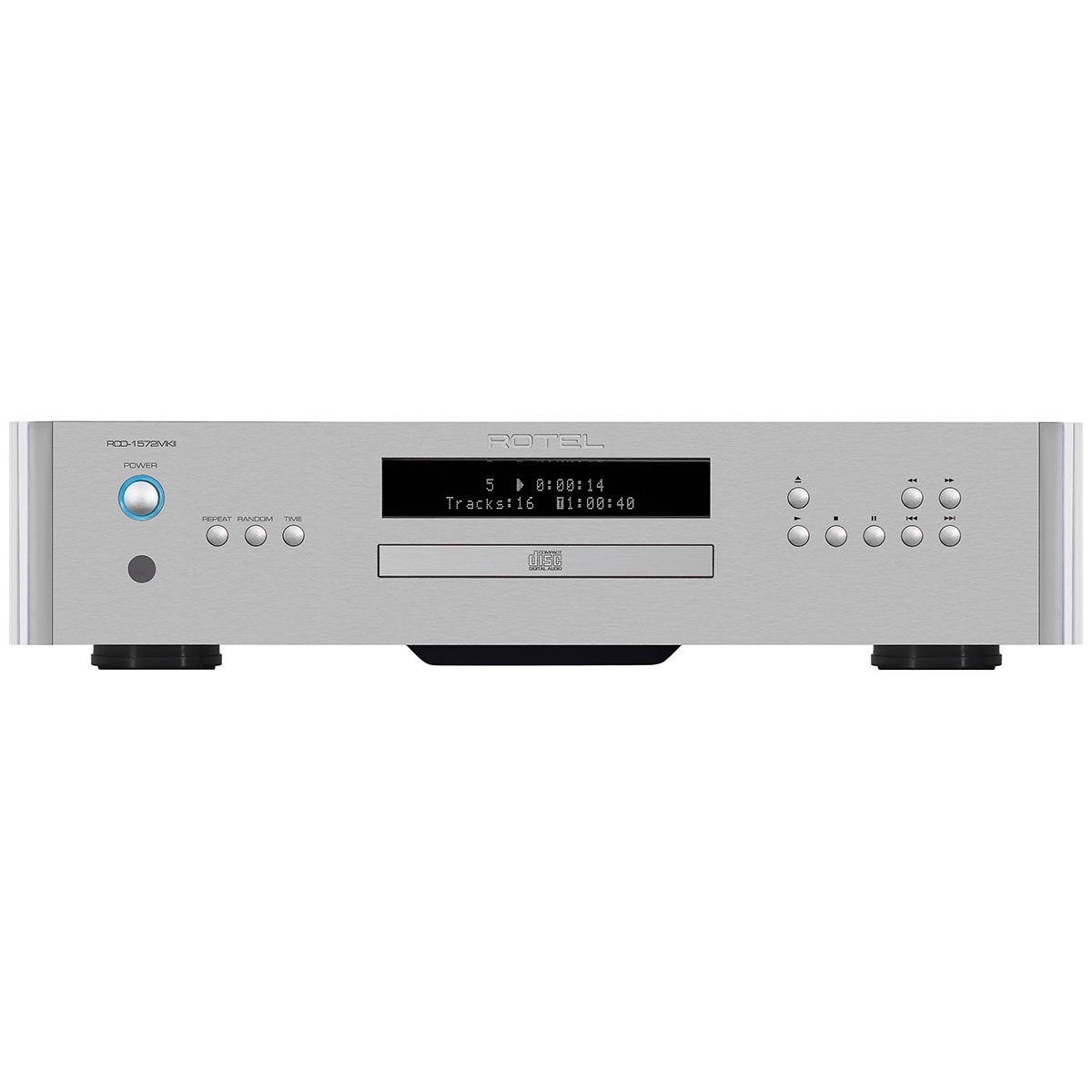

The RCD-1572MKII follows Rotel’s proud tradition of delivering award winning CD players since 1989 supporting the over 200 billion CDs sold in the market with authentic, genuine detail delivering an exceptional sense of space and depth.
Utilizing an ultra-low noise in-house manufactured toroidal transformer the RCD-1572MKII’s circuits are electrically and physically isolated removing unwanted distortion and lowering the noise floor.
A premium Texas Instruments 32-bit DAC delivers exceptional frequency response to fully balanced differential XLR Balanced, RCA and coaxial digital outputs.
The RCD-1572MKII is both classic and refined ready for your music collection delivering stunning detail and extraordinary clarity.

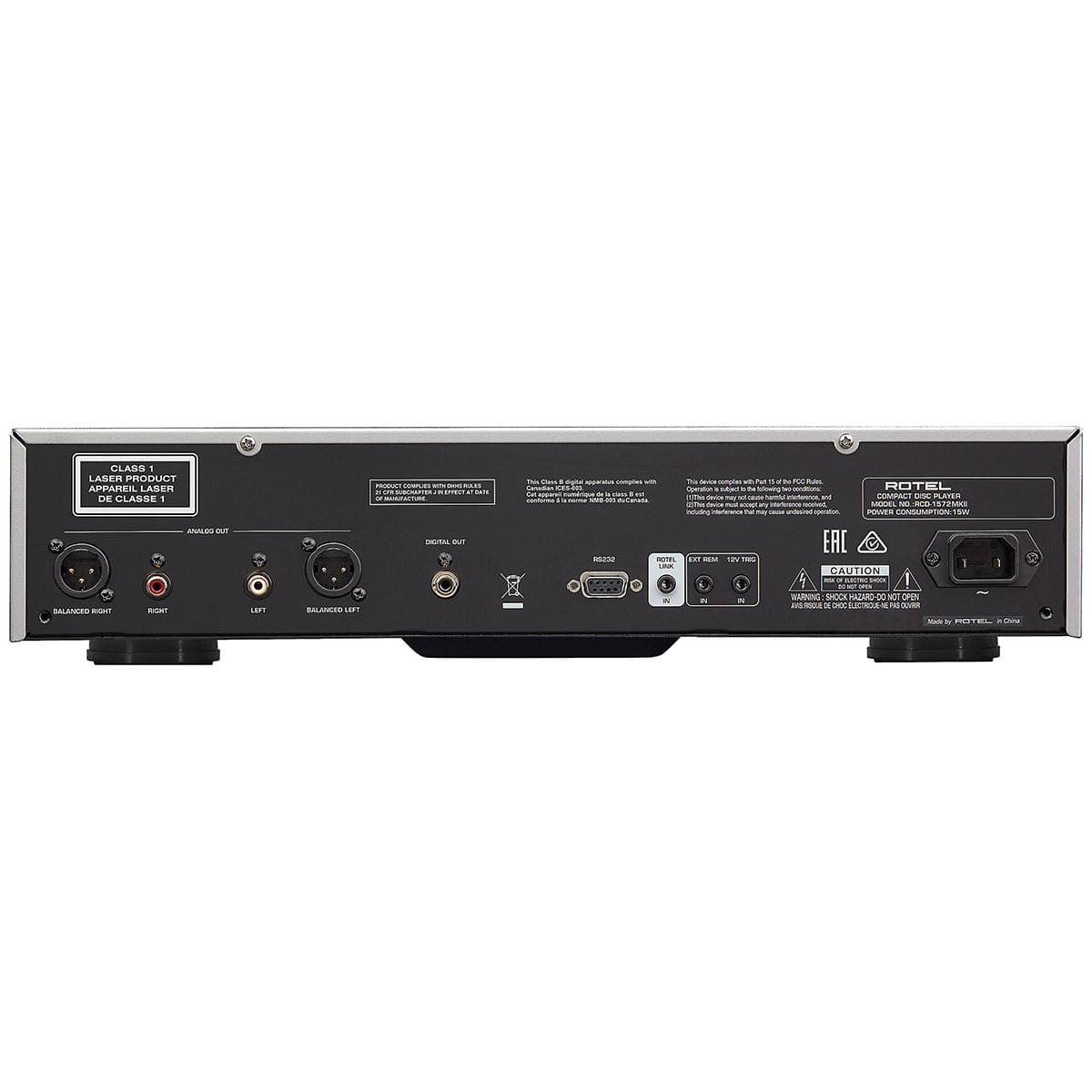

- Balanced and UnBalanced Outputs
- Digital Output
- Texas Instruments 32-bit/384 kHz DAC
|Total Harmonic Distortion (THD)||0.0035% @ 1 kHz|
|Frequency Response||20 Hz - 20 kHz ±0.5 dB|
|S/N Ratio (IHF "A" Weighted)||>118 dB|
|Dynamic Range||>99 dB|
|Digital to Analogue Converters||Texas Instruments|
|Channel Balance||±0.5 dB|
|Channel Separation||>118 dB @ 10 kHz|
|Analogue Output Level||Unbalanced (RCA): 2.2 V, Balanced (XLR): 4.5 V|
|Digital Output||0.5 V, Peak to Peak|
|Analogue Output Impedance||Unbalanced (RCA): 100Ω, Balanced (XLR): 200Ω|
|Dimensions (W x H x D)||431 x 104 x 320 mm (17" x 4" x 12.6")|
|Front Panel Height||2U / 88.1 mm (3.5")|
|Power Requirements||230 V, 50 Hz|
|Power Consumption||15 W|
|Standby Power Consumption||<0.5 W|
|Net Weight||7.34 kg (16.18 lbs.)|
