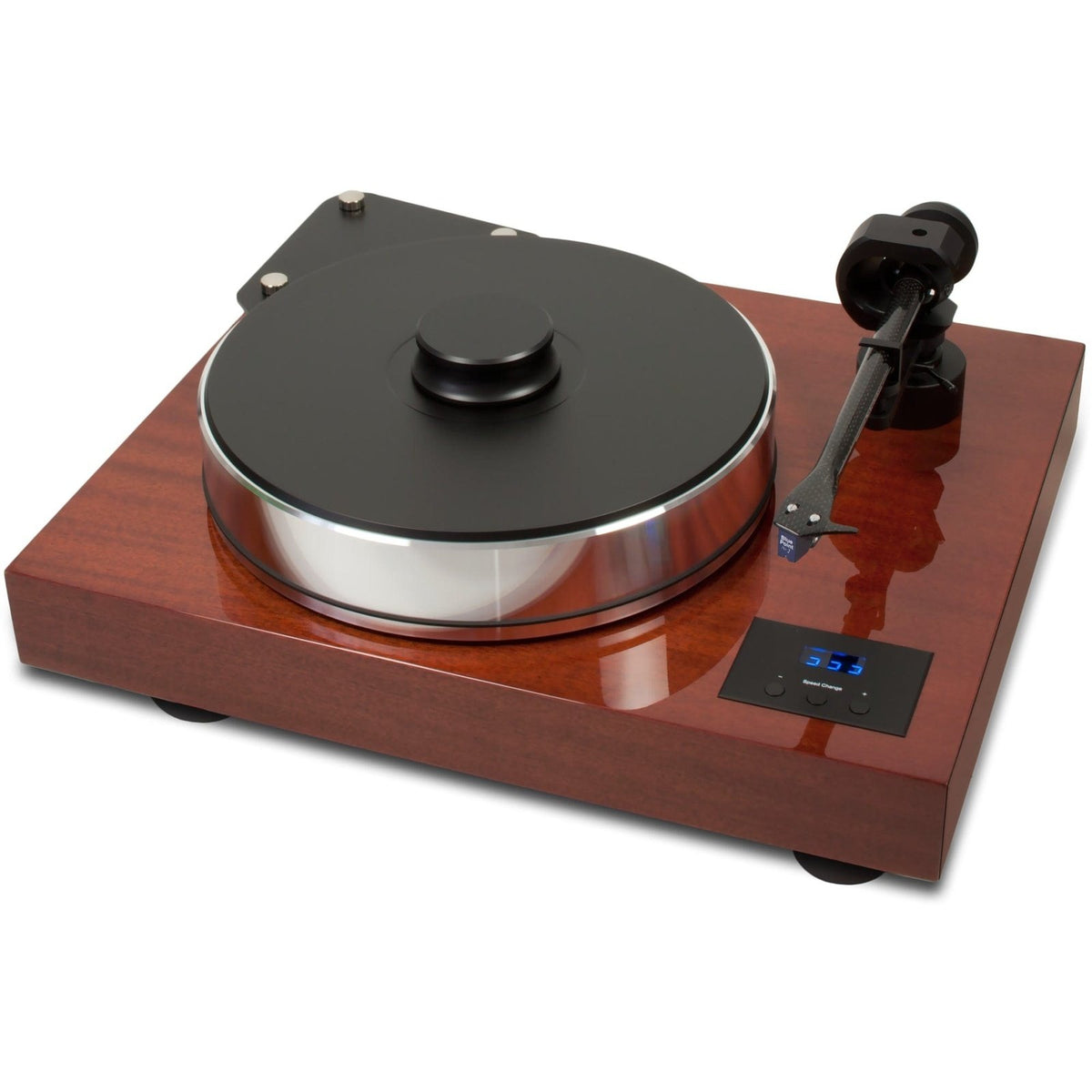

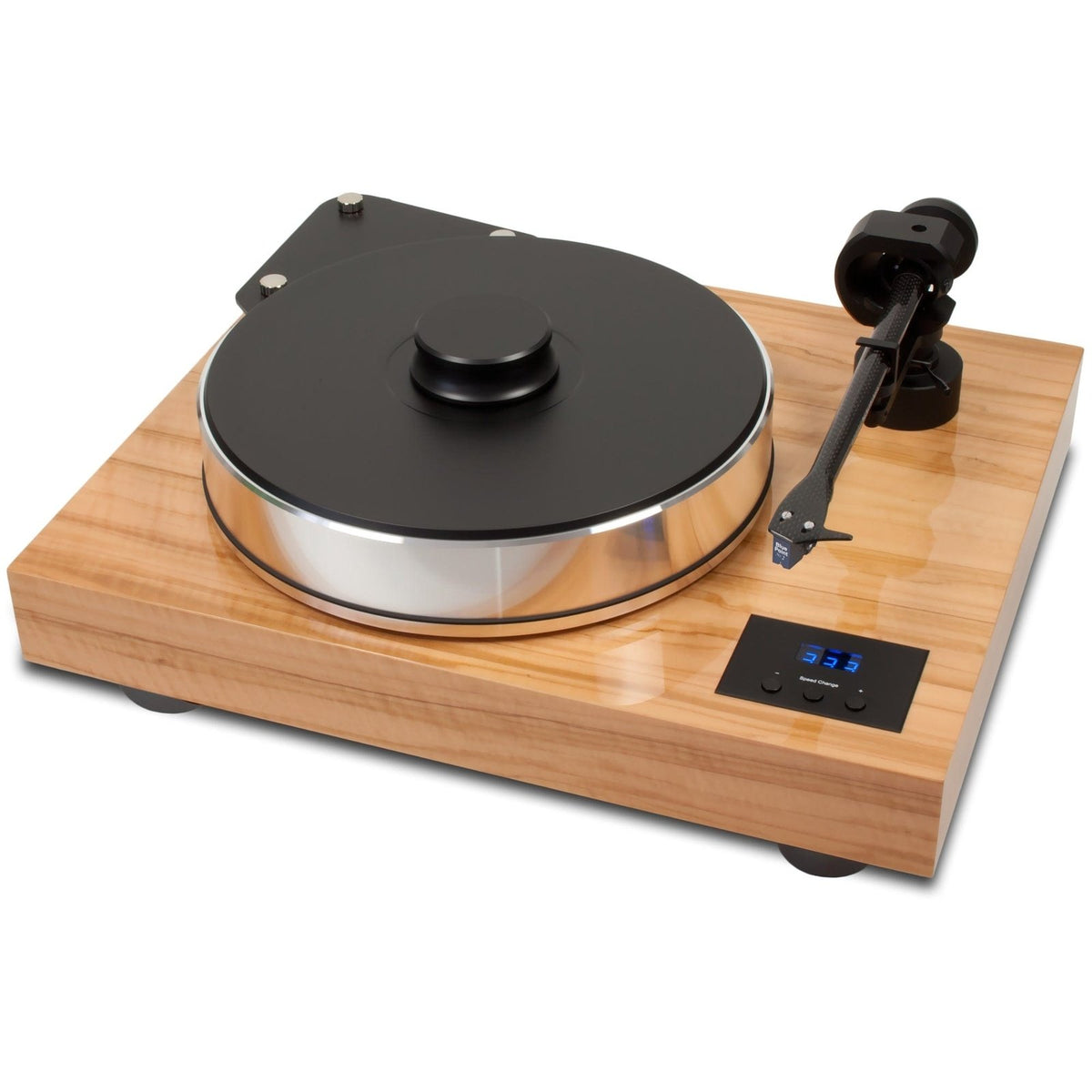

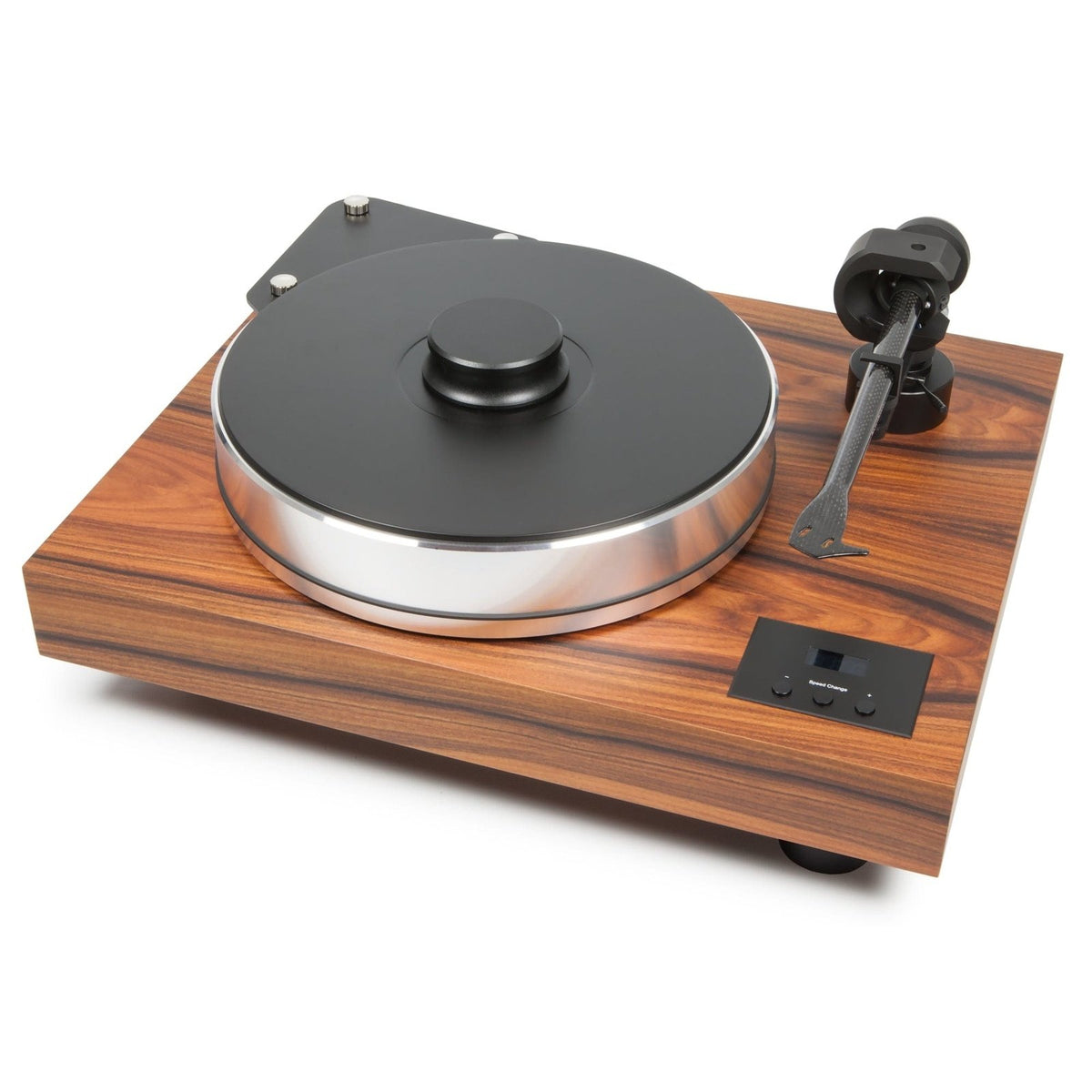

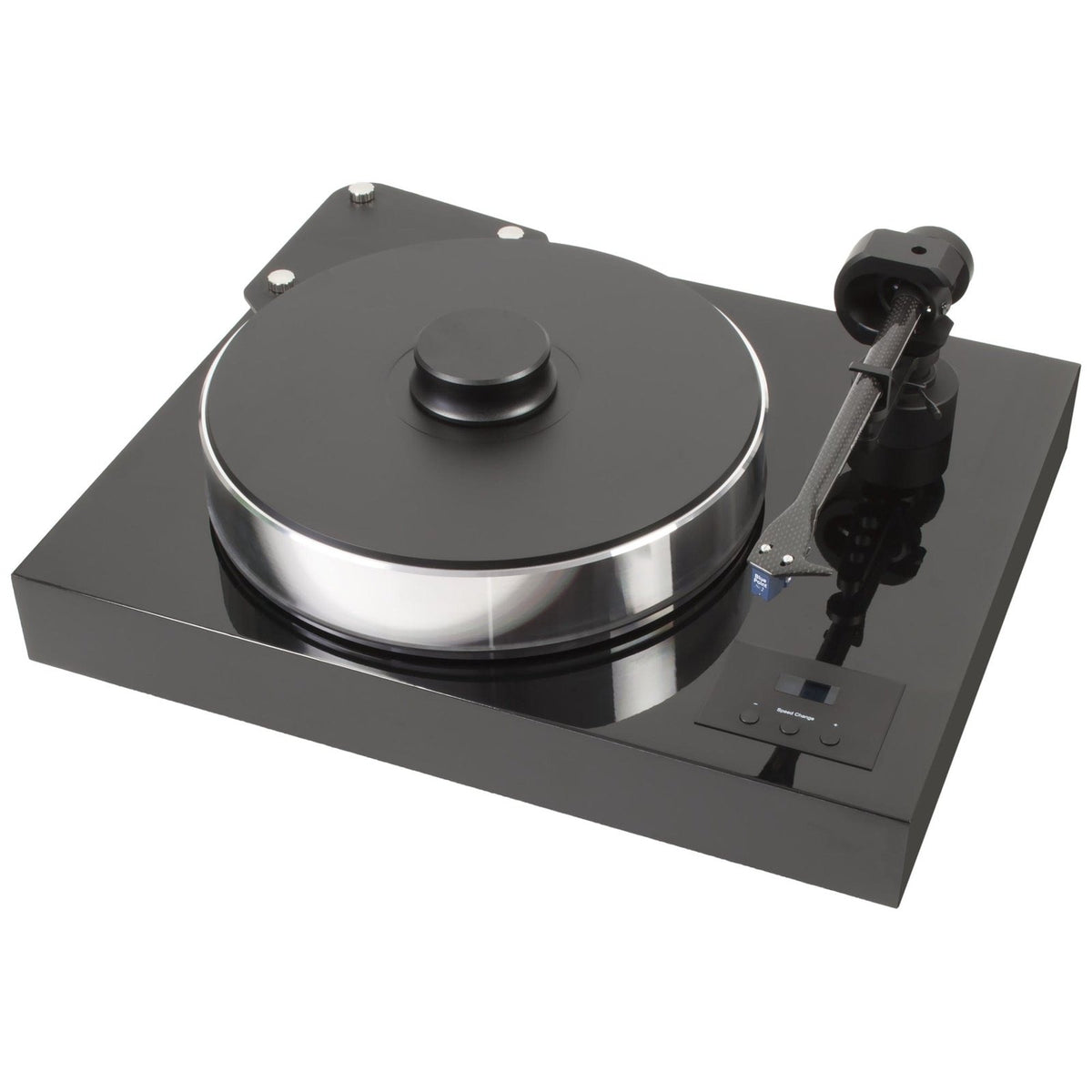

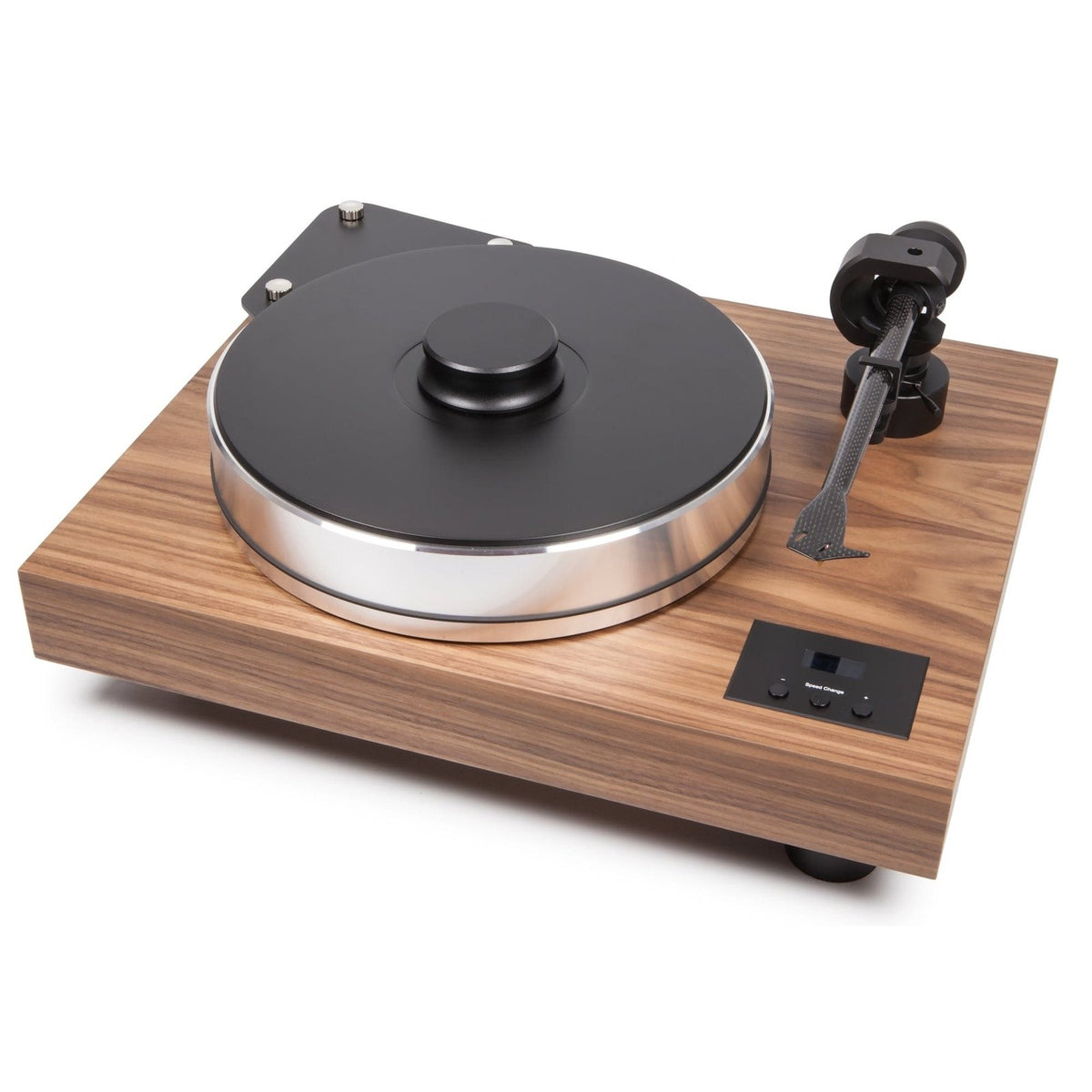

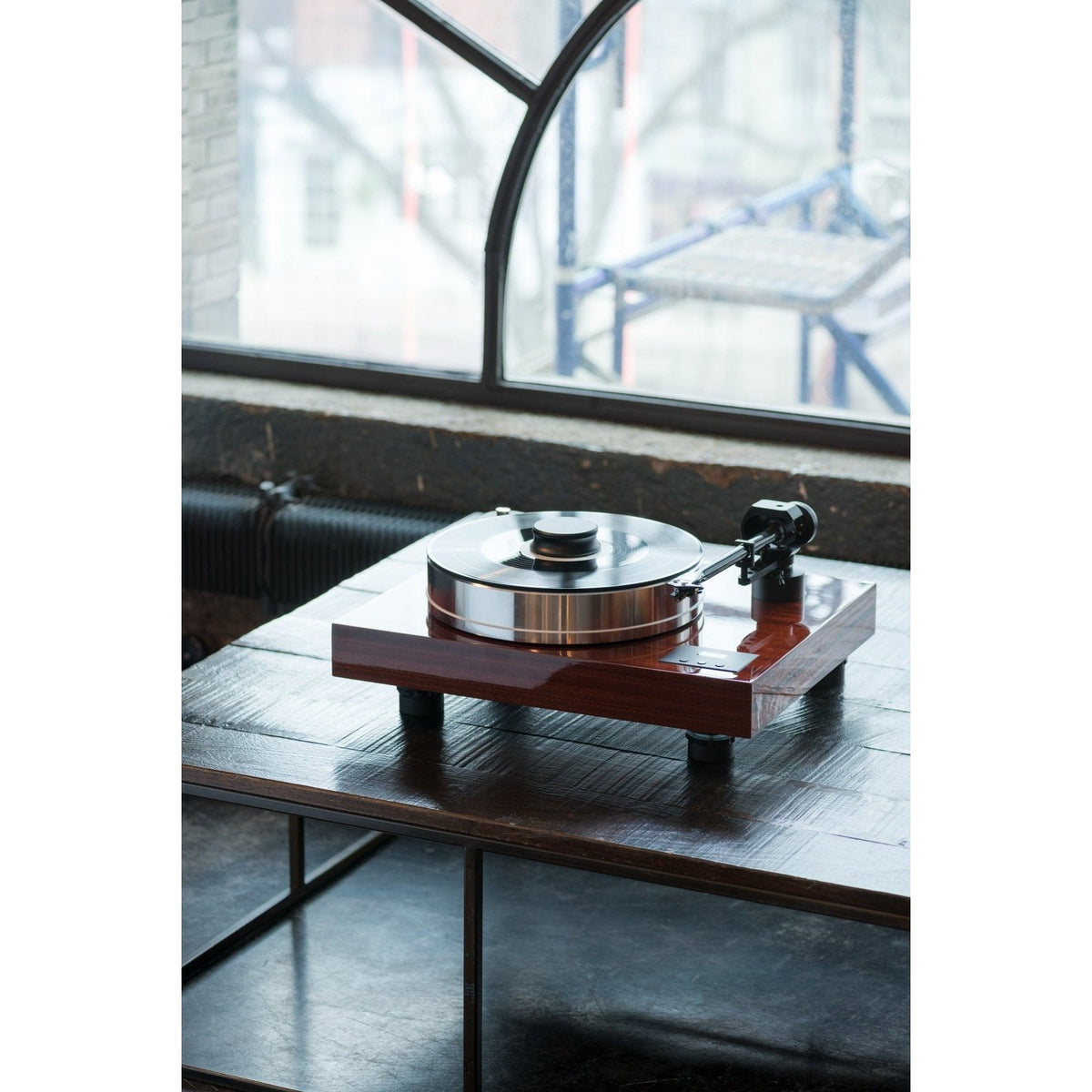

Pro-Ject Xtension 10 Evo Turntable - No Cartridge

A super high-end turntable with 10“ tonearm

The little brother of Xtension guarantees superlative vinyl performance in a more compact size!

Xtension 10 Evolution is ideal for all, who look for sound quality of standard Xtension in a more compact size below 48cm width, to fit standard audio racks. It incorporates all of our 20 years experience in turntable design. Xtension 10 chassis is made from MDF filled with metal sand, that gives high mass and is non-resonant. Magnetic feet, which decouple the main plinth from its base, are combined with a weighty 22 kg total turntable mass. The result is a unique combination of ‘mass loaded’ and ‘floating turntable’ design principles.

Instead of the old standard adoption of pure metal used for the main platter, we’ve found a perfect alloy which we damped on the inner side with Sorbothane®. Additionally, we’ve glued recycled Vinyl records to the top (which act as a perfect mat) and bake this ‘sandwich’ before precision balancing it. The final product subsequently benefits from a wonderfully resonance-free, heavy platter, that runs ultra-silently on an inverted ceramic ball bearing with magnetic suspension.

The Pro-Ject 10cc Evolution with its tonearm base also benefits from ‘high-mass’ technologies and is isolated from the mainboard by a sheet of Sorbothane®. To use this tonearm with a wide range of top-quality phono cartridges, from 4 to 14 Grams. it comes with a set of 4 different Sorbothane®- damped counterweights. Xtension 10 Evolution comes with a beautiful dustcover with adjustable hinges, as well as in high gloss lacquer finishes: mahogany, olive, walnut, rosewood, piano black, red and white.

XLR Option

Pro-Ject Audio Systems offers their high-end turntables with premium 5pin>RCA unbalanced arm cable or – by request – with premium balanced 5pin>XLR connection to Pro-Ject Phono Box RS preamplifier. Phono Box RS offers balanced phono inputs, which guarantees superior results in high-end vinyl reproduction with a balanced signal source.

NOTE: The signal source and the receiving device have to be equipped with balanced connections. Transmission of audio signals in a balanced mode reduce the influence of interference due to external stray electric fields significantly.

Magnetically supported feet

With two magnets located in the feet, the turntable is practically floating. The studs in the feet are only used for keeping them centred. Due to this unique feature, the turntable is perfectly decoupled from the surface it is placed on.

Features:

• Super-heavy 22 kg belt drive turntable
• Mass loaded magnetic floating subchassis
• Precision balanced sandwich-platter
• Inverted ceramic ball bearing with magnetic support
• Heavyweight record clamp
• Extremely low level of natural resonance
• Perfect decoupling through magnetic feet

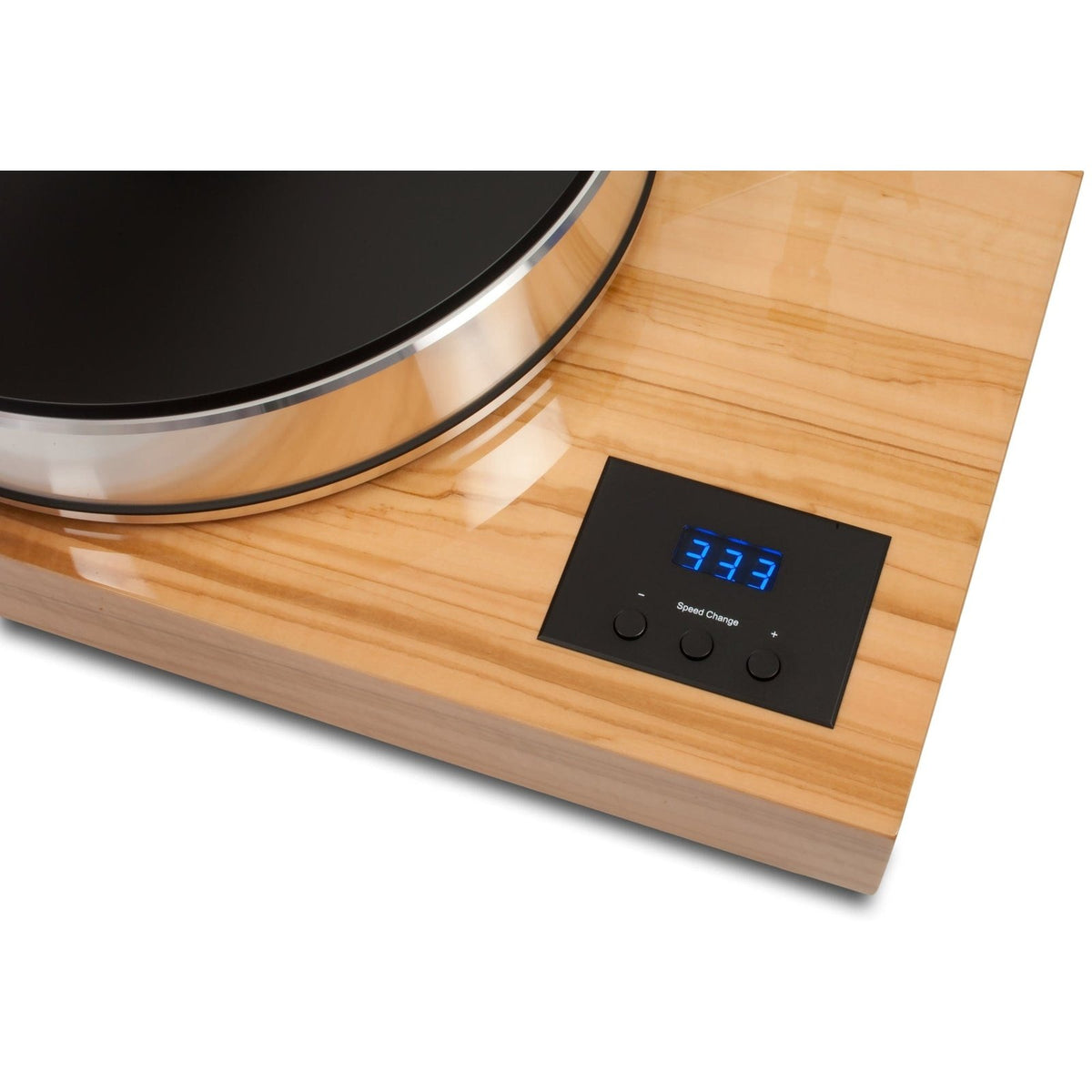

• Electronic speed control 33/45/78 Upm
• Tonearm 10cc Evolution made from carbon fibre
• Inverted tonearm bearings (ABEC 7 quality)
