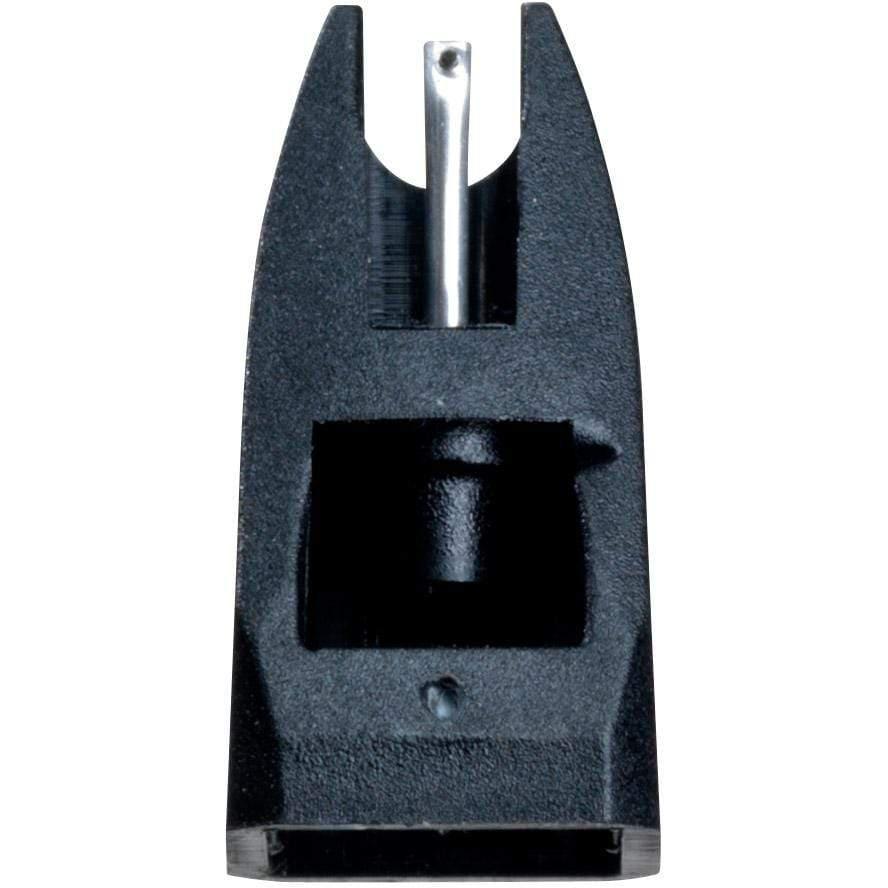

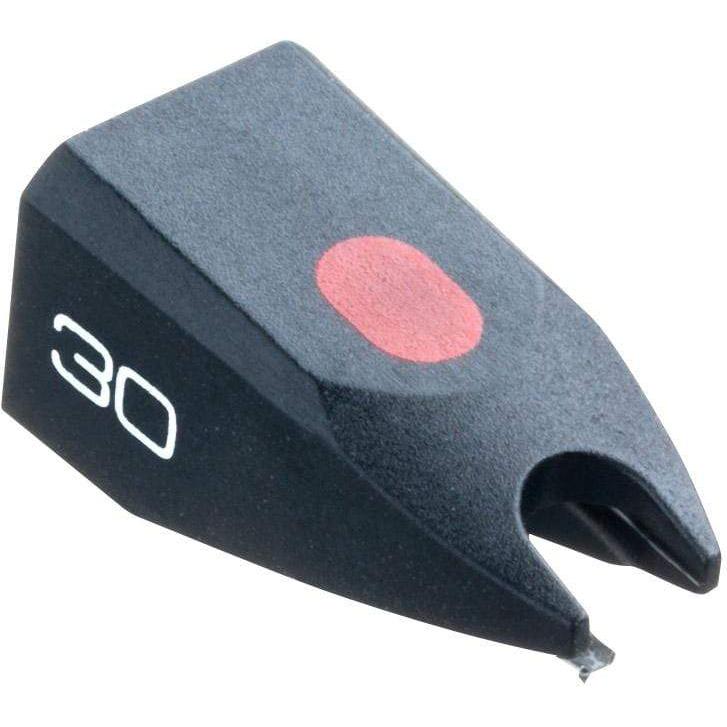

Replacement stylus for Ortofon 30 series cartridges

Recommended for following cartridges |Super OM 30, OM 30, OMP 30, OMB 30, LM 30, Concorde 30, SME 30H, LM 30H,TM 30H




Specifications

Frequency response 20-20.000 Hz + 2 / - 3 dB
Tracking ability at 315Hz at recommended tracking force *) 90 µm
Compliance, dynamic, lateral 25 µm/mN
Stylus type Nude Fine Line
Stylus tip radius r/R 8/40 µm
Equivalent stylus tip mass
0.3 mg
Tracking force range 1.25-1.75 g (12.5-17.5 mN)
Tracking force, recommended 1.5 g (15 mN)
Tracking angle 20°


*) Typical value
