Monitor Audio FIX-M Speaker Mounting Bracket

NOTE: Single unit only – please order two units to mount one pair of speakers.

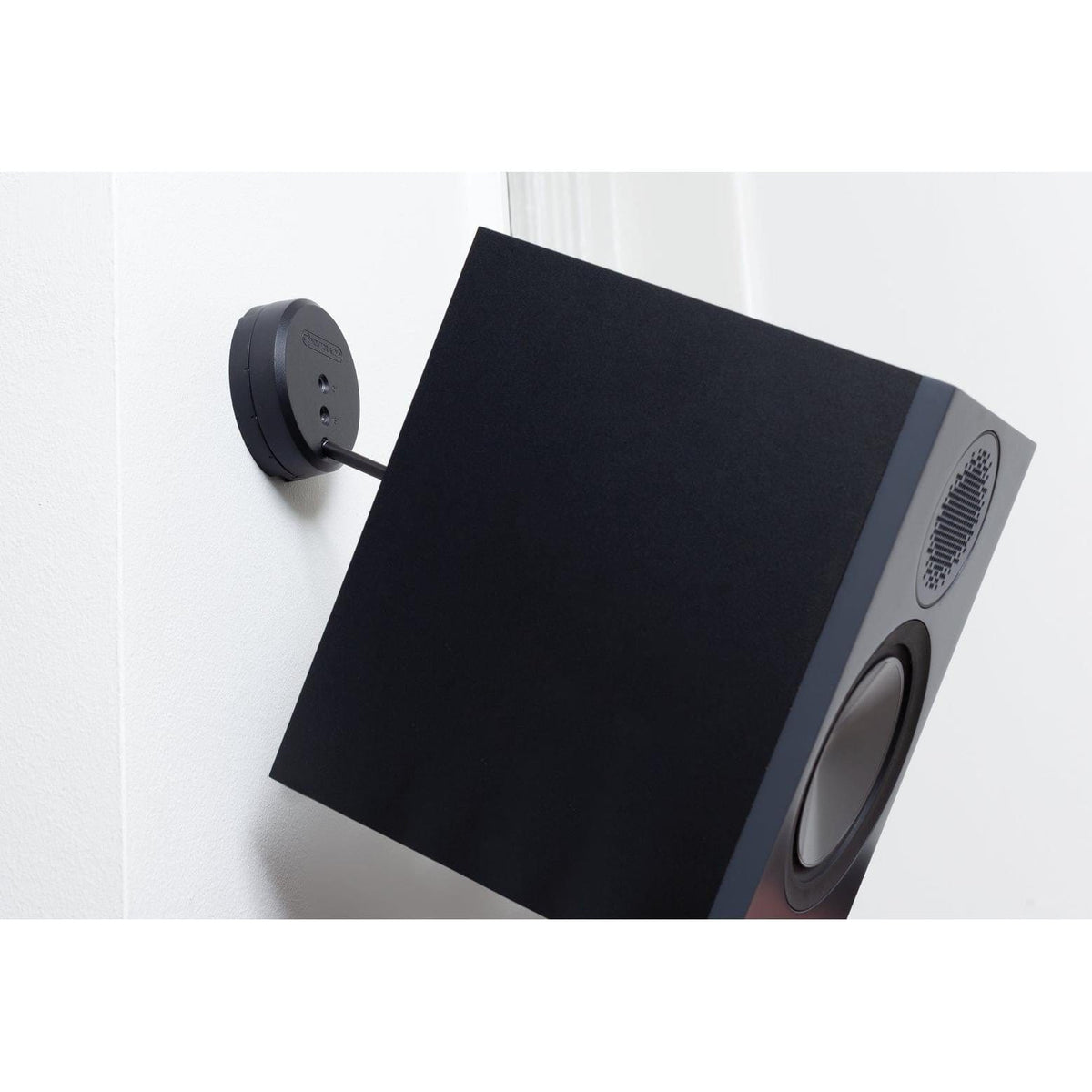

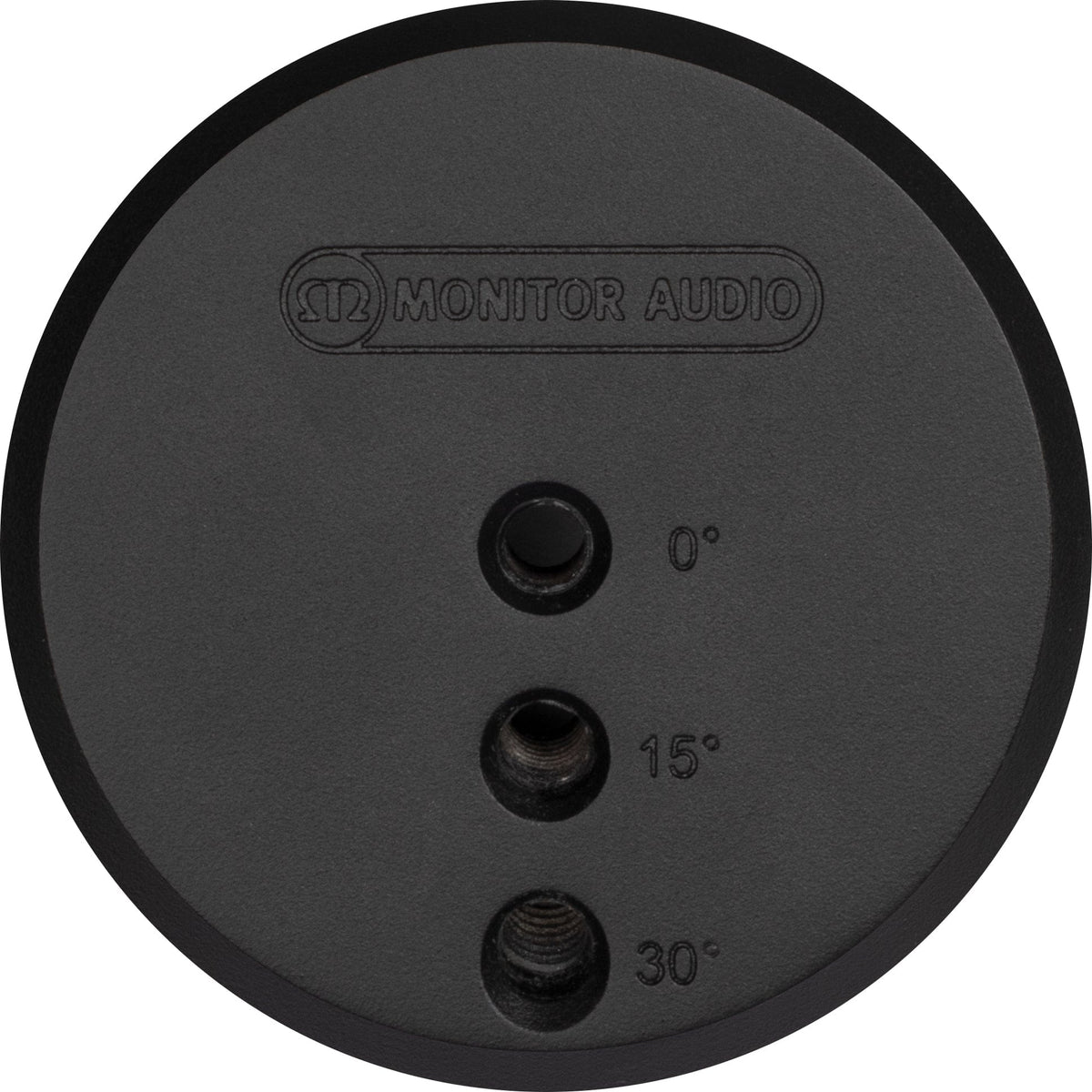

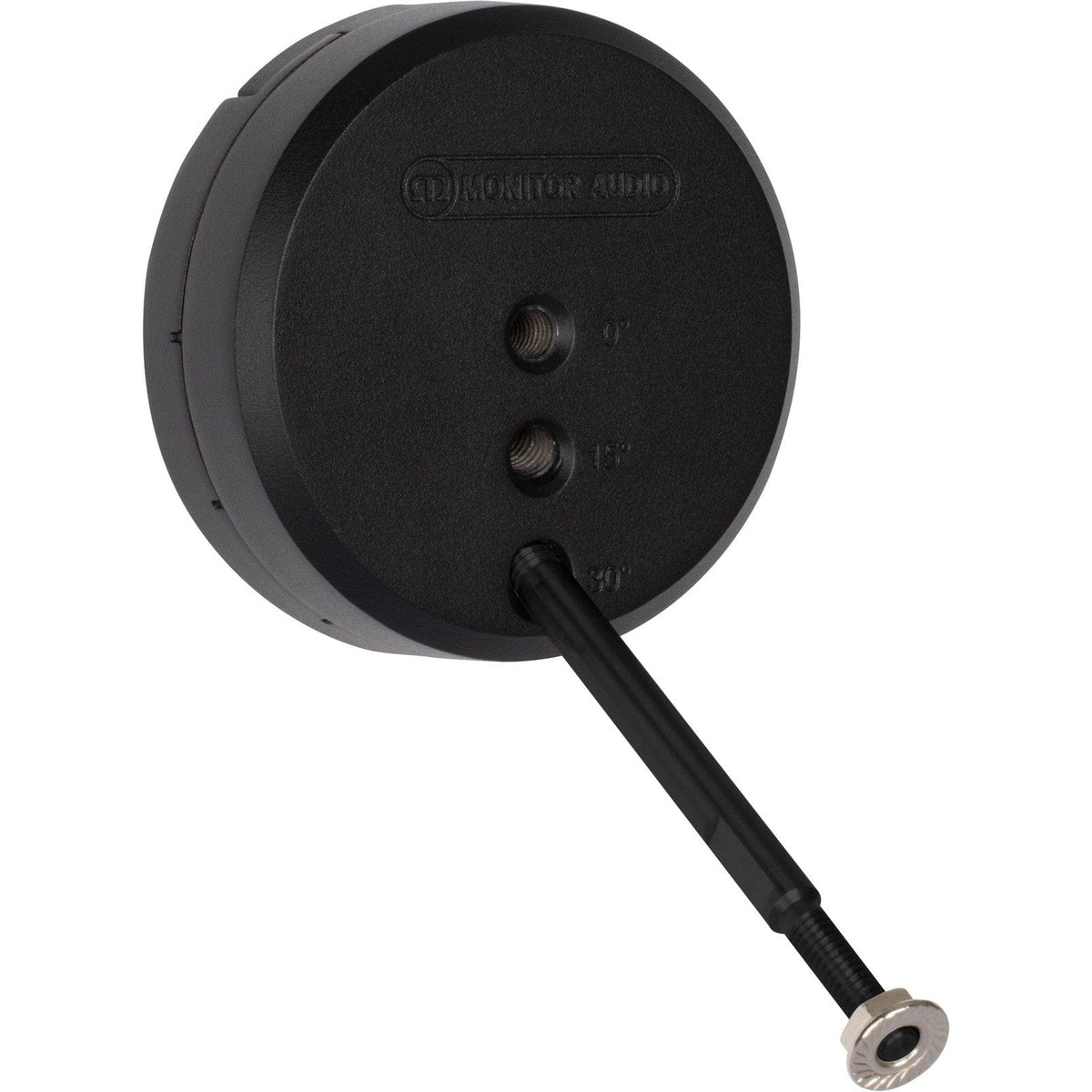

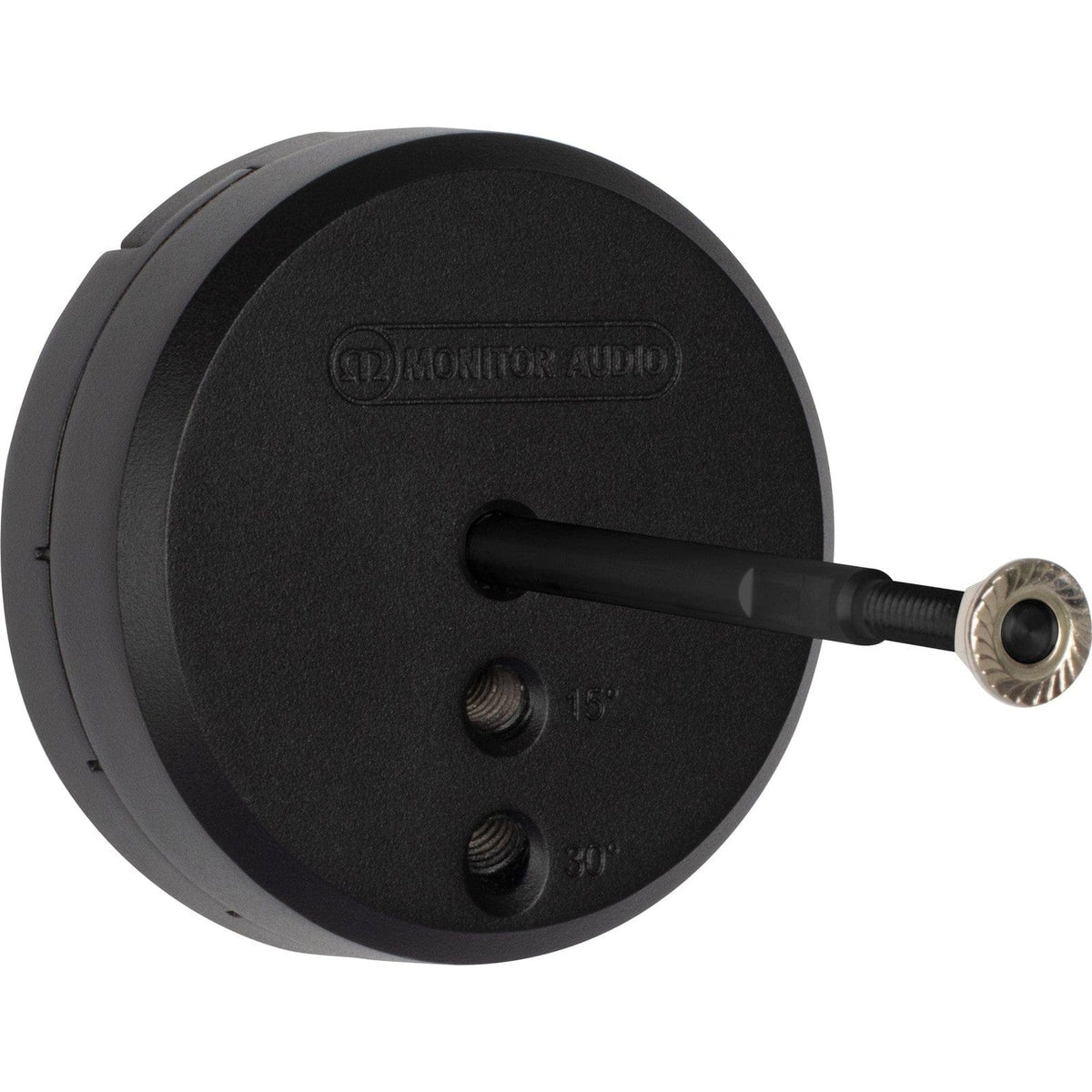

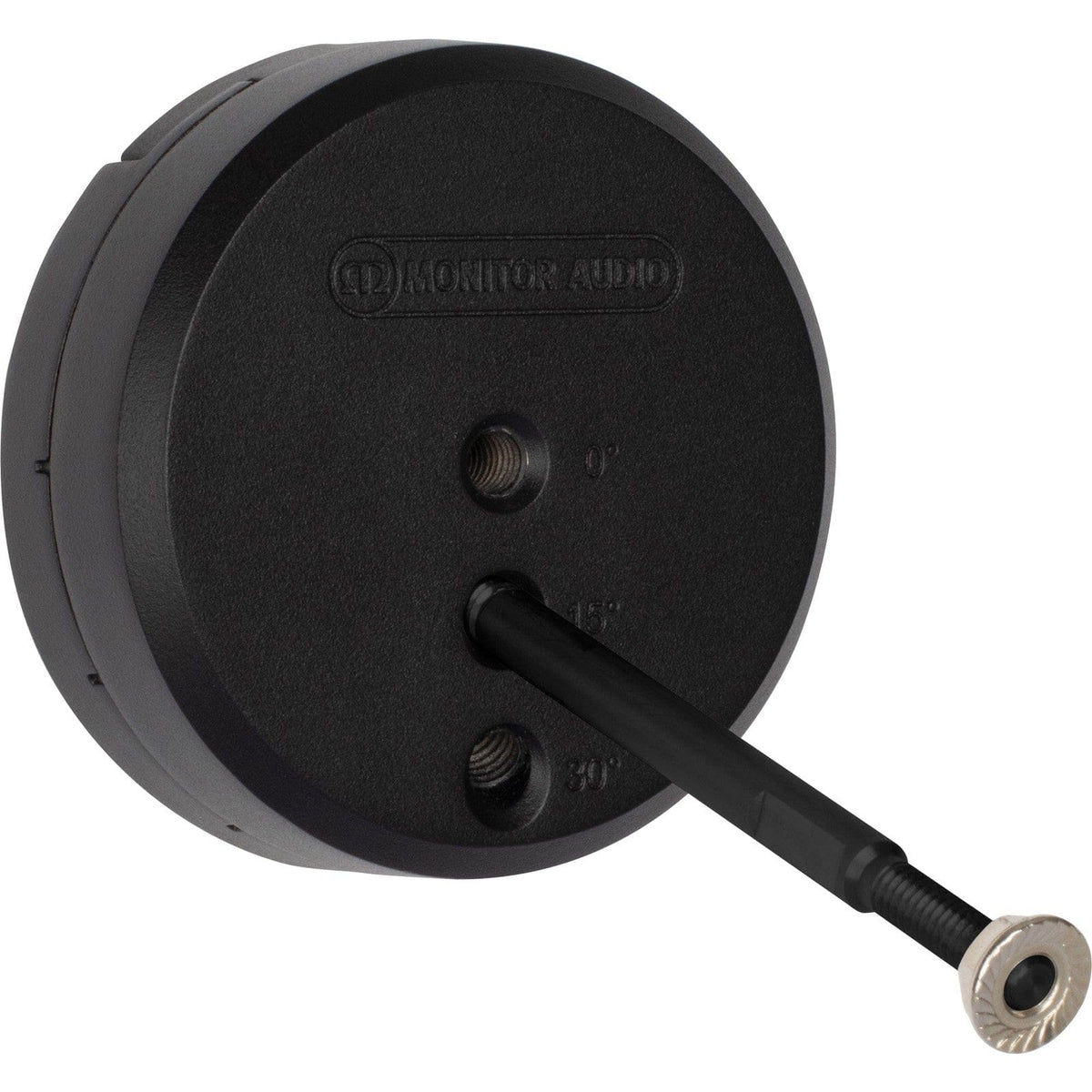

FIX-M provides a strong wall-mount solution, which enables speakers to be positioned in a choice of orientation and at matching angles to ensure perfect sound dispersion. Select an angle of 0, 15 or 30 degrees from centre and then rotate the front section of the speaker mount to create 14 different positions.

The hexagonal plate behind the front of the speaker mount slots into the set positions (displayed externally via indicator marks) and a secure installation is completed by inserting a snap-fit clip into the top of the speaker mount.

The FIX-M speaker mount is available in a choice of black or white finishes.

Features

Cable Management

To ensure the neatest possible install, cabling to the speaker can be run through one of the FIX-M’s unused angle holes – either through the wall directly behind the speaker mount or through the speaker mount's installation slots.

Compatible Products

FIX-M has been designed for use with the following Monitor Audio products:

• Bronze 50
• Monitor 50

FIX-M is also compatible with:

• Radius 1 4G
• Radius 3 4G
• Bronze 1 (5G)
• Radius 90
• Radius 45
• MASS Satellite

Components and Material

• Die cast aluminium bracket, matt painted and textured.
• 1 speaker mount - front
• 1 speaker mount - wall
• 1 snap-fit clip
• 2 stainless steel insert bars (short and long) with ¼” 20 TPI UNC thread
• 1 locking nut
• Plastic free packaging: cardboard outer and hessian component bags

Finishes

• Black (Pantone Black M)
• White (RAL 9003)
