Key Information
- Sensitivity (1W @ 1M): 89 dB
- Cut-Out Diameter: 274 mm
- Mounting Depth: 181 mm
- Power Handling (RMS): 120 Ws
- Nominal Impedance: 6 ohms
- Driver Size: 8 "
- Sold As: Single Speaker
Incorporating Monitor Audio’s innovative, pivoting Inverted Dual Concentric (IDC) midrange/tweeter module and 8" RST C-CAM bass driver, the three-way CP-CT380IDC represents the highest level of new CP performance. The IDC module houses a 4" C-CAM inverted midrange driver surrounding a 25 mm C-CAM Gold Dome tweeter.
Optional square grille can be used with this model.
TECHNOLOGY

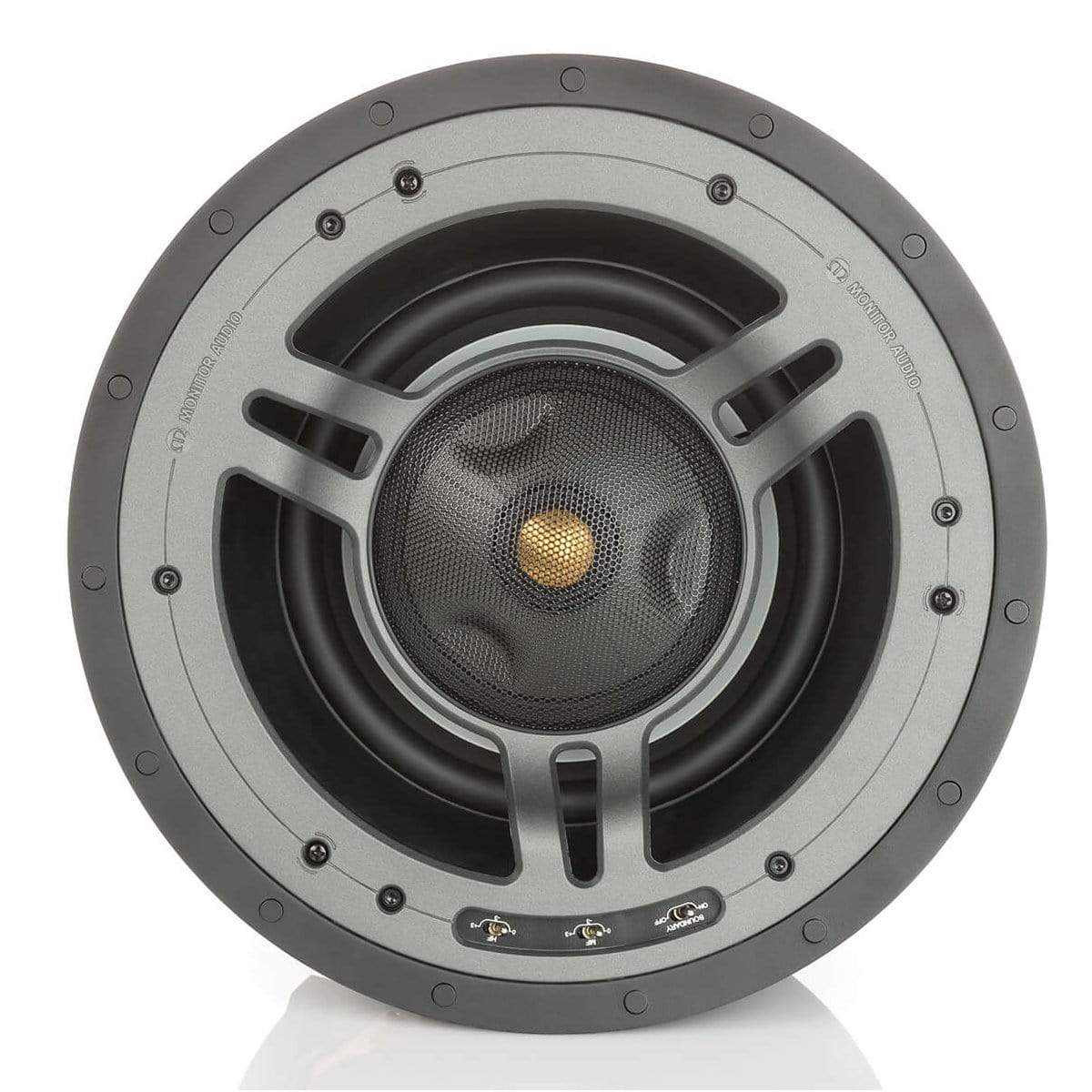

- Pivoting module consisting of IDC midrange driver and Gold Dome tweeter.
- C-CAM bass driver featuring Rigid Surface Technology (RST).
- High overall efficiency.
- High frequency level adjustment (+/-3 dB).
- Midrange frequency level adjustment (+/-3 dB).
- Boundary compensation controls.

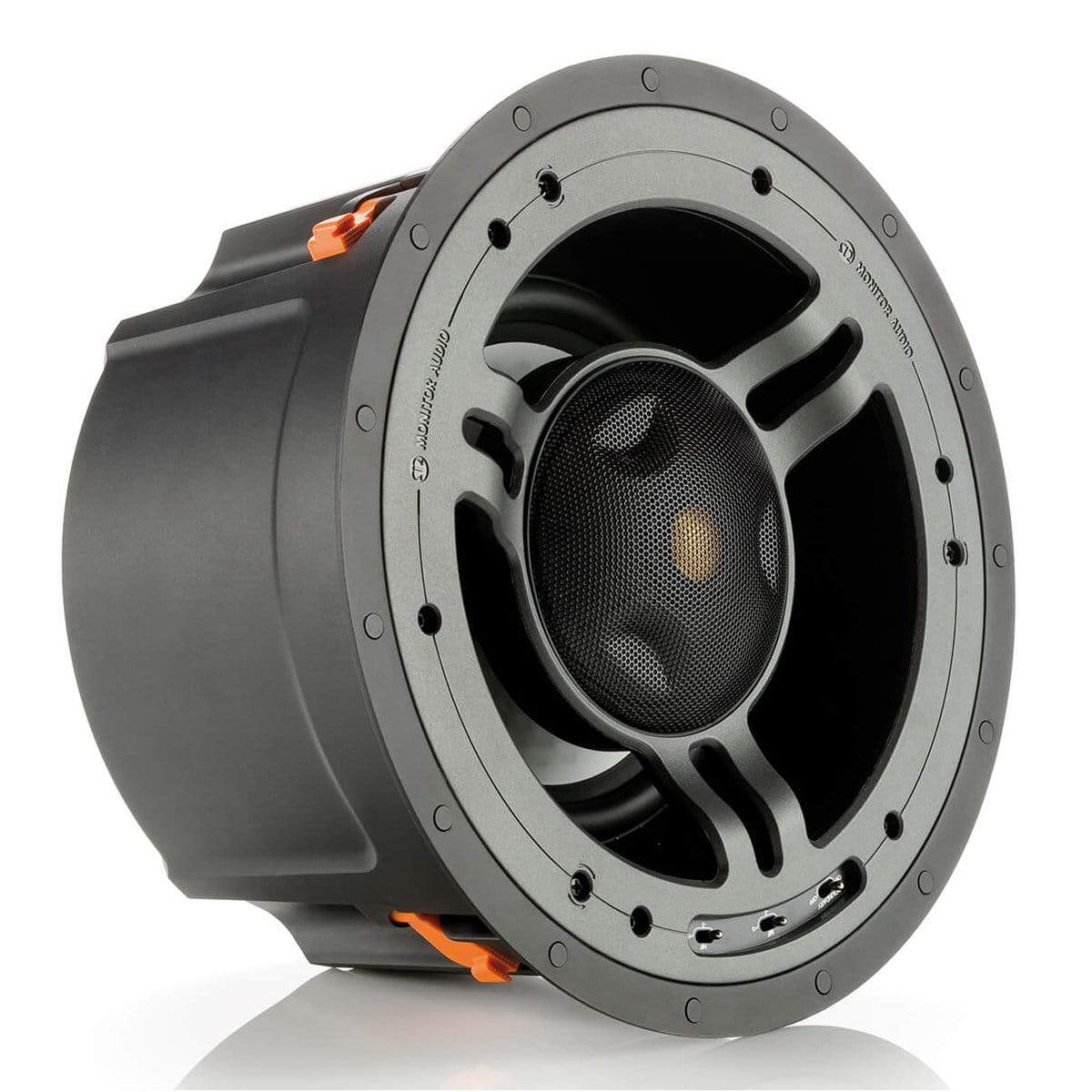

- Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.

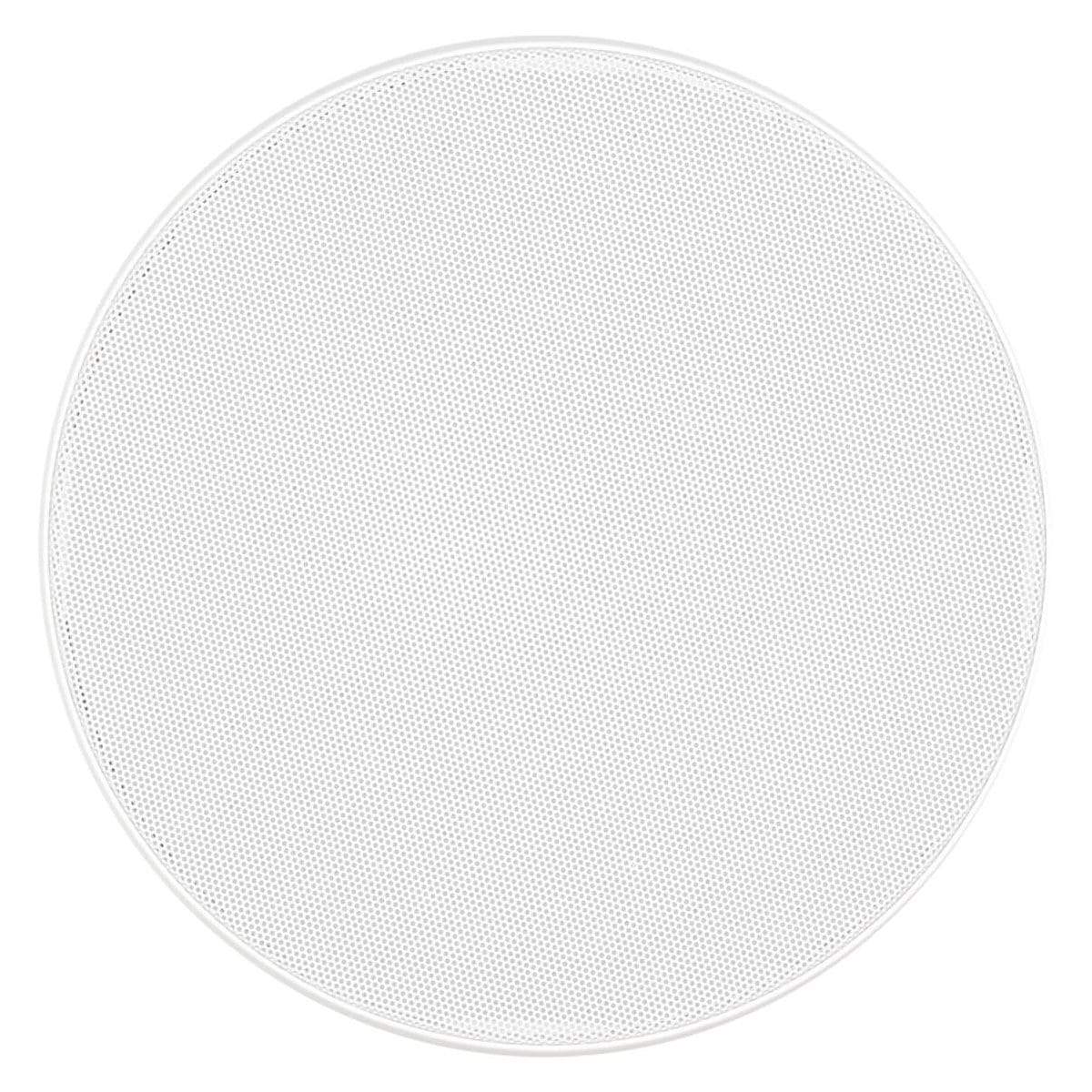

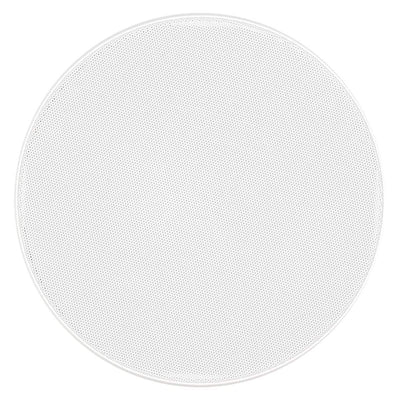

- Magnetic and easily removable steel grille.
- Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
- Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.
Specifications
Frequency Response: 50 Hz - 30 kHz
Nominal Impedance: 6 ohms
Sensitivity (1W@1M): 89 dB
Maximum SPL: 109.6 dBA
Power Handling (RMS): 120 W
Recommended Amplifier Requirements: 30 - 120 W
Crossover Frequency: Bass low pass: 300 Hz @ 6 dB / Octave
Mid: 300 Hz @ 6 dB / Octave
& 3 kHz @ 12 dB / Octave
Drive Unit Complement: 3-Way
8" C-CAMRST cone bass driver
4" C-CAM IDC cone mid range driver
1" C-CAM Gold Dome tweeter
(tweeter & midrange driver combined in a pivoting module)
Adjustment Controls: HF Level Switch (+3 dB / 0 dB / -3 dB)
MF Level Switch (+ 3dB/ 0 dB/ -3 dB)
Boundary Compensation Switch
Overall Diameter (Including Grille): 309 mm (123/16")
Overall Depth (Including Grille): 187 mm (73/8")
Cut-Out Hole Diameter: 274 mm (1013/16")
Mounting Depth: 181 mm (71/8")
Optional Square Grille - Outer Dimensions: 309 x 309 mm (123/16")
Fixing Type: 3 position Tri Grip dog leg fixings
Construction Material: Mineral Filled ABS Plastic (RoHS2 Compliant)

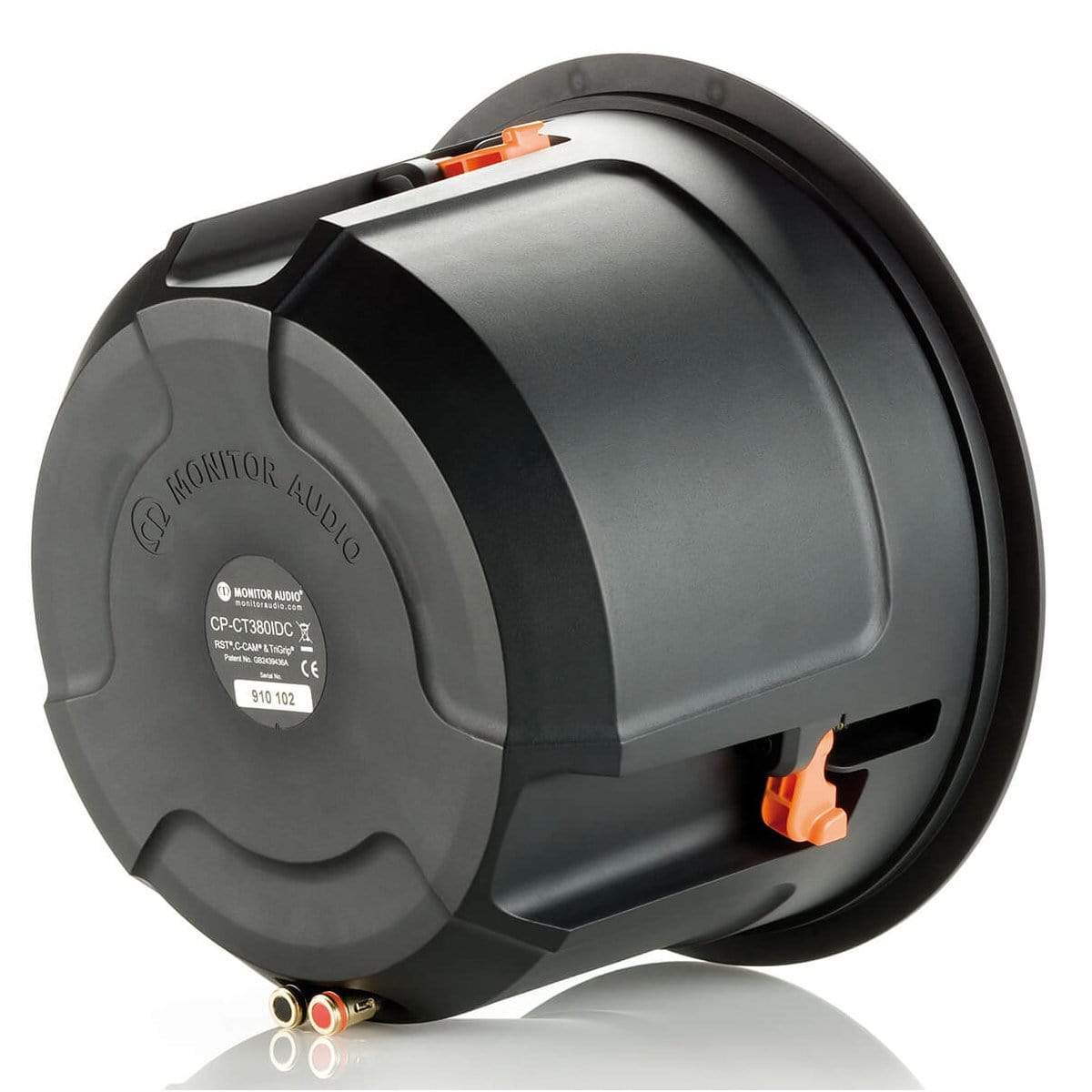

Connection: Gold plated 'push' type terminals
Weight: 4.3 kg (9 lb 8 oz)
Pre-Construction Bracket: CB10 Pre-Construction Bracket (Light Brown)
