Key Information
- Sensitivity (1W @ 1M):88.5 dB
- Cut-Out Diameter:211 mm
- Mounting Depth:116 mm
- Power Handling (RMS):65 Ws
- Nominal Impedance:6 ohms
- Driver Size:6.5
- Sold As: Single Speaker

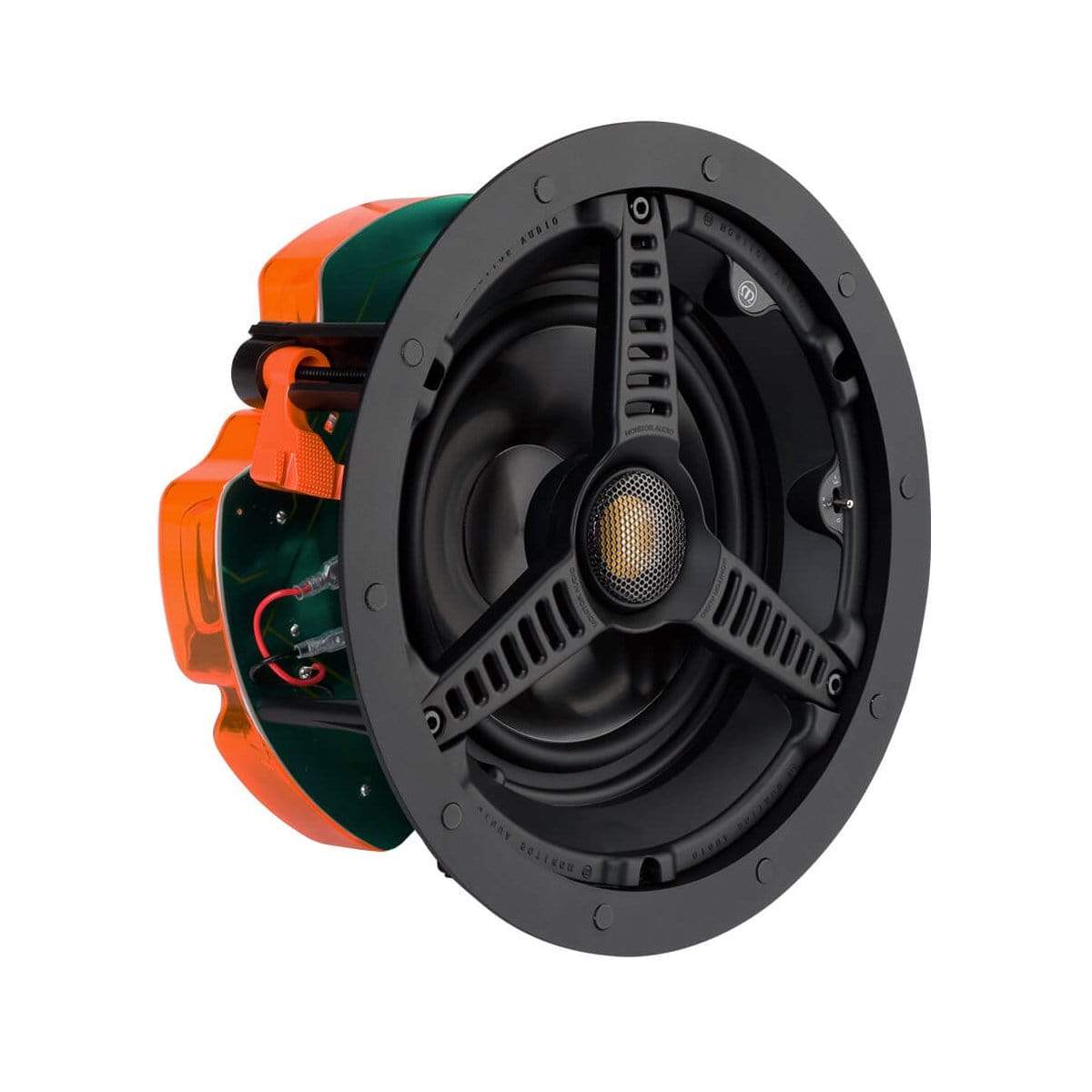

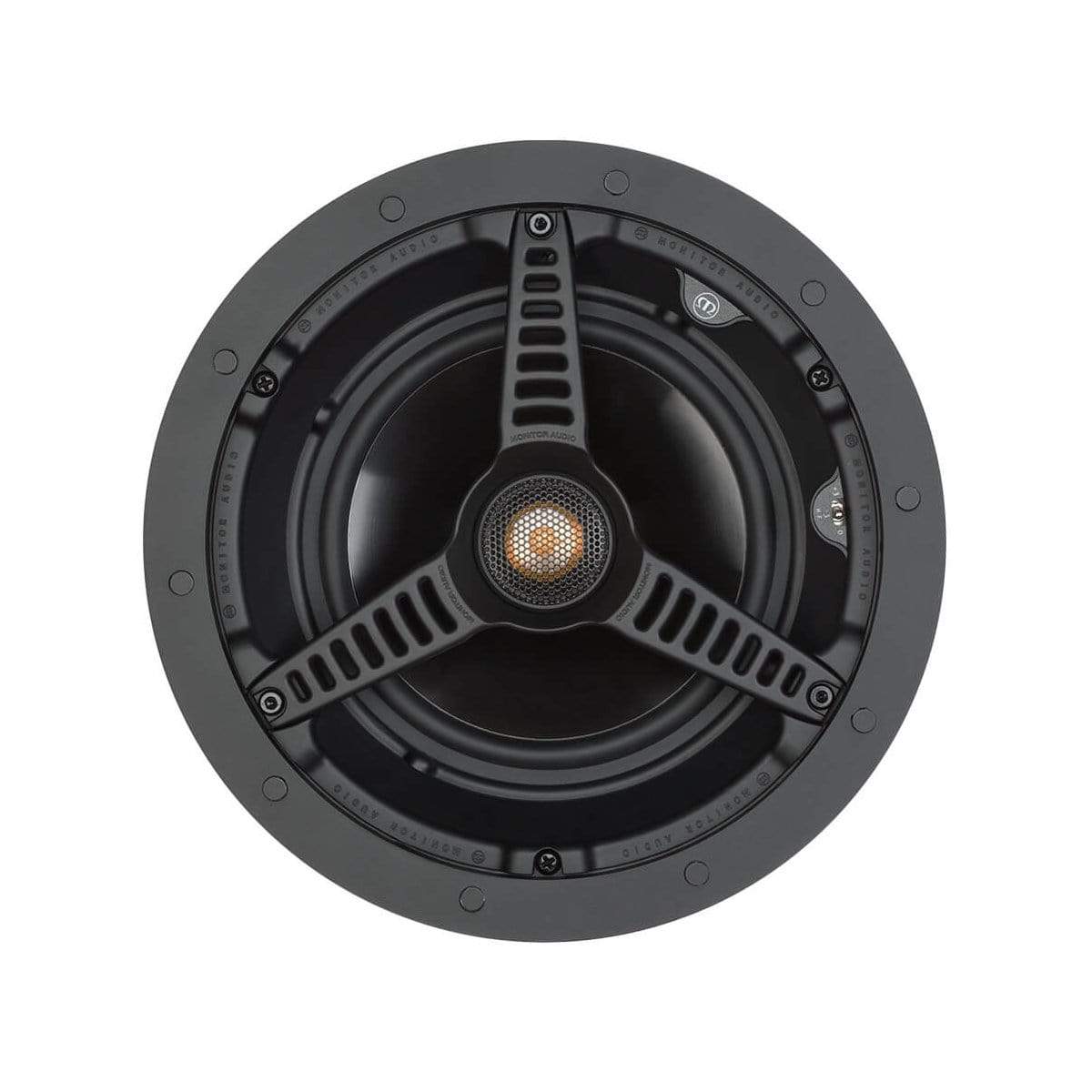

Incorporating a 6 1/2 inch MMP II bass driver with Monitor Audio’s signature C-CAM Gold Dome tweeter to provide high performance sound, ease-of-drive, and wide frequency response and dispersion.
Optimum imaging and set-up are established via a pivoting tweeter and high-frequency (+3 dB / 0 dB /-3 dB) level adjustment.

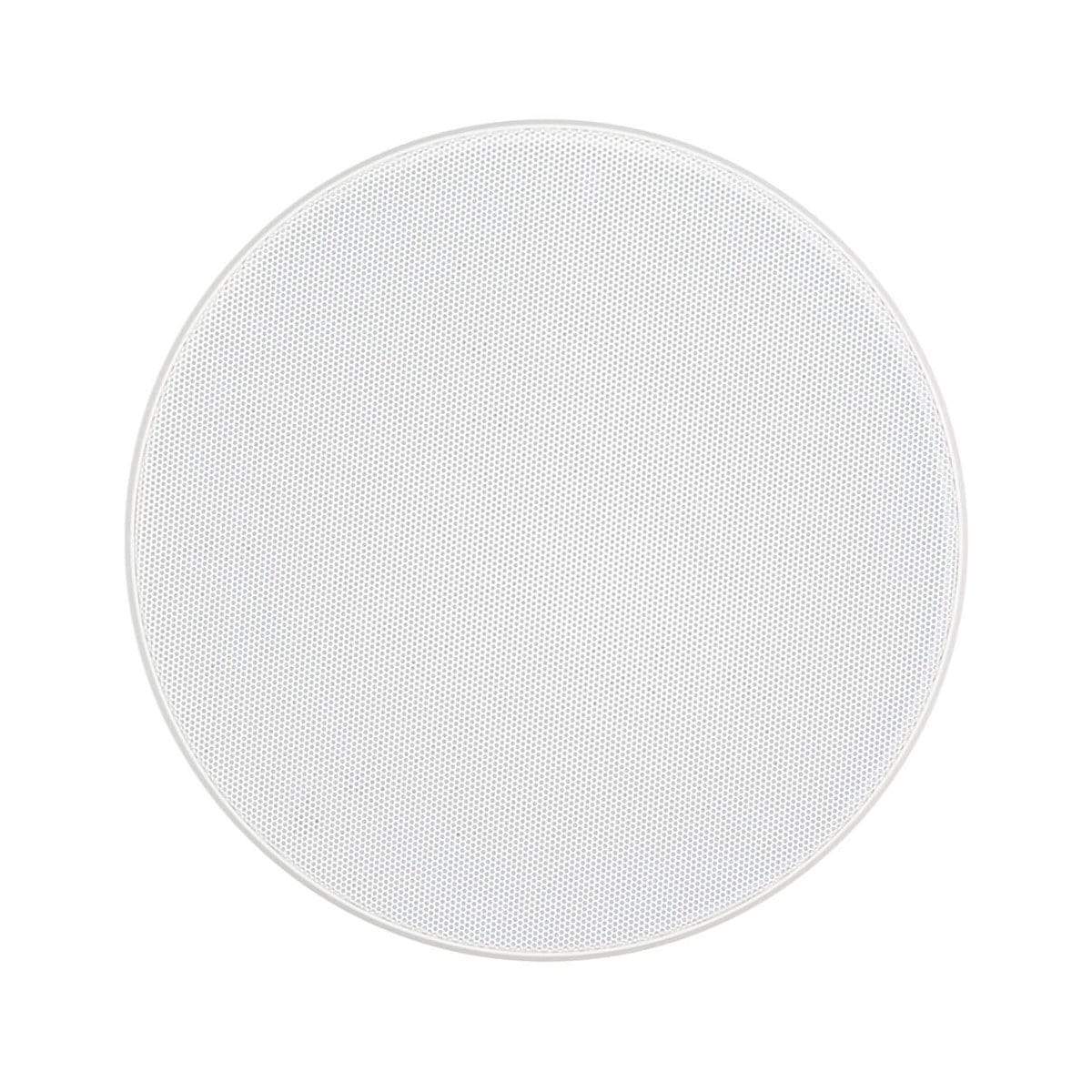

Optional square or premium grille can be used with this model.
Specifications
Frequency Response: 60 Hz – 25 kHz
Nominal Impedance: 6 ohms
Sensitivity (1W@1M): 88.5 dB
Maximum SPL: 107.4 dBA
Power Handling (RMS): 65 W
Recommended Amplifier Requirements: 20 – 65 W
Drive Unit Complement:
6 1/2" MMP II cone bass driver
1" C-CAM pivoting Gold Dome tweeter
Adjustment Controls: HF Level Switch (+3 dB / 0 dB / -3 dB)
Overall Diameter (Including Grille): 250 mm
Overall Depth (Including Grille): 120 mm
Mounting Depth: 116 mm
Cut-Out Hole Diameter: 211 mm
Optional Square Grille - Outer Dimensions: 249 x 249 mm
Fixing Type: 3 position Tri-Grip dog fixings
Construction Material: Mineral filled ABS, RoHS compliant
Weight: 1.92 kg
Pre-Construction Bracket: CB6 Pre-Construction Bracket (Purple)
Back Box: CCBOX-R / CMBOX-R
