MiniDSP PocketADC Audiophile Analog to Digital converter

MiniDSP  /  DAC

PocketADC

$129.00
/
Buy now, pay later with: Zip Interest Free Afterpay Interest Free Humm Interest Free
  • Free Delivery Australia Wide
  • Local Australian Warranty
  • 1800 100 998 For Assistance

We take pride in our customer service and shipping times. Most products will ship within 1-2 business days. If there are any potential delays with products in your order, we will contact you.

All orders now come with free shipping Australia Wide.

We use a variety of shipping methods depending on the types of items purchased and their delivery location. This helps to ensure your items arrive safely and in a timely manner. If you are on a tight deadline or would like to know an estimated delivery date for your order, contact our friendly staff and they will be happy to assist.

Orders will usually take between 1-6 days for delivery, depending on your location and shipping method.

If your order has not been delivered within 7 days of shipping we recommend you reach out to us directly to investigate with Australia Post / Courier.

If for any reason you haven't followed up with us within 30 days of shipping, we'll be unable to guarantee your delivery of your item unless it has been returned to sender.

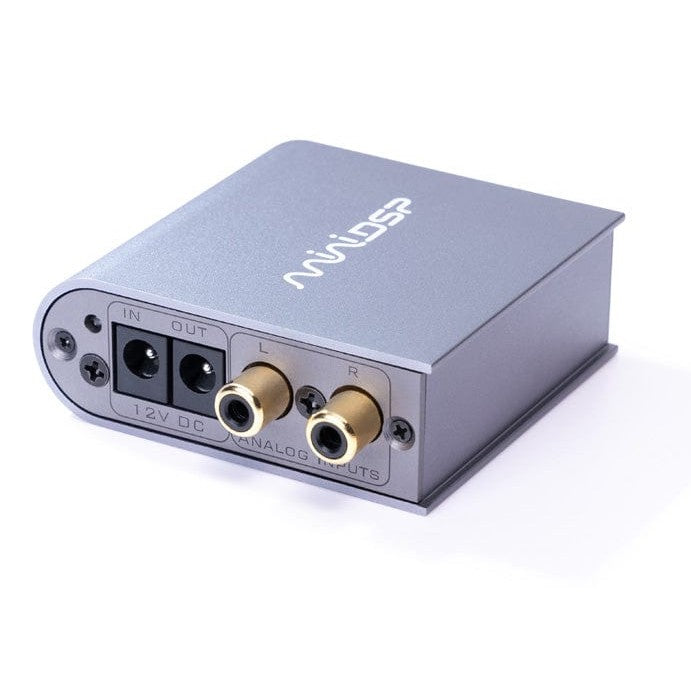

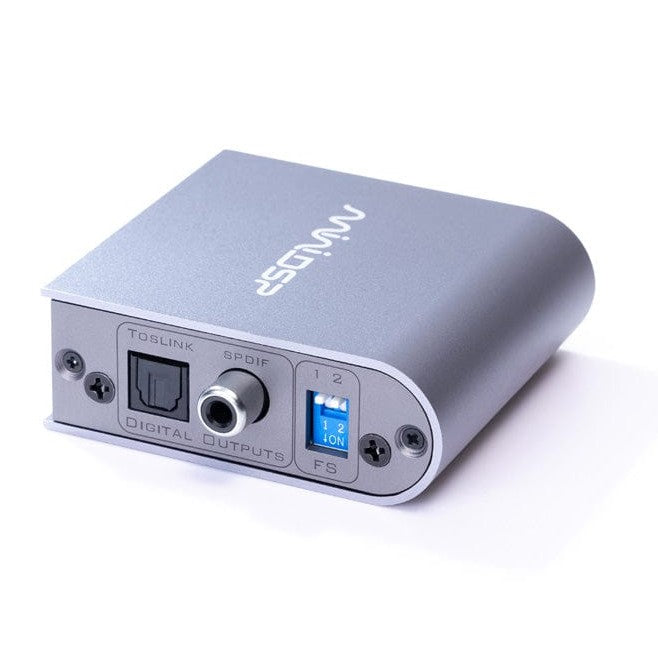

The miniDSP PocketADC is an extremely compact high-resolution A/D (analog-to-digital) convertor that accepts a stereo analog input on single-ended (RCA) connectors and converts it to SPDIF coaxial and TOSLINK optical digital outputs. This pocket size converter supports flexible sample rate ( 44.1 to 192kHz) with simple DIP switches and extremely low noise floor performance to provide optimal digitisation of your favourite analog audio content. The DC power input linking capabilities allows the use of a single power supply for multiple devices and your miniDSP platform.

Don't be fooled by its tiny size, this PocketADC isn't a low cost converter that cuts corners.

Features

  • Pocket size ADC converter
  • SPDIF&TOSLINK for computer-less digitization
  • 118dB SNR / -114dB THD+N max performance
  • Linked DC input compatible with miniDSP 12V supplies

Applications

  • Converting your analog audio sources to Digital (SPDIF/TOSLINK)
  • Adding a high quality ADC to your existing system
  • Computer-less analog conversion for an all digital audio system / No computer required

What's in the box?

  • 1 x PocketADC A/D converter
  • 12V power supply

Audio Measurements (APX555)

Main SINAD measurement panel

THD+N ratio vs Frequency response

Frequency response

SMTPE Ratio vs Measured level



Specifications

ADC Chipset

ESS ES9821Q

ADC resolution/Sample rate

24 bit - 48/96/192kHz selectable via front panel dip switches

Digital Audio
Output Connectivity

1 x SPDIF on RCA connector,
1 x OPTICAL on Toslink connector

Input/Output configuration

2 x channel analog in (Unbalanced), 2 x channel digital out

Frequency response

20 Hz – 20 kHz ± 0.1 dB

Maximum analog input

2Vrms

Input impedance

100kΩ

Signal to Noise Ratio (SNR)

118dB(A)

THD+N @1kHz

-114dB(0.0002%)

Crosstalk

-130dB

Power Supply

Included external switching PSU 12V/1.6A  (US/UK/EU/AU plugs)
Link cable to power PocketADC and your Flex with a single power supply

Power Consumption

2 W (idle)

Dimensions

13 x 40 x 62 mm
