- Designed To Last - You see and feel it in the build quality and you hear it every time. No matter your musical passions, your music always sounds better with MODEL 30.
- Tuned With Passion - Hundreds of hours of thoughtful Sound Master tuning ensure the exquisite detail and musicality Marantz always delivers.
- Fully Discrete And Accurate Detailing - Marantz HDAM-SA3 technology is comprised of dozens of independent parts, each hand-selected for pure, detailed Marantz sound.
- Extraordinary Sensitivity - Designed to replicate the sensitivity and feel of a vintage analog amplifier even when simply adjusting the volume.
Exquisite Sound Tuning
MODEL 30 continues the renowned heritage of exquisite Marantz amplifiers. Tuned by the Marantz Sound Master who channeled his passion, experience, and extraordinary ear into the amplifier design.
The Most Musical, Accurate, Detailed Sound
MODEL 30 is built on its own discrete circuit board, the Hyper-Dynamic Amplifier Module, or HDAM. By custom-curating hundreds of individual parts, rather than adopting an off-the-shelf solution, the MODEL 30 HDAM significantly outperforms standard integrated circuits to create the unique musicality you always expect from Marantz.
Marantz Musical Premium Phono EQ
Envisioned to deliver optimal sound quality by simplifying the signal path – vital given the delicate nature of phono signals – the Phono EQ stage in MODEL 30 can be used with both moving magnet and low-output moving coil cartridges, thanks to a built-in MC head amplifier.
|MC / MM Phono Input Impedance Selector
In order to optimize sound performance when using a moving coil (MC) or magnetic moving (MM) cartridge, and to accommodate all configurations as much as possible, MODEL 30 is equipped with an input impedance selector. The input impedance can be adjusted to three different settings: MC LOW (33 ohm), MC MID (100 ohm) and MC HIGH (390 ohm).
Built For Generations
Like its counterpart, the SACD 30n Streaming CD Player, the MODEL 30 Integrated Amplifier is designed to the highest standards.
More Than 65 Years Of Audiophile Heritage
Founded in 1953, Marantz has a long and rich history of designing audio components embraced by music lovers and critical listeners around the world. Because music matters, the MODEL 30 continues Marantz’s long tradition of delivering a best-in-class listening experience for music and cinema. Your music always sounds better on a Marantz.
|Rated Output Power||100W + 100W (8ohm)
200W + 200W (4ohm)
|JEITA Power output||No|
|Amplifier Circuit||Switching Amp
|Power Trans||Toroidal w/case|
|Bass / Treble / Mid / Balance Control||yes / yes / No / yes|
|REC Out Select||No|
|(Marantz) Purest Mode||No|
|Isolator (for USB-B input)||No|
|Dual Clock: 44.1 / 48 kHz||No|
|Analog Amp Mode||No|
|Wide Range||5Hz - 50kHz|
|Total Harmonic Distortion||0.005%
|Input Sensitivity: Phono input||MM: 2.3 mV / 39 kohm
|Input Sensitivity: CD/LINE/RECORDER||220 mV / 13 kohm|
|Input Sensitivity: Power Amp input||1.1 V / 13 kohm|
|SN Ratio||PHONO (MM): 88dB
PHONO (MC): 75dB
|Phono Input||yes (MM/MC)|
|Ext. Pre Input (Power Amp Direct)||yes|

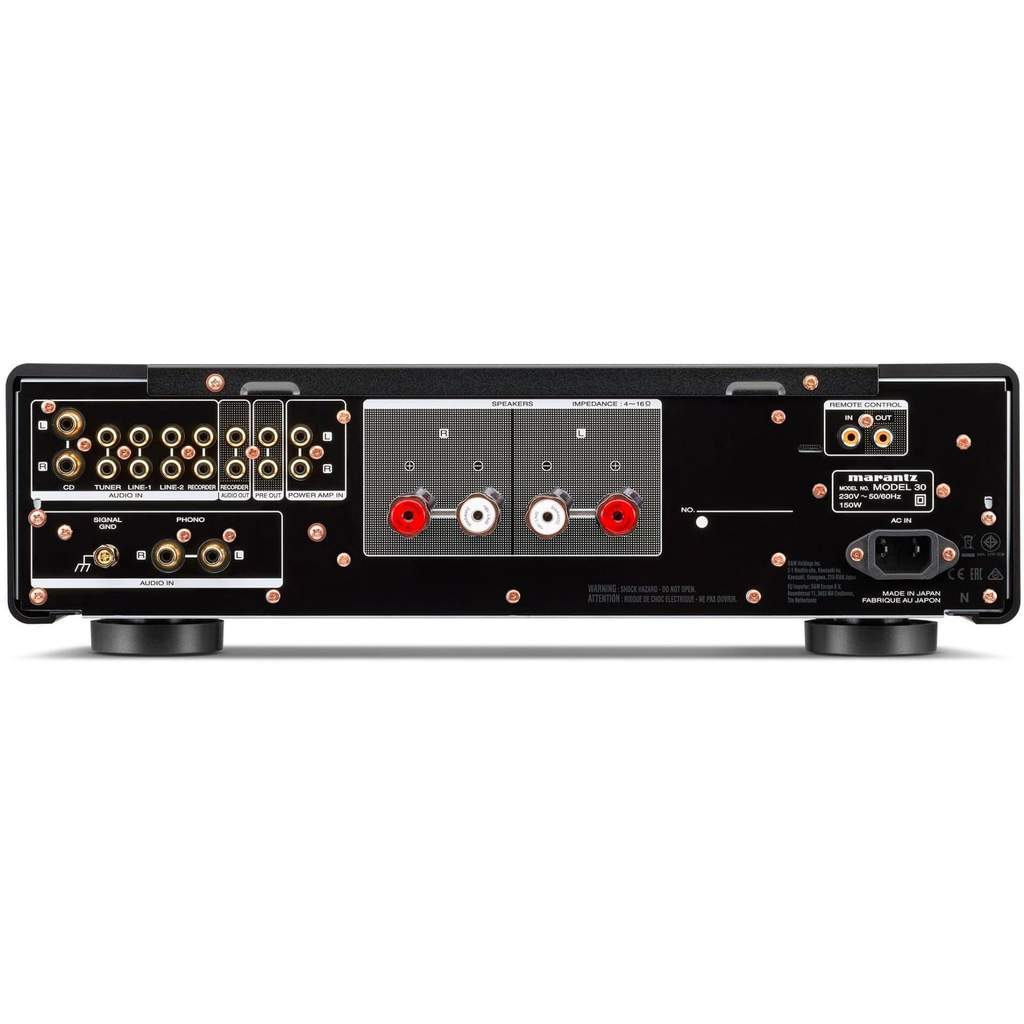

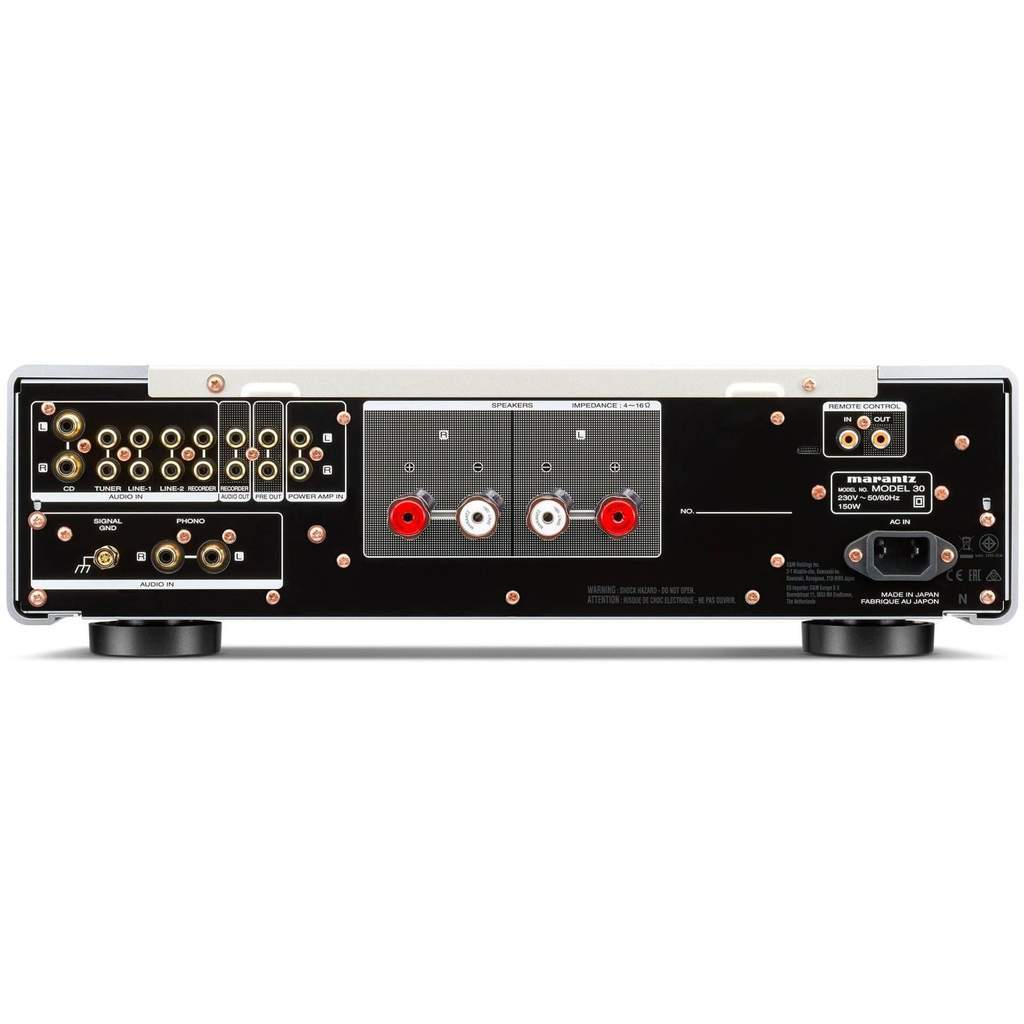

|Audio (In/Out) Terminals *except Power Amp Direct In(or Ext-Pre) and Pre-out||6/1
(PHONO / MM&MC / CD / TUNER / LINE 1 / LINE 2 / RECORDER)
* [PHONO] and [CD] inputs = high grade terminals.
|Balanced XLR input||No|
|2 sets of Spk Terminal||No|
|Speaker Terminal||Marantz Original
|Remote Control Bus Terminal||yes (Cinch)|
|Computer music file streaming||No|
|Gapless Playback Music ServerUSB A||No|
|Album art browsing||No|
|Jpeg Picture Playback||No|
|Cloud Music Service||No|
|WPS Wi-Fi Protected Setup||No|
|Display||yes (Porthole, OLED)|
|App Control via Network Player||yes|

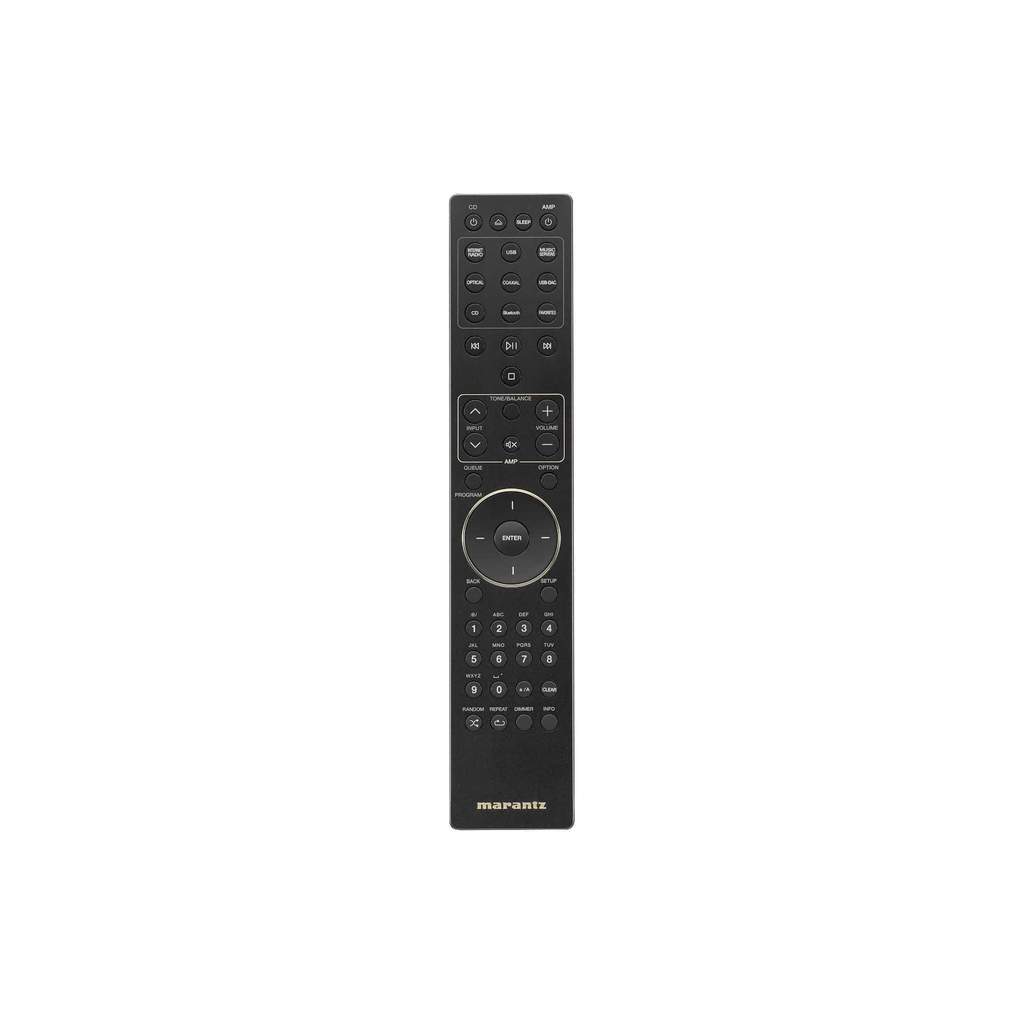

|System Remote Controller||yes
(New system remote controller to control SACD 30 and MODEL 30)
|TV Auto-play (Opt/Coax digital-in sensor)||No|
|Unit (W x H x D mm)||443 x 130 x 432|
|Packaging Dimensions (W x H x D mm)||534 x 255 x 522|
|Packaging gross weight||17.6kg|
|at Network Control On (all of Bluetooth, Ethernet, Wi-Fi, USB)||No|
|Owner's Manual||Web Manual|
|Quick Start Guide||Paper|
|Panel Color||SG / BK|
|Front Center Panel||Aluminum|
|Bass/Treble/Balance/ REC Out Sel knobs||REC Out-->PHONO (Aluminum)|
|Speaker A/B button||No|
|Other knob/button (LOUDNESS, SOURCE DIRECT etc)||No|
|Side screw||Copper plated|
