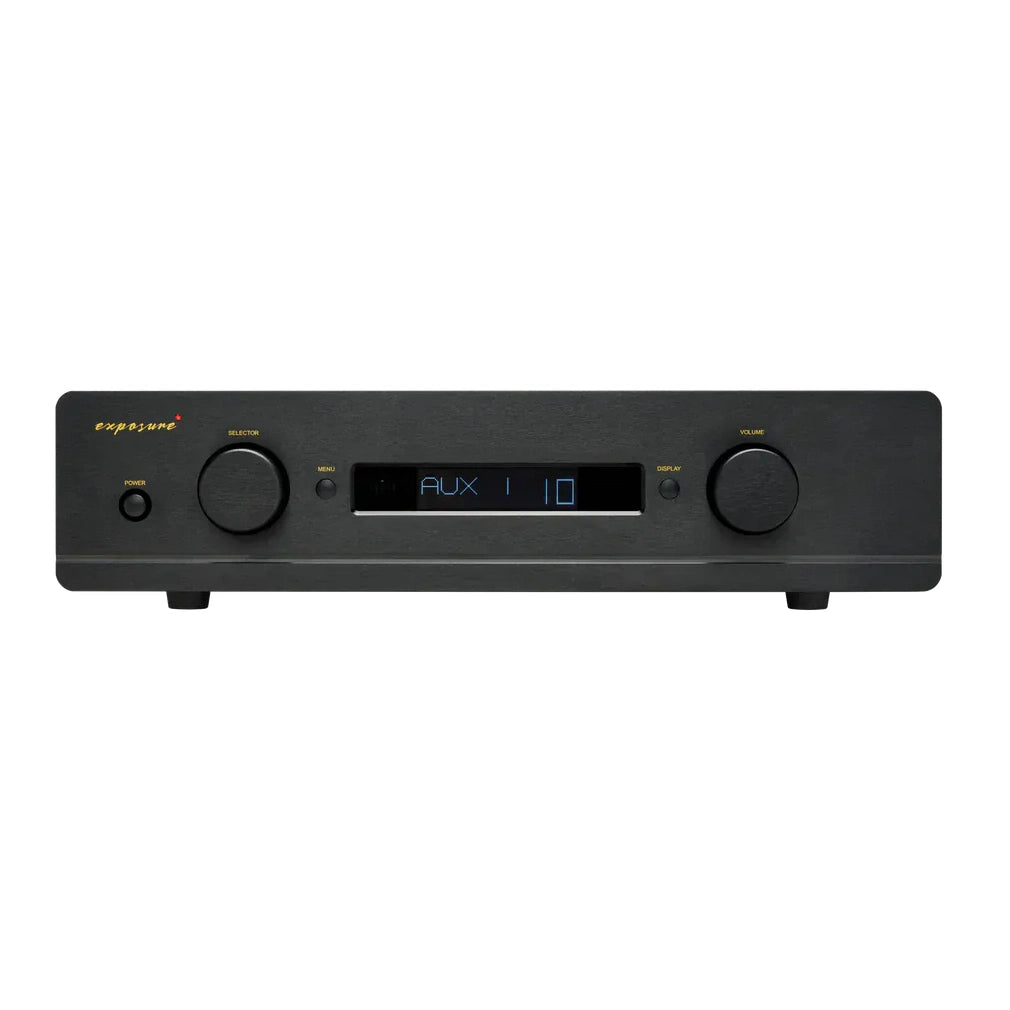

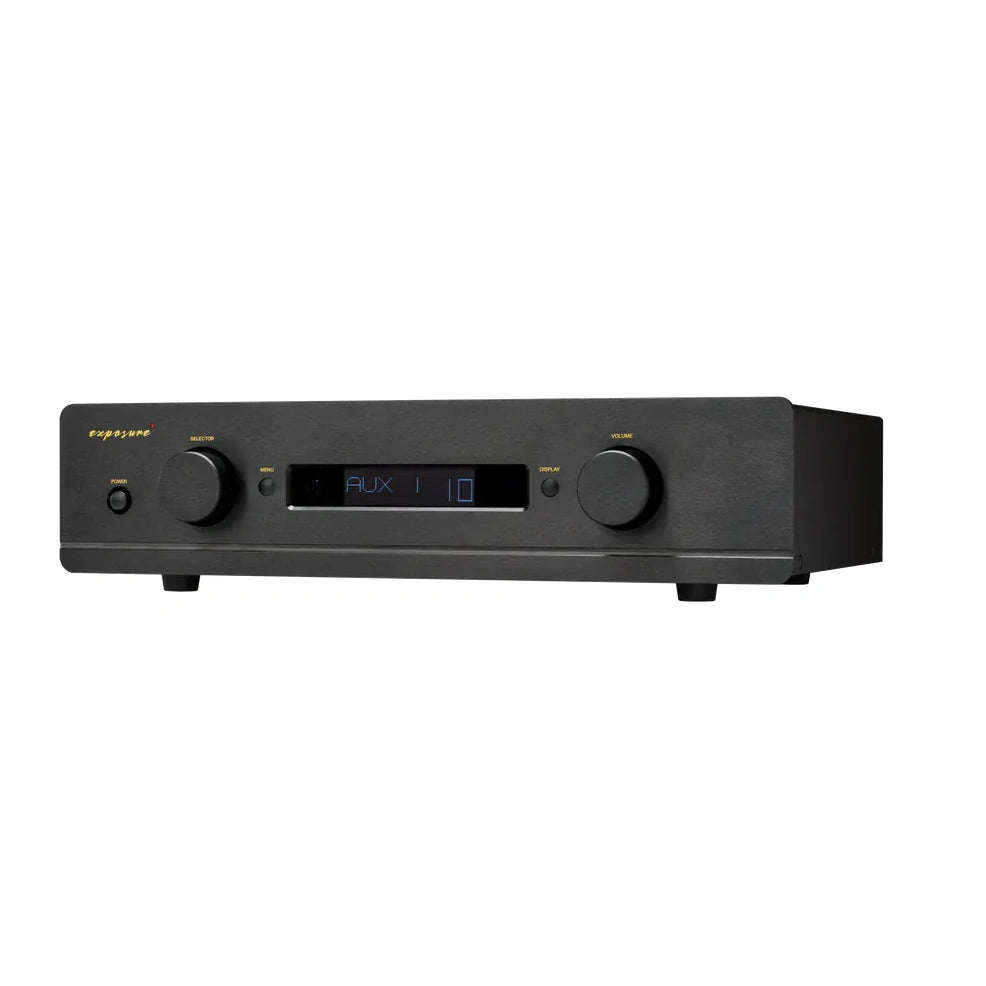

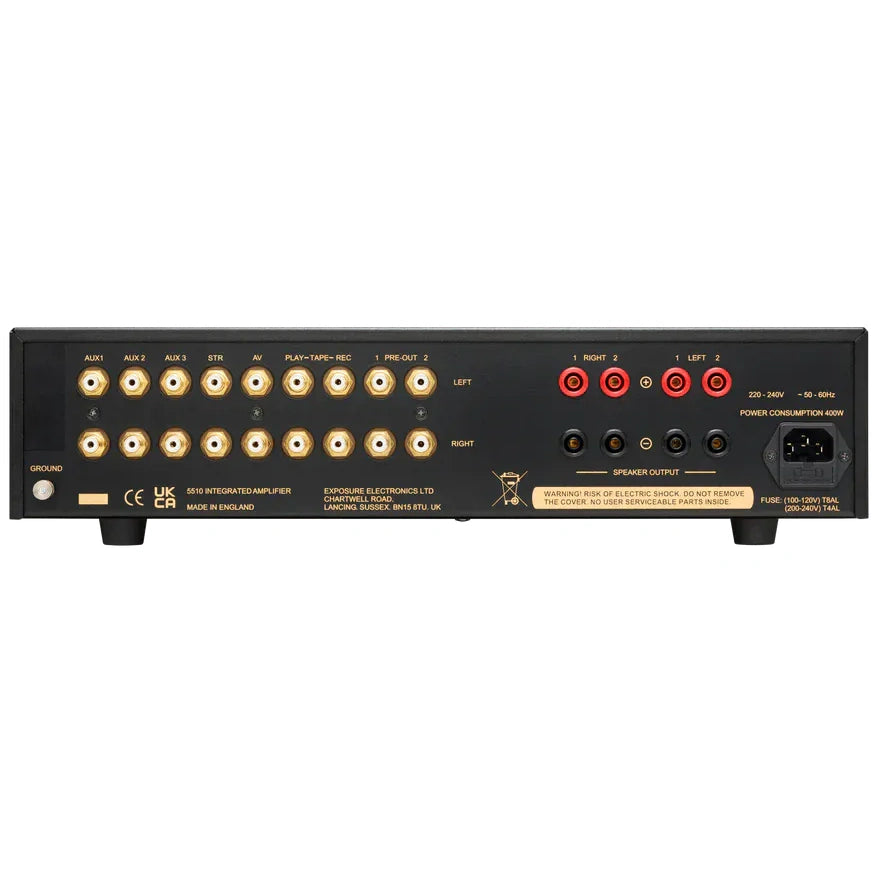

Exposure 5510 Integrated Amplifier

Power That Moves You

With 120 watts per channel, this amplifier delivers commanding performance that brings your music to life. From deep, controlled bass to crystal-clear mids and sparkling highs, it drives your speakers with authority—whether you’re enjoying intimate acoustic sessions or rocking out to high-energy tracks.

Made for Music, Your Way

Engineered with flexibility at its core, this amplifier adapts to your setup and your music. Six versatile line inputs are ready for your sources, and optional phono boards (MM, MC, or DS) ensure perfect synergy with your turntable. Prefer digital? Add the optional plug-in DAC board for pristine playback that lets every detail shine.

Silence Where It Matters

Enjoy music as it was meant to be heard. A custom toroidal transformer with hum shield, paired with a low-noise design, ensures a pitch-black background—so every note, every nuance, emerges without interference.

Elegant Simplicity

Crafted from high-grade aluminium, the chassis not only controls resonance but also adds a refined, timeless aesthetic to your listening space. The crisp white OLED display offers five brightness levels and auto-off mode, keeping your focus on the music—not the screen.

Convenience Built In

From intuitive remote control to multiple output options, this amplifier is designed to make high-fidelity listening effortless.

Quality That Lasts

Precision-built, finished in classic black, and backed by a three-year guarantee, this amplifier is an investment in years of reliable, musical enjoyment.

Specifications

Pre-Amplifier Gain (max volume)
x7.6, +17dB

Total Harmonic Distortion
<0.01% at 1KHz, rated power

Frequency Response
20Hz - 20KHz +/-0.5dB

Signal to Noise Ratio
ref 1KHz & 1V7 output: >100dB, A weighted

Channel Separation
>60dB @ 20KHz AV

Input Fixed Level
900mV for rated power

Input Impedance
>10K Ohms Output Impedance    50 ohms ref 1KHz Power Amplifier using LINE input

Power Output
120 Watts per channel into 8 Ohms @ 1KHz

Total Harmonic Distortion
<0.02% at rated power into 8 Ohms ref 1KHz

Frequency Response
20Hz - 20KHz +/-0.5dB

Signal to Noise Ratio
>100dB, A weighted ref 1KHz at rated output Channel Separation    >60dB @ 20KHz

General Mains Supply
220/240V @ 50/60Hz

Fuse
T4AL for 220/240V units

Power Consumption
<400W, 8 Ohms load, both channels driven

Dimensions (HxWxD)
115mm x 440mm x 300mm

Net Weight
12kg

Gross Weight
14kg
