Exposure

Exposure 3510 Mono Power-Amplifier Pair

$6,999

Seen it cheaper? Talk to us.Trade in your old amplifier typically $400–$900 toward this

In stock
Colour: Black

Pickup available at Alexandria Showroom · Usually ready in 2-4 days

Ships from SydneyIn stock · free insured AU shipping · we confirm your dispatch date within one business day·
Australian warrantyAuthorised dealer, local support
Installation availableSydney metro, quoted with the gear

FEATURES

  • Large custom made toroidal transformer and smoothing capacitors for power supply
  • All bipolar transistor design using carefully selected parts
  • DC coupled throughout
  • Electronic, non-invasive overload protection circuit and thermal trip

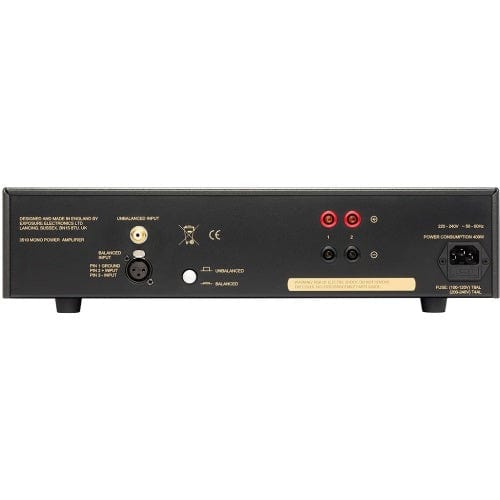

  • Balanced & Unbalanced Input
  • Bi-wire speaker outputs using high quality shrouded sockets
  • High quality all aluminium case work
  • Three year guarantee

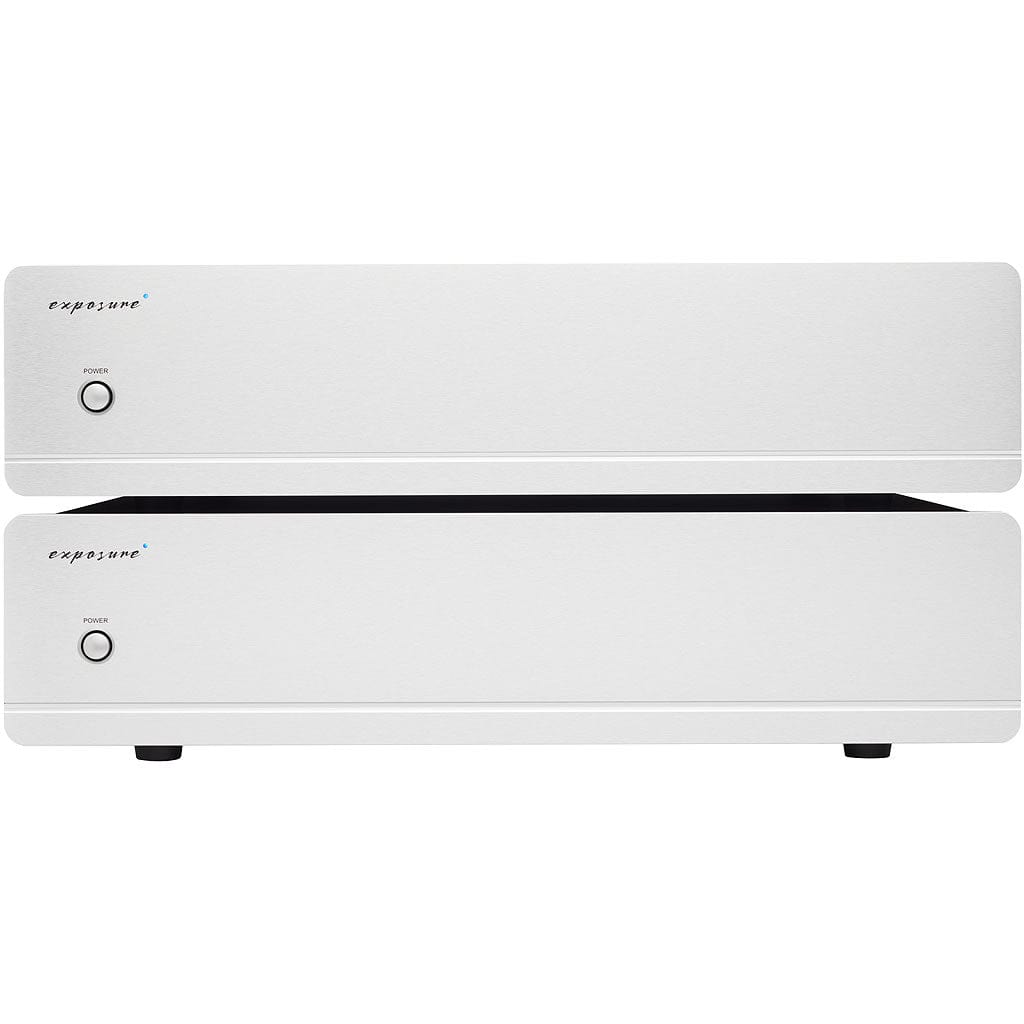

  • Available in black or titanium


    SPECIFICATIONS

    OUTPUTS

    Power Output: 100W per channel, 8 Ohms
    Frequency Response: -3dB at 60kHz, ref 1kHz
    Total Harmonic Distortion: <0.01% @ 1kHz, ref rated power
    Signal to Noise Ratio: >110dB, A weighted, ref rated output

    INPUTS (LINE)

    Input Impedance: 50K Ohms at 1kHz, unbalanced input
    Input Sensitivity: 1.75V @ 1kHz (Unbalanced), 875mV each input @ 1kHz (Balanced)

    GENERAL

    Mains Supply: 220/240V, 50/60Hz (factory set)
    Fuse: T4AL for 220/240V units
    Power Consumption: <400W, 8 Ohms load
    Dimensions: 115mm x 440mm x 300mm
    Net Weight: 12kg
    Gross Weight: 14kg
