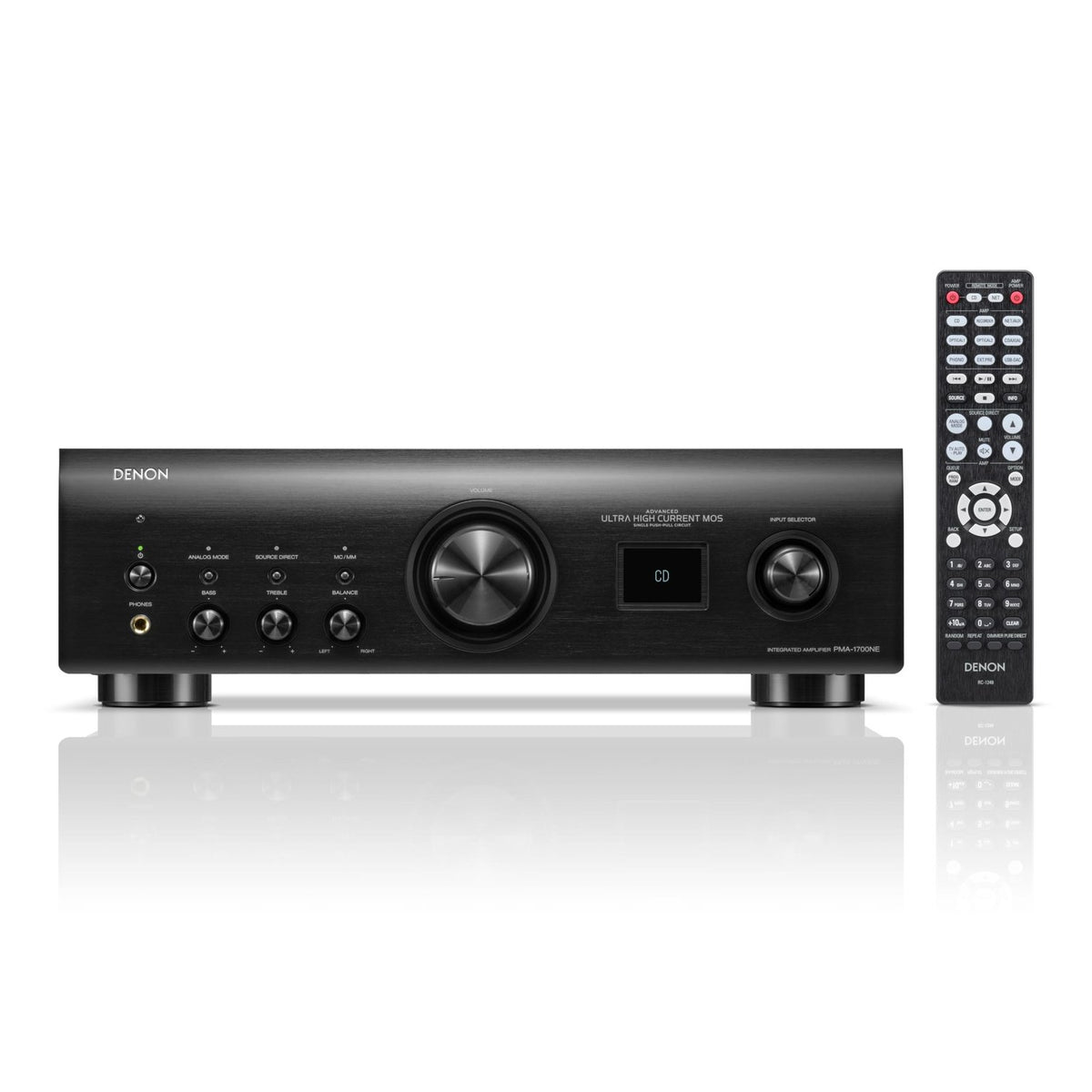

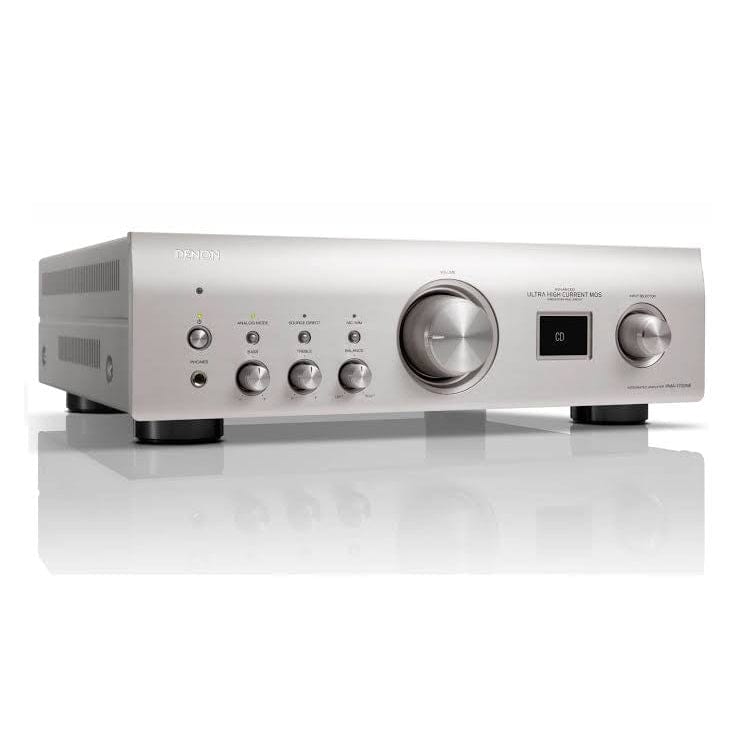

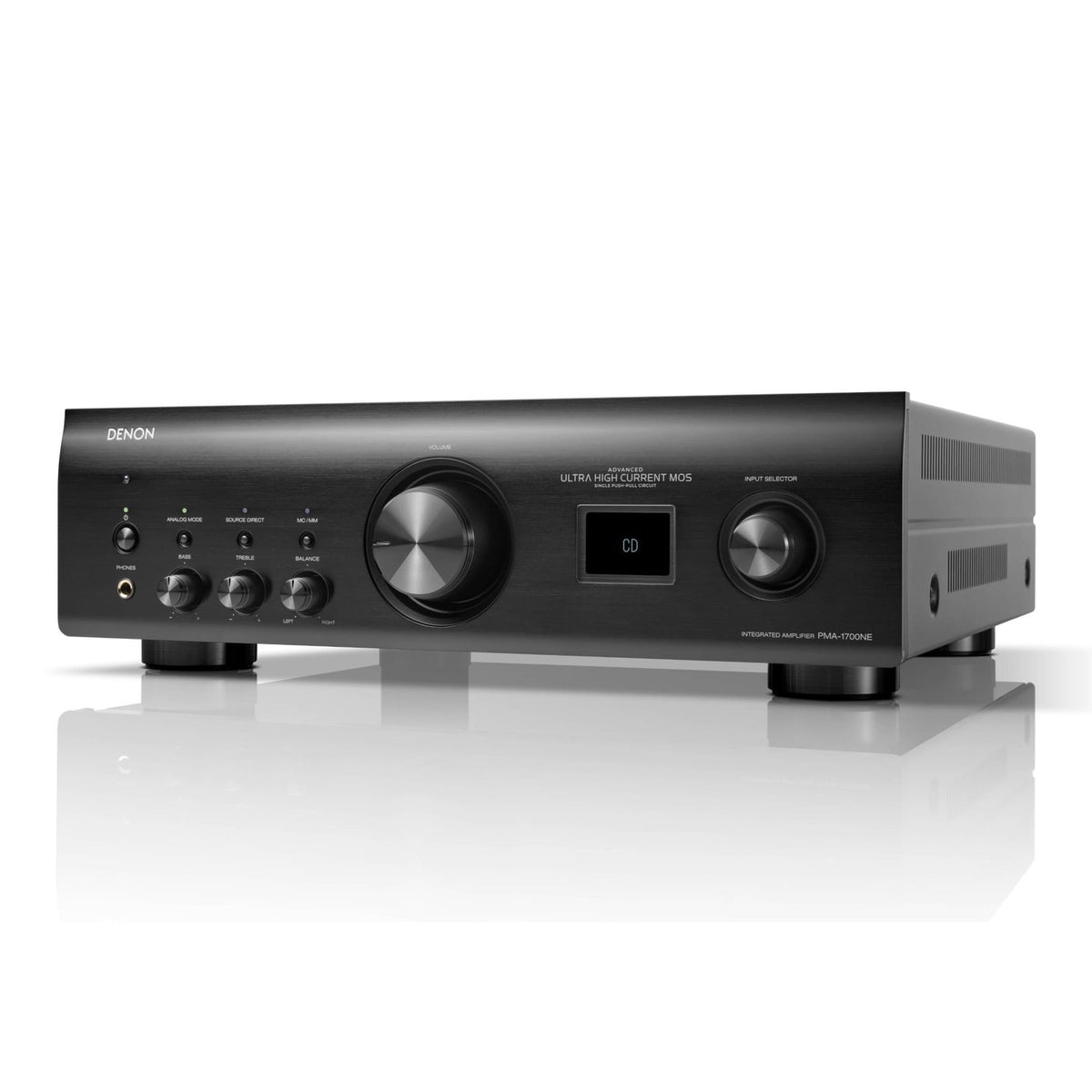

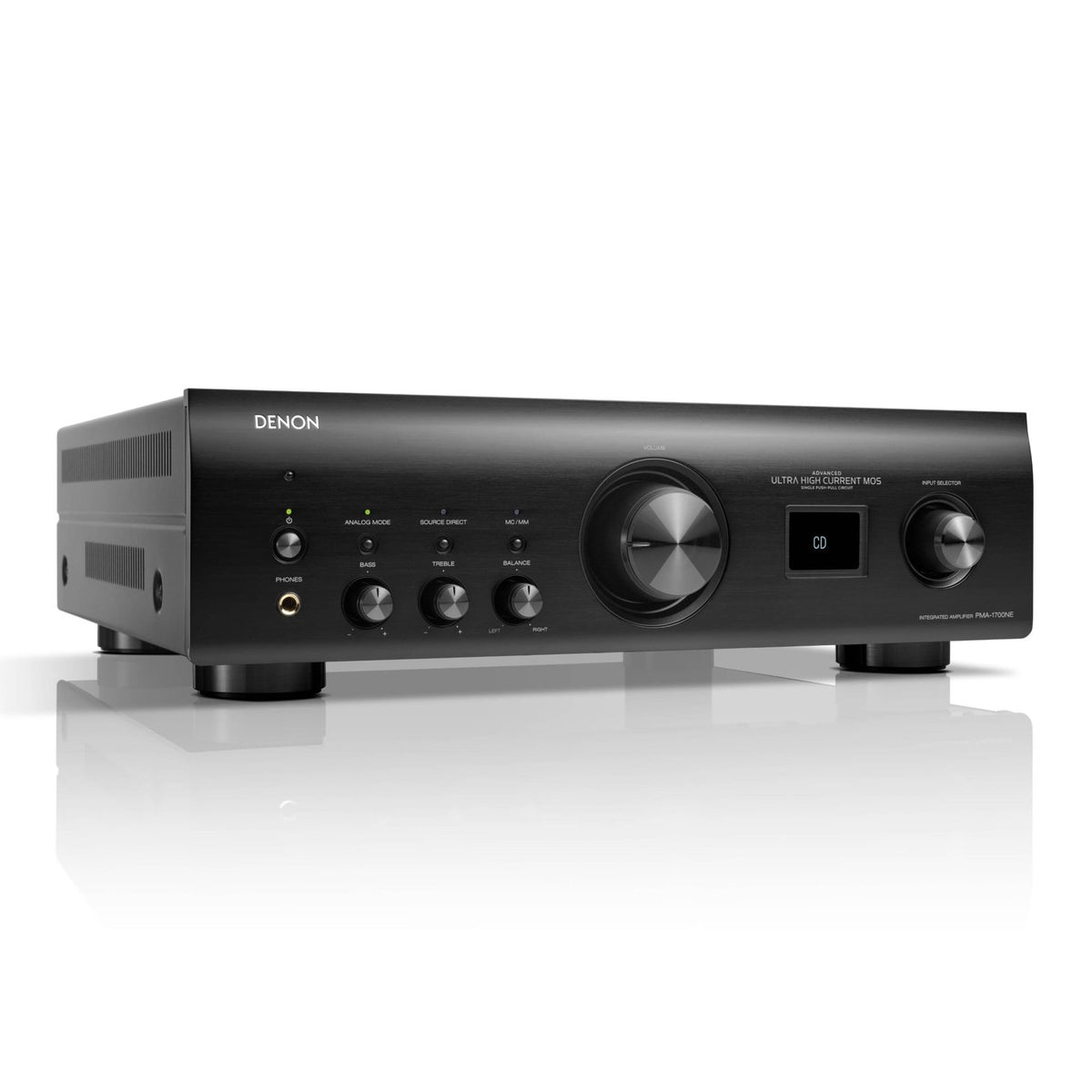

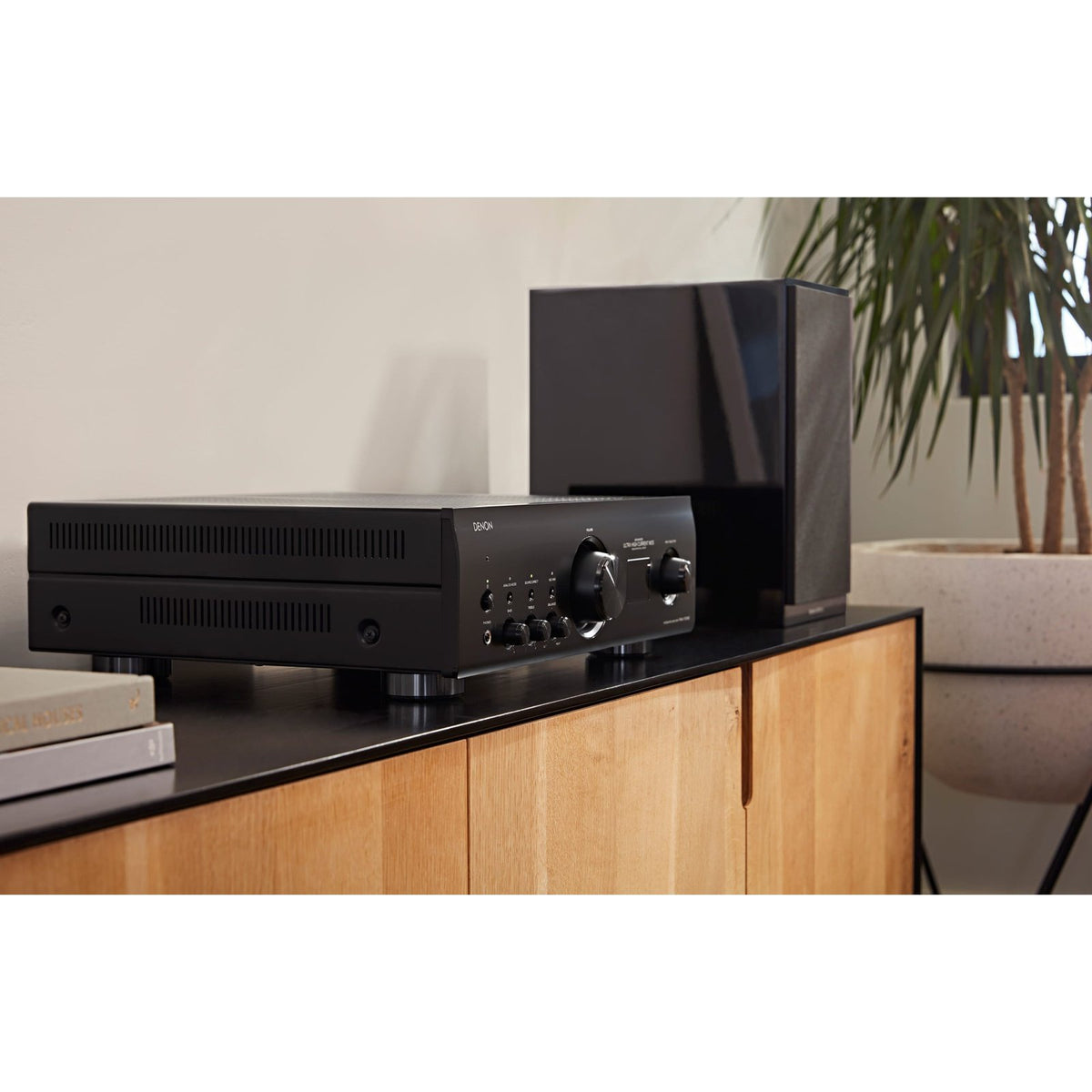

Denon PMA-1700NE Integrated Amplifier

PMA1700NEBKE2AU

Regular price$2,999.00
/

Buy now, pay later with: Zip Interest Free Afterpay Interest Free Humm Interest Free
  • Free Delivery Australia Wide
  • Local Australian Warranty
  • 1800 100 998 For Assistance

We take pride in our customer service and shipping times. Most products will ship within 1-2 business days. If there are any potential delays with products in your order, we will contact you.

All orders now come with free shipping Australia Wide.

We use a variety of shipping methods depending on the types of items purchased and their delivery location. This helps to ensure your items arrive safely and in a timely manner. If you are on a tight deadline or would like to know an estimated delivery date for your order, contact our friendly staff and they will be happy to assist.

Orders will usually take between 1-6 days for delivery, depending on your location and shipping method.

If your order has not been delivered within 7 days of shipping we recommend you reach out to us directly to investigate with Australia Post / Courier.

If for any reason you haven't followed up with us within 30 days of shipping, we'll be unable to guarantee your delivery of your item unless it has been returned to sender.

Featuring advanced ultra-high current single push-pull circuit power with Advanced AL32 Processing Plus, the Denon PMA-1700NE integrated amplifier delivers music that’s faithful to the original recording.

High-Power 140W Integrated Amplifier

Drive your loudspeakers with 140 Watts of power per-channel into 4 Ohms. This integrated amplifier offers compatibility with the widest range of speaker types and impedances for operational stability.

Advanced AL32 Processing Plus

Advanced AL32 Processing Plus supports digital audio sources up to high-resolution of 384-kHz/32-bit. The algorithms restore information that was lost during the digital recording to ensure detailed playback.

USB-DAC

PMA-1700NE provides USB-DAC function that supports high resolution audio signals up to 11.2-MHz DSD and 384-kHz/32-bit PCM. These digital signals with suppressed jitter will get passed on to the high quality DAC for an optimal D/A conversion with highest precision.

MM and MC Phono Equaliser

The PMA-1700NE includes a phono equaliser that supports input from both MM and MC cartridges. The simple, straightforward design significantly improves sound quality.


Specifications

General

Unit (W x D x H) 434 x 410 x 135mm
17.1 x 16.1 x 5.3in
Cabinet Size (W x D x H) 434 x 374 x 135mm
17.1 x 14.7 x 5.3in
Net weight 17.6kg
38.8lb
Packaging Dimensions (W x D x H) 548 x 520 x 249mm
21.6 x 20.5 x 9.8in
Packaging gross weight 20.4kg
45lb
Carton Color 2 Color
Cushion / Packing 4 Separate / Sheet
Panel Color SP / BK
Front (Center) Panel Aluminum
Side cover SECC with 4 straight emboss
Side screw SP: Nickel / BK: Black
Rear Panel SECC t1.0mm
Chassis Material SECC t1.2mm
Bottom Layer Single
Volume Knob Aluminium
Input Selector Aluminium
Bass/Treble/Balance/ Phono Sel knobs Aluminium
Power button Aluminium
Other knob/button (LOUDNESS, SOURCE DIRECT etc) Mold (Source Direct,Analog Mode,MM/MC)
Foot ABS resin with rigid rib
w/Hot stamp
(H : 20mm)
Heatsink for Power Amplifier Extruded Aluminium

Specifications

Rated Output Power 70W + 70W
(8ohm,20Hz-20kHz,THD0.07%)
140W + 140W
(4ohm, 1kHz, THD0.7%)
Speaker Impedance A or B : 4 ~ 16ohm
A + B : 8 ~ 16ohm
Frequency Response 5Hz - 100kHz (0~ -3dB)
Total Harmonic Distortion 0.01 % (Rated output: –3 dB),
8 ohm/ohms, 1 kHz
Dumping Factor 100 and over
Input Sensitivity: Phono input MM: 2.5 mV / 47 kohm
MC: 200
RIAA Deviation 20 Hz - 20 kHz ±0.5 dB (MM/MC)
Phono Maximum Input MM : 130mV / 1kHz
MC : 10mV / 1kHz
Input Sensitivity: CD/LINE/RECORDER 125 mV / 19 kohm
Input Sensitivity: Power Amp input 0.85V / 47kohm (EXT. PRE)
Signal to Noise Ratio PHONO (MM): (89dB)
PHONO (MC): (74dB)
CD: (107dB)
Tone Control BASS : 100Hz ±8dB
TREBLE : 10kHz ±8dB
Power Consumption 295W
at Standby 0.2W TV autoplay off
0.4W TV autoplay on

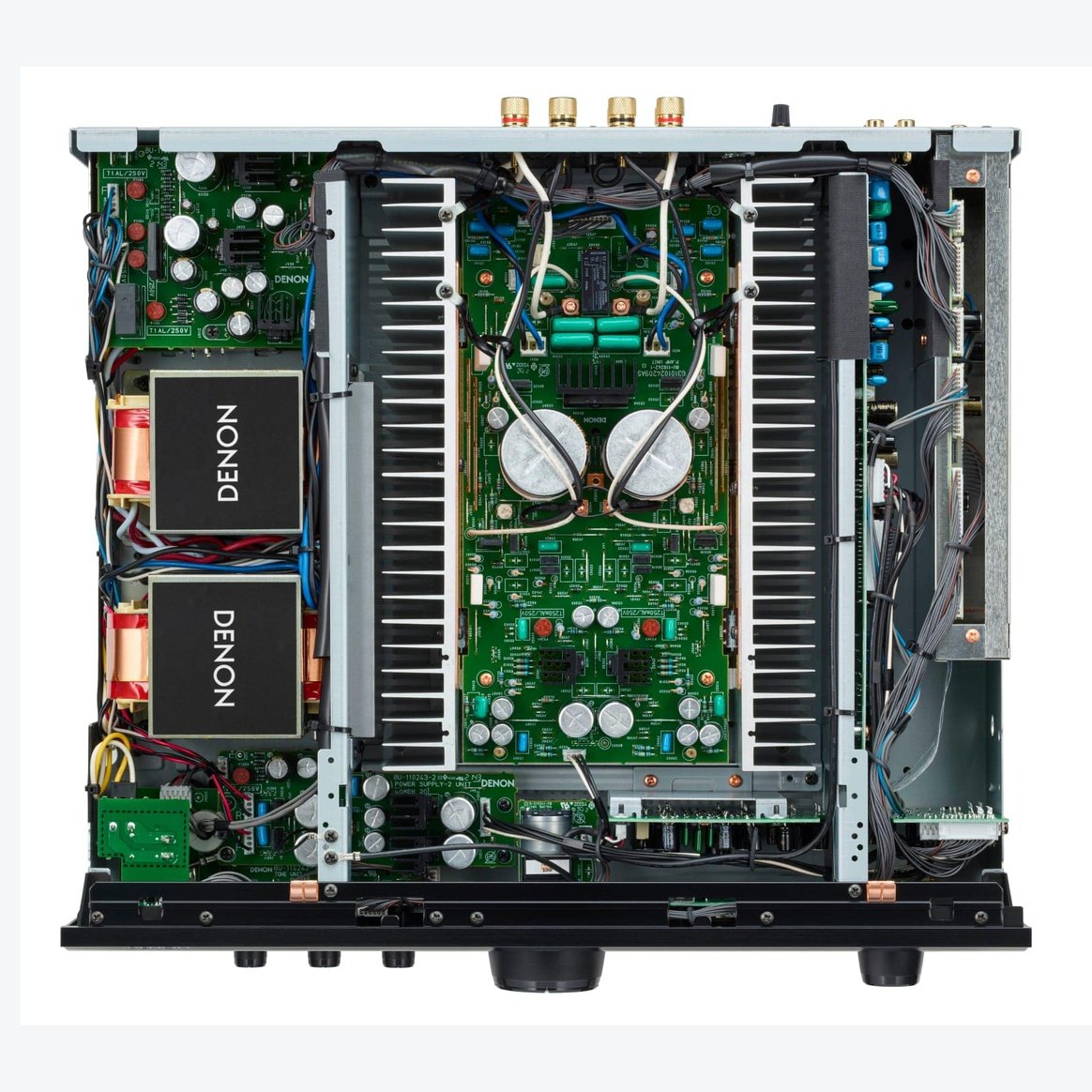

Audio Feature

Power Amplifier Circuit New UHC-MOS
Single Push Pull (7)
Power Trans Dual El Core
Pre Amplifier Circuit Variable Gain Preamplifier
(OP AMP)
Volume Electric
(MUSES 72323)
Bass / Treble / Mid / Balance Control Yes / Yes / No / Yes
Type of Tone Control Electric
Controlled by Potentiometer
Headphone Circuit Use Power amplifier
Source Direct Yes
Analog Amp Mode Yes (button on front panel)
Other 70
DAC Circuit PCM1795
Digital Filter Fixed
Digital Processing Advanced AL32 Processing Plus
DAC Master Clock Design (Not Support Network Playback) Yes
Asynchronous mode (for USB-B input) yes
Isolator (for USB-B input) Yes
Full Isolation

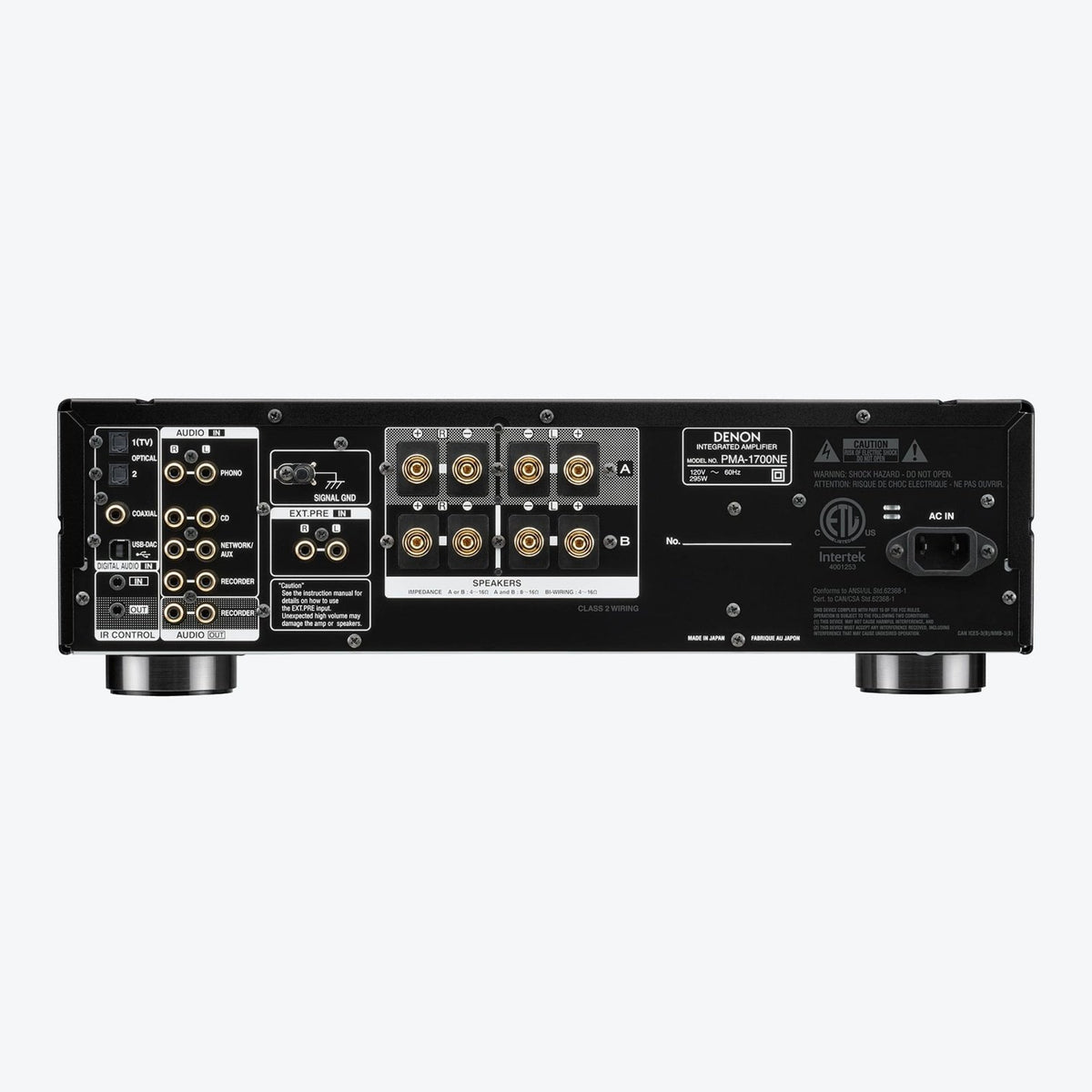

Connectivity

Phono Input Yes (MM / MC)
*default=MM
Analog Input (include Phono) / REC Out (RCA) 4/1
(PHONO / CD / NETWORK ,AUX/ RECORDER)
Optical input / output (Maximum Support) 2 / 0 (192kHz/24bit)
Coaxial input / output (Maximum Support) 1 / 0 (192kHz/24bit)
Ext. Pre Input (Power Amp Direct) Yes(Ext.Pre)
2 sets of Speaker Output Yes (Bi-wiring)
Speaker Terminal Gold Plated
Headphone Output 1
(Turn off the speaker when inserting headphone)
Remote Control Bus Terminal Yes (mini)
AC Inlet Yes
Wi-Fi No
HEOS No
USB B (USB DAC) 1 (Rear)
Module or Main Device New XMOS
(XU210-256-TQ128 )
PCM Sample Rate ~384kHz/32bit
DSD Audio Streaming (DoP) ~11.2MHz
Roon Certification Yes(Roon Tested)
TBD

Control

Remote Controller System Remote
(w/CD Player Control)
Unit control (Button) Push Switch: 1
POWER
Tact Switch : 3
ANALOG MODE, SOURCE DIRECT, MM / MC
Unit control (Knob) 5
VOLUME, INPUT SELECTOR, BASS, TREBLE, BALANCE
LED POWER: 1 Red / Green
ANALOG MODE: 1 Green
SOURCE DIRECT: 1 Green
MM / MC :1 Green
Front Panel Display Yes
(OLED 128 x 100 dot)
MXS4036-A
Display Language Alphabetical
Dimmer for Front Display Bright / Dim / Dark / Off
Control with App via Network Player (Use Remote Control Bus) Yes
TV Auto-play (Opt/Coax digital-in detecter) Yes
Last Function Memory Yes
Auto Standby Mode Yes
Owner's Manual Web Manual
E2: (English, German, French, Italian, Dutch, Spanish,
Swedish, Polish, Russian)
E3: (English, French, Spanish)
E1C: (Simplified Chinese)
JP: (Japanese)
Paper
JP: (Japanese)
Quick Start Guide Paper
E2: (English, German, French, Italian, Dutch, Spanish,
Swedish, Polish, Russian)
E3: (English, French, Spanish)
E1C: (Simplified Chinese)
JP: (Japanese)
Remote Controller Yes
Battery Yes (AAA x2)
Power Cord Yes
