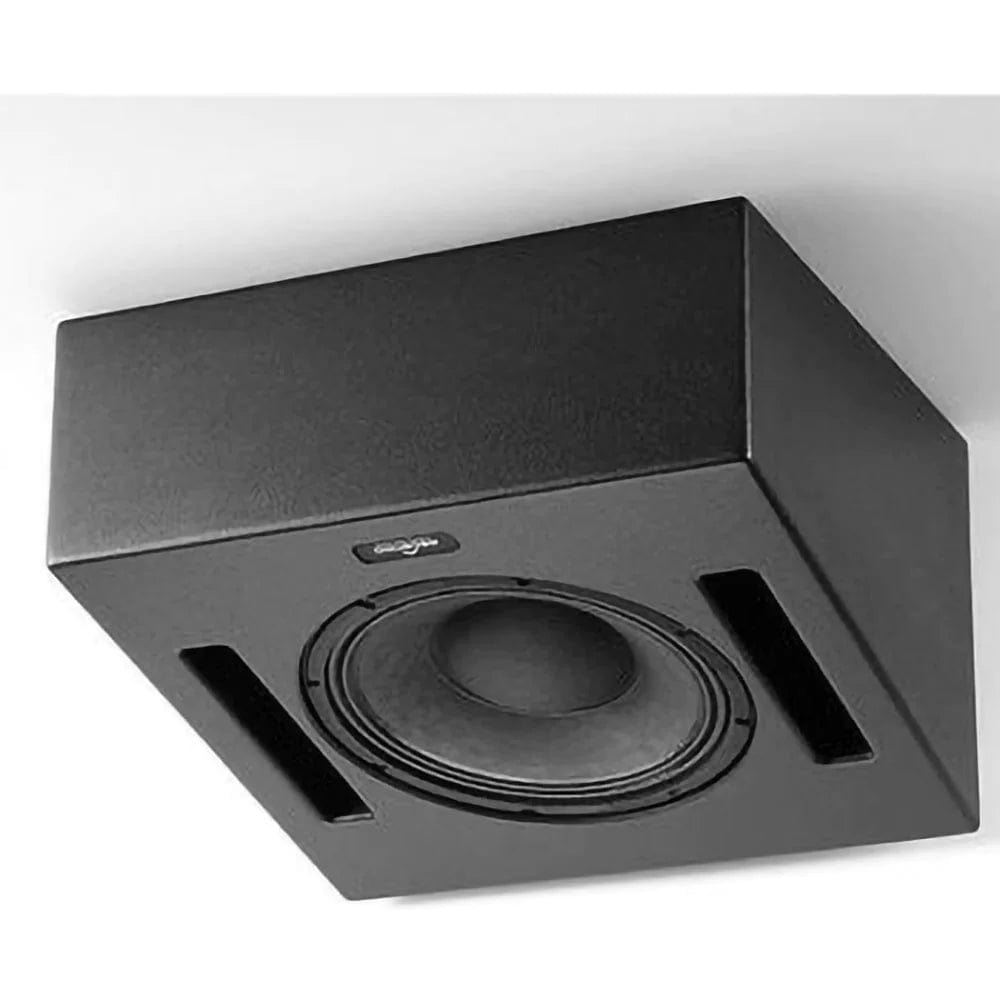

Ascendo The12 ASC-12PPW 12" Coax PRO Passive Wedge - Black


Regular price$13,900.00

Buy now, pay later with: Zip Interest Free Afterpay Interest Free Humm Interest Free
  • Free Delivery Australia Wide
  • Local Australian Warranty
  • 1800 100 998 For Assistance

We take pride in our customer service and shipping times. Most products will ship within 1-2 business days. If there are any potential delays with products in your order, we will contact you.

All orders now come with free shipping Australia Wide.

We use a variety of shipping methods depending on the types of items purchased and their delivery location. This helps to ensure your items arrive safely and in a timely manner. If you are on a tight deadline or would like to know an estimated delivery date for your order, contact our friendly staff and they will be happy to assist.


The design objective for this model was to offer a pre-angled version of The12 PRO PASSIVE that can be installed in multiple locations where angling the speakers is mandatory. Such locations include but are not limited to front wide, Atmos and DTS top front and rear, front or rear high surrounds, side surrounds etc.

The driver design is perfect for wide angle axi-symmetric radiation to cover a large listening area, with its 30-degree pre-angle meeting the requirements of most 3D home theatre builds according to current CEDIA, Dolby and DTS specs. The very flexible speaker mounting and orientation options ensure best possible localisation, immersion, and tonal balance at the main listening position while minimising localisation shifts for side seats.

The12 PRO PASSIVE WEDGE is an enormously dynamic and powerful speaker. Its high efficiency and high-power handling allow it to reach reference volume levels and obtain an impressive cinema sound experience even with low amplifier power.


Speaker type

Time coherent  12"  point-Source

Enclosure type


Passive / Active


Cont./peak output

126 dB cont. / 129 dB peak

Frequency Range

75 Hz to 21 kHz


97 dB / 1W/m

Power Handling



8 Ω


12", 300mm


1.4" (Throat) compression driver

Directivity Horizontal x Vertical in Deg°

85° x 85°

Input Terrminal

Neutrik Speakon


Internally braced birch ply


19,69" / 500 mm Horizontal


17,72" / 450 mm Horizontal

Depth With Plug

7,11-11,74" / 180,61 - 228,17 mm, Angle 15°

Depth grill

 0,39" / 10 mm


50,70 lbs / 23,0 kg


Structural paint black

Custom colour options

Genuine piano lacquer (12 layers): matt lacquer: colour of choice, other finishes upon request

Shape customisation

Possible, upon request


4 x  wall brackets for horizontal and vertical installation,  VESA 200 mounting option
