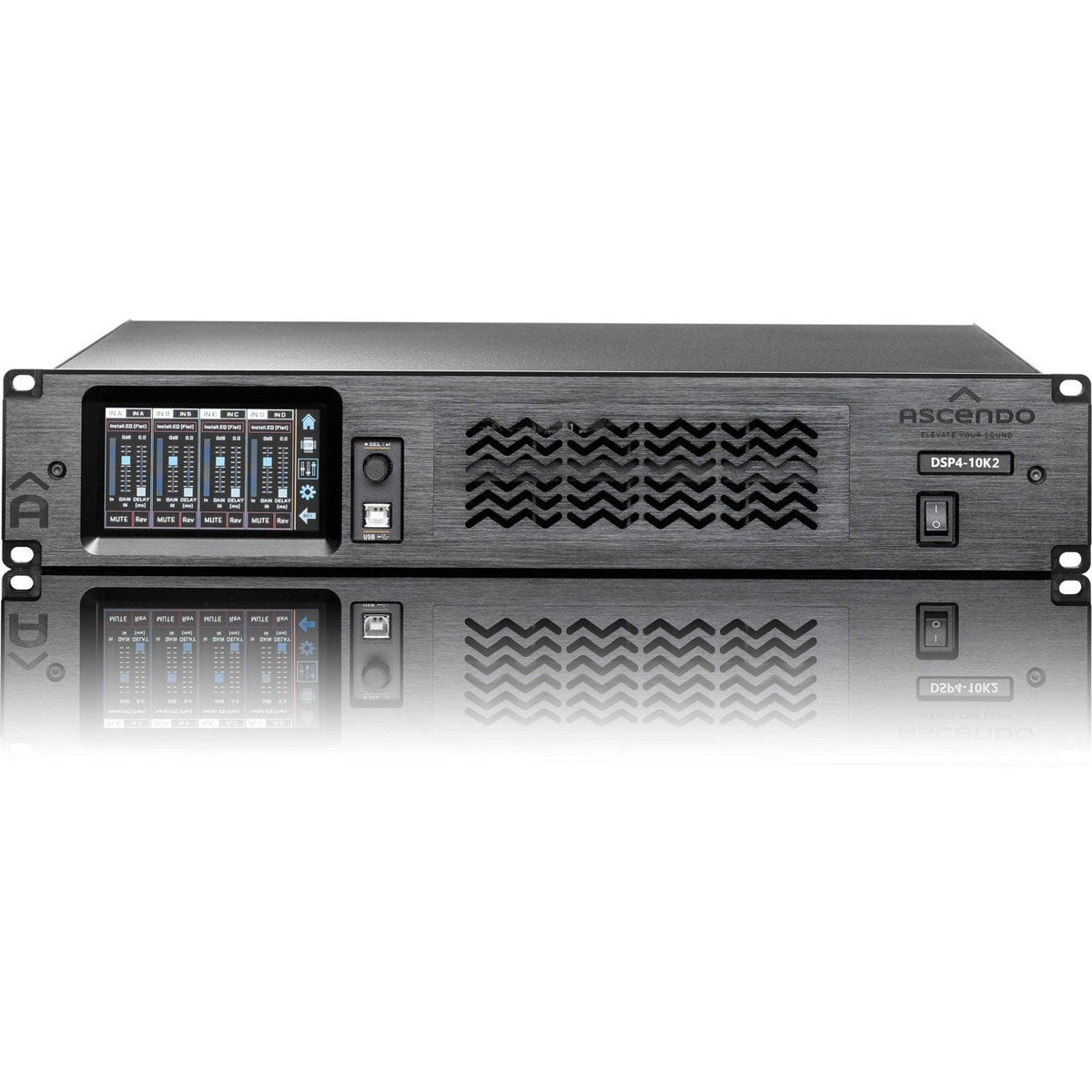

Ascendo DSP4-10K2 - 4-channel DSP network-controlled Class H amplifier
A reference-tier component supplied by specification and private consultation, matched to your room, delivered and calibrated. We'll prepare a tailored proposal for you.
A proposal covers the component, professional installation and full calibration, matched to your room and priced as a finished result, not just the box.
Overview
The ASCENDO DSP4-10K2 is a ultra powerful 4-channel audiophile grade, high efficiency Class H amplifier suitable for driving large passive speakers and/or passive subwoofers in a multi-channel or stereo audio/visual installation.
The ASCENDO DSP4-10K2 amplifier is 18” rack mountable and temperature-controlled fan cooled; with LCD touch panel
It offers four XLR (balanced) line inputs (which may also be driven unbalanced if needed); and four Neutrik SpeakOn outputs.
Available power is an incredible 1600W RMS per channel into 8 ohms; which may also be bridged to offer 2 channels of 5kW RMS each into 8 ohms.
MAIN CHARACTERISTICS:
- DSP network-controlled channels for room EQ
- LCD touch panel
- Laser cut aluminium front panel
- FCM™ Faulty Channel Management system to avoid entire device shutdown
- State-of-the-art layout for maximum performance and reliability
- ICL, PROT, SIGNAL indicators per channel
- ICL clip-limiters
- Switchable (35Hz) sub-sonic high-pass filter per channel
- All channels bridgeable by pairs
- Temperature and signal dependent, intelligent cooling system for minimal noise
- Highly oversized thermal dissipation design for maximum reliability
Specifications
• Output Power* (4Ω / 2Ω): 4 x 2500W RMS
• Output Power* (8Ω): 4 x 1600W RMS
• Output Power* (4Ω / 8Ω, BRIDGED): 2 x 5000W RMS
• Frequency Response (power bandwidth ±0.25dB): 20Hz-20kHz
• Phase Response (@ 1 watt 20Hz-20kHz): ±15 deg
• Total Harmonic Distortion (20Hz-20kHz): < 0.05%
• Intermodulation Distortion (SMPTE): < 0.05%
• Damping Factor (20-500Hz @ 8Ω): > 400
• Crosstalk (20Hz-1kHz): > 75dB
• Voltage Gain: 32dB
• Sensitivity (rated power @32dB): 1.4V
• Signal-to-Noise Ratio (20Hz-20kHz): 104dBA
• AC Mains, VAC (50Hz-60Hz): 90V-265V
• Power on Idling (@230V): 0.5A
• Protections: Soft-start, turn-on/turn-off transients, Over-heating, DC, Short-circuit, Open or mismatched loads, ICL, PMS
• Dimensions (W x H x D): 483 x 150 x 396 mm
*All channels driven, full bandwidth P.N. 12dB C.F.
