Ascendo The6 Passive On-Wall Immersive Audio Speaker - CCM6-P
A reference-tier component supplied by specification and private consultation, matched to your room, delivered and calibrated. We'll prepare a tailored proposal for you.
A proposal covers the component, professional installation and full calibration, matched to your room and priced as a finished result, not just the box.
Overview
Ideal Uses In Your Immersive Cinema:
- Front LCR (Left Centre Right)
- Surround
Key Features:
- Passive
- Only 88mm depth
- Various wall mounting options
Your entry into the fascinating world of Immersive Audio
Does quality need to be a matter of size and budget? This new 6.5" addition to the CCM speaker series of ASCENDO was designed by our engineers to offer the highest performance ratio to speaker volume.
We employ the same proven two way axi-symmetric point source coaxial technology as the larger CCRM speaker series in a more compact packaging. The CCM6-P ideally accompanies the CCM5 and if desired the new SV-12 subwoofer in an all ASCENDO budget high-performance system. It can serve as a surround and ceiling speaker in larger home theatre systems as well as a music background speaker paired with a subwoofer.
The optional in-wall mounting kit will convert the CCM6-P into a flexible in-wall speaker.
The high sensitivity of 93dB/w/m paired with 200W RMS power handling lets you use this speaker with lower power receivers or very high-power amplifiers to achieve record SPL for reference level home theatre projects. Another major advantage of the CCM6-P is its shallow depth of only 88 mm.
Specifications
|
Speaker type |
6.5" Time coherent point-source coaxial |
|
Principle |
Vented |
|
Passive | Active |
Passive |
|
SPL |
Measurement data |
|
Frequency range |
Measurement data |
|
Efficiency |
93 dB / 1W/m |
|
Power Handling |
200W |
|
Nominal Impedance |
8 Ω |
|
Woofer |
6.5" woofer |
|
Tweeter |
1" soft dome tweeter |
|
Directivity horizontal x vertical in Deg° |
85° x 85° |
|
Input terminal |
One 4-conductor Phoenix 12 AWG (3,3 mm²) push on binding post |
|
Enclousure |
MDF |
|
Width |
10,24 " | 260 mm |
|
Hight |
17,32 " | 440 mm |
|
Depth (without grille) |
3,46 " | 88 mm |
|
Weight |
11,46 lbs 5,2 kg |
|
Custom colour options |
Piano lacquer (12 layers): colour of choice, matt or other finishes upon request |
|
Shape customization |
Upon request |
|
Mounting |

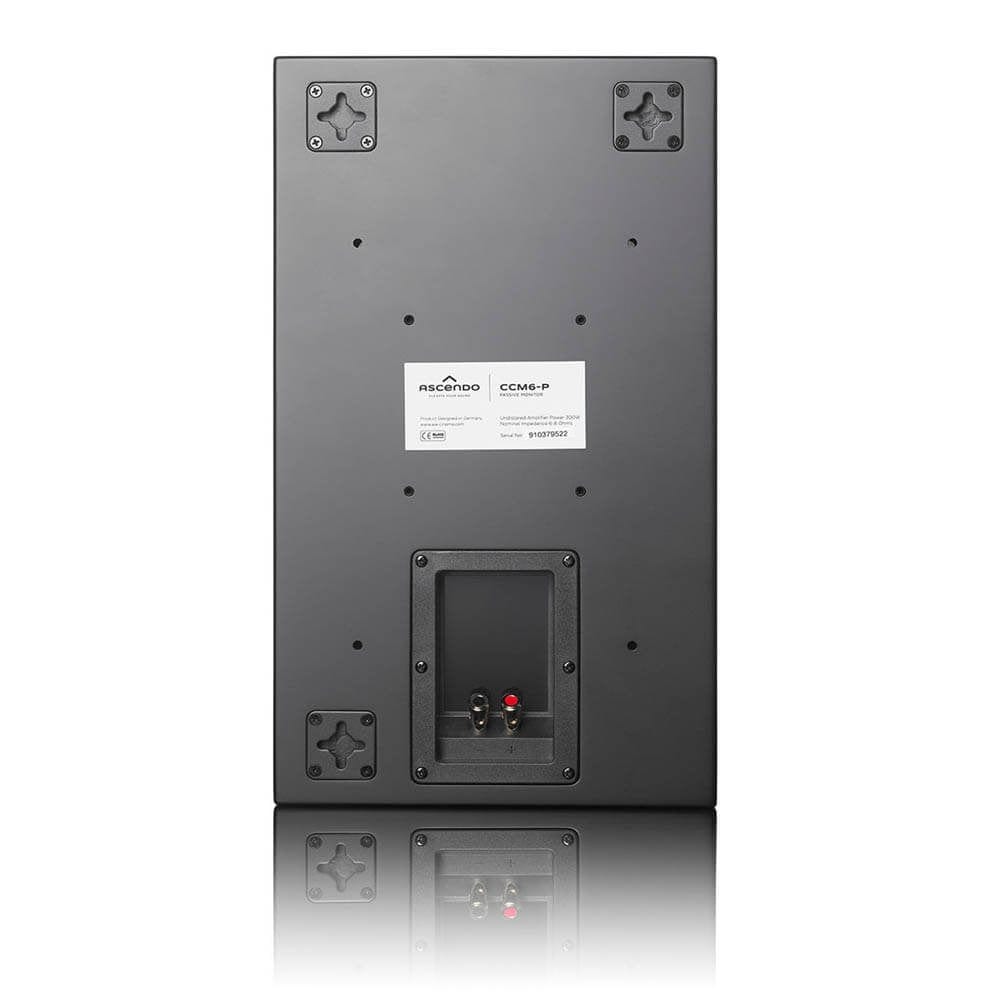

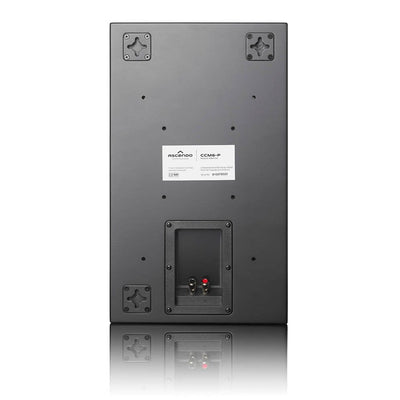

4 x wall mount brackets for horizontal and vertical installation + VESA 100 mounting points + 4 though holes for direct wall or ceiling mounting |
