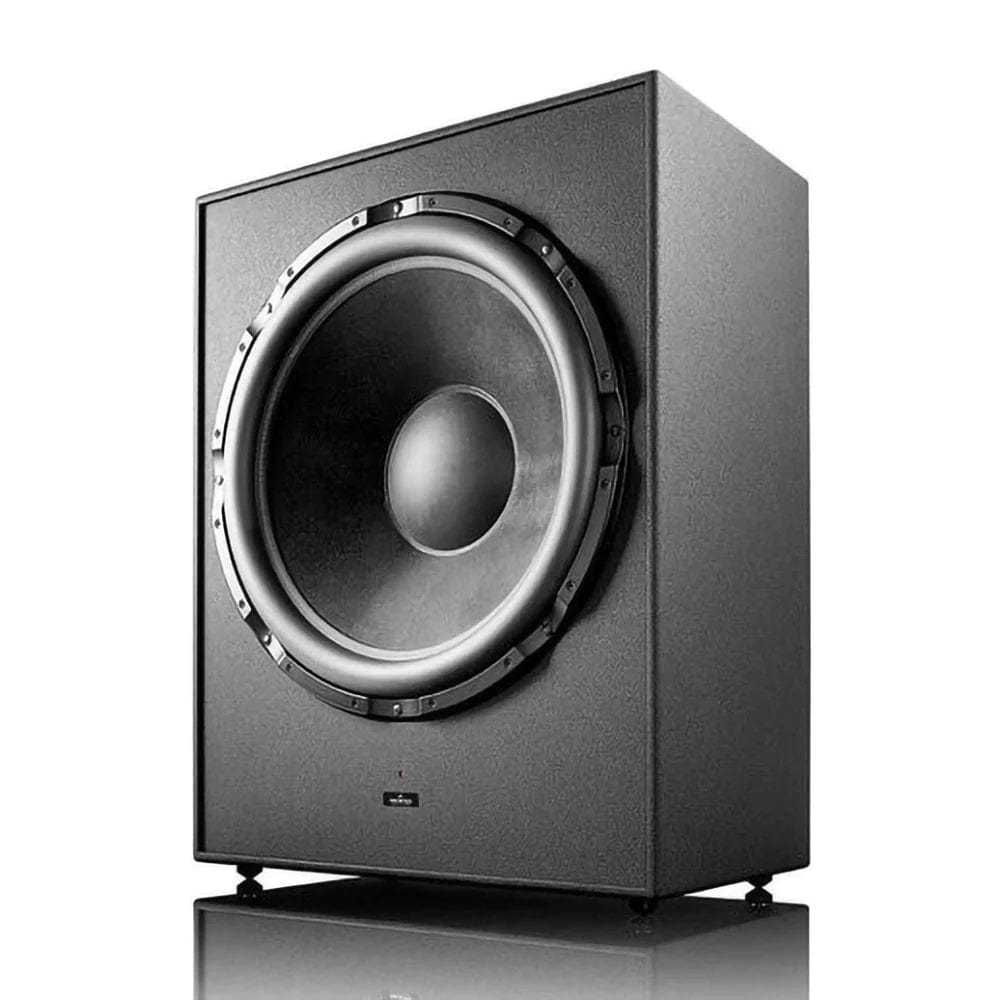

The The32 SUB PRO PASSIVE SEALED infrasub shifts the benchmarks.

Key figures: 82 cm / 32" custom-built super-woofer, 90 mm of linear travel – the world record for home theatre or even commercial cinema subwoofers. The The32 SUB PRO plays in its own league. Authority and impact, speed, dynamics and differentiation, all these attributes the The32 SUB PRO evolves when playing down to the deepest notes in the single digit range. This opens up a new world in lowest bass reproduction. Any comparison will illustrate the sovereignty of its infrasonic bass capabilities.

Displacing an incredible volume of 16.6 liters or half a cubic foot, the The32 SUB PRO pushes as much air per maximum stroke as fifteen standard 18" subwoofers. The The32 SUB PRO allows not only to reproduce lower frequencies, but also a much faster group delay at the same frequencies than the commonly used 18”, 15” and 12" subwoofers in todays home theatre and commercial cinema configurations.

The performance of the The32 SUB PRO is unparalleled. This infrasub complements both state-of-the-art cinemas or home theatre setups to extend LFE channel reproduction or benefits the best high-end speakers. It dramatically improves the overall performance of all speaker systems.

The32 SUB PRO - more depth, image, structure, resolution, volume, dynamics equals more fun.


Speaker type

32" forward-firing woofer, with dual 6,5" voice coil


45 mm Xmax excursion each direction (90 mm linear), voice coil remaining in homogeneous magnetic field

Passive | Active


Recommended amplifiers

2 Amp. channels are required. minimum recommended amplifier voltage swing:  2 x 109 Vrms, 154 Vpk, 27,3 A; equivalent to 3000W@4Ohms per channel, total 6000W with correct RMS & Peak limiter settings (up to 450V = 20kW peak)

Recommended ASCENDO amplifiers

DSP4-10K2, DSP4-20K2



SPL (Peak / half space 2 pi)

Measurement Data
140 dB @32Hz and up
125 dB @20 Hz
109 dB @10 Hz

Frequency range

Measurement Data (without ext. DSP)
28 Hz - 500 Hz /   -3 dB
20 Hz - 500 Hz / -15 dB"


92 dB  / 1W/m 4 pi and 98 dB / 1W/m 2 pi

Power handling

2 x 3000 W up to 2 x 10kW peak


Dual voice coil, 4 Ω each

Air volume displacement

16,6 L / in comparison 18" standard cinema subwoofer 1,1 L

Directivity horizontal x vertical in Deg°


Input terminal

Neutrik NL4 MP


Internally braced birch ply and MDF


37,40 " | 950 mm


47,24 " | 1200 mm

Hight with feet

48,23 " | 1225 mm

Depth without grill

21,65 " | 550 mm

Depth with plug

21,65 " | 550 mm


339,51 lbs | 154 kg


Structural paint black

Custom colour options

Piano lacquer, colour of choice, matt or other finishes upon request

Shape customization

Upon request


Floor standing with feet

Technical modifications subject to change without further notice
