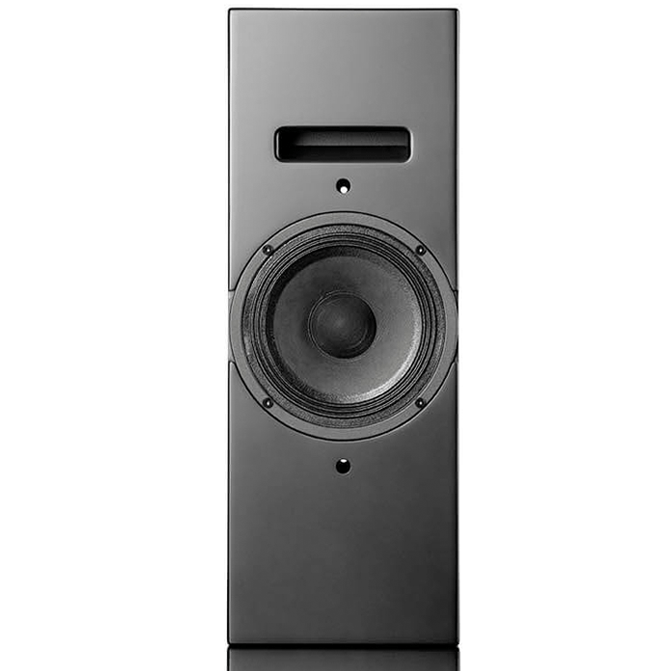

Ascendo 6.5" Coax Passive Monitor Narrow - Black (Single)
A reference-tier component supplied by specification and private consultation, matched to your room, delivered and calibrated. We'll prepare a tailored proposal for you.
A proposal covers the component, professional installation and full calibration, matched to your room and priced as a finished result, not just the box.
Overview
The6 PASSIVE NARROW is an example of ASCENDO responding to the Custom requests of our dealers. This narrower version of model The6 PASSIVE ON WALL has been requested enough times that we officially welcome the model to our regular lineup.
It is a very compact two-way passive loudspeaker system which utilises a 6.5” time coherent Coaxial Point Source driver featuring a soft dome tweeter. This driver design is perfect for wide angle axi-symmetric radiation to cover a large listening area.
The6 PASSIVE NARROW is an enormously dynamic and powerful speaker with a very compact width and height, and form factor that looks more at home either below or beside TVs than its sibling’s wider design.
Considering the space occupied, its high efficiency of 93dB at 1W/1m and high-power handling allows it to reach reference volume levels and obtain an impressive cinema sound experience even with low amplifier power.
Specifications
|
Speaker type |
Time coherent 6.5" point-Source |
|
Principle |
Vented / Reflex |
|
Passive / Active |
Passive |
|
Cont./peak output |
113dB Cont. / 117dB Peak |
|
Frequency range |
80Hz to 20kHz |
|
Efficiency |
93 dB / 1W/m |
|
Power Handling |
200 W |
|
Impedance |
8 Ω |
|
Woofer |
6,5", 165 mm |
|
Tweeter |
1" / 25 mm soft dome |
|
Directivity Horizontal x Vertical in Deg° |
90° x 90° |
|
Input Terminal |
One 4-conductor Phoenix 12 AWG (3,3 mm²) push on binding post |
|
Enclosure |
MDF |
|
Finish |
Matte black |
|
Custom colour options |
Genuine piano lacquer: matt lacquer: colour of choice, other finishes upon request |
|
Shape customisation |
Possible, upon request |
|
Mounting |
4 x wall brackets for horizontal and vertical installation, 2 though hols for direct wall or ceiling mounting |
All speakers are supplied with a front cover as standard
