Ascendo 12" PRO Passive Sealed Subwoofer - Black
A reference-tier component supplied by specification and private consultation, matched to your room, delivered and calibrated. We'll prepare a tailored proposal for you.
A proposal covers the component, professional installation and full calibration, matched to your room and priced as a finished result, not just the box.
Overview

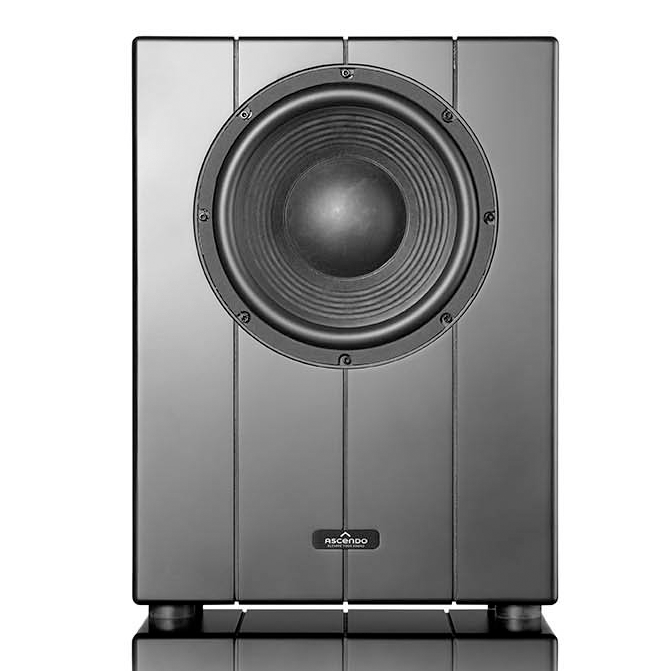

The12 SUB PRO PASSIVE SEALED SH with its sealed cabinet concept offers a rock-solid bass sound from the smallest of dimensions, easily integrable in restricted installation situations. With its shallow depth of 210 mm (8.27”) and exceptional 12” woofer, it can deliver the kind of tight, punchy bass and impressive dynamics that many would like from their modest home theaters or media rooms, all while tucked away in out-of-the-way locations.
The12 SUB PRO PASSIVE SEALED SH shares the same core design advantages the entire range of ASCENDO subwoofers feature - extremely low distortion to reproduce the finest details with the highest dynamic range to meet the content transients without compression, but perhaps more importantly, a linear response from bottom to top to allow for exceptional integration with the main and surround channels.
Specifications
|
Speaker type |
12" forward-firing, advanced carbon nomex pulp mix cones, neodymium motor with 4” ultra-high-temperature voice-coil and triple shorting rings. |
|
Xmax |
20 mm excursion each direction (40 mm linear), voice coil remaining in homogeneous magnetic field, linear and lowest distortion |
|
Passive | Active |
Passive |
|
Recommended amplifiers |
1 Ch DSP + amplifier are required. Min. recommended amplifier: 70 Vrms, 99 Vpk, 17,5 A; equivalent to 1200W@ 4? with correct RMS & Peak limiting & compression settings. |
|
Recommended ASCENDO amplifiers |
(With additional external 1CH DSP: AIA2-1404 bridged, AIA2-2704, AIA4-2404 bridged, AIA4-6004, AIA8-6004 bridged) DSP4-6K2, DSP4-10K2 |
|
Principle |
Sealed |
|
SPL |
Calculated data |
|
Frequency range |
Calculated data |
|
Efficiency |
88 dB / 1W/m |
|
Power handling |
1200 W |
|
Impedance |
4 Ω |
|
Air volume displacement |
1,02 L / in comparison 12" standard cinema subwoofer 0,4 L |
|
Directivity horizontal x vertical in Deg° |
360° |
|
Input terminal |
One 4-conductor Phoenix 12 AWG (3,3 mm²) push on binding post |
|
Enclosure |
Internally braced MDF |
|
Finish |
Matte black |
|
Custom colour options |
Piano lacquer, colour of choice, matt or other finishes upon request |
|
Shape customisation |
Upon request |
|
Mounting |
Floor standing with feet |
Technical modifications subject to change without further notice
Dimensions
