Arcam SA45 Streaming Integrated Amplifier

Arcam SA45 Streaming Integrated Amplifier

The ARCAM SA45 is an all-in-one streaming system for the dedicated music enthusiast, integrating advanced technologies to preserve the finest sonic details. Expertly crafted in Cambridge, UK, it is inspired by the renowned ARCAM A49, featuring fully balanced digital and analogue audio paths, a new digital audio and streaming platform, a linear toroidal power supply, a revamped user interface, and an all-new app.

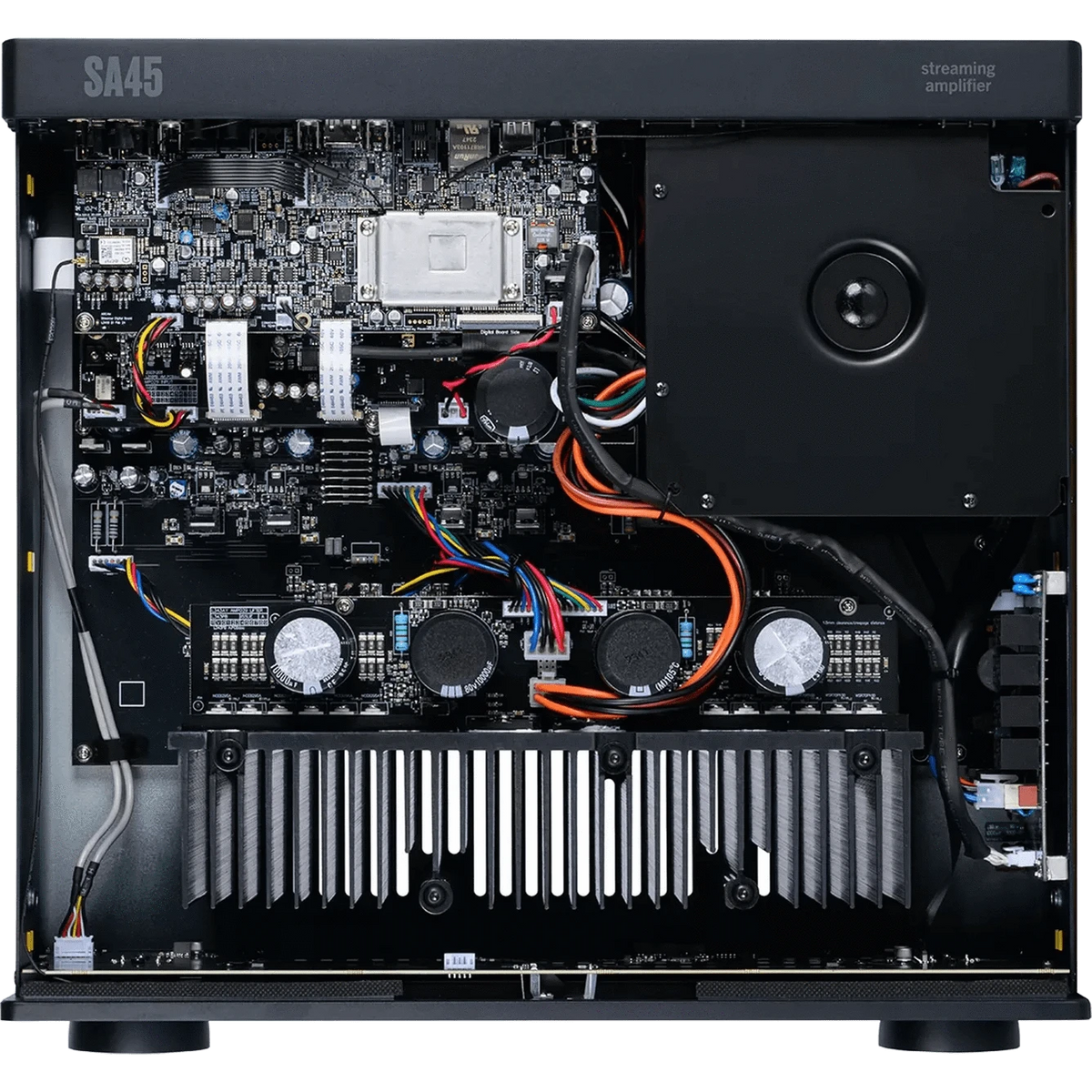

The SA45’s six-layer digital audio and streaming platform is designed to shield sensitive audio components from noise and interference. At its core is the Hyperstream iV DAC from ESS, configured in a balanced architecture with advanced jitter elimination. Complementing this is a linear toroidal transformer, driving the system with minimal noise, while a switching power supply activates only in standby mode for peak efficiency.

Leveraging decades of ARCAM innovation, the SA45’s 5th generation Class G amplifier ensures superior sound quality and dynamics, with rigorous component selection for optimal performance.

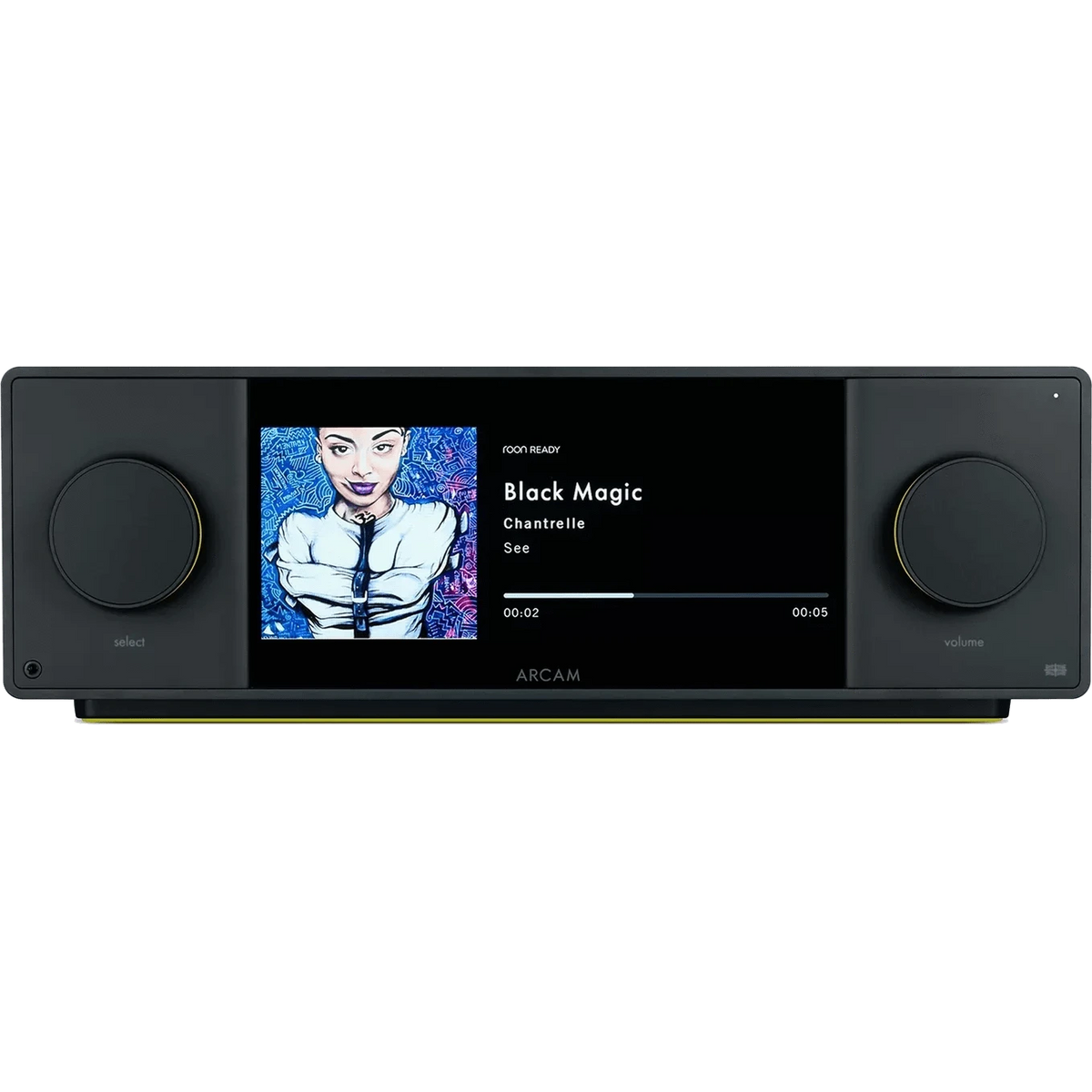

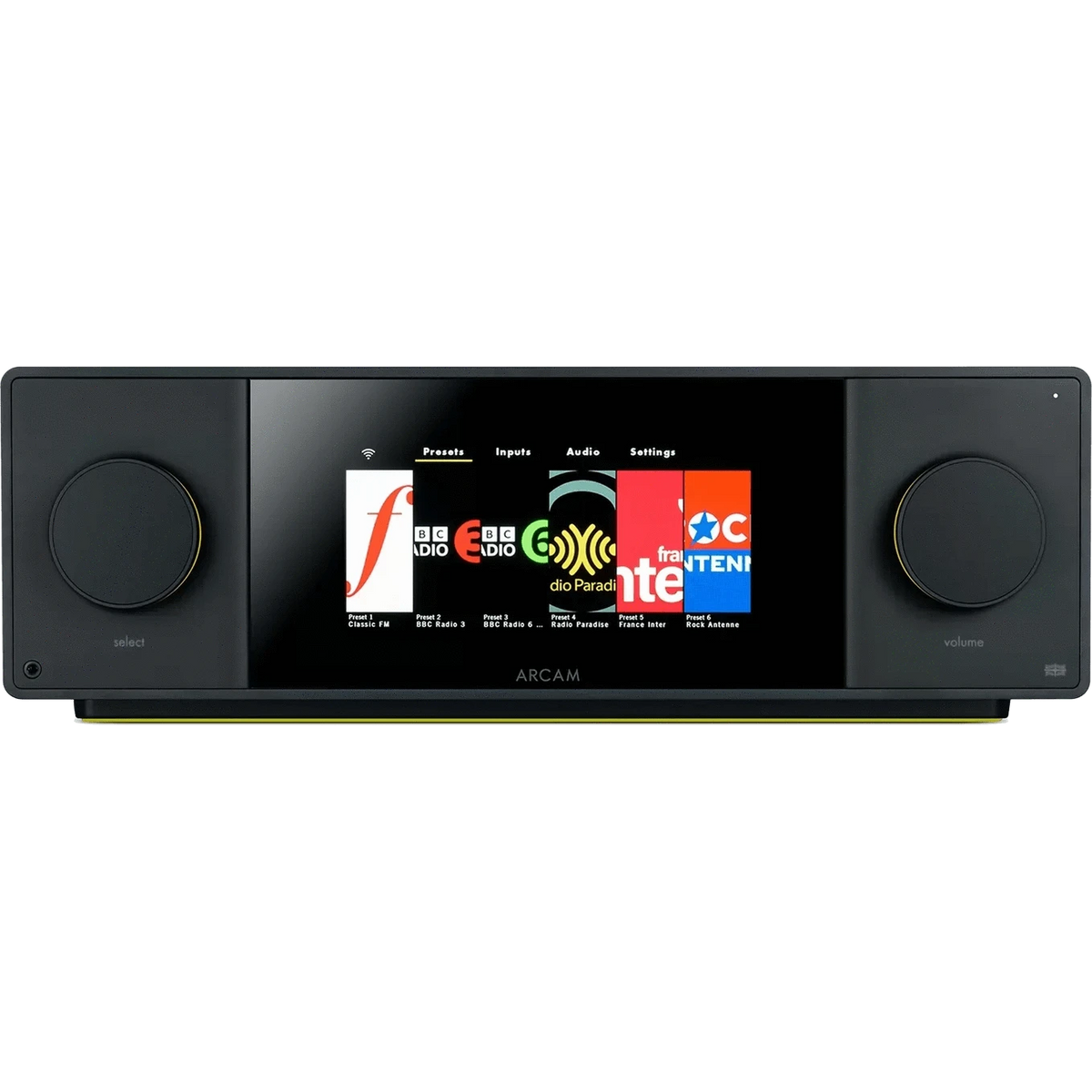

A striking 8.8" high-resolution display shows album artwork and metadata, clearly visible from any seating position. The system supports various smart devices and streaming services, with seamless connectivity to Wi-Fi via the ARCAM Radia App. Instant playback is available through Apple Airplay, Google Cast, Spotify Connect, Tidal Connect, and Roon.

The SA45 is the ultimate high-resolution audio solution, offering subwoofer outputs and Dirac Live Room Correction for flexible, room-optimised sound with any speaker setup.

Key features include:
• New ultra high-resolution streaming platform for superior sound and user experience
• ARCAM Class G amplification with 2x 180W of ultra-low distortion power
• Fully balanced digital and analogue audio paths
• MM & MC phono inputs
• HDMI eARC input
• Dual subwoofer outputs and Dirac Live Room Correction
• High-resolution display for clear album artwork and metadata
• Support for Apple Airplay, Google Cast, Spotify Connect, and Tidal Connect
• Bluetooth with Snapdragon Sound and Auracast
• ARCAM Radia App for presets, internet radio, and podcasts
• Support for up to 32-bit/384kHz high-res audio
• Roon Ready (post-launch)

Specification :

Continuous power output (0.5% THD), per channel
2 channels driven, 20Hz—20kHz, 8Ω: 180W
2 channels driven, 1kHz, 4Ω: 300W
Harmonic distortion, 80% power, 8Ω at 1kHz: 0.002%

Analogue Inputs
Number of inputs: 3x RCA pairs + 1 XLR pair
Phono Inputs: MM and MC
Frequency response: 20Hz—20kHz ± 0.2dB
Signal/noise ratio (A-wtd, ref. 50W, 1V input): 106dB

Digital Inputs
Supported Streaming media: FLAC, WAV (LPCM), AAC, ALAC, AIFF, DSD (up to 256), MP3, MP4, OGG, WMA
Supported Streaming Bit depth: 16, 24, 32
Supported Streaming sample rates (kHz): Up to 384 kHz
Gapless Playback: Yes
Digital Audio Inputs: 1x HDMI eARC, 2x Coaxial (RCA), 2x Optical (Toslink)
Supported Digital input Bit depth: 16, 24
Supported Digital input sample rates (kHz): Up to 192 kHz
Frequency response (filter 1): 20Hz—20kHz ± 0.2dB
Signal/noise ratio (A-wtd, ref. 50W, 0dBFS): 110dB

Wireless Specifications
Bluetooth Profile 5.4; A2DP Sink/Source, AVRCP, BLE, Snapdragon Sound, AAC, LE Audio, Auracast
Bluetooth Transmitter Frequency and Power:
2,402 MHz to 2,480 MHz <13dBm
Wi-Fi Network: IEEE 8002.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
2.4G Wi-Fi Transmitter Frequency Range and Power:
2400-2483.5 MHz (USA 11 Channels, Europe and Others 13 Channels) <20dBm
5G Wi-Fi Transmitter Frequency Range and Power:
5150-5250 MHz <23dBm, 5250-5350 MHz & 5470-5725 MHz <20dBm, 5725-5850 MHz <14dBm

General
Mains voltage: 100V or 110–120V or 220–240V, 50–60Hz
Power consumption (maximum): 1000W
Power consumption (standby): <0.5W
Dimensions W x D (including speaker terminals) x H (including feet): 432 x 390 x 140mm
Weight (net): 17 kg
Weight (packed): 20 kg
