Monitor Audio W380-IDC In-Wall Speaker

Model: W380-IDC | Warranty: 5 Years | Product Type: In-Wall Speakers
Monitor Audio Monitor Audio W380-IDC In-Wall Speaker In-Wall Speakers
Monitor Audio Monitor Audio W380-IDC In-Wall Speaker In-Wall Speakers
Monitor Audio Monitor Audio W380-IDC In-Wall Speaker In-Wall Speakers
Monitor Audio Monitor Audio W380-IDC In-Wall Speaker In-Wall Speakers
Monitor Audio Monitor Audio W380-IDC In-Wall Speaker In-Wall Speakers
Monitor Audio Monitor Audio W380-IDC In-Wall Speaker In-Wall Speakers
  • Free ShippingFree Shipping Australia Wide
  • Secure ShoppingSecure Online Payment
  • $593.00
  • Save $66

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Free ShippingFree Shipping Australia Wide
  • Secure ShoppingSecure Online Payment

Key Information

  • Sensitivity (1W @ 1M):90 dB
  • Mounting Depth:100 mm
  • Power Handling (RMS):150 Ws
  • Nominal Impedance:6 ohms
  • Driver Size:8 "
  • Cut-Out Width:234 mm
  • Cut-Out Height:387 mm
  • Sold As: Single Speaker

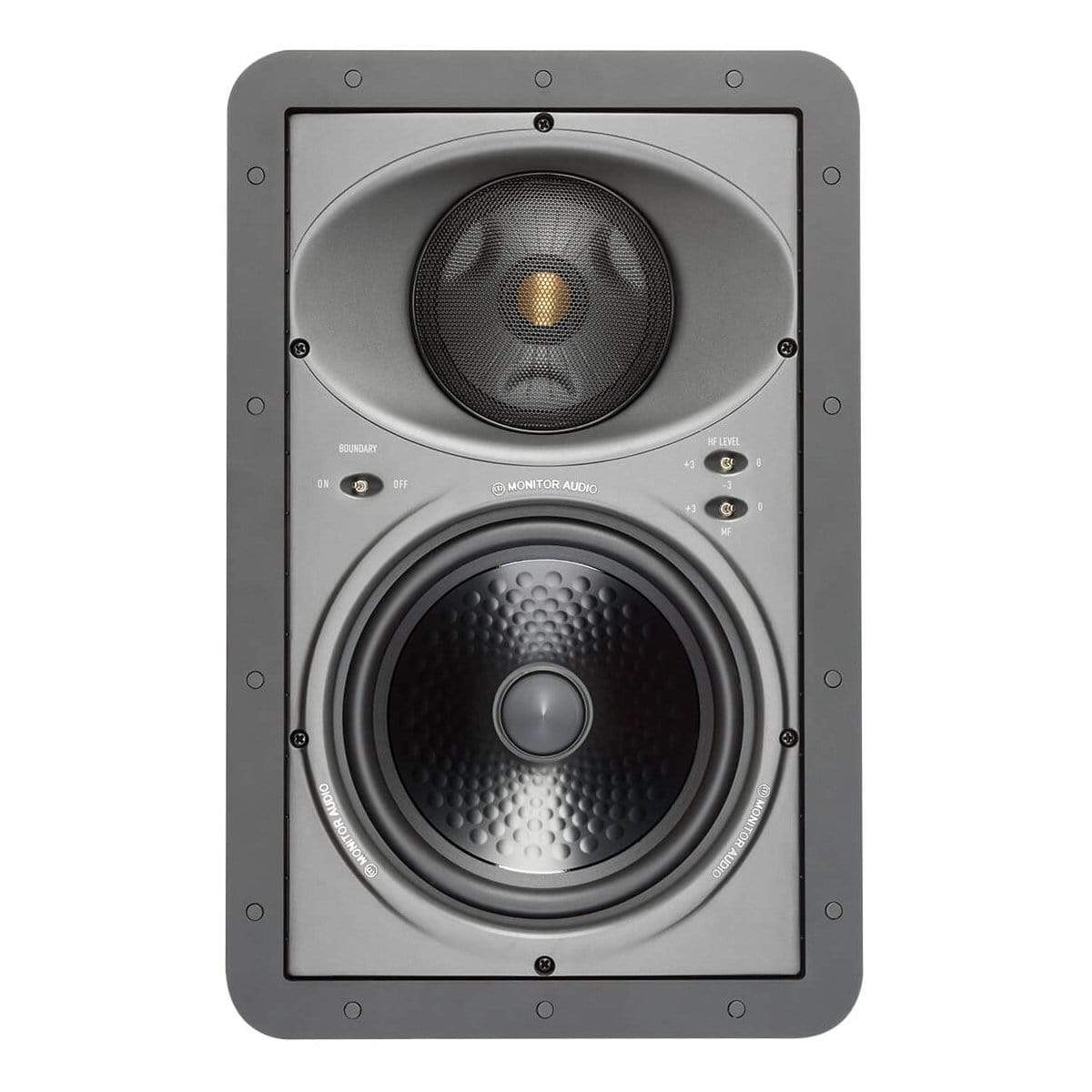

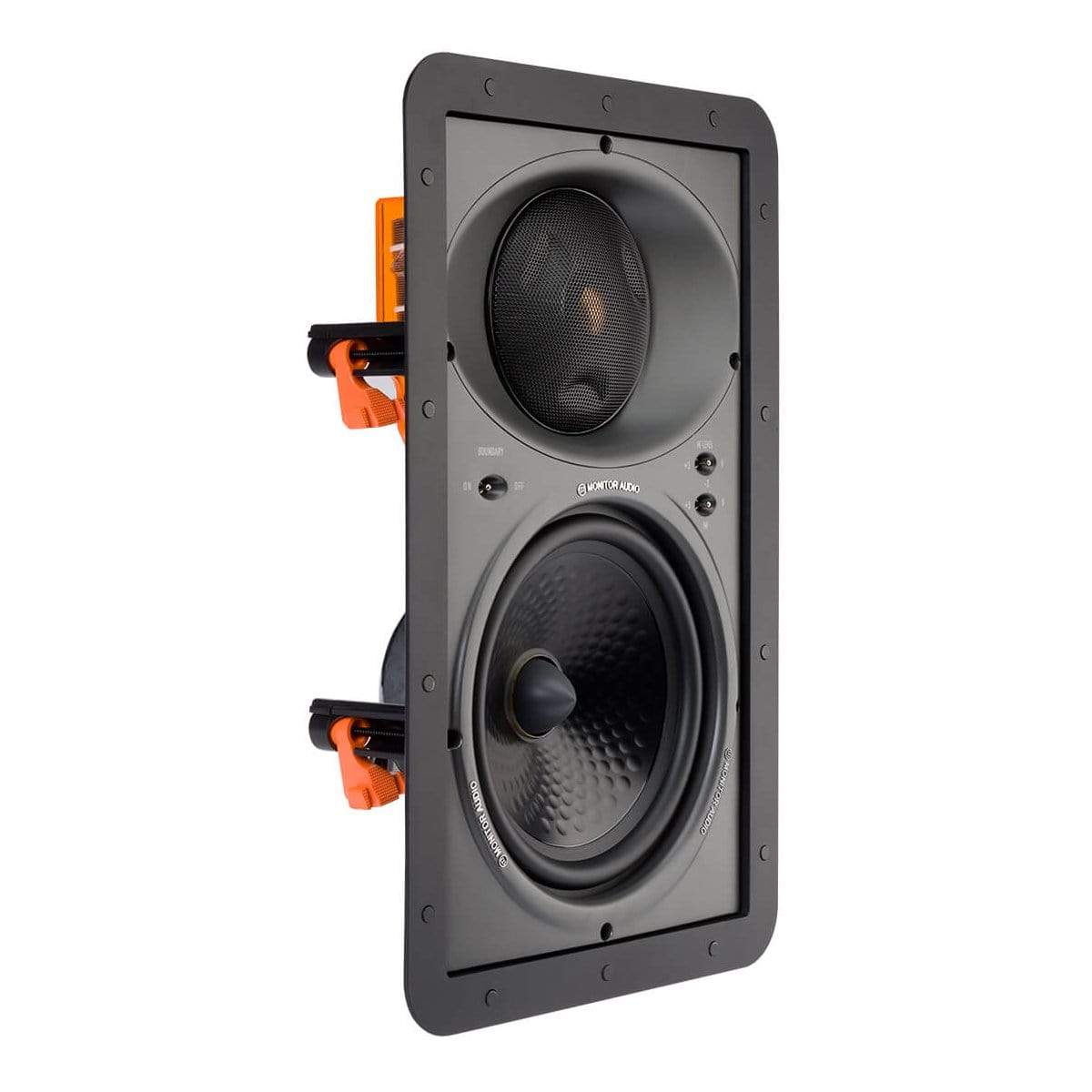

Configured with an 8-inch C-CAM RST bass driver and a pivoting IDC module, housing a 4-inch C-CAM RST inverted midrange driver and a 1-inch C-CAM Gold Dome tweeter.

True 3-way design provides rich midrange detail, higher system output, greater power handling, and superior vocal intelligibility and sound localisation.

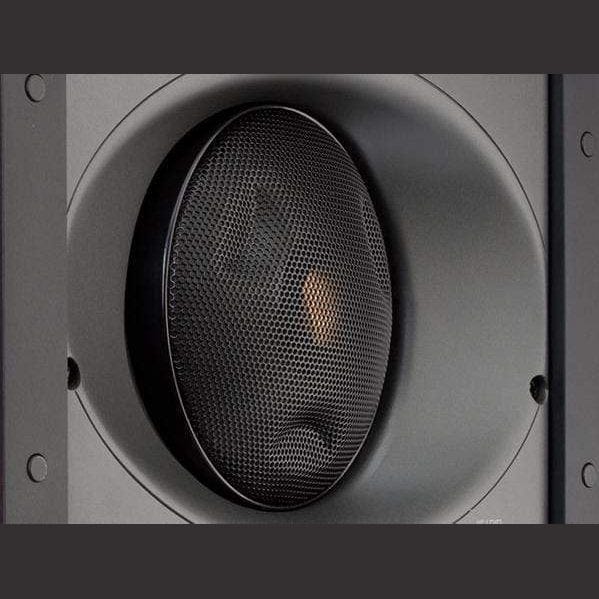

Optimum imaging and set-up are established via the pivoting IDC, high frequency (+3 dB /0 dB / -3 dB) level adjustment, and boundary compensation (on / off) controls.



Specifications

Frequency Response: 45 Hz – 30 kHz

Nominal Impedance: 6 ohms

Sensitivity (1W@1M): 90 dB

Maximum SPL: 111.6 dBA

Power Handling (RMS): 150 W

Recommended Amplifier Requirements: 40 – 150 W

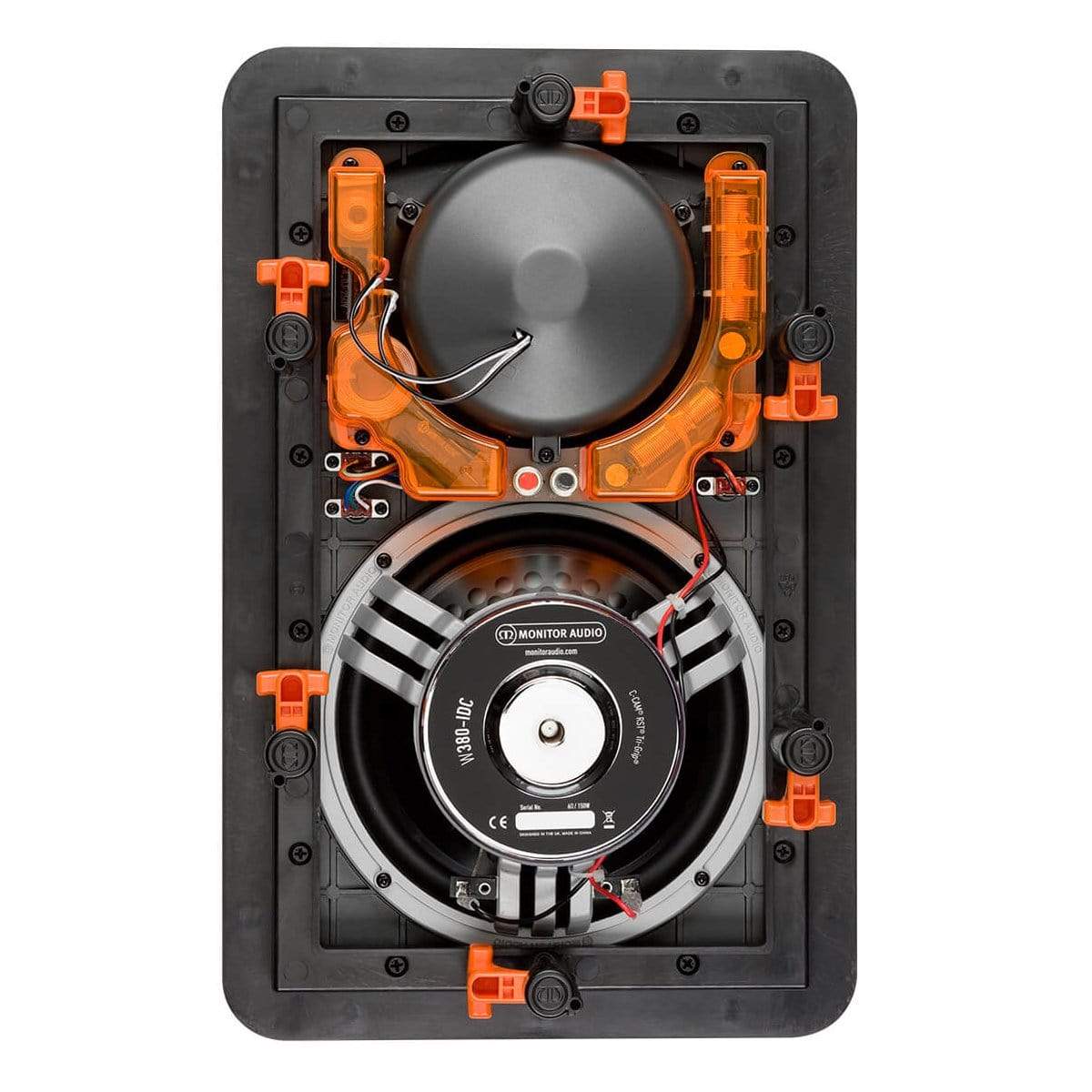

Drive Unit Complement:

8" C-CAM cone bass driver featuring RST, pivoting IDC module housing:
4" C-CAM RST inverted mid range driver
1" C-CAM Gold Dome tweeter

Adjustment Controls:

HF Level Switch (+3 dB / 0 dB / -3 dB)
MF Level Switch (+3 dB / 0 dB / -3 dB)
Boundary Compensation Switch

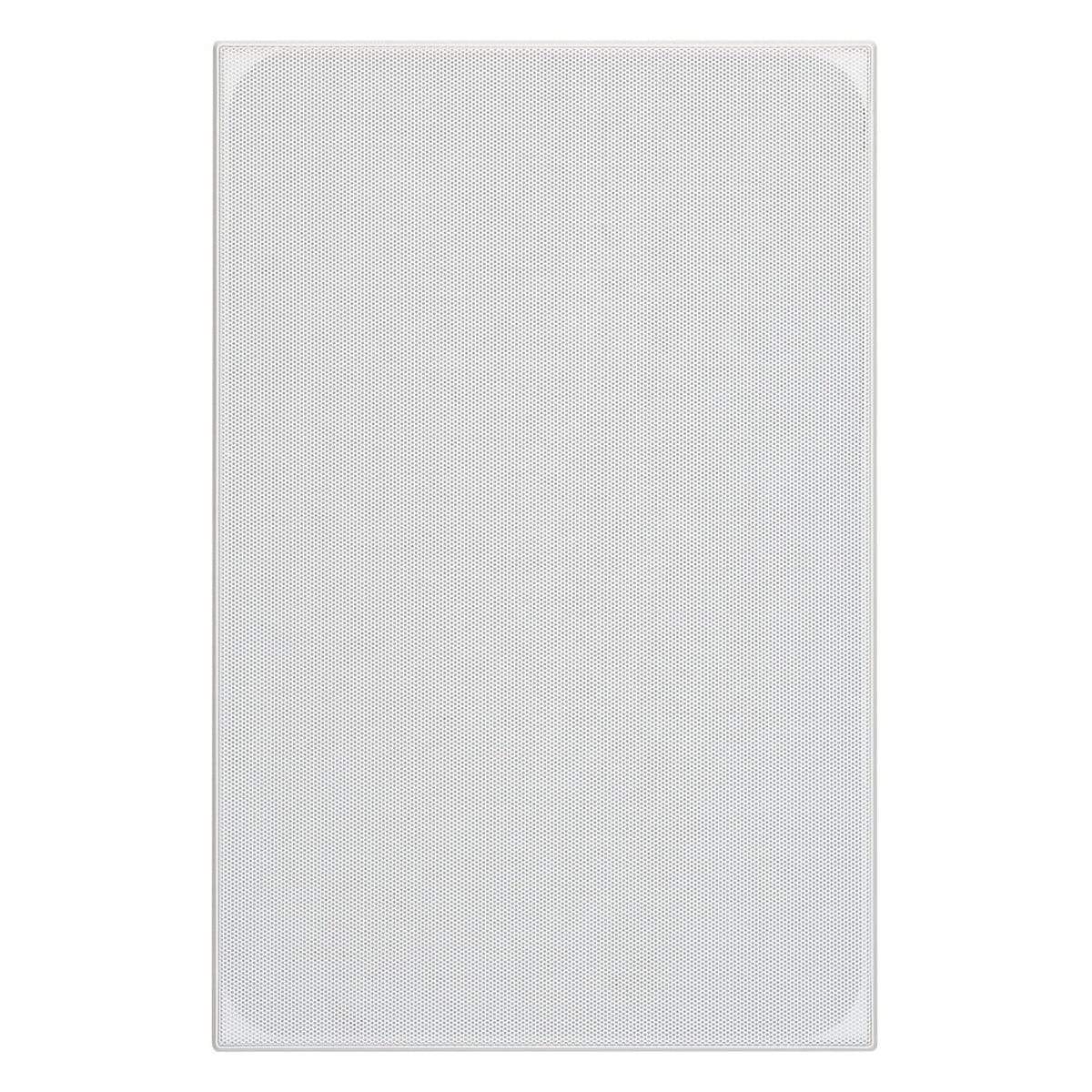

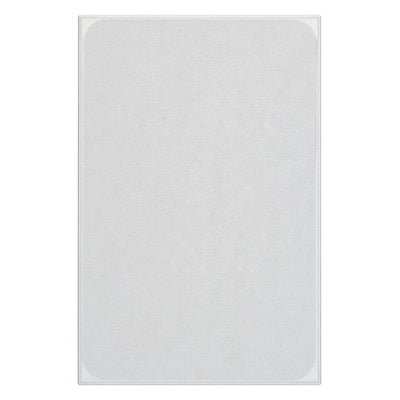

Overall Diameter (Including Grille): 441 x 288 mm

Overall Depth (Including Grille): 104 mm

Mounting Depth: 100 mm

Cut-Out Hole Diameter: 387 x 234 mm

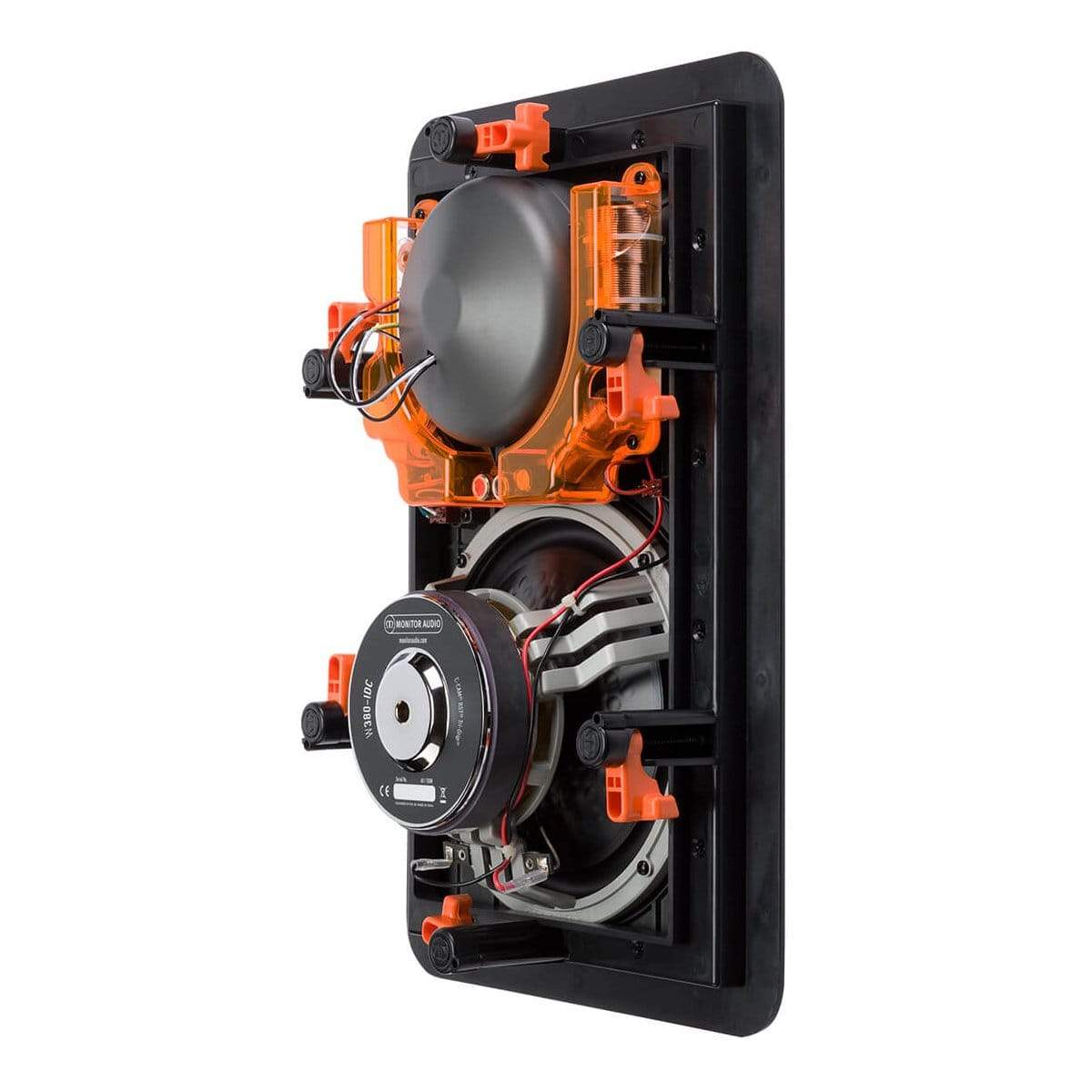

Fixing Type: 6 position Tri-Grip dog fixings

Construction Material: Mineral filled ABS, RoHS compliant

Weight: 4.1 kg (9 lb)

Pre-Construction Bracket: WB8 Pre-Construction Bracket (Green)

Back Box : WCBOX-L
