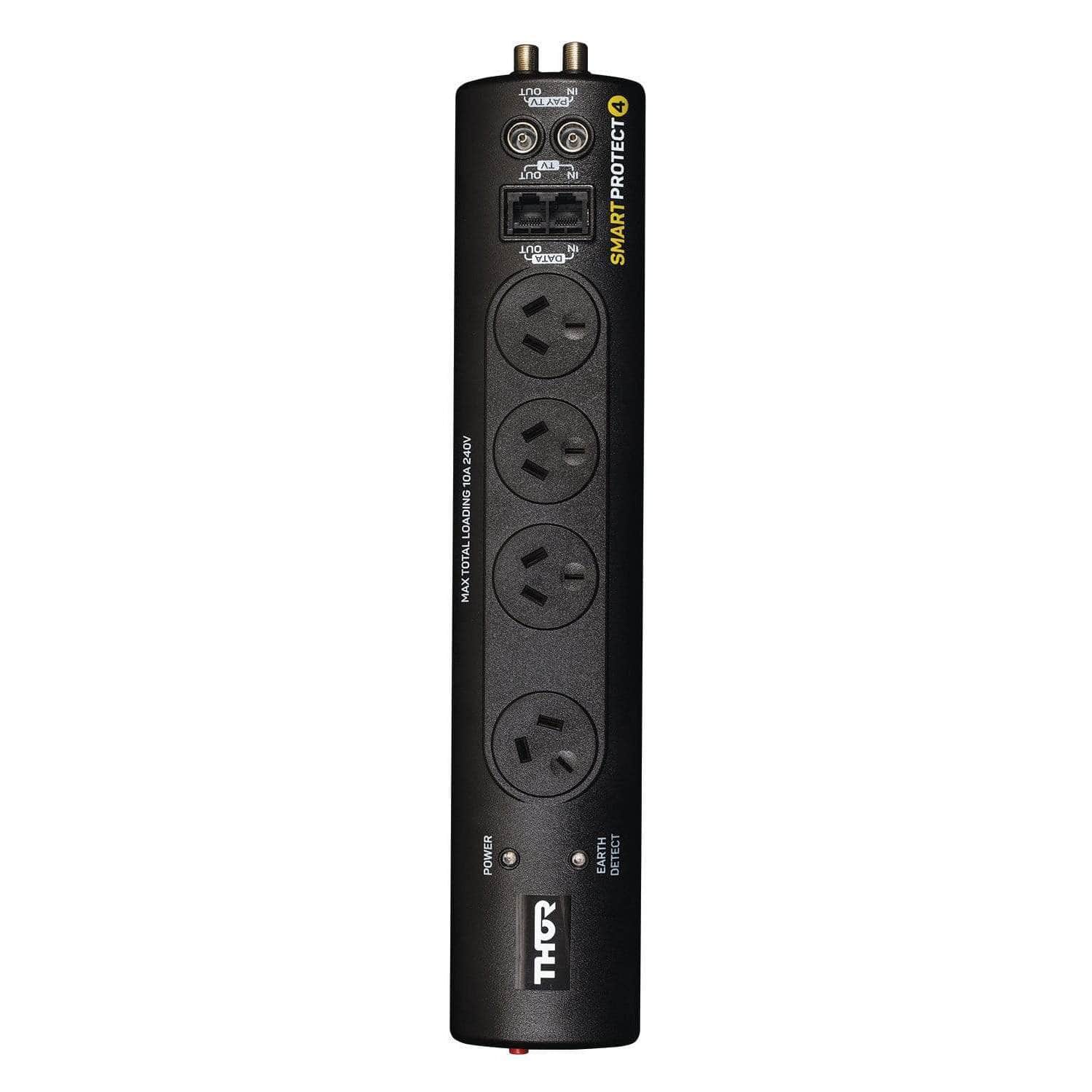

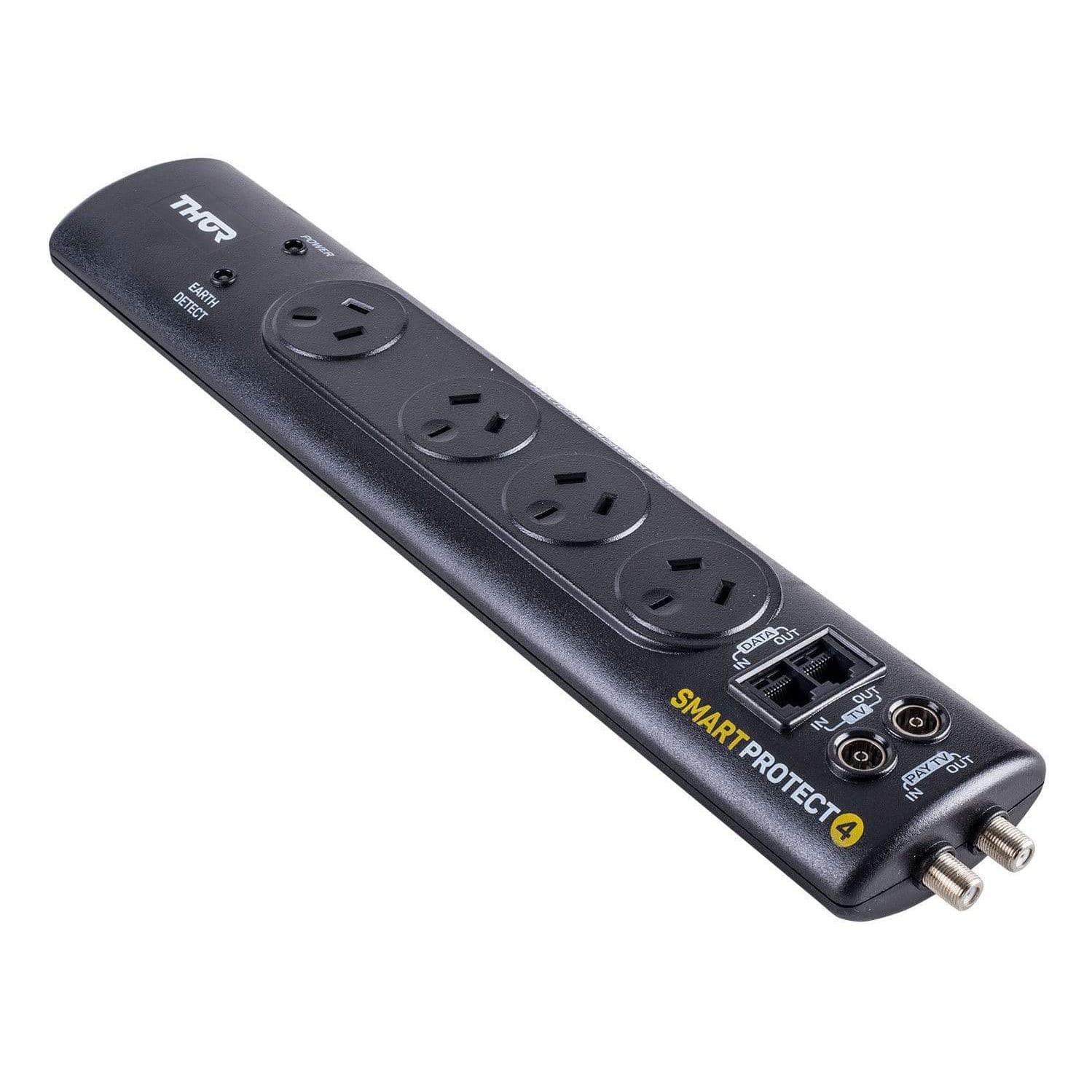

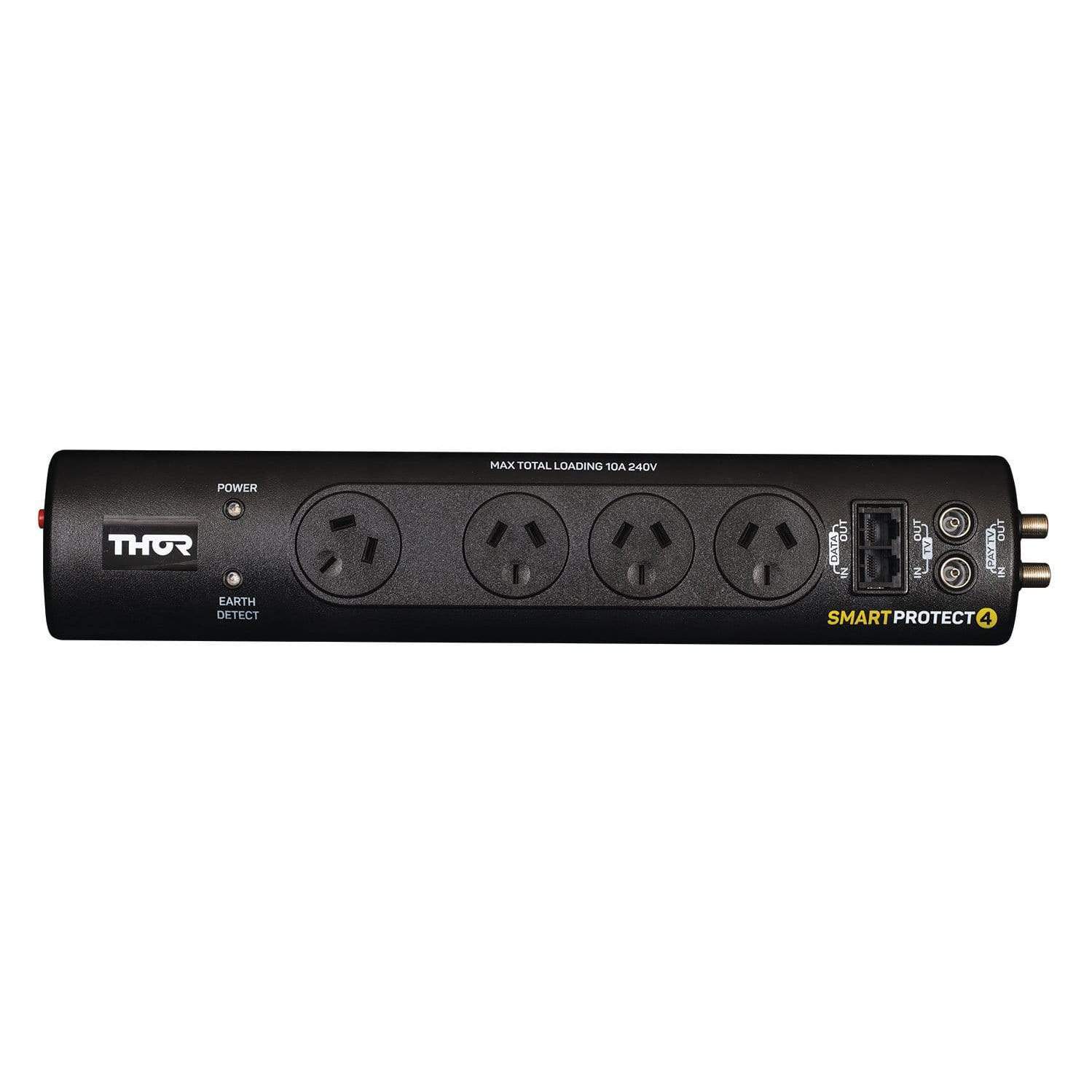

The Thor SmartPortect Series Board is a great solution for your home entertainment area or for use in the office. This power board provides protection against all types of electrical disturbances and surges. It will even offer surge protection over your TV Antenna or Pay TV.
For high quality power filtering, the E1/45S Smart Filter offers excellent value and is one of the best entry level protectors currently on the market.
They are engineered and designed in Australia by an Australian company so you know they will be suited to our conditions and will meet all the Australian Standards.
Overview
- Filter and Serge Protection
- 4 Outlets
Features:
- 4 Outlets
- Broadband, Pay TV, Antenna & Network Protection
- Maximum Fire Safety - Manufactured With Flame Retardent Plastics
- 100% Australian Owned and Compliant
- Massive 86,000 Amp, Maximum Spikes 3637 Joules
Specifications
- Product Dimensions: 350mm (L) x 35mm (H) x 70mm (W)
- Supply voltage 240/V AC 50/Hz
- Maximum current rating 10amps/2400W(VA)
- Reaction time less than 1 nanosecond
- Maximum transient spike impulse current 86,000 amps (equivalent to 21,500 amps using UL 1449 standard)
- Maximum energy dissipation 3637 Joules (equivalent to 846 Joules using UL1449 standard)
- Protection modes (all 4 outlets protects on all 3 conductors). Active/Neutral, Active/Earth, Neutral/Earth
- EMI/RFI noise reduction filter type
- Total number of protected AC outlets: 4
- Total number of protected USB ports: 2

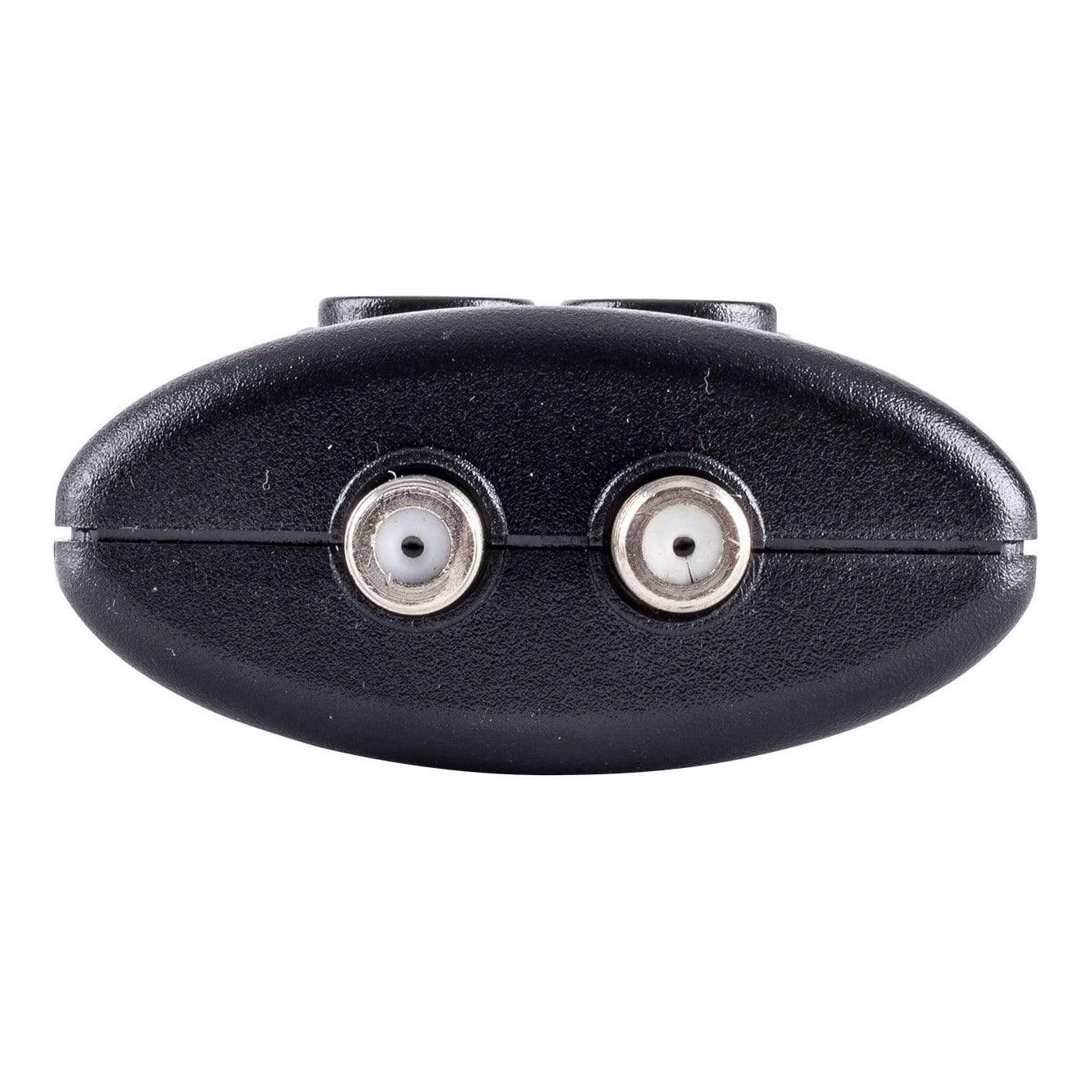

- Pay TV'F' type connection: 1 in and 1 out
- AV/TV antenna coax connection: 1 in and 1 out
- RJ 45 data protection: 1 in and 1 out
- Earth potential rise protection
- Earth leakage range less than 1 milli amp
- Operating conditions: Indoor/AC mains
- Operating temperatures: -10C/+60C
- Cable length: 1.2m
- Model No: E1/45S
