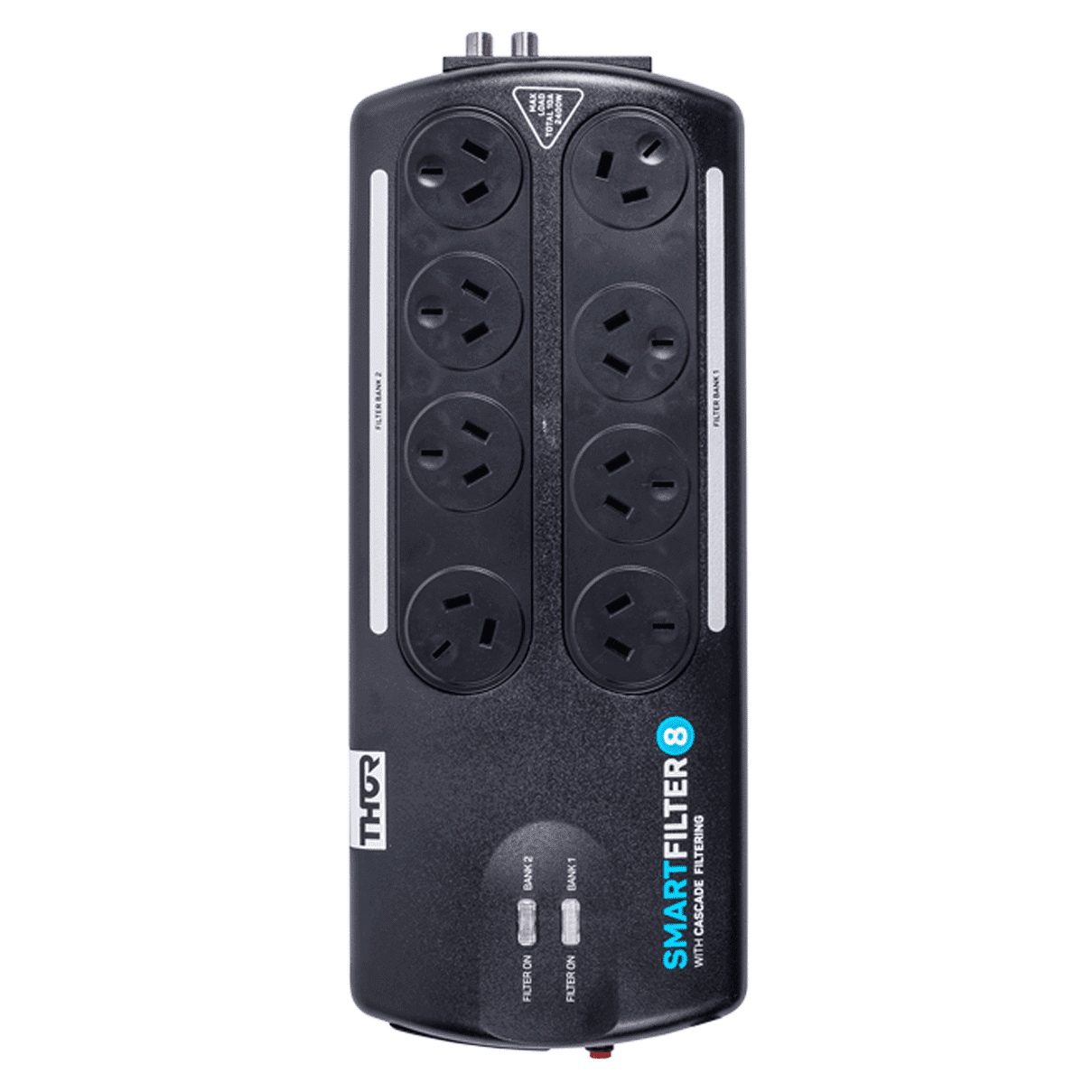

Thor B8 8-Way SmartFilter 8 Surge Protection Power Board
- Free Shipping Australia Wide
- Secure Online Payment
The Thor SmartFilter Series Board is a great solution for your home entertainment area or for use in the office. This power board provides protection against all types of electrical disturbances and surges. It will even offer surge protection over your TV Antenna or Pay TV. They even include tags to help label your cords so you know which one goes where.
They are engineered and designed in Australia by an Australian company so you know they will be suited to our conditions and will meet all the Australian Standards.
- 2 Isolated Surge Protection Banks
- Cascade Filter Technology

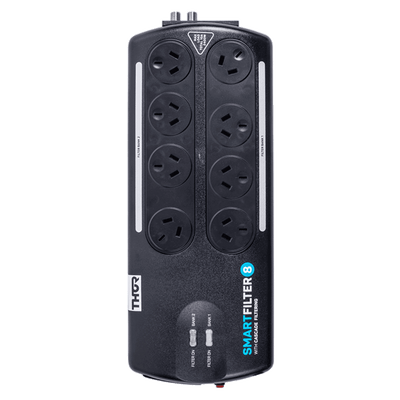

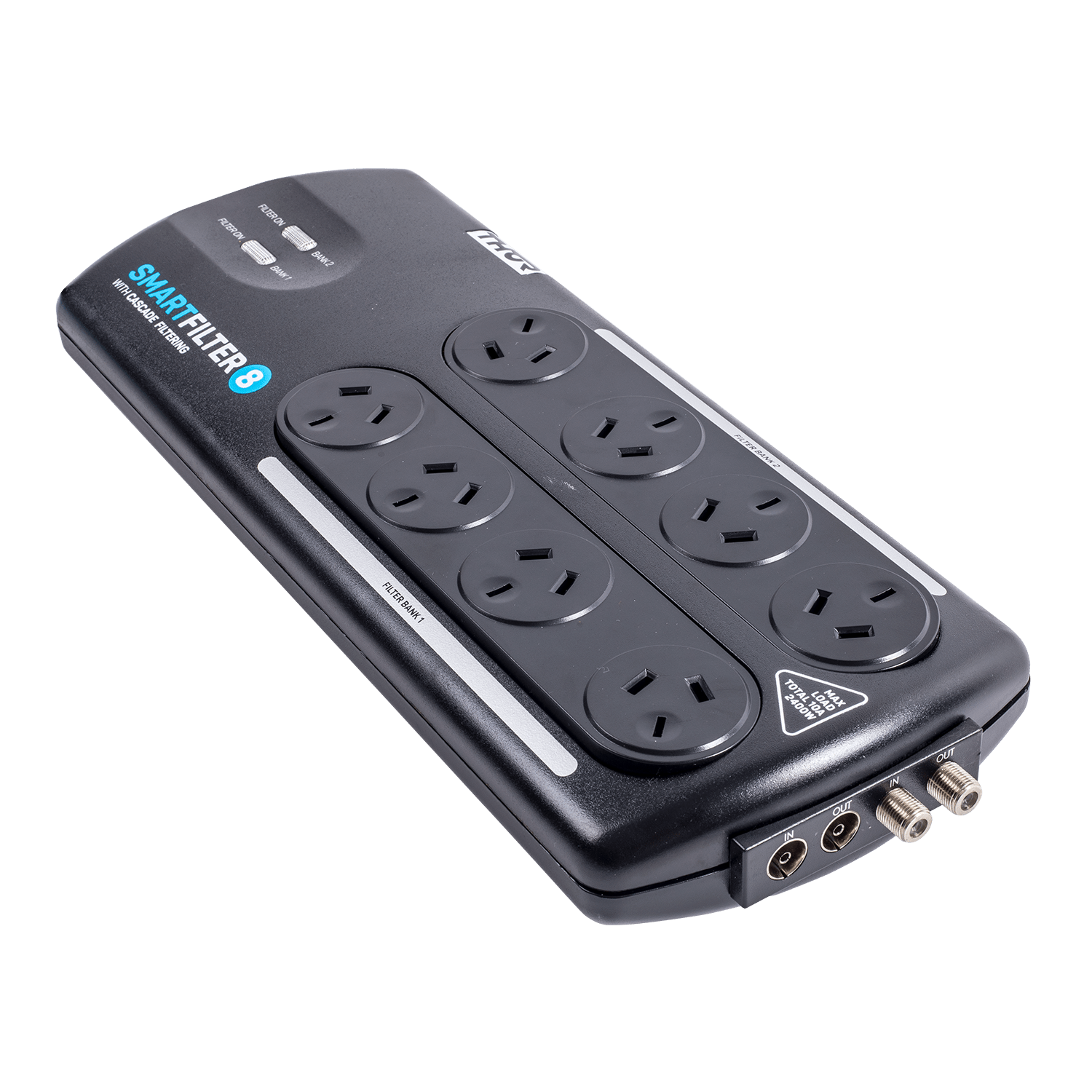

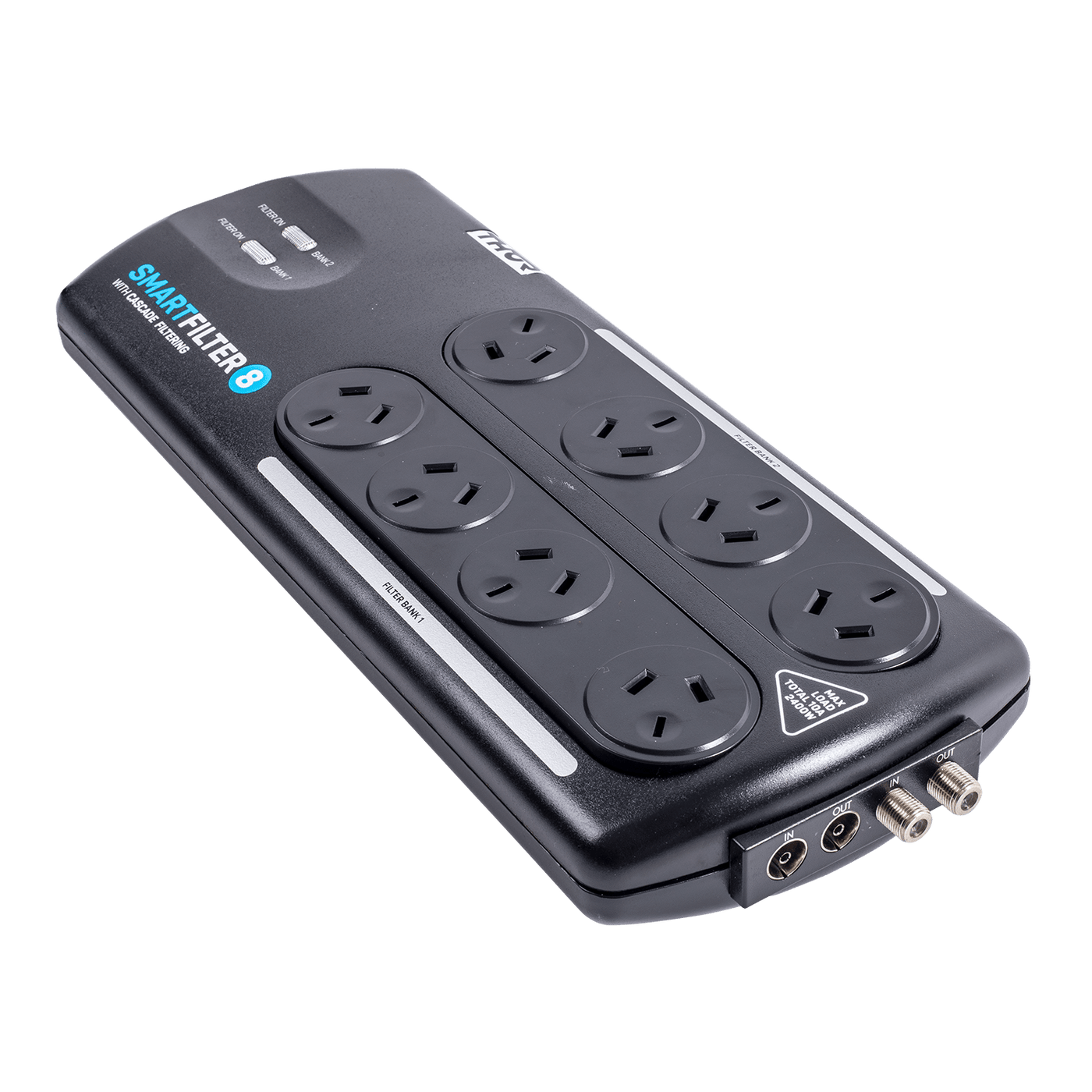

- 8 Outlets
- Cascade Filter Technology for crisper brighter picture & crystal clear sound
- Two isolated surge protected banks with extra spacing for large adaptors
- Bank 1 = 4 outlet Bank 2 = 4 outlets
- 8 Outlets -all in the one compact board
- Data & Aerial Protection With Cable TV connection
- Fibre Optic And Broadband Compatible
- Multiple Application Identity Tags
- 6 Year Free Replacement Warranty
- Designed and Engineered in Australia
- 100% Australian Owned And Compliant
|Supply Voltage||240/Vac 50/Hz|
|Maximum Current Rating||10amps/2400 W (Va)|
|Reaction Time||Less than 1 Nano Sec|
|Maximum Transient Spike Impulse Current (AMPS)||196,000 amps. Equivalent to 49,000 amps using UL1449 Std|
|Maximum Energy Dissipation (Joules)||(Joules) 4890 Joules. Equivalent to 1750 Joules using UL1449 Std|
|Protection Modes (all 8 outlets Protects on all 3 conductors)||Active/Neutral, Active/Earth, Neutral/Earth|
|EMI/RFI Noise Reduction Filter Type||Incorporating 38 separate protection components in 3 cascading circuits|
|Number of Multi-Stage Filter Banks||2|
|Number of Isolated Banks||2|
|Number of dedicated Outlets||4+4|
|Total Number of Protected AC Outlets||8 protected outlets|

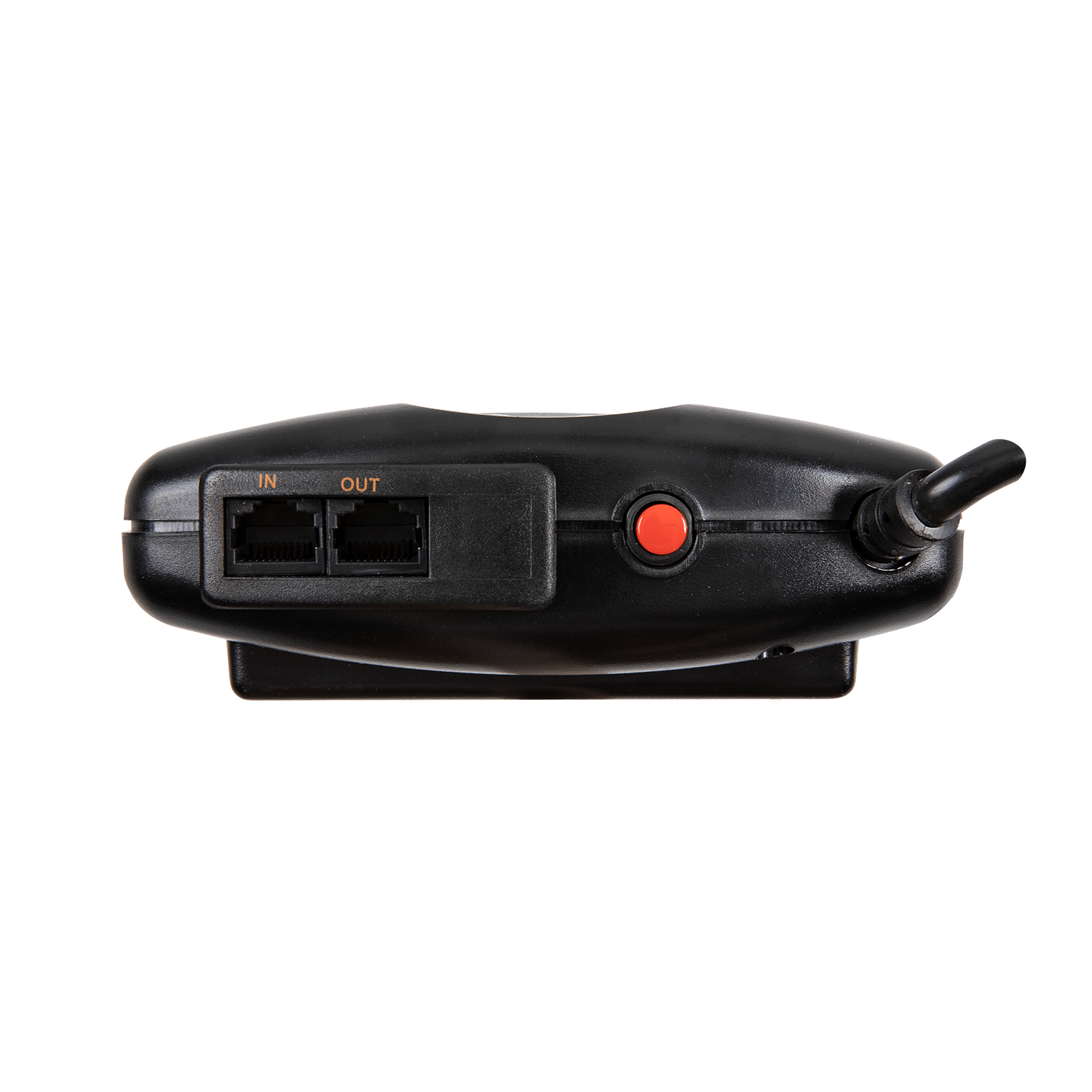

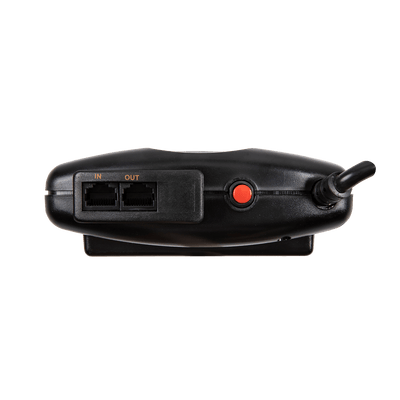

|Incoming Telephone Line Protection (DC) with Inline Splitter (1 in - 2 out) RJ||1 Line in /2 lines out, RJ45 Broadband/Network ready|

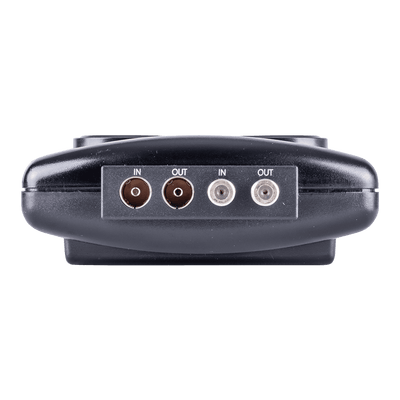

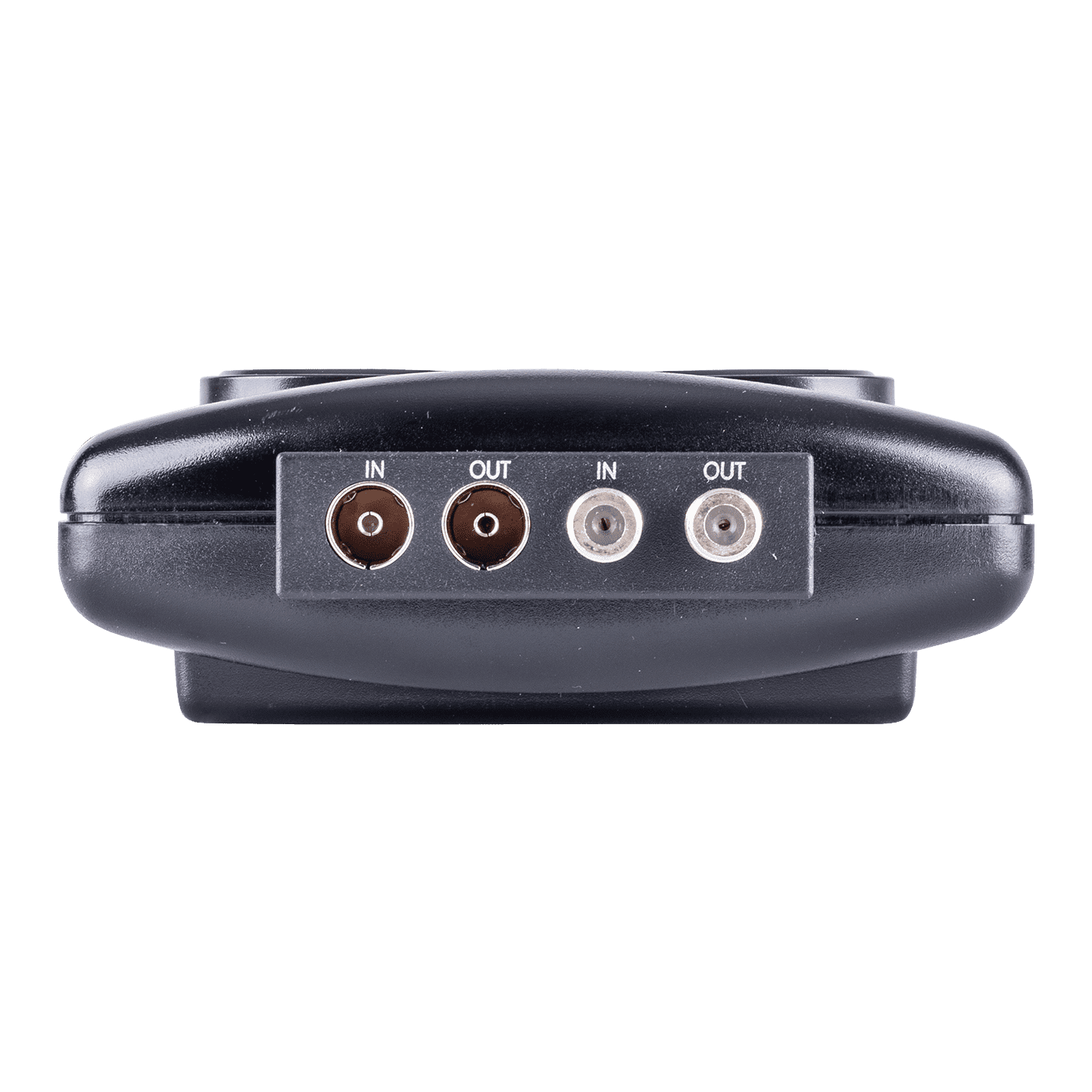

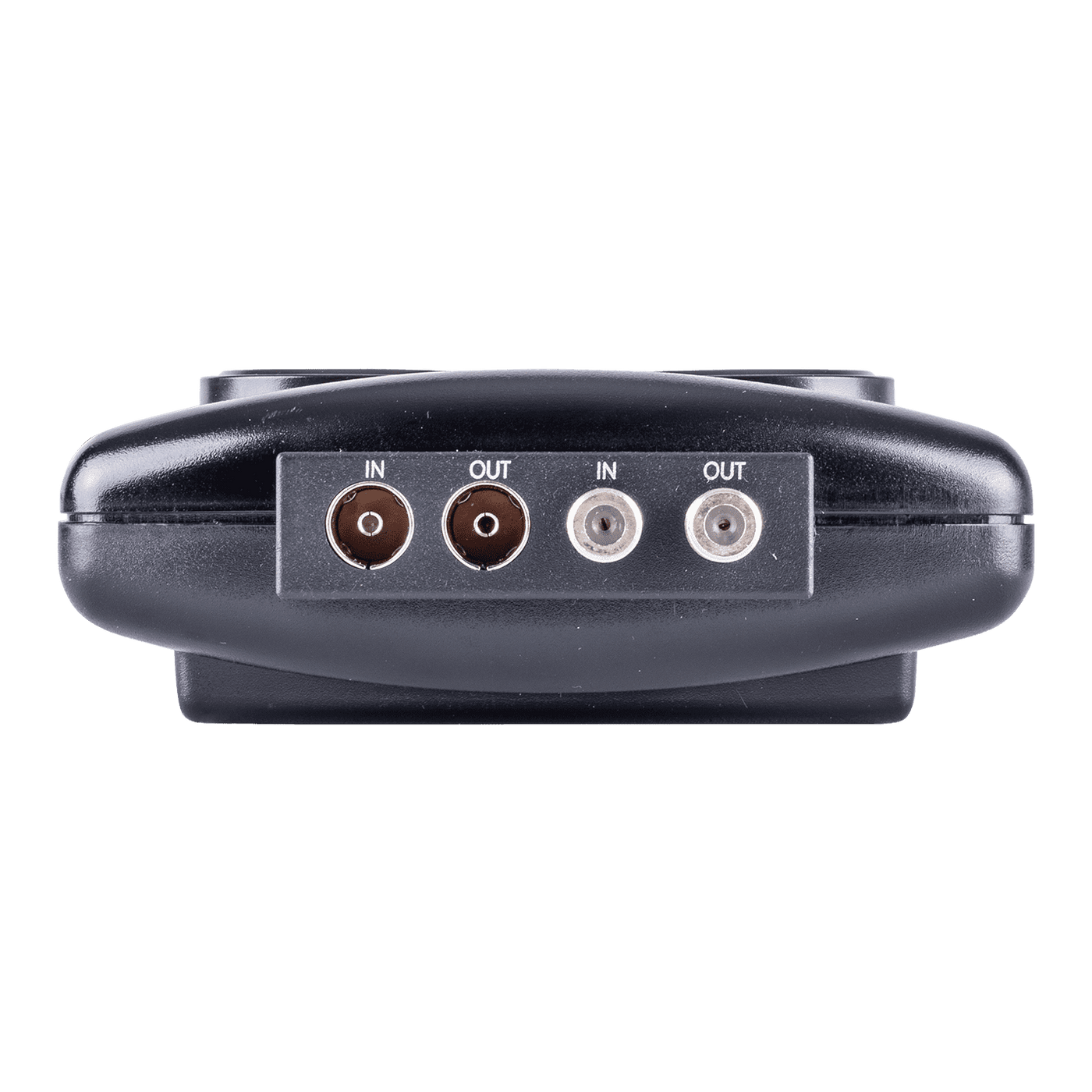

|Incoming Television Aerial protection (DC)||1 Line in /1 line out|
|Cable TV 'F' type connection||yes|
|Earth Potential Rise Protection||yes|
|Earth leakage Range||Less than 1 milli amp|
|Operating conditions||Indoor / AC Mains|
|Operating Temperatures||- 10C/+60C|
|Safety Approval No||RCM5287|
The two Thor power boards arrived very promptly. The 8 outlet board has worked satisfactorily but the 6 outlet board failed to work after 4 days. Not happy Jan !
But contacted Thor Technologies in Perth and received a new board within 2 working days. This was excellent service
Thor advised me that they have very little trouble with the E1/45U board and will be most interested to get it back so that they can see what was wrong with it.
This is the 2nd Thor power board, the first one services my computer set-up and the 2nd to replace an out-of-date power board on my Home Theatre. They are a first class board, smooth power, excellent sockets and very reliable.
Don't have the gear to test it. Voltage is the same as coming in. Guess it's ok.
Delete this if you want.
works great and speedy shipping
