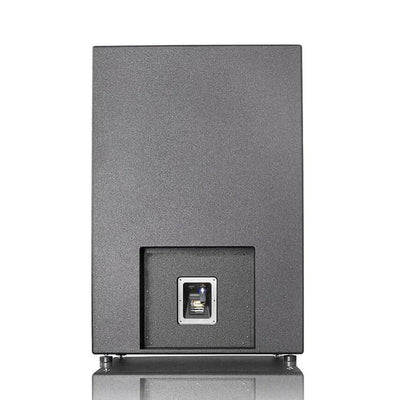

Ascendo ASC-24SPPS The24 SUB 24" PRO - Passive Infrasonic Sealed Subwoofer


Regular price$23,000.00

Buy now, pay later with: Zip Interest Free Afterpay Interest Free Humm Interest Free
  • Free Delivery Australia Wide
  • Local Australian Warranty
  • 1800 100 998 For Assistance

We take pride in our customer service and shipping times. Most products will ship within 1-2 business days. If there are any potential delays with products in your order, we will contact you.

All orders now come with free shipping Australia Wide.

We use a variety of shipping methods depending on the types of items purchased and their delivery location. This helps to ensure your items arrive safely and in a timely manner. If you are on a tight deadline or would like to know an estimated delivery date for your order, contact our friendly staff and they will be happy to assist.


The24 SUB PRO PASSIVE SEALED infrasub is a statement.

Its huge cone surface area and huge 90 mm of linear stroke - represents a world record for cinema subwoofers - allow it to move a gigantic volume of 10 liters of air per stroke to pressurise the room. Due to its ultra-low resonance frequency and its sealed enclosure design the group delay is several times faster than the smaller 18", 15" or 12" subwoofers at the same frequency. Also the acoustic power output per cubic inch is by far in favour of this unique design compared to stacked multiple smaller subwoofers.

Its ingenious design allows the The24 SUB PRO to produce frequencies in the infrasonic frequency range with authority, reaching down lower than subwoofers with a smaller diaphragm surface ever will. At the same time this infrasub renders those notes with much more power, structure and resolution.

The The24 SUB PRO ideally suits not only all types and sizes of cinemas, but also high-end stereo systems. Much of the spacial room information of the recording environment in a great audiophile recording is contained in the sub 30Hz audio band. You will hear more details in mid and high frequencies.


Speaker type

24" forward-firing woofer, with dual 5" voice coil


45 mm excursion each direction (90 mm linear), voice coil remaining in homogeneous magnetic field, linear and lowest distortion

Passive | Active


Recommended amplifiers

2 Amp. channels are required. minimum recommended amplifier voltage swing:  2 x 109 Vrms, 154 Vpk, 27,3 A; equivalent to 3000W@4Ohms per channel, total 6000W with correct RMS & Peak limiter settings (up to 450V = 20kW peak)

Recommended ASCENDO amplifiers




SPL (Peak / half space 2 pi)

Measurement data
140 dB @32Hz and up
120 dB @20 Hz
104 dB @10 Hz

Frequency range

"Measurement Data (without ext. DSP)
28 Hz - 500 Hz /   -3 dB
20 Hz - 500 Hz / -15 dB"


90 dB  / 1W/m

Power handling

2 x 2500 W


Dual voice coil, 4 Ω each

Air volume displacement

9,9 L / in comparison 18" standard cinema subwoofer 1,1 L

Directivity horizontal x vertical in Deg°


Input terminal

Neutrik NL4 MP


Internally braced birch ply and MDF


29,53 " | 750 mm


43,31 " | 1100 mm

Hight with feet

44,29 " | 1125 mm

Depth without grill

19,69 " | 500 mm

Depth with plug

19,69 " | 500 mm


255,74 lbs | 116 kg


Structural paint black

Custom colour options

Piano lacquer, colour of choice, matt or other finishes upon request

Shape customisation

Upon request


Floor standing with feet

Technical modifications subject to change without further notice
