Marantz Model 10 Reference Integrated Amplifier

Regular price$25,000.00
/
  • Free Delivery Australia Wide
  • Local Australian Warranty
  • Secure Online Payment

Colour

This product is not able to be ordered directly online.

Call 1800 100 998, Email or use Live Chat to discuss.

We take pride in our customer service and shipping times. Most products will ship within 1-2 business days. If there are any potential delays with products in your order, we will contact you.

All orders now come with free shipping Australia Wide.

We use a variety of shipping methods depending on the types of items purchased and their delivery location. This helps to ensure your items arrive safely and in a timely manner. If you are on a tight deadline or would like to know an estimated delivery date for your order, contact our friendly staff and they will be happy to assist.

Orders will usually take between 1-6 days for delivery, depending on your location and shipping method.

If your order has not been delivered within 7 days of shipping we recommend you reach out to us directly to investigate with Australia Post / Courier.

If for any reason you haven't followed up with us within 30 days of shipping, we'll be unable to guarantee your delivery of your item unless it has been returned to sender.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

MODEL 10 is the new reference in amplifier design. Featuring a newly designed dual-mono symmetrical amplifier topology, it is the most powerful, highest performing Marantz amplifier ever.

  • 2 Channels
  • 250 Watts per Channel
  • All-New Marantz SMPS
  • Fully balanced dual mono amplifiers
  • Phono MM/MC
  • Copper-plated chassis

The Best of the Best

From the triple-layer aluminum chassis with copper shielding to entirely original multi-layer PCBs, isolated sub-enclosures, and all new HDAM modules, MODEL 10 is the product of decades of expertise in audio engineering, setting a new benchmark with meticulous construction, state-of-the art technologies, and elegant design.

Sound Master Tuned

MODEL10 retains the sonic Marantz signatures of warmth, spaciousness, and resolution. However, advances in design and precise tuning by the Sound Master result in the purest expression of the Marantz sound ever. As a result, the listener experiences more detail, lower distortion, and higher dynamic range than ever before.

Iconic Details Reimagined for Tomorrow

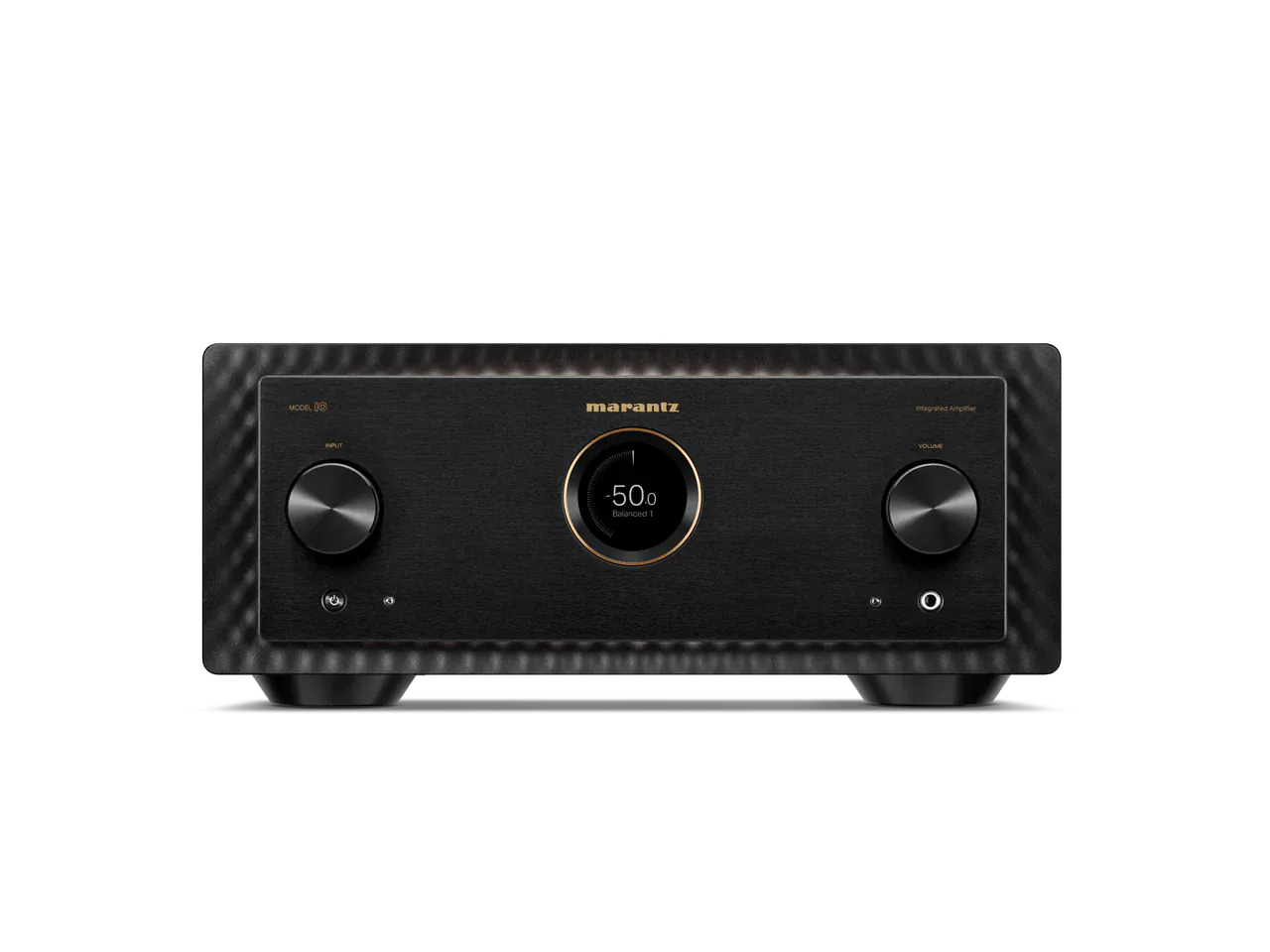

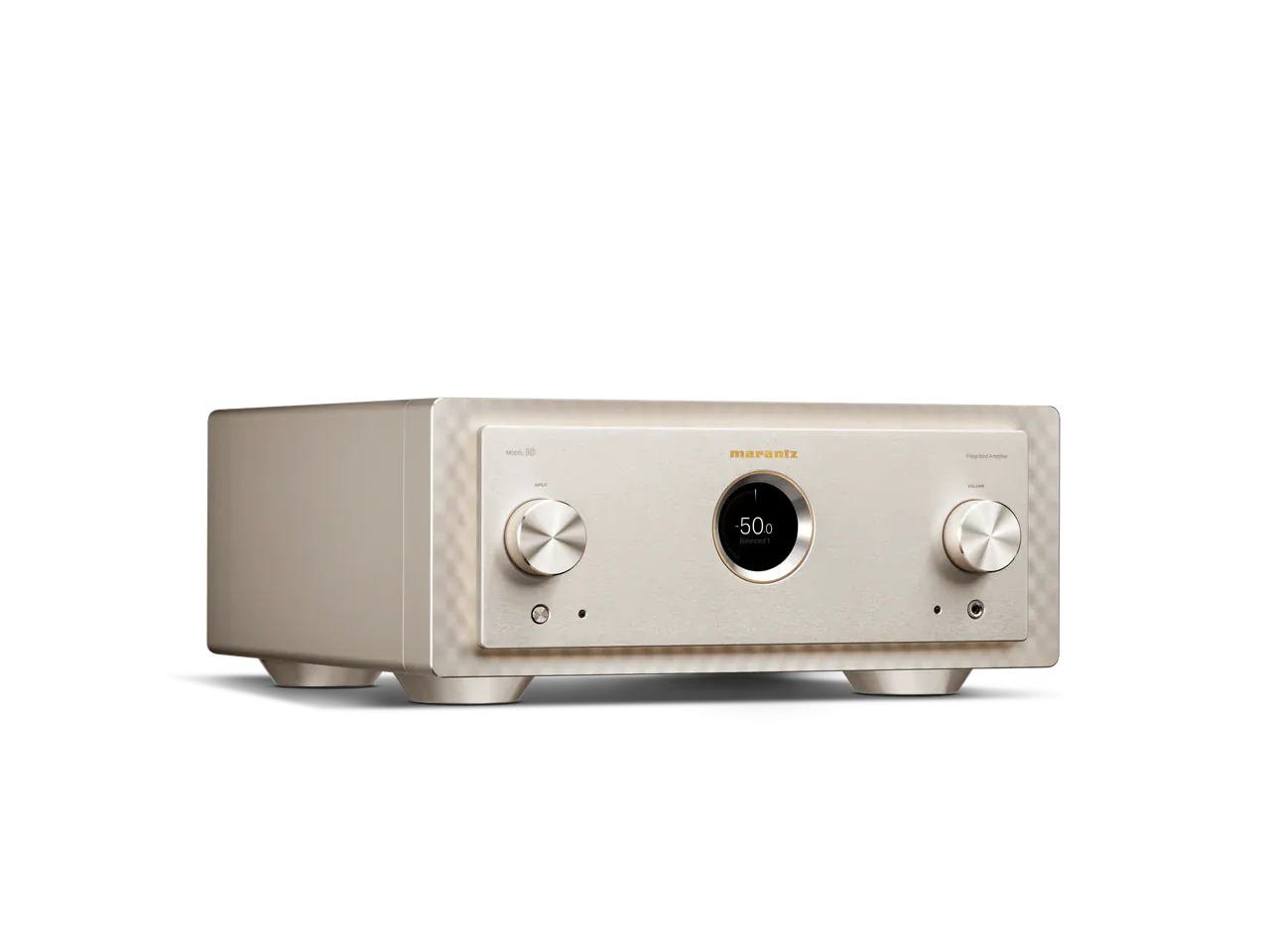

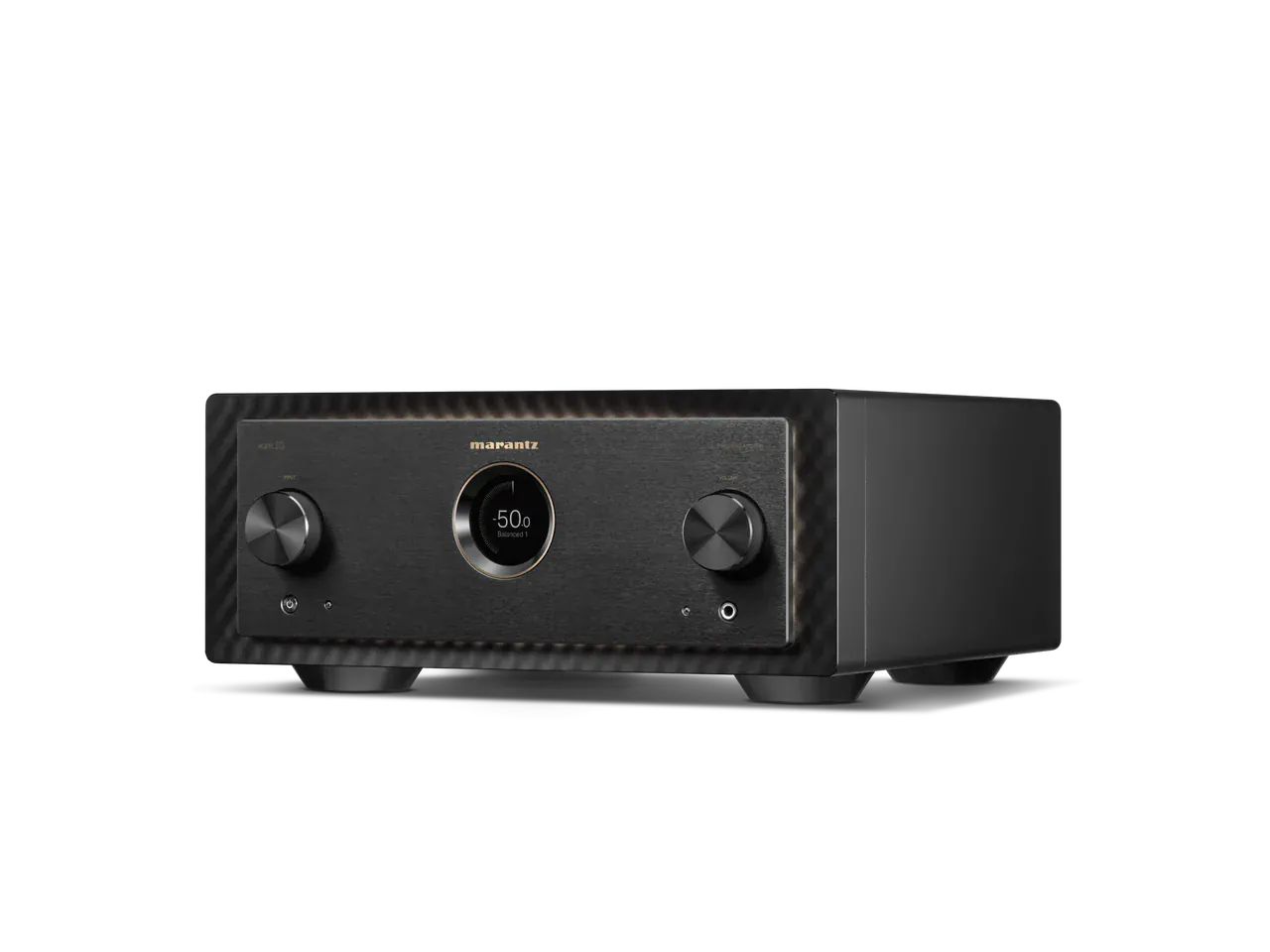

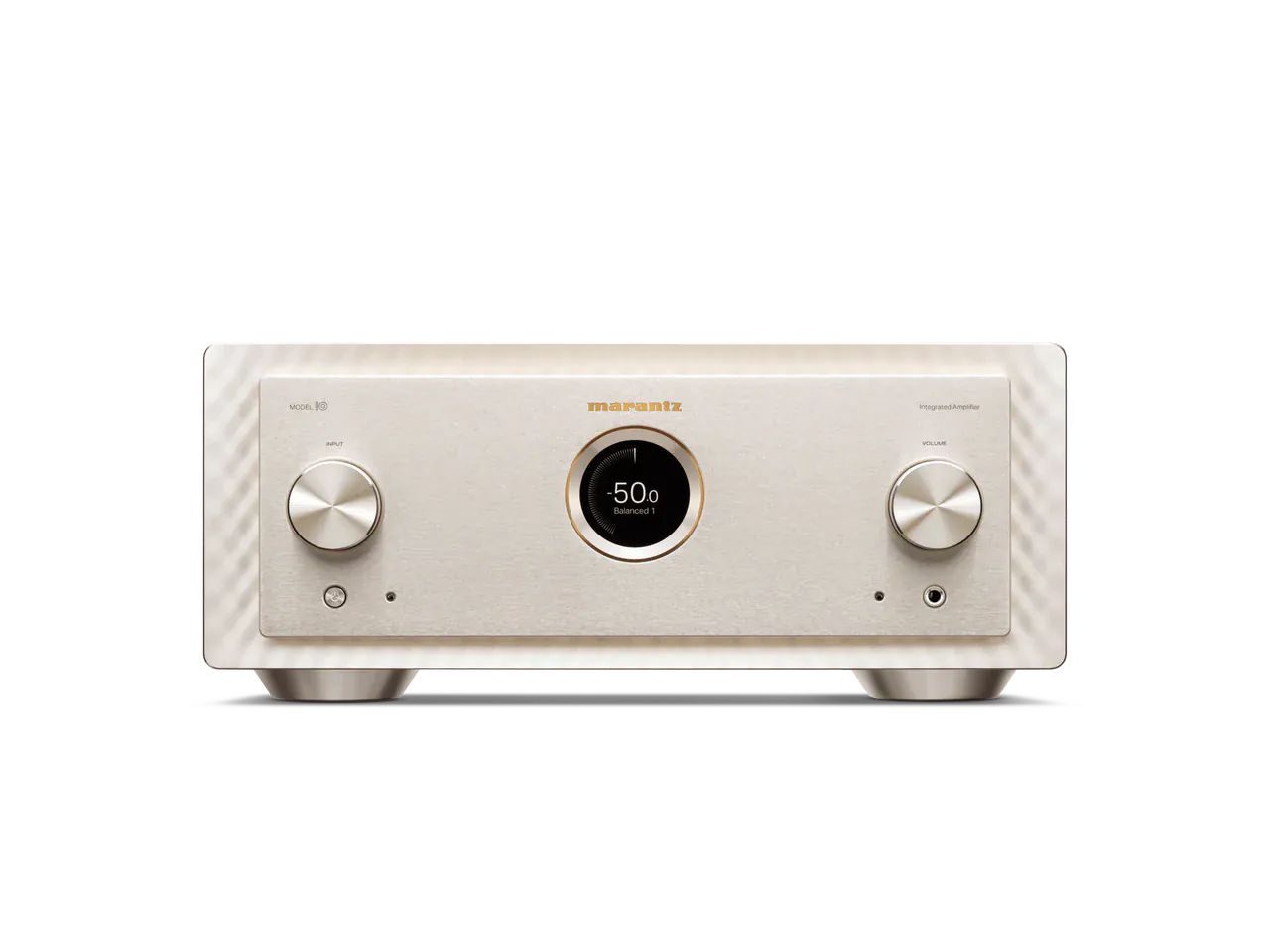

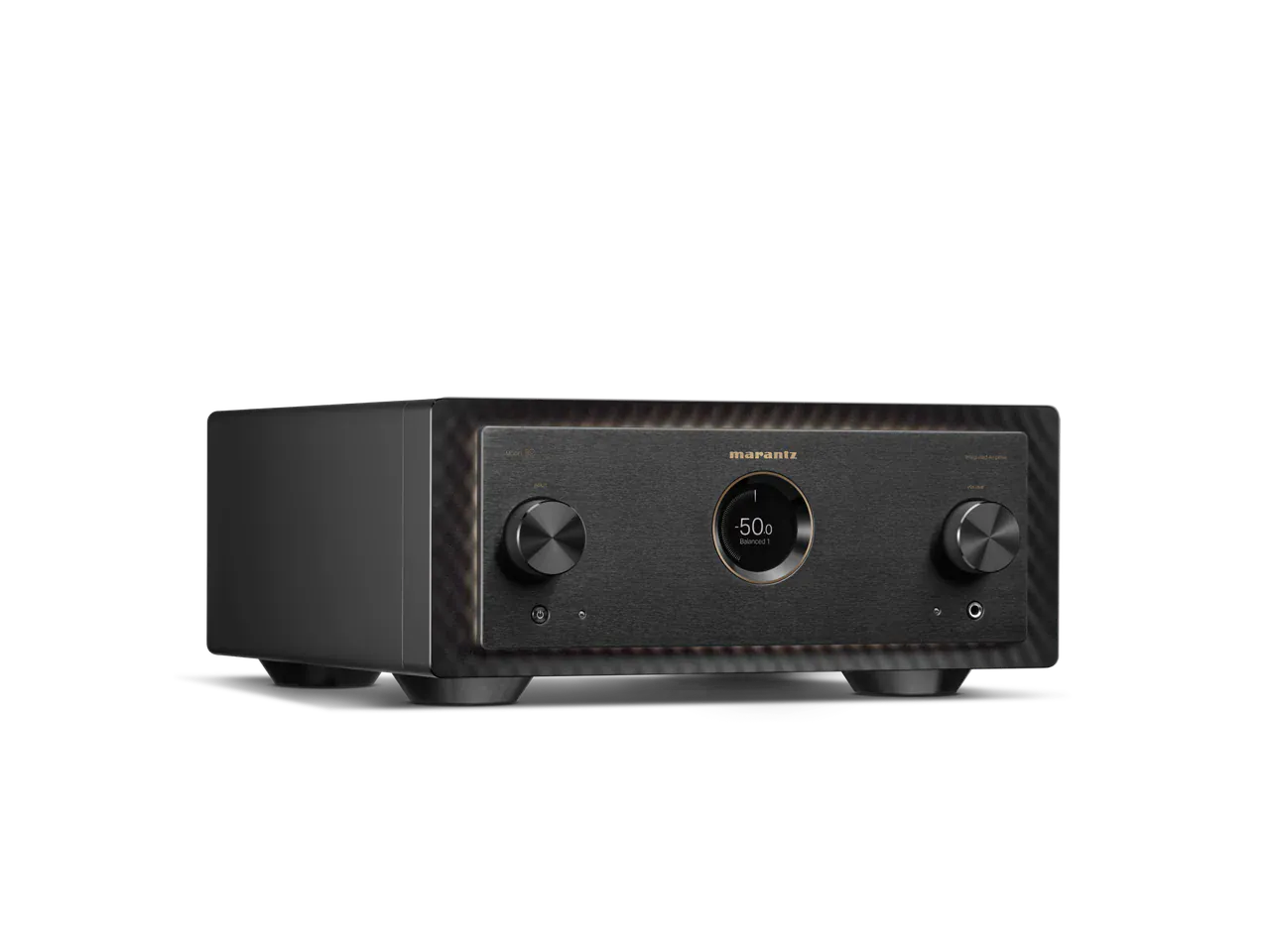

Designed with a brushed aluminum front, MODEL 10 is encased in a copper-plated, triple-layered chassis with illuminated mesh cover grille. Lighting inside the amplifier showcases the circuit boards, high-quality components, and specially designed transformer case. In a nod to the Marantz design DNA, MODEL10’s porthole houses a HD TFT Colour Display for volume and input selection, along with a digital level meter that behaves like vintage analog meters.

Crafted in Shirakawa

MODEL 10 was conceived and engineered in our facilities in Shirakawa, Japan to deliver the highest performance.

Specifications

General

  • Unit (W × H × D mm): 440 × 192 × 473
  • Cabinet Size: 440 × 192 × 422
  • Net weight: 33.7kg
  • Panel Color: Black / Marantz Champagne
  • Front (Center) Panel: Anodised machined aluminium
  • Back-shell: Anodised machined aluminium
  • Front panel illumination: Yes (All sides, Dimmer)
  • Side cover: Aluminum (Thickness: Max 15.8mm)
  • Top cover: Aluminum (Thickness: 6mm)
  • Top cover (Centor) ventilation hole material: Stainless mesh
  • Interior illumination: Yes, dimmable
  • Rear Panel: Copper Plated
  • Chassis Material: Copper Plated
  • Bottom Layer / Bottom plate: Triple layer Copper plated
  • Front panel illumination: Yes (All sides, Dimmer)
  • Volume Knob: Solid aluminium (Bearing construction)
  • Input Selector: Solid aluminium (Bearing construction)
  • Foot: Solid Aluminium Copper plated (H: 18.5mm)
  • Heatsink for Power Amplifier: Extruded Aluminium

Audio

  • Rated Output Power: 250W + 250W (8ohm,20Hz-20kHz,THD 0.05 %), 500W + 500W (4ohm,20Hz-20kHz,THD 0.05 %)
  • Speaker Impedance: 4~16ohm
  • Frequency Response: 5Hz~60kHz +0dB/-3dB, 20Hz~20kHz +0dB/-0.3dB
  • Total Harmonic distortion: 0.005% (125W, 8ohm, 20-20kHz) (CCIF IMD, DFD IMD)
  • Damping Factor: 500 (8ohm, 20Hz-20kHz)
  • Input Sensitivity: Phono input: MM: 3.6 mV / 36 kohm, MC (Low): 400 μV / 33 ohm, MC (Mid): 400 μV / 100 ohm, MC (High): 400 μV / 390 ohm
  • RIAA Deviation: 20 Hz - 20 kHz ±0.5 dB (MM/MC)
  • Phono Maximum Input: MM : 80mV, MC : 8mV
  • Input Sensitivity: CD/LINE/RECORDER: 350 mV/41kohm (Unbalanced), 700 mV/36kohm
  • Input Sensitivity: Power Amp input: Unbalanced: 1.58V / 41kohm (Gain : 29dB), Balanced: 3.16V / 15kohm (Gain : 24dB)
  • SN Ratio: PHONO (MM): 88dB, PHONO (MC): 76dB, CD: 122dB, Balanced: 122dB
  • Headphone Output Level: 130mW / 32 ohms
  • Tone Control: BASS : 50Hz ±10dB, TREBLE : 15kHz ±10dB
  • Power Consumption: 270W, 0.1W (at Standby)

Audio/Video

  • Phono Input: Yes (MM / MC) Marantz Musical Premium Phono EQ w/ Selectable MC impedance (3 position) - PHONO (MC Low): 400 μV / 33Ω, PHONO (MC Mid): 400 μV / 100Ω, PHONO (MC High): 400 μV / 390Ω, PHONO (MM): 3.6 mV / 39kΩ

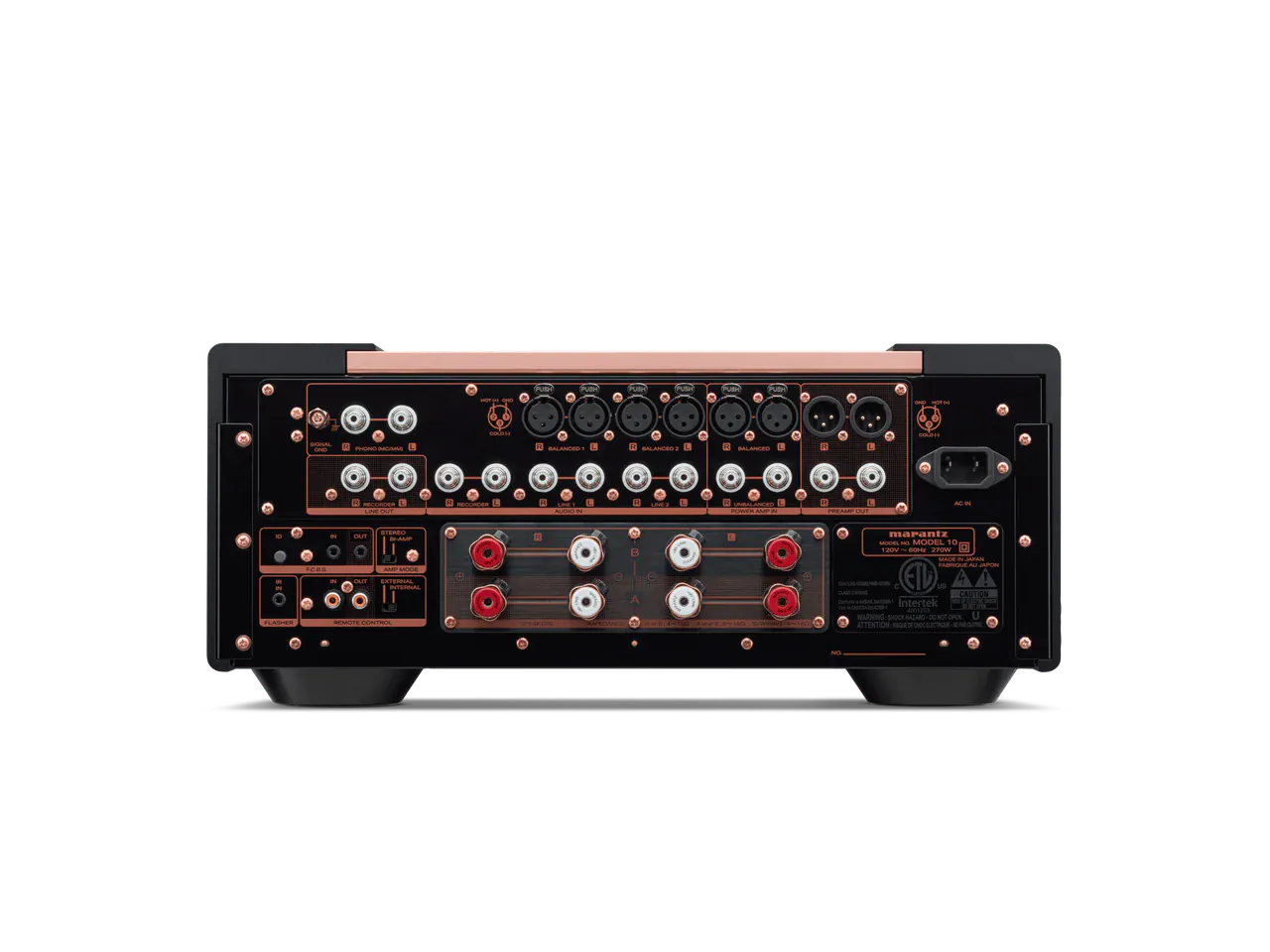

  • Analog Input (include Phono) / REC Out (RCA): 4 /1 (LINE1, LINE2, PHONO: Thick nickel plated independent terminals) (RECORDER: Thick nickel plated independent terminals)
  • Balanced XLR input: 2
  • Power Amp Direct: Yes [RCA (Thick nickel plated independent terminals) / XLR]
  • Pre out: Yes [RCA (Thick nickel plated independent terminals) / XLR]
  • 2 sets of Speaker Output: Yes (Bi-wiring)
  • Speaker Terminal: Marantz Original SPKT-100+, 2 (High quality and high-purity copper plated)
  • Headphone Output: 1 (Turns off the speaker automatically when headphone is inserted)

Control/Other

  • Remote Control Bus Terminal: Yes (RC-5 In / Out)
  • Remote Internal / External Switch: Yes
  • Flasher Input: Yes
  • AC Inlet: Yes
  • Other: F.C.B.S. (Floating Control Bus System)
  • Remote Controller: 10 series Universal Remote control
  • Unit control (Button): Tact Switch : 1 POWER
  • Unit control (Knob): 2 VOLUME, INPUT SELECTOR
  • LED: POWER: 1 White, Protection: 1 Orange, Illumination (Edge): White, Interior: White
  • Front Panel Display: New HD TFT Colour Display
  • Dimmer for Front Display: 20 steps
  • Level meter: Yes (HD Display)
  • Volume Display: -infinity/-99.5dB - 0dB / 0.5 step (default), 0-100 / 0.5 step switchable
  • Last Function Memory: Yes
  • Auto Standby Mode: Yes
  • Remote Controller: RC004PMND
  • Battery: Yes (AAA ×2)
  • Power Cord: Yes (ALL region / Audio Grade / OFC)
  • Other: CoA card
