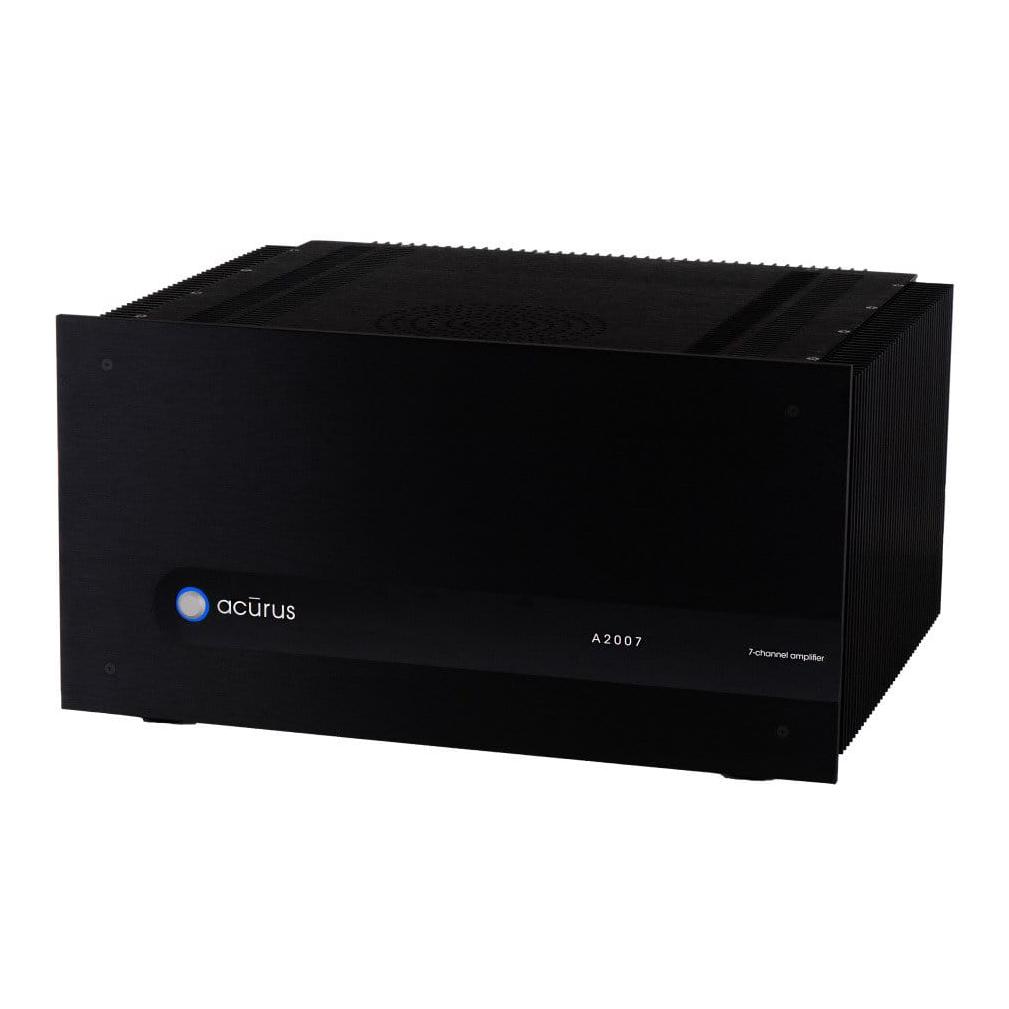

Acurus A2007 7-Channel 200W Power Amplifier

Ultimate high-definition theatre audio

The Acurus A2007 is the seven-channel home theatre amplifier in the Acurus A2000 series. Like the A2005, the A2007 amplifier can be the driver of a high-value 7-channel home theatre system plus a 2-channel music system with its ability to maximise stereo performance by disabling unused channels.

Controlling and monitoring the A2007 is easy with the Acurus line's innovative new ethernet port functionality.

APPLICATIONS

• Residential home theatre
• Multipurpose home theatre/2-channel systems
• Corporate media rooms
• Professional multichannel mastering studios

SOLUTIONS

• Detailed, neutral sound, ideal for music or movies
• Cool-running in rack or shelf placements
• Integrates multiple ways with automation systems
• Installation and setup simplified with web app
• US-made helps ensure quality and reliability
• Made in the USA
• 5 year warranty

FEATURES

• High-current output stage
• Fully discrete class AB analog audio circuitry
• Ethernet, RS-232, 12V trigger
• Temperature monitoring via web

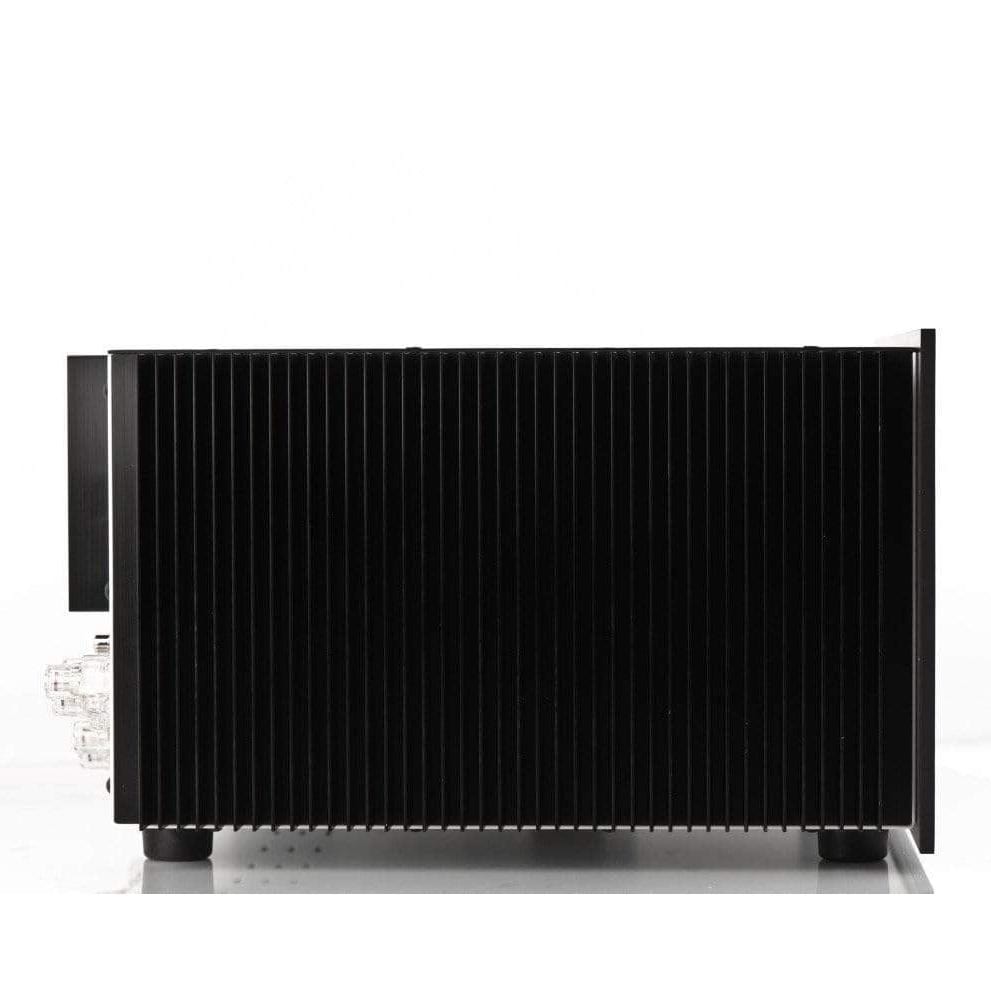

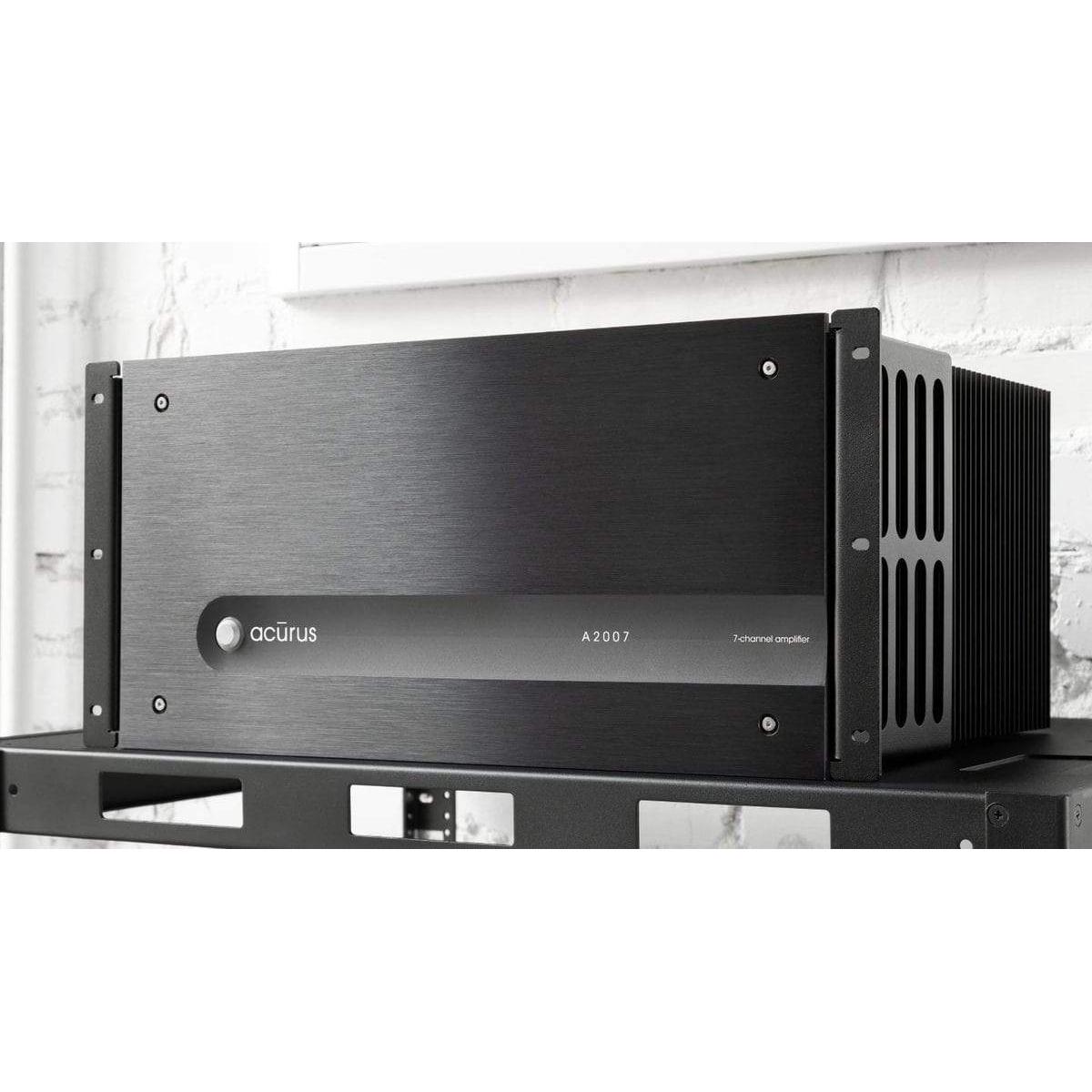

• Rack-mount chassis designed for optimum cooling
• Mobile device controllable
• Remote monitor-ready

OPTIONAL ACCESSORIES

• Rack ear kit (ARM-2)

INCLUDED

• User guide
• 14 AWG power cord
• Warranty card

SUPPORTING DOCUMENTATION

• Ethernet and RS-232 control protocol
• 2-D CAD files
• Service guide
• International safety reports

Specifications

ELECTRICAL

POWER OUTPUT

• 200W (8Ω), 300W (4Ω), any 5 channels driven

THD

• < 0.03% (200W, 8Ω), < 0.05% (300W, 4Ω)

CURRENT CAPABILITY

• >18A (2.2Ω)

FREQUENCY RESPONSE

• 20 – 20kHz ± 0.1dB

TIM/DIM DISTORTION

• <0.003%

SNR

• 106dB (A-wt.)

DAMPING FACTOR

• 500, 8Ω @ 50Hz

INPUT SENSITIVITY

• 1W: 100mV, 200W: 1.42V

INPUT IMPEDANCE

• 20kΩ

POWER CONSUMPTION

• 23W (idle), 1200W (max), <1W (standby)

CONTROL

ETHERNET/RS-232

• status and control of standby/on, channel configuration

12V

• standby/on control

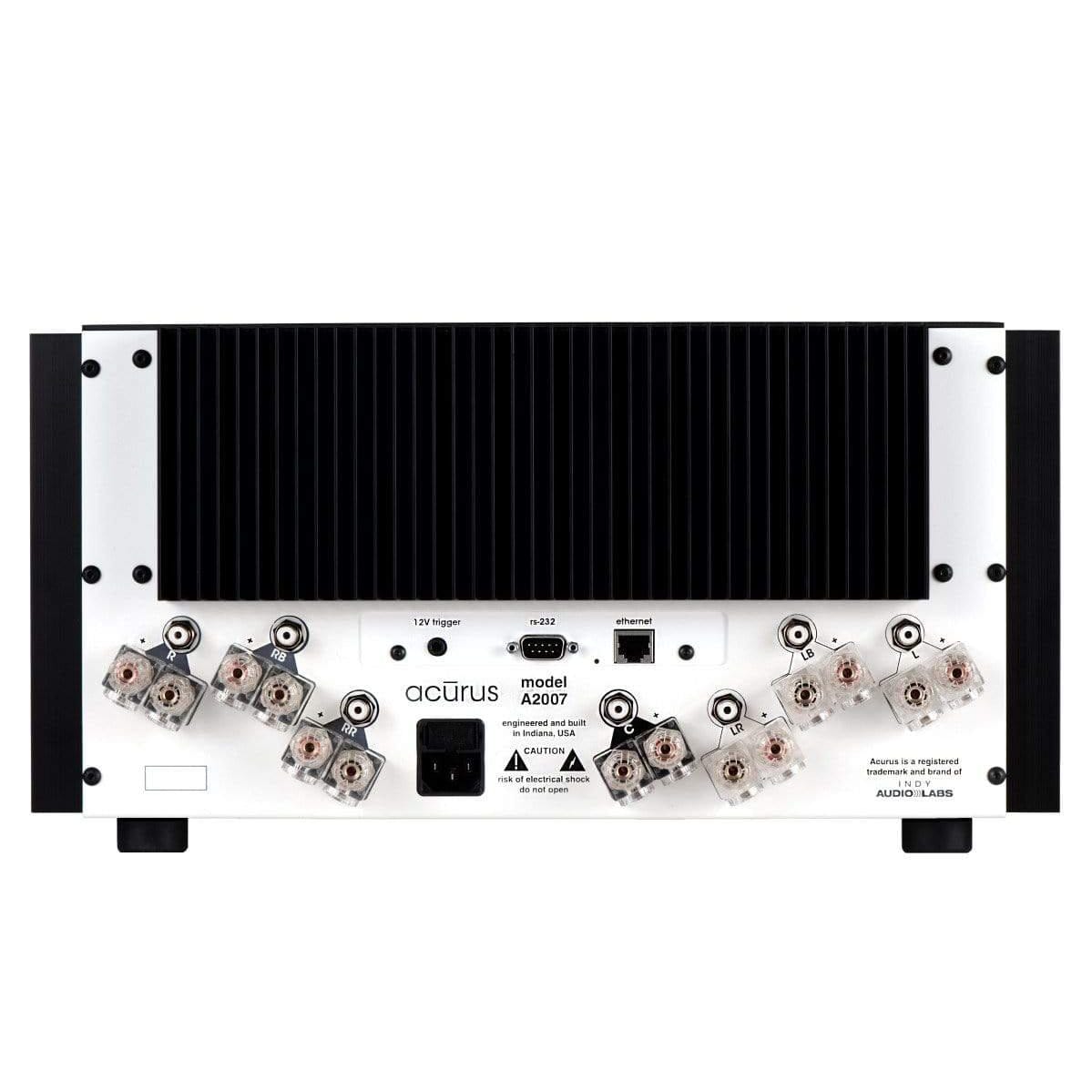

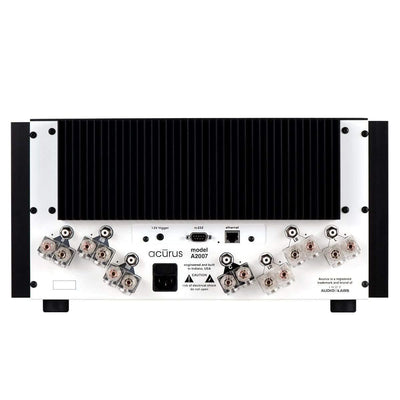

Audio Inputs/Outputs

AUDIO IN

• gold-plated RCA (unbalanced) x 7

LOUDSPEAKER OUT

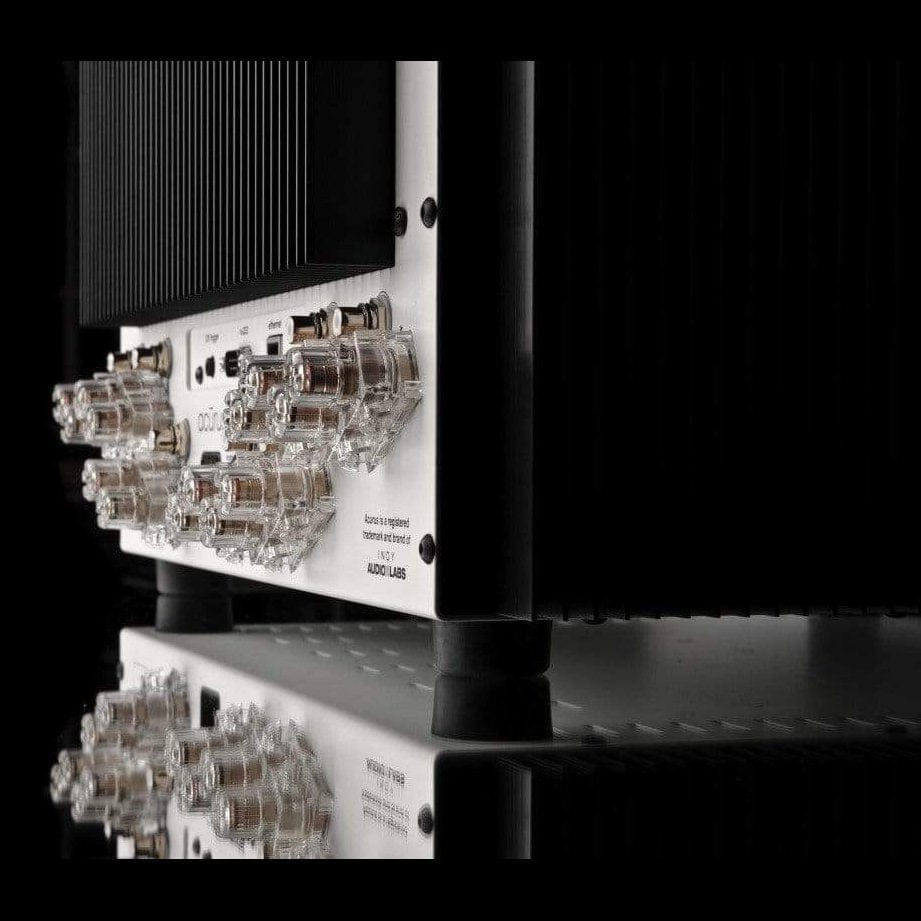

• gold-plated 60A 5-way binding posts x 7

Physical

PRODUCT DIMENSIONS

8.5” (21.6CM) X 17” (43.2CM) X 15.0” (38.1CM)

RACK HEIGHT

• 5 RU

PRODUCT WEIGHT

• 52.2 lbs. (23.7kg)

FINISH

• black satin anodized, laser-etched logo, white rear panel

CARTON DIMENSIONS

• 16” (40.6cm) x 22” (55.9cm) x 20” (50.8cm)
