MiniDSP UMIK-1 Calibration Microphone USB-C

MiniDSP  /  Calibration Equipment

UMIK-1

$199.00
/
Buy now, pay later with: Zip Interest Free Afterpay Interest Free Humm Interest Free
  • Free Delivery On Orders Over $79
  • Local Australian Warranty
  • 1800 100 998 For Assistance



We take pride in our customer service and shipping times. Most products will ship within 1-2 business days. If there are any potential delays with products in your order, we will contact you.

All orders over $79 include Free Shipping Australia Wide. For orders under $79 we shipping cost is $15.

We use a variety of shipping methods depending on the types of items purchased and their delivery location. This helps to ensure your items arrive safely and in a timely manner. If you are on a tight deadline or would like to know an estimated delivery date for your order, contact our friendly staff and they will be happy to assist.

Orders will usually take between 1-6 days for delivery, depending on your location and shipping method.

If your order has not been delivered within 7 days of shipping we recommend you reach out to us directly to investigate with Australia Post / Courier.

If for any reason you haven't followed up with us within 30 days of shipping, we'll be unable to guarantee your delivery of your item unless it has been returned to sender.

Measure Your Room, Fix Your Sound

The MiniDSP UMIK-1 is the measurement microphone that turns room correction from guesswork into real data. It's one of the most popular calibration mics for Dirac Live, and the go-to choice for the free REW software: plug it into any Mac or PC and it shows you exactly what your speakers and room are doing, so you can fix the peaks, dips and delays you can't hear but are always there.

Why You'll Love It

  • See your sound, don't guess: With the free REW software, the UMIK-1 measures your room's actual response, so you target the real problems instead of tweaking by ear. It's the difference between guessing and knowing.

  • Individually calibrated: Every UMIK-1 ships with its own calibration file matched to its serial number. Load it and your measurements are accurate to +/-1dB, not just close enough.

  • Plug and play, no drivers: USB-C into Windows, Mac or Linux (or iPad with a camera adapter). It works with REW, Dirac Live and every major measurement tool straight out of the box.

Under the Hood

  • True measurement accuracy: A 6mm omnidirectional capsule and 24-bit ADC capture a flat 20Hz to 20kHz, with 133dB max SPL that handles the loudest subwoofer sweeps.

  • The calibration file that matters: Your unique file corrects each mic's tiny variations, so REW and Dirac read true SPL and frequency, not an approximation.

  • Ready out of the box: Includes a mini tripod, foam windscreen and 1.5m USB cable, with a 3/8" thread that fits any mic stand. USB powered, no batteries.

CHT Insider Verdict

If you own a subwoofer, a MiniDSP or anything with room correction, the UMIK-1 is the first thing you should buy. It's the cheapest upgrade in hi-fi that makes a real, audible difference, because it lets you measure and fix your room instead of hoping. Nearly every calibration and install we do starts with one.

Pro Tip: Download your mic's calibration file from MiniDSP (it's tied to the serial on the barcode) and load it into REW before you measure. Skipping that step is the most common mistake, and it throws every reading off.

Specifications

MICROPHONE
Capsule
  • 6mm Electret, Omnidirectional
Frequency Response
  • 20Hz - 20kHz (+/-1dB with calibration file loaded)
Max SPL
  • 133 dB SPL (1% THD @ 1kHz, 0dB gain)
Output Noise
  • -74dBFS (at max gain)
CONVERSION & CONNECTION
ADC
  • 24-bit @ 48kHz
USB
  • USB Audio Class 1.0, driverless
  • Windows, Mac & Linux (iPad via Camera Connection Kit)
Connector
  • USB-C
CALIBRATION
Calibration File
  • Unique .txt file referenced to the serial number
  • On-axis frequency, amplitude / sensitivity data
POWER
Power
  • USB powered (5V)
  • Blue LED power indicator
PHYSICAL
Clamp Thread
  • 3/8"-16
Weight
  • 120g (microphone)
  • 600g (complete kit)

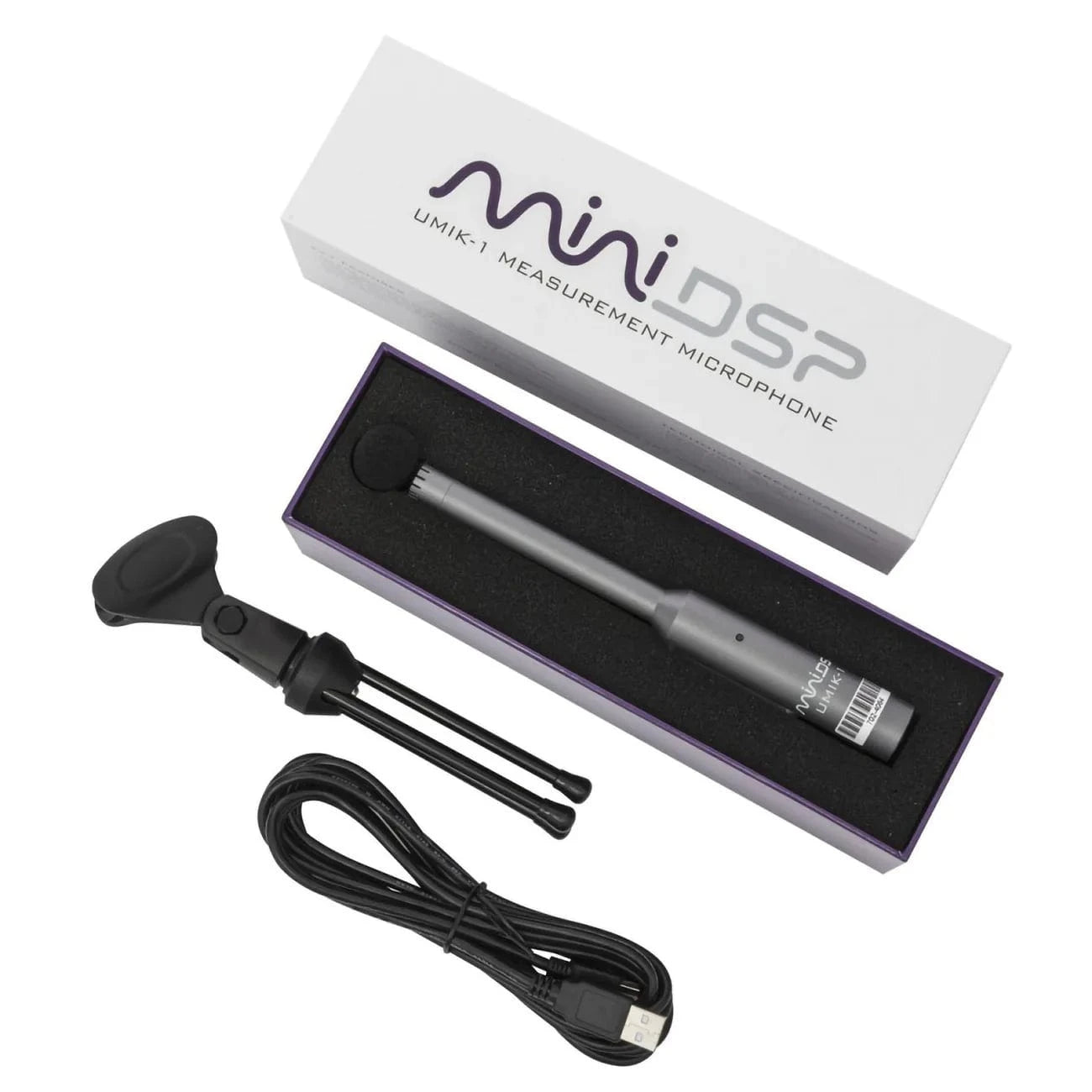

IN THE BOX
Included
  • UMIK-1 microphone
  • 1.5m shielded USB cable
  • Mini tripod
  • Foam windscreen
