Ascendo DSP4-10K2 - 4-channel DSP network-controlled Class H amplifier

Ascendo  /  Power Amplifiers

ASC-DSP4-10K4

$12,999.00
/
Buy now, pay later with: Zip Interest Free Afterpay Interest Free Humm Interest Free
  • Free Delivery Australia Wide
  • Local Australian Warranty
  • 1800 100 998 For Assistance

We take pride in our customer service and shipping times. Most products will ship within 1-2 business days. If there are any potential delays with products in your order, we will contact you.

All orders now come with free shipping Australia Wide.

We use a variety of shipping methods depending on the types of items purchased and their delivery location. This helps to ensure your items arrive safely and in a timely manner. If you are on a tight deadline or would like to know an estimated delivery date for your order, contact our friendly staff and they will be happy to assist.

The ASCENDO DSP4-10K2 is a ultra powerful 4-channel audiophile grade, high efficiency Class H amplifier suitable for driving large passive speakers and/or passive subwoofers in a multi-channel or stereo audio/visual installation.

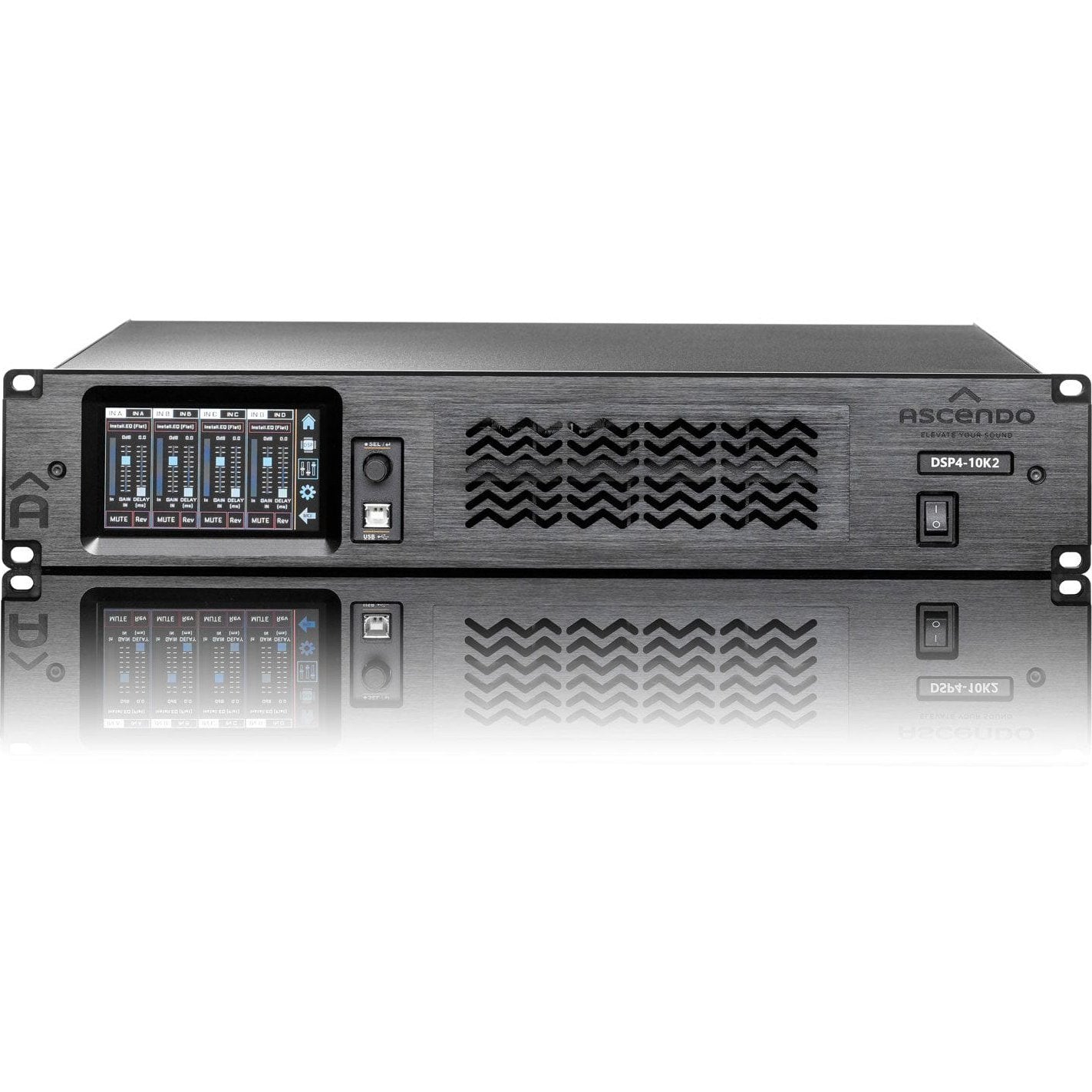

The ASCENDO DSP4-10K2 amplifier is 18” rack mountable and temperature-controlled fan cooled; with LCD touch panel

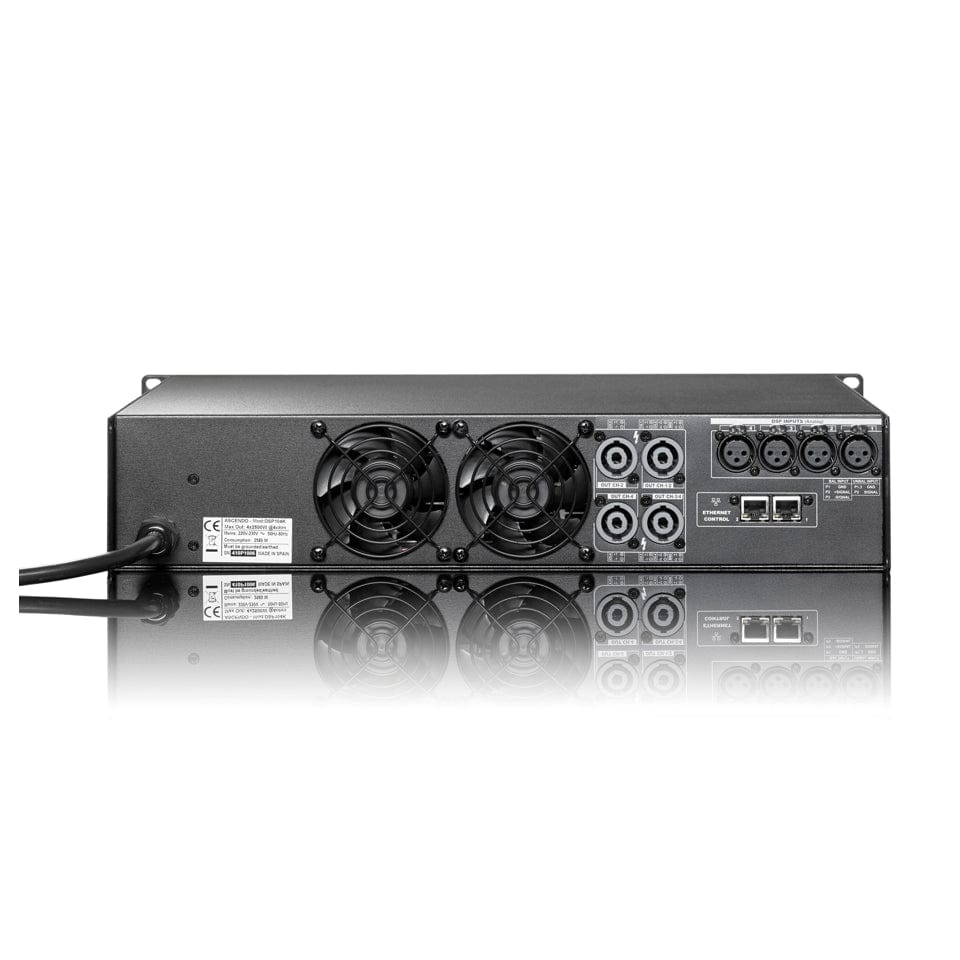

It offers four XLR (balanced) line inputs (which may also be driven unbalanced if needed); and four Neutrik SpeakOn outputs.

Available power is an incredible 1600W RMS per channel into 8 ohms; which may also be bridged to offer 2 channels of 5kW RMS each into 8 ohms.

MAIN CHARACTERISTICS:

  • DSP network-controlled channels for room EQ
  • LCD touch panel

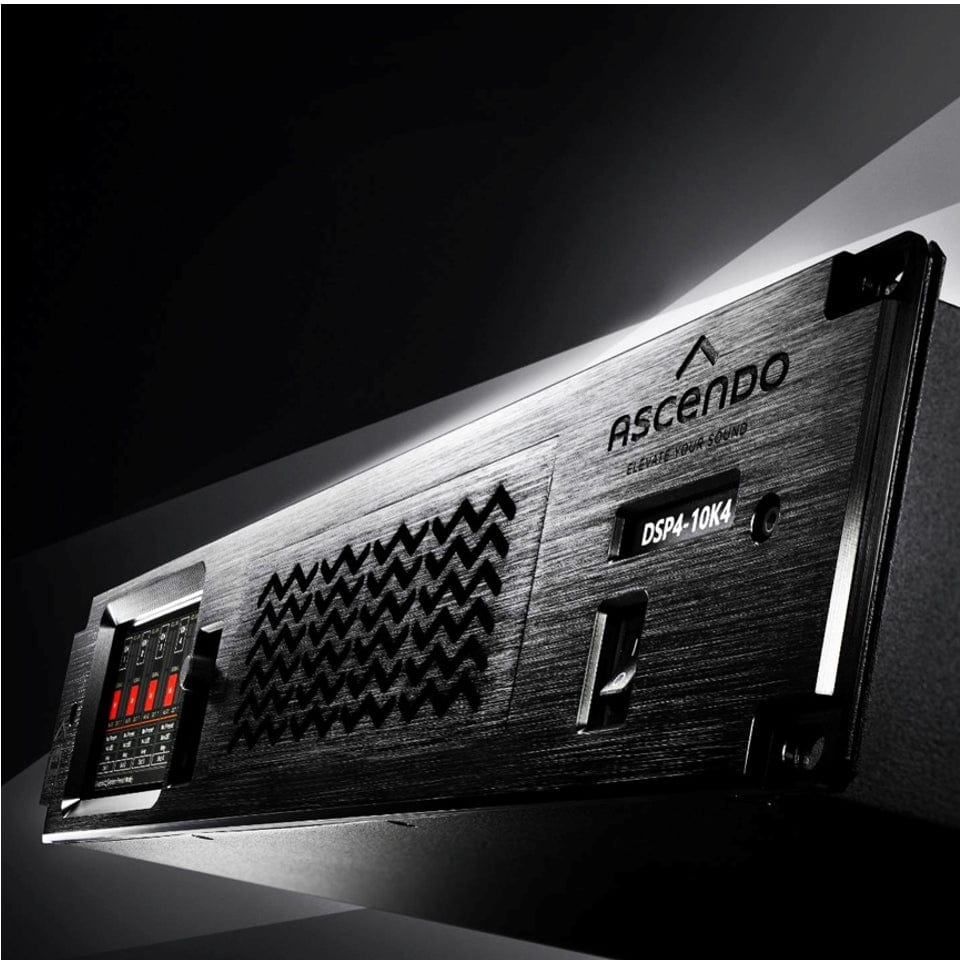

  • Laser cut aluminium front panel
  • FCM™ Faulty Channel Management system to avoid entire device shutdown
  • State-of-the-art layout for maximum performance and reliability
  • ICL, PROT, SIGNAL indicators per channel
  • ICL clip-limiters
  • Switchable (35Hz) sub-sonic high-pass filter per channel
  • All channels bridgeable by pairs
  • Temperature and signal dependent, intelligent cooling system for minimal noise
  • Highly oversized thermal dissipation design for maximum reliability

Specifications


• Output Power* (4Ω / 2Ω): 4 x 2500W RMS

• Output Power* (8Ω): 4 x 1600W RMS

• Output Power* (4Ω / 8Ω, BRIDGED): 2 x 5000W RMS

• Frequency Response (power bandwidth ±0.25dB): 20Hz-20kHz

• Phase Response (@ 1 watt 20Hz-20kHz): ±15 deg

• Total Harmonic Distortion (20Hz-20kHz): < 0.05%

• Intermodulation Distortion (SMPTE): < 0.05%

• Damping Factor (20-500Hz @ 8Ω): > 400

• Crosstalk (20Hz-1kHz): > 75dB

• Voltage Gain: 32dB

• Sensitivity (rated power @32dB): 1.4V

• Signal-to-Noise Ratio (20Hz-20kHz): 104dBA

• AC Mains, VAC (50Hz-60Hz): 90V-265V

• Power on Idling (@230V): 0.5A

• Protections: Soft-start, turn-on/turn-off transients, Over-heating, DC, Short-circuit, Open or mismatched loads, ICL, PMS

• Dimensions (W x H x D): 483 x 150 x 396 mm



*All channels driven, full bandwidth P.N. 12dB C.F.
