Ascendo Double 18" PRO Passive Sealed Shallow Subwoofer - Black

ASC-182SPPSSH

Regular price$14,500.00
/

Buy now, pay later with: Zip Interest Free Afterpay Interest Free Humm Interest Free
  • Free Delivery Australia Wide
  • Local Australian Warranty
  • 1800 100 998 For Assistance

We take pride in our customer service and shipping times. Most products will ship within 1-2 business days. If there are any potential delays with products in your order, we will contact you.

All orders now come with free shipping Australia Wide.

We use a variety of shipping methods depending on the types of items purchased and their delivery location. This helps to ensure your items arrive safely and in a timely manner. If you are on a tight deadline or would like to know an estimated delivery date for your order, contact our friendly staff and they will be happy to assist.

Orders will usually take between 1-6 days for delivery, depending on your location and shipping method.

If your order has not been delivered within 7 days of shipping we recommend you reach out to us directly to investigate with Australia Post / Courier.

If for any reason you haven't followed up with us within 30 days of shipping, we'll be unable to guarantee your delivery of your item unless it has been returned to sender.

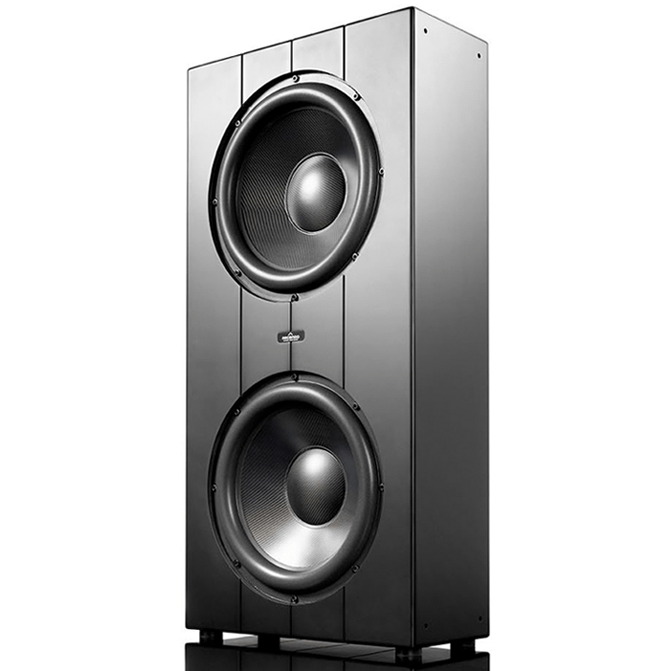

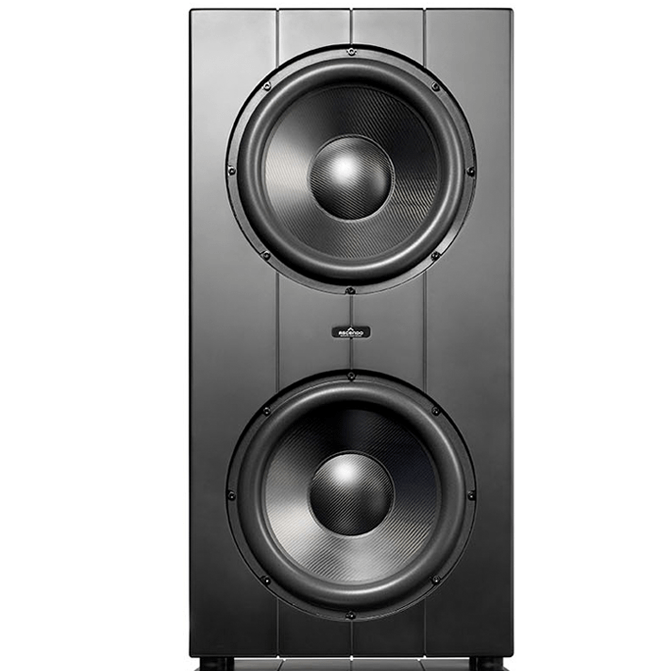

The18-2 SUB PRO PASSIVE SEALED SH subwoofer is so far above and beyond the competition in every aspect; refined musicality, tightness, and output levels suitable for a 18" driver. Combine this exceptional performance with an enclosure only 10,43” deep to accommodate a wider range of applications where larger enclosures just can’t fit, and this model could possibly take the home theatre market by storm.

The 18” driver is an advanced carbon rohacell composite sandwich cone. It is coupled with a neodymium motor with 4” Ultra-high-temperature voice coil. With a max SPL of 137dB @100Hz an , the dynamic expression and percussive impact that this sub can deliver puts it in a class by itself, let alone in such a shallow footprint as to almost disappear in home theatres or media rooms when compared to more traditional cube subwoofer designs.

In larger rooms where more output is needed (or just desired), ASCENDO also offers a Dual-18” version of this same enclosure design, with the two woofers stacked - The18-2 SUB PRO PASSIVE SEALED SH. The 143dB SPL @100Hz capability of this 48” high, 24” wide and only 10,43” deep defies belief until experienced.

Both models are engineered to operate perfectly in sync (in phase) with our Infrasonic subwoofers; The24, The32, The50 and The80 when there is a desire to reproduce movie content below 20Hz with the same authority, precision, and musicality. The combined results sound (and feel) like seamless and natural extensions of their individual efforts, adding to the overall addictive, immersive quality of a complete ASCENDO system.

Specifications

Speaker type

2х18" forward-firing, advanced carbon rohacell composite sandwich cones, neodymium motor with 4” ultra-high-temperature Voice-coil

Xmax

23mm excursion each direction (46 mm linear), voice coil remaining in homogeneous magnetic field, linear and lowest distortion

Passive | Active

Passive

Recommended amplifiers

1Ch DSP + 1 or  2Ch Amplifier are required. Min. recommended amplifier:  89 Vrms, 126 Vpk, 45 A; equivalent to 4000W@4?, with correct RMS & Peak limiting & compression settings

Recommended ASCENDO amplifiers

(With additional external 1CH DSP: AIA2-6004), DSP4-6K2, DSP4-10K2

Principle

Sealed

SPL

Calculated data
139 dB @ 63 Hz peak

Frequency range

Calculated data
33 Hz - 400 Hz /   -3 dB
22 Hz - 400 Hz / -15 dB

 Efficiency

88 dB  / 1W/m

Power handling

5000 W

Impedance

4 Ω  per woofer

Air volume displacement

5,32 L / in comparison 18" standard cinema subwoofer 1,1 L

Directivity horizontal x vertical in Deg°

360°

Input terminal

One 4-conductor Phoenix 12 AWG (3,3 mm²) push on binding post

Enclosure

Internally braced birch ply

Finish

Matte black

Custom colour options

Piano lacquer, colour of choice, matt or other finishes upon request

Shape customisation

Upon request

Mounting

Floor standing with feet



Technical modifications subject to change without further notice



Dimensions
