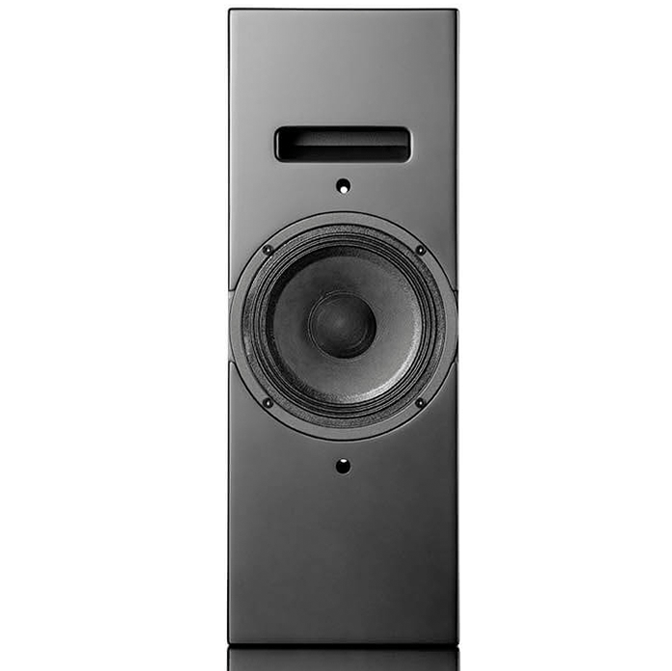

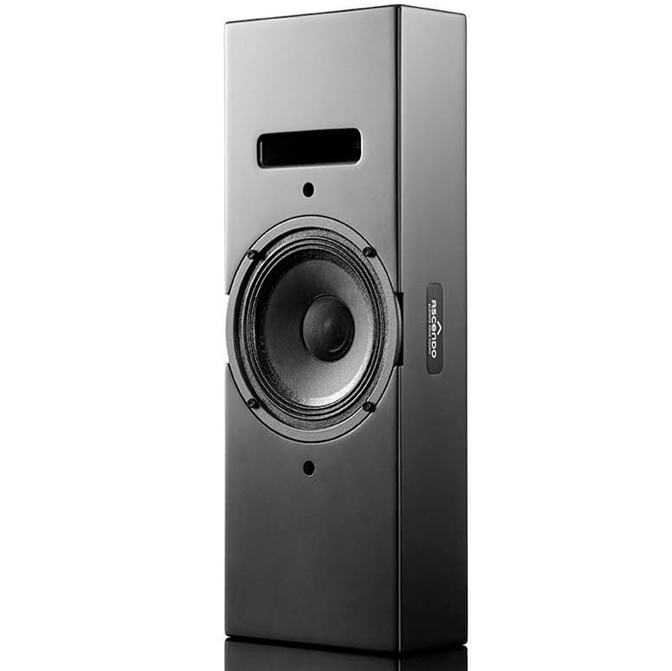

Ascendo 6.5" Coax Passive Monitor Narrow - Black (Single)

Ascendo  /  Home Cinema Speakers

ASC-6PN

$1,990.00
/
Buy now, pay later with: Zip Interest Free Afterpay Interest Free Humm Interest Free
  • Free Delivery Australia Wide
  • Local Australian Warranty
  • 1800 100 998 For Assistance

We take pride in our customer service and shipping times. Most products will ship within 1-2 business days. If there are any potential delays with products in your order, we will contact you.

All orders now come with free shipping Australia Wide.

We use a variety of shipping methods depending on the types of items purchased and their delivery location. This helps to ensure your items arrive safely and in a timely manner. If you are on a tight deadline or would like to know an estimated delivery date for your order, contact our friendly staff and they will be happy to assist.

The6 PASSIVE NARROW is an example of ASCENDO responding to the Custom requests of our dealers. This narrower version of model The6 PASSIVE ON WALL has been requested enough times that we officially welcome the model to our regular lineup.

It is a very compact two-way passive loudspeaker system which utilises a 6.5” time coherent Coaxial Point Source driver featuring a soft dome tweeter. This driver design is perfect for wide angle axi-symmetric radiation to cover a large listening area.

The6 PASSIVE NARROW is an enormously dynamic and powerful speaker with a very compact width and height, and form factor that looks more at home either below or beside TVs than its sibling’s wider design.

Considering the space occupied, its high efficiency of 93dB at 1W/1m and high-power handling allows it to reach reference volume levels and obtain an impressive cinema sound experience even with low amplifier power.

Specifications

Speaker type

Time coherent 6.5" point-Source

Principle

Vented / Reflex

Passive / Active

Passive

Cont./peak output

113dB Cont. / 117dB Peak

Frequency range

80Hz to 20kHz

Efficiency

93 dB / 1W/m

Power Handling

200 W

Impedance

8 Ω

Woofer

6,5", 165 mm

Tweeter

1" / 25 mm soft dome

Directivity Horizontal x Vertical in Deg°

90° x 90°

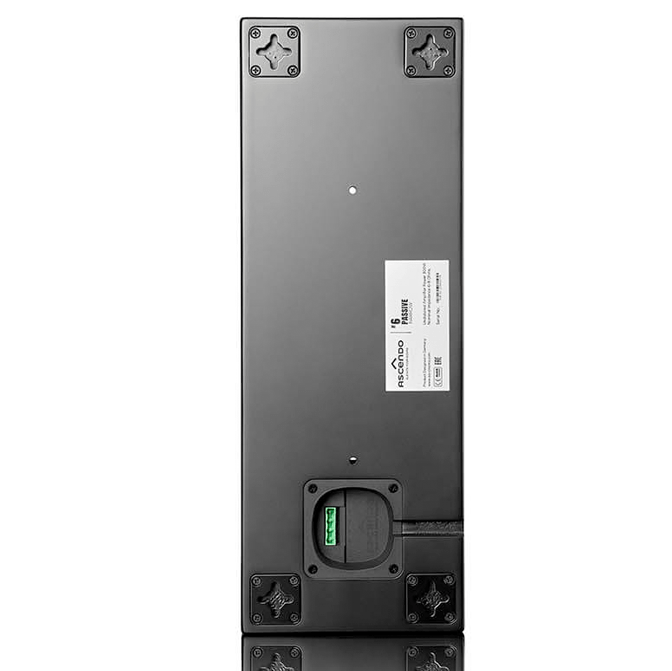

Input Terminal

One 4-conductor Phoenix 12 AWG (3,3 mm²) push on binding post

Enclosure

MDF

Finish

Matte black

Custom colour options

Genuine piano lacquer: matt lacquer: colour of choice, other finishes upon request

Shape customisation

Possible, upon request

Mounting

4 x  wall brackets for horizontal and vertical installation, 2 though hols for direct wall or ceiling mounting



All speakers are supplied with a front cover as standard
