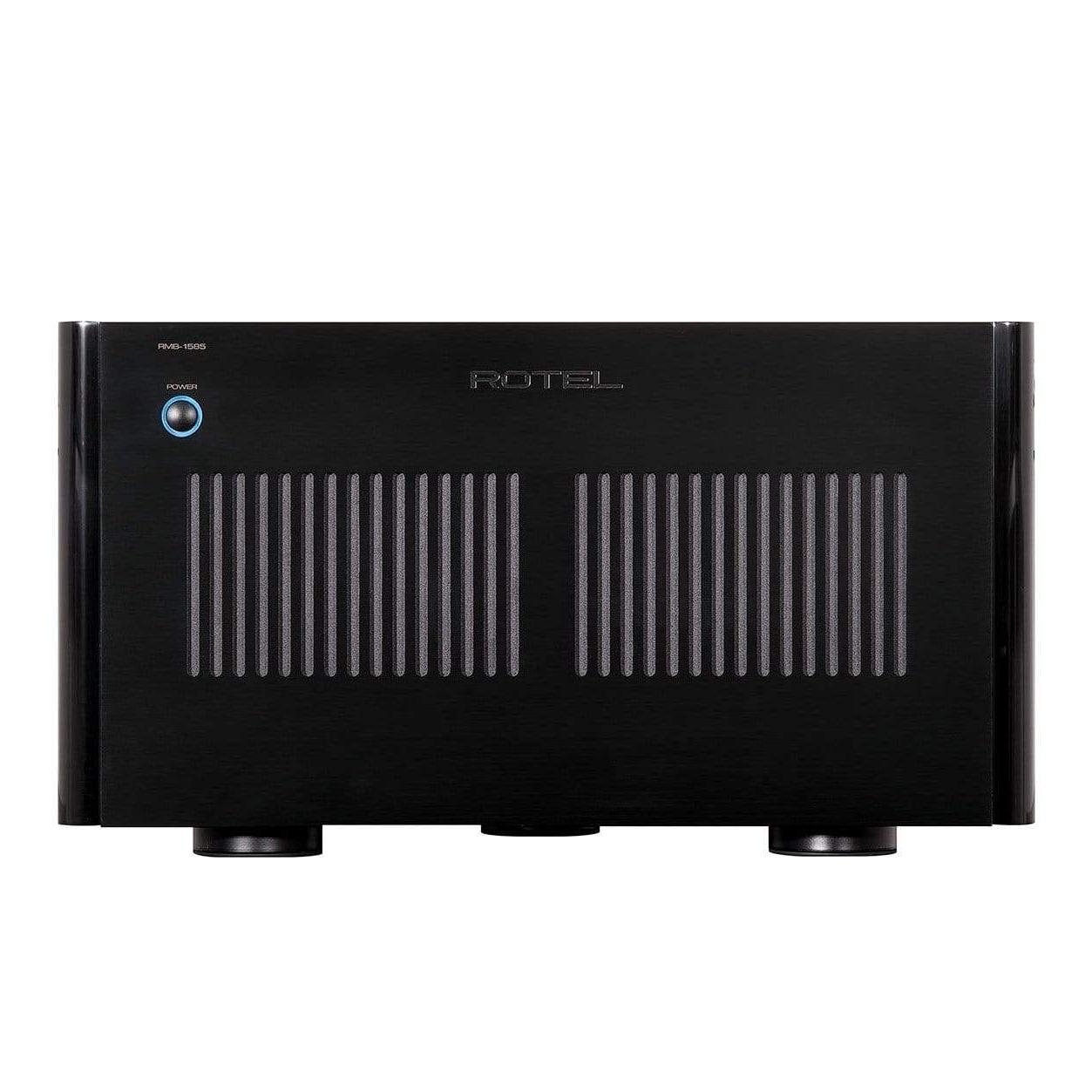

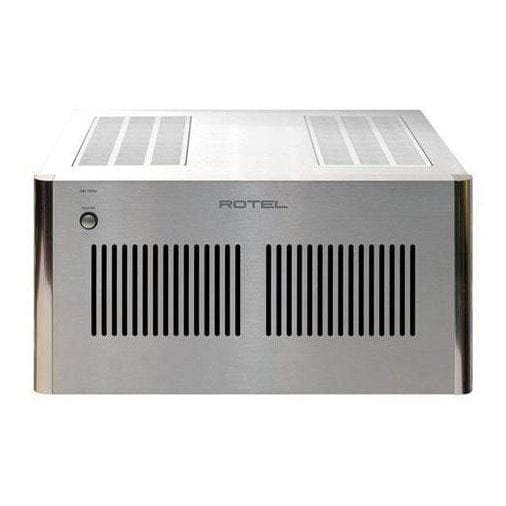

Rotel RMB-1585 Multi-channel Power Amplifier

The RMB-1585, Rotel’s new flagship theatre amplifier, provides both the massive power and sonic sophistication required by the finest home theatre systems. With five channels, each capable of producing 200 continuous watts each into 8 ohm loads (a full kilowatt of output power!), the RMB-1585 masters any A/V system regardless of speaker load or room size.

But it isn’t just pure output power that distinguishes the RMB-1585. It’s the ability to reproduce both the dynamics of a Hollywood blockbuster and the musical nuances of acoustic instruments that sets it apart. Where does this balance come from? It’s a direct result of Rotel’s celebrated Balanced Design Concept in which circuit topology and parts selection meld in the pursuit of sonic excellence

Specifications:

Continuous Power Output
(20-20kHz, < 0.03%, 8 ohms)

• 200 watts/channel,
•  5 channel driven

Total Harmonic Distortion
(20Hz-20kHz, 8 ohms)

• < 0.03%

Intermodulation Distortion
(60Hz : 7kHz, 4:1)

• < 0.03%

Frequency Response
(+0.5, –3 dB)

• 10Hz - 100kHz

Damping Factor
(20-20,000Hz, 8 ohms)

• 260

Speaker Impedance

• 4 ohms minimum

Signal to Noise Ratio
(IHF A network)

• 116 dB

Input Impedance/Sensitivity

• Unbalanced: 12k ohms/1.9 volt
• Balanced: 50k ohms/3.8 volt
• Gain: 26.5 dB

Power Requirements

• U.S. version: 120 volts, 60Hz
• European version: 230 volts, 50Hz
• Power Consumption: 800 watts

Dimensions

Width x Height x Depth

• 431 x 237 x 454mm
• 17 x 9 3/8 x 17 7/8 in

Front Panel Height

• 5U / 221mm / 8 3/4 in

Weight (net)

• 36kg / 79.3 lb
