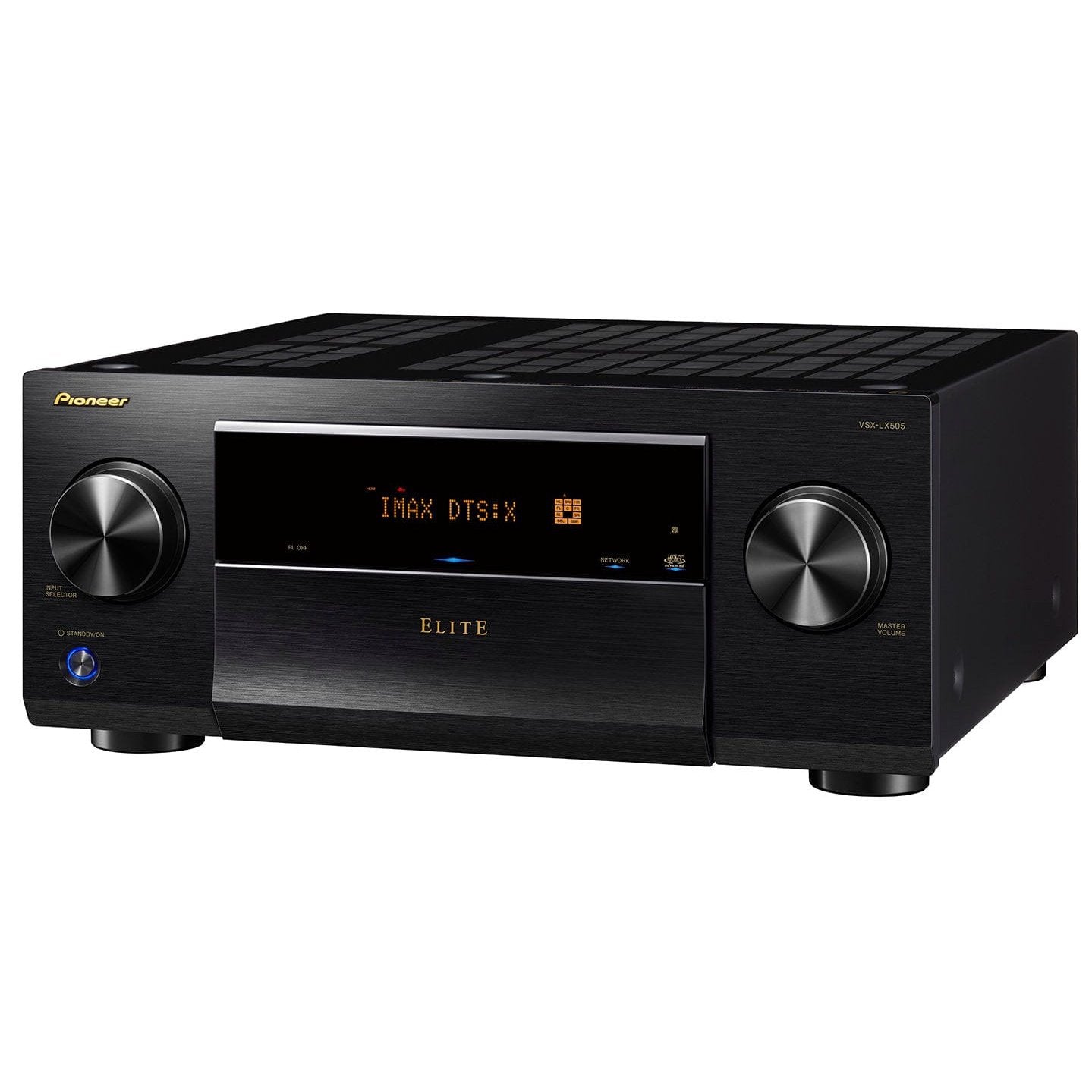

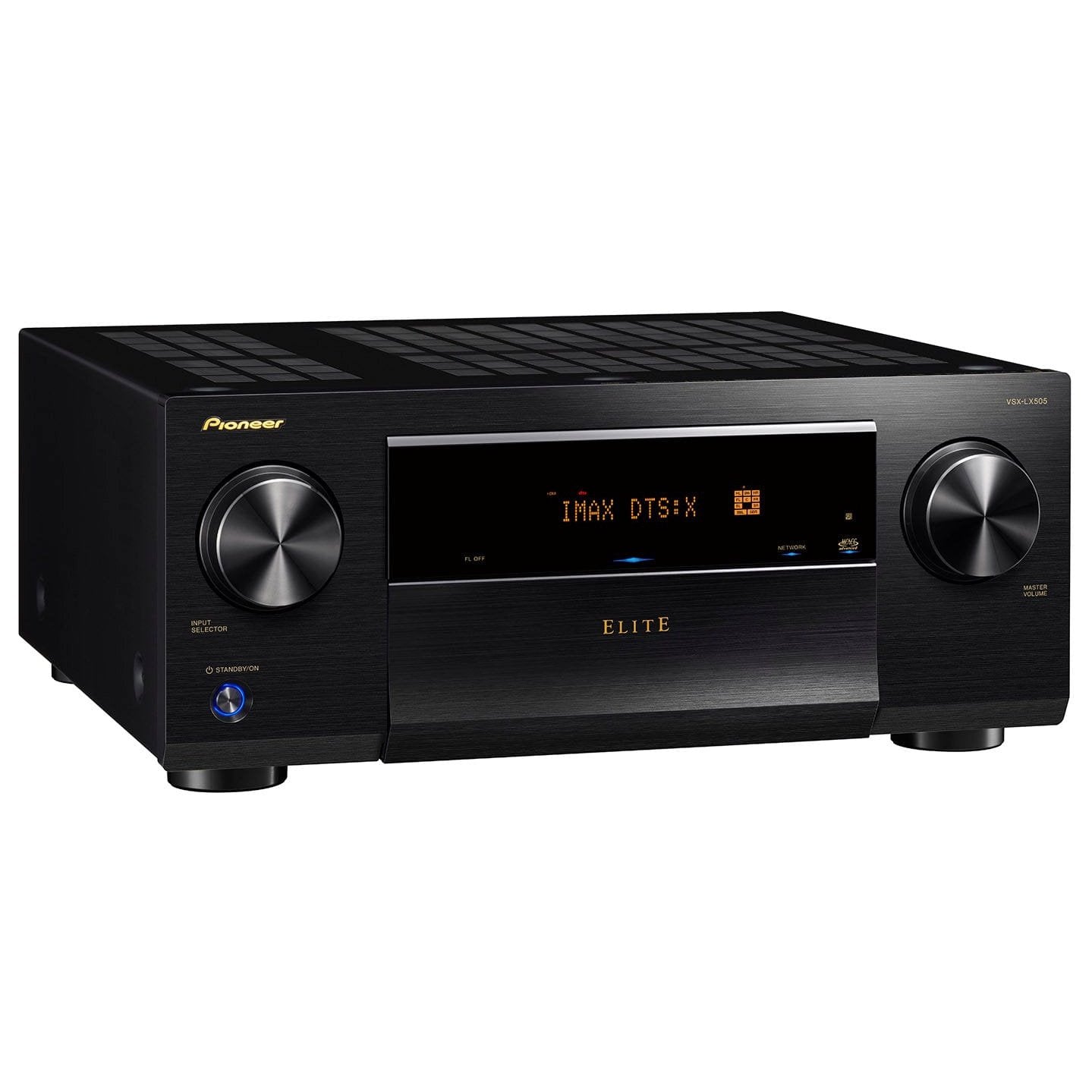

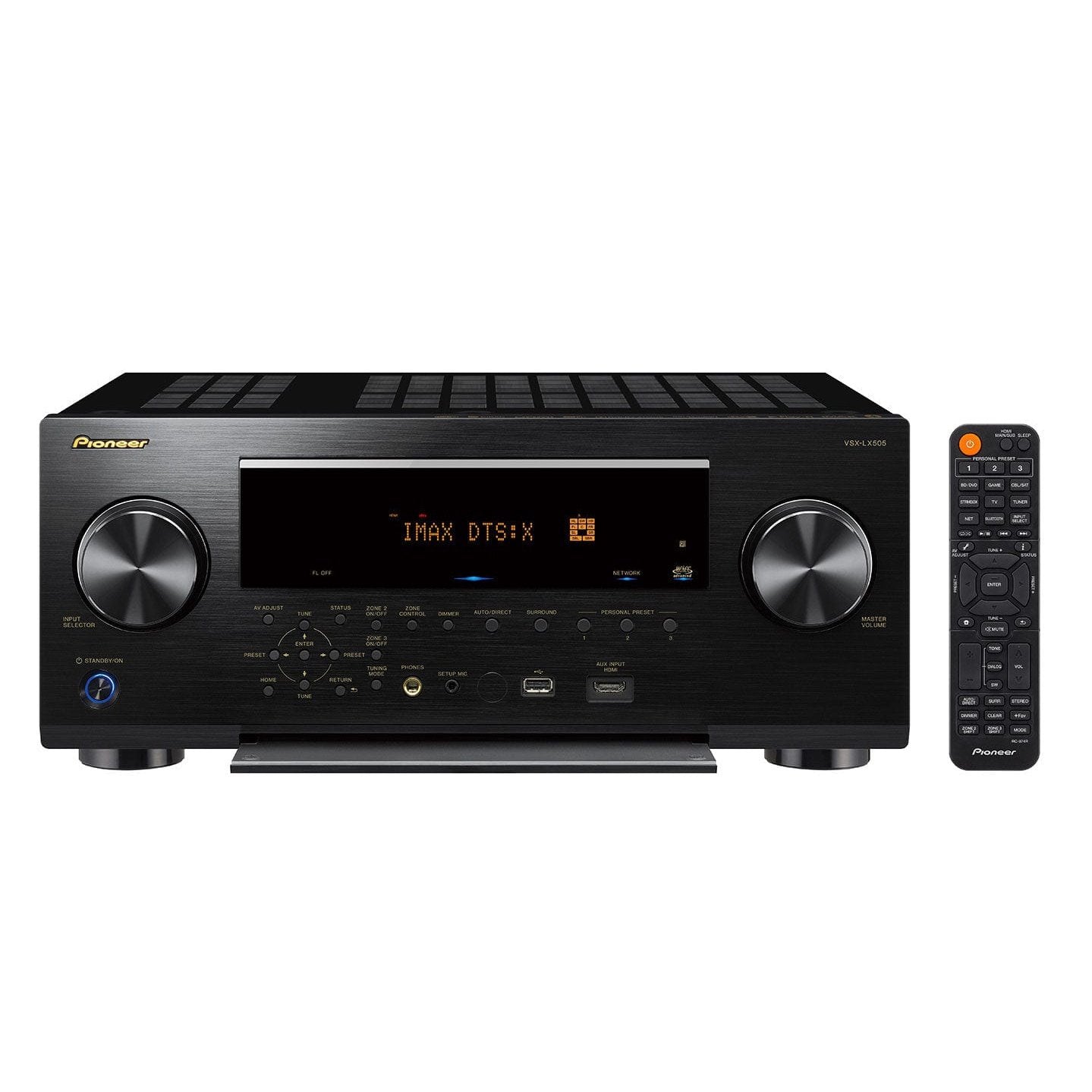

Pioneer VSX-LX505 9.2 Channel Network AV Receiver delivers multi-dimensional excitement to your home theatre. Equipped with DIRAC Live® Room Correction, the VSX-LX505 adjusts the sound according to the space and speakers while offering improved musical staging, dialogue, and deeper bass.
- DIRAC Live Room Correction
- HDMI® 2.1 with 8K
- ULTIMATE 4K GAMING EXPERIENCE
- IMAX® Enhanced MODE
HDMI® 2.1 with 8K
HDMI® 2.1 is the most recent update of the HDMI® spec and supports a range of higher video resolutions and refresh rates including 8K60 and 4K120, as well as Dynamic HDR formats. 8K delivers a super-immersive viewing experience with 2x the horizontal and vertical resolution of 4K, and 4 times as many pixels; and combined with 60Hz refresh rate enables smooth and sharp viewing of content with high-speed action. HDMI 2.1 with 8K ensures your system is ready for the clearest and cleanest picture available both now and down the road.
DIRAC Live Room Correction
State-of-the-art digital room correction technology improves overall audio performance across the full frequency band with no additional upgrade required. Dirac Live automatically calibrates sound in your room using either your smartphone and the included wired mic, or go virtually wireless with the Dirac Live PC or MacOS * application, and a 3rd party USB mic (not included). Dirac Live unlocks your loudspeakers’ full potential in any listening space and delivers a uniquely pristine listening experience.
Ultimate 4K Gaming Experience
4K/120 enables ultra-fast motion UHD images to be crisp and razor-sharp; and sports, action movies, and high-performance gaming benefit significantly. This receiver supports higher performance from streaming devices like the latest Apple TV.
Built-In Streaming Music Services and Faster Wifi
Access to Spotify®, TIDAL, Deezer, TuneIn, and Pandora® are built into the system.
IMAX® Enhanced Mode
IMAX digitally re-mastered content for the home environment is created to provide the same sharp 4K HDR images and powerful sound just as the filmmaker intended. Pioneer Elite’s IMAX Mode is meticulously optimized to play digitally remastered content to deliver the best viewing and listening experience on Earth.
Bi-directional Bluetooth® Wireless Technology
This AVR can send and receive audio via Bluetooth wireless technology. Stream from your device to the receiver using SBC or AAC codecs, or transmit audio playing through the AVR to compatible wireless headphones using SBC, aptX™, or aptX HD codecs including 24-bit audio over aptX HD. The improved data transfer capabilities of the latest generation of Bluetooth ensure clear and reliable sound reproduction so you hear your favorite songs just as the recording engineer intended.
Built-in multi-zone streaming and voice control
This AV Receiver easily integrates into your existing Smart Home ecosystem, including Apple Airplay, Alexa, Google apps, and more. You get a highly capable and compatible network device that can stream your favorites wherever you want in your home with up to 8K60 resolution.** *A third-party AI device is required for voice commands - sold separately ***8K60 only valid for Zone 1/Zone 2 will only produce 4K120 resolution when two separate HDMI sources are used
Roon plays to thousands of USB, Airplay, and Chromecast devices, but Roon-tested devices are profiled by the Roon team to ensure simple setup and effortless daily use. If you own a Roon-Tested device, you can have the confidence that you will enjoy the best possible experience with it.
Advanced MCACC Auto Room Tuning featuring Auto Phase Control Plus
Advanced MCACC adjusts the sound according to the listening room and speakers, and also creates clearer sound by suppressing the standing waves that occur between walls or ceiling and floor. Measurement of up to nine positions can be saved for a wide listening area. Auto Phase Control Plus* makes real-time analysis of the phase difference, and automatically compensates the gap between the LFE and main signals, providing strong bass and clear high-frequency sound.
Works with Sonos Certified
This receiver can join your existing Sonos Home Sound System, or be the start of a new one, just by pairing it with a Sonos Port* This Works With Sonos Certified AVR offers a best-in-class tie-in to the Sonos ecosystem, waking, changing inputs, and playing at the volume you want using the Sonos Volume-Pass Through feature from the Sonos app.
DTS Play-Fi* wirelessly streams any audio content from any compatible mobile device to your AV Receiver and DTS Play-Fi compatible audio systems, creating a multi-room system in your home. You can stream different sources to different speakers at the same time from the DTS Play-Fi app.
- AV Receiver Speaker Channels: 9.2 Channel
- Frequency Response: 20 Hz - 20 kHz
- Watts RMS per Channel (6 Ω): 230 Watts
- Watts RMS per Channel (8 Ω): 120 Watts
- Smart Voice Assistant: Works with Alexa, Works with Google Assistant, Works with Siri
- AirPlay AirPlay: 2
- DTS Play-Fi®: Yes
- Chromecast (built-in): Yes
- Bluetooth® Wireless Technology: Yes, aptX™, aptX™ HD
- On-Screen Display: Yes
- Supported HDR Formats: Dolby® Vision, HDR10, HDR10+, HLG (Hybrid Low-Gamma)
- FM :Yes
- AM: Yes
- Online Audio Services Support Spotify Connect, TIDAL, Deezer, Amazon Music, TuneIn
- Hi-Res Audio Support FLAC (24-bit/192 kHz), ALAC (24-bit/192 kHz), WAV (24-bit/192 kHz), DSD256 (11.2 MHz)
- Total Harmonic Distortion: 0.08%
- Warranty: Australian Manufacturer Warranty
- Surround Sound Processing
- IMAX® Enhanced: Yes
- Dolby® Sound Technology: Dolby® Atmos™, Dolby® Atmos Height Virtualisation, Dolby® TrueHD, Dolby® Surround, Dolby® Digital Plus
- DTS™ Technology: DTS:X™, DTS Neural:X™, DTS-HD™ Master Audio, DTS -HD™ High Resolution Audio, DTS-ES™, DTS™ 96/24
- Multi-room: Audio-Video
- Zone 2 Pre/Line Out: Yes
- Zone 3 Pre/Line Out: Yes

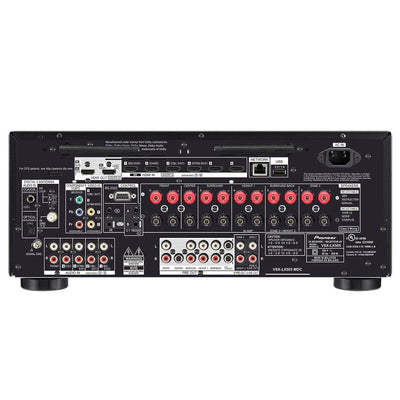

- Inputs and Outputs
- Main Speaker Terminals: 11
- Subwoofer Outputs: 2
- HDMI Inputs: 6
- HDMI Monitor Outputs: 2
- Optical Digital Inputs: 1
- Coaxial Digital Inputs: 1
- Composite Video Input: 2
- Component Video Inputs: 1
- USB A Ports: Yes
- LAN: Yes
- Phono Input: 1
- 12V Trigger: 2
- IR Input/Output: 1 / 1
- RS-232 Port: Yes
- Product Dimension (H×W×D): 435 x 185 x 386 mm
- Product Weight: 13 Kg
