- 8 HDMI Inputs / 3 HDMI Output
- 11.2ch Onboard Amplification
- 13.2ch Processing
- 125W @ 8 Ohm 2ch Driven

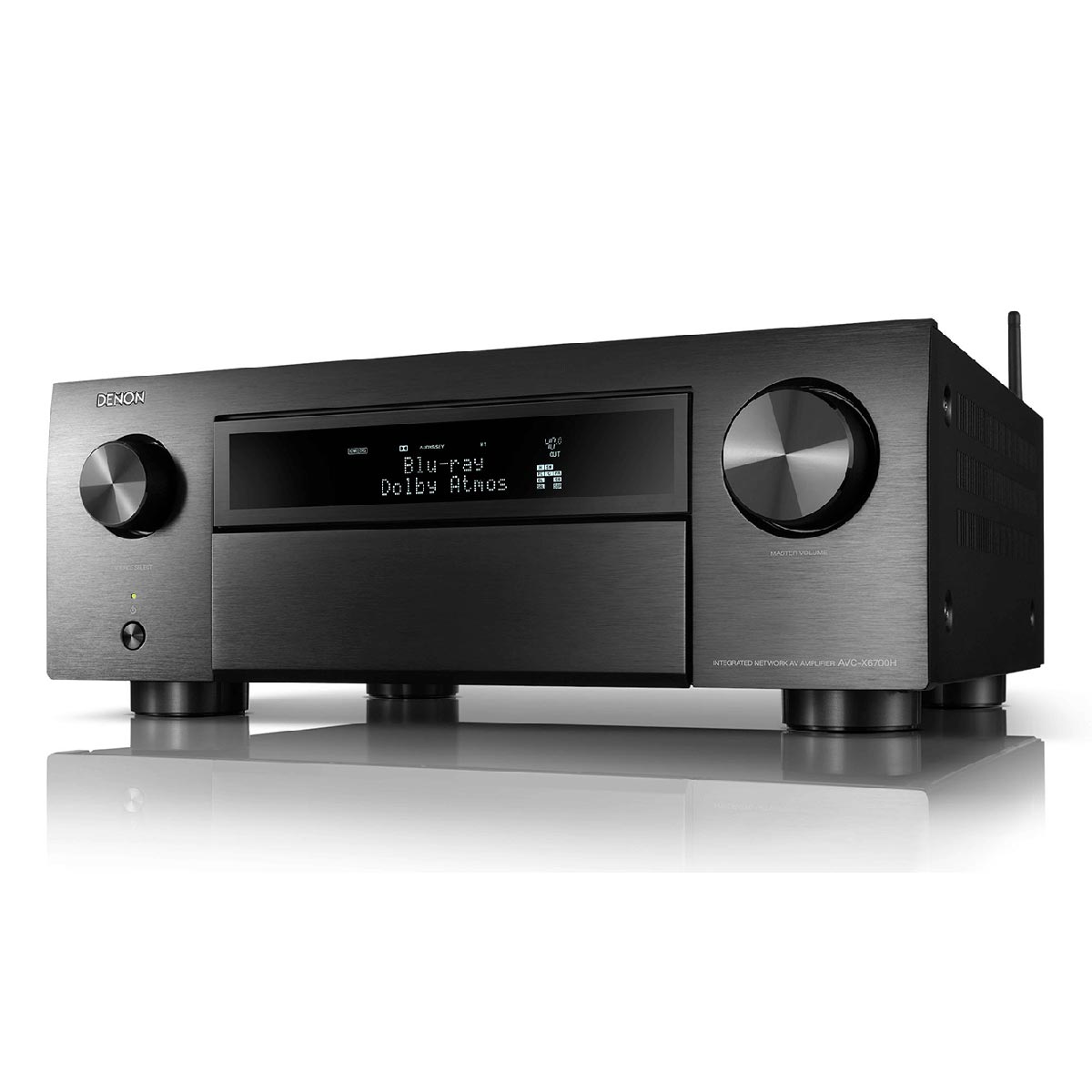

11.2 Ch 8K AV Amplifier with 3D Audio, HEOS Built-In and Voice Control
Challenge the status quo. The AVC-X6700H features a monolithic power amplifier design with Denon custom made transistors and identical circuit topology on all 11 channels, each rated at 205W. This ultimate build-quality guarantees best-in-class sound quality with minimum interferences, astonishing clarity, power, detail, and depth. The two ADI Griffin Lite DSPs support the most advanced 3D audio suite with up to 13.2ch processing of Dolby Atmos, DTS:X, DTS:X Pro, IMAX Enhanced and Auro-3D. The AVC-X6700H supports the latest HDMI video technologies such as 8K/60Hz and 4K/120Hz pass-through, Dolby Vision, HDR10, HDR10+, Dynamic HDR, HLG, as well as 8K upscaling and HDCP 2.3 support on all HDMI inputs (8 in/3 out).
Stream popular music services like Spotify, TuneIn Internet Radio, Amazon Music HD, TIDAL and more wirelessly via Bluetooth, Apple AirPlay 2 and Wi-Fi with HEOS Built-in. Play MP3 and even Hi-Res audio formats (WAV, FLAC, ALAC and DSD 2.8/5.6 MHz files) via USB or Network. The Denon AVC-X6700H works with Amazon Alexa, Google Assistant and Apple Siri for effortless voice control.
By visually guiding you through each step in the setup process, the award-winning Denon Setup Assistant ensures you get set up right the first time. Every home theatre is different — that’s why Denon uses the premium Audyssey MultEQ XT32 room calibration technology from Audyssey that automatically measures and optimizes your AV amplifier to provide a truly immersive 3D audio experience custom-tailored to your unique listening environment.
- Premium-performance discrete 11-channel amplifier in a monolithic design: Delivers a precise and powerful 205W per channel, to provide trusted, precise and powerful Denon sound.
- Full 8K/60Hz and 4K/120Hz support and upscaling: With the latest technology in HDMI support, you can enjoy 8K quality video from your 8K source devices with the highest quality available, with 1 supported 8K input and 2 outputs allowing for 8K/60Hz and 4K/120Hz pass-through. 8K upscaling is available on all 8 HDMI inputs.
- The latest in HDMI support: With 8 advanced HDMI inputs with full HDCP 2.3 support and 3 HDMI outputs connect to all your favourite media devices and output up to 3 monitor displays so you can enjoy from any room.
- Enjoy your favourite immersive 3D audio: Enjoy immersive, 3D audio from sources like Dolby Atmos, Dolby Atmos Height Virtualization, DTS:X, DTS Virtual:X, DTS:X Pro and Auro-3D.
- DTS:X Pro support: With the latest in DTS technology, enjoy DTS:X Pro that can process up to 13 channels via future firmware update.
- Front wide speakers supported for Dolby Atmos and DTS:X Pro up to 13 channel setups: Supports front wide speakers for a more seamless front surround stage reproduction either in 9.1.2 or 9.1.4 speaker setup.
- IMAX Enhanced Technology: Delivers a true IMAX theatre experience at home.
- Enhanced Audio Return Channel (eARC) HDMI support: Through the main HDMI output, connect your TV with eARC HDMI support to allow uncompressed and object-based audio formats like Dolby Atmos and DTS:X directly from your smart TV app to your AV amplifier.
- The latest in video compatibility: The latest HDR format support including HDR10, HDR10+ (New in 2020), HLG, Dolby Vision, as well as Dynamic HDR (New in 2020), to provide the greatest picture quality for brightness, clarity and contrast.
- The next generation in movie immersion: With 8K/60Hz pass-through and upscaling, Dynamic HDR and Quick Media Switching (QMS), enjoy crystal clear and smoothest picture in the highest quality available.
- With 4K/120Hz pass-through, Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM) and Quick Frame Transport (QFT), enjoy your gaming experience with amazing imaging, as well as reduced lag and latency.
- New DSP for more processing power: With 13.2 ch. max audio processing, connect external power amplifier to the AVC-X6700H to power two additional channels to enjoy a 13.2 ch. home theatre setup.
- Works with your favourite voice assistants: Use your voice to control the AVC-X6700H and wireless music services hands-free, works with Amazon Alexa, Google Assistant and Apple Siri.
- Wireless streaming from the most popular music services: Enjoy all of your favourite music services like Spotify, TuneIn Internet Radio, Amazon Music HD, TIDAL, Deezer and more. The AVC-X6700H also lets you enjoy your music via AirPlay 2, letting you stream your favourite tracks from Apple Music.
- “Roon Tested” Certified: Get more out of your digital music library with searchable, surfable information about your favourite artists and songs. Find lyrics, concert dates, photos, bios, reviews and more. Subscription required.
- Phono input: With its included phono input, the AVC-X6700H lets you connect your turntable and play vinyl records. Enjoy your collection with exceptional quality and sound.
- Dual subwoofer outputs: Smooths out low frequencies for better bass dispersion.
- HEOS Built-in wireless multi-room music streaming technology: Listen from any room for a connected, whole-home audio experience. The AVC-X6700H also works with the newly introduced Denon Home speakers to let you enjoy a whole-home audio experience.
- High-resolution audio streaming for Hi-Fi enthusiasts: Enjoy your favourite Hi-Res quality file playback with FLAC, ALAC, and WAV support, as well as DSD 2.8/5.6MHz.
- All Zone TV audio: Play the audio from your TV to another zone for your favourite shows without losing fully discrete surround sound in the main zone.
- Built-in Bluetooth and Wi-Fi with 2.4GHz/5GHz dual band support: Solid wireless network connectivity even in congested environments.
- Bluetooth Audio Transmitter: Enjoy your favourite audio through your Bluetooth headphones late at night or with your family member who is hearing impaired. This feature supports Bluetooth-only playback as well as simultaneous playback with connected speakers.
- Award-winning Denon Setup Assistant and graphical user interface: Easy and intuitive out-of-box and setup experience.
- Smart TV connectivity: Control the Denon AVC-X6700H with your TV remote via HDMI CEC.
- Audyssey MultEQ XT32, Dynamic Volume, Dynamic EQ, LFC and Sub EQ HT: Delivers the ultimate equalization for your individual room including subwoofer EQ.
- Custom install ready: The Denon AVC-X6700H features external control and IP control capabilities for easy customization and compatibility with third-party integration solutions.
- Equipped with two 12V trigger outputs: Connect up to two devices such as an automatic screen or projector and operate on standby power.
- Amazing audio built on 110-years of innovation: Denon is the defining audio company of Japan. Founded in 1910, we enable the moments that matter through the relentless pursuit of quality, innovation and audio performance.
Ultimate Home Theatre Experience - 8K Ready
The AVC-X6700H delivers the ultimate home theatre experience with 8K/60Hz pass-through and upscaling, 4K/120Hz pass-through for gaming, and support for the latest HDMI specifications. The new AVC-X6700H lets you build the best 4K home theatre today and gives you the comfort of knowing that your AV amplifier is 8K ready when you are. Enjoy the highest quality 3D audio and video for even the most demanding entertainment needs.
Full 3D Audio Support with up to 13.2 Channel Processing Capability
Immerse yourself in 3D audio with Dolby Atmos, Dolby Atmos Height Virtualization Technology, DTS:X, DTS Virtual:X, DTS:X Pro, IMAX Enhanced and Auro-3D. The AVC-X6700H supports up to 13.2 channel processing with 11 channel amplification. Add your choice of 2 channel power amplifier to fill-in extra 2 channels and build up to a 7.2.6 or 9.2.4 speaker configuration for more immersive, 3D audio experience.
Dolby Atmos - Drive Immersive Surround Sound
Set up a 7.1.4 or 9.1.2 Dolby Atmos surround system using the eleven channels of amplification built-in to the AVC-X6700H. With Dolby Atmos elevation speakers or dedicated overhead speakers, enjoy the ultimate Dolby home theatre experience.
With Dolby Atmos Height Virtualization Technology support, the AVC-X6700H also provides immersive audio without height channels, creating virtual height effects you’d enjoy in a 7.1, 5.1 or 2.1 speaker arrangement.
DTS:X - Closer to the Action
DTS:X and DTS Neural:X gives your movies, games and music a realism unmatched by traditional 5.1ch surround sound.
With DTS Virtual:X Height Virtualization Technology support, the AVC-X6700H also provides immersive audio without height channels, creating virtual height effects you’d enjoy in a 7.1, 5.1 or 2.1 speaker arrangement.
With future firmware update, enjoy your entertainment decoded with the latest in DTS 3D audio technology. Enjoy up to 13.2 channels of audio processing with DTS:X Pro to enjoy a full surround sound in exquisite detail. You will need an additional external stereo amplifier connected to the AVC-X6700H to drive an additional 2 channels.
IMAX Enhanced Technology
Get the most premium at-home entertainment experience with IMAX Enhanced — the latest technology from DTS that sets a new standard for home theatre imaging, sound, scale, and clarity. Watch clearer pictures and brighter images. Feel immersive, heart-pounding audio and experience premium content digitally remastered by IMAX.
Auro-3D - Putting You in a Cocoon of Life-Like Sound
Auro-3D elevates the home theatre experience to amazing new levels by delivering the excitement of three-dimensional sound for music, games, broadcast, and films while enhancing your existing audio-visual collection, thanks to Auromatic up-mixing engine.
Geared up for 8K Ultra HD
With the new AVC-X6700H, enjoy all your entertainment with latest technology available and watch your movies in unrivalled clarity. Enjoy your movies in 8K with 8K/60Hz pass-through and upscaling, as well the latest in AV amplifier technology like Dynamic HDR and Quick Media Switching (QMS), which is used in movies to eliminate video delay.
Advanced 8K HDMI Video Section with eARC
Enjoy your favourite movies, shows and games with the best picture quality available. The AVC-X6700H features an advanced HDMI section (8 in/3 out) with a dedicated 8K input that will support 8K/60Hz and 4K/120Hz video pass-through. All HDMI inputs feature 4:4:4 Pure Colour sub sampling, HDR10, HDR10+, Dolby Vision, Hybrid Log-Gamma (HLG), Dynamic HDR, and BT.2020 pass-through support for exceptional colour, clarity and contrast. Enjoy full-rate 8K upscaling as well as HDCP 2.3 processing to play copy-protected content uninhibited. The AVC-X6700H also adopts eARC (enhanced Audio Return Channel) to support 3D audio formats directly from your smart TV apps to your AV amplifier.
Advanced Video Controls
HDCP 2.3 processing is available on all HDMI ports, letting you enjoy copy-protected content totally uninhibited. Certified by the Imaging Science Foundation, the AVC-X6700H features a full suite of video calibration controls (for use by an ISF technician), along with ISF Day and ISF Night video modes. Enjoy seamless compatibility with the latest HD and Ultra HD TVs, Blu-ray players and game consoles.
Brilliant Colour - Universal Compatibility, HDR10+ and Dynamic HDR
The AVC-X6700H supports High Dynamic Range video format, HDR10, Dolby Vision and HLG (Hybrid Log Gamma). Dolby Vision transforms the viewing experiences with astonishing brightness, contrast, and colour. HLG offers HDR technology over broadcast content for a crisper, cleaner image. The AVC-X6700H also supports HDR10+, which sends dynamic meta data to TV for more realistic images, as well as Dynamic HDR.
Some technologies are not available on all televisions.
The Next Generation in Gaming
With the latest in HDMI support, the new AVC-X6700H will take your gaming to the next level. Enjoy gaming with 4K/120Hz pass-through and upscaling, as well as Variable Refresh Rate (VRR), Quick Frame Transport (QFT), and Auto Low Latency Mode (ALLM), which reduces or eliminates lag and frame tearing to offer a smoother, lag-free gaming experience.
Works with the Latest Voice Assistants
Enjoy effortless voice control and total flexibility from the leading voice services. Using a smart speaker or your phone, speak commands with Amazon Alexa, Google Assistant and Apple Siri. Ask to play your favourite music, turn the volume up, skip to the next track, switch inputs and more. Switch between voice services or pick a favourite to use — the choice is yours. Functionality varies by voice agent.
Works with Amazon Alexa
Control the AVC-X6700H hands-free with Amazon Alexa and your voice. Adjust the volume, skip to the next track, switch inputs for your different media players and more — “Just Ask.” Download the HEOS Home Entertainment Skill to enable Amazon Alexa voice commands for your AVC-X6700H, HEOS devices and other select Denon products. Requires Alexa app and Amazon Echo, Dot or equivalent.
Works with Google Assistant
Start music in the HEOS app, then ask your Google Assistant to control volume, play, pause, skip tracks and more.
AirPlay 2 + Apple Siri Voice Control
Use AirPlay 2 to stream Apple music wirelessly to the AV amplifier, or group with other AirPlay compatible speakers to fill your home with music.
Stream audio from your favourite music services like Apple Music and Spotify or watch videos from services like YouTube and Netflix from any iPhone, iPad, Mac or Apple TV and hear the audio perfectly synced to your speakers AirPlay 2 sources.
AirPlay 2 also supports multi-room audio – wirelessly stream content to multiple AirPlay 2 compatible devices simultaneously with improved audio buffering to ensure smooth audio playback. AirPlay 2 provides control and grouping of compatible audio devices within the Apple Music or Home app. Use AirPlay 2 in-app or with your voice via Siri.
High-Resolution Audio Support
Enjoy superb audio fidelity with your favourite high-resolution audio tracks. The AVC-X6700H features the latest AKM 32-bit D/A converters allowing for high resolution audio decoding with multiple lossless file types, including ALAC, FLAC and WAV at up to 192kHz/24bit. It is also compatible with 2.8/5.6-MHz DSD files (DSD is the audio coding format of SACD). Play them from memory devices via the front panel USB, or over network sources. The AVC-X6700H also supports other file types such as MP3 and WMA.
Listen with advanced Denon audio processing features such as AL32 Processing. Denon-proprietary AL32 Processing technology provides multi-channel ultra-high-resolution digital audio filtering on all audio channels and delivers a natural soundstage with enhanced imaging of the sound.
Phono Input for Turntable/Vinyl Support
With the included phono input, the AVC-X6700H lets you connect your turntable and play vinyl records. Enjoy your vintage collection with exceptional quality and sound.
Dual Subwoofer Outputs
Immerse yourself in evenly distributed, accurate bass. The AVC-X6700H features two subwoofer outputs to smooth out low frequencies and provide better dispersion. Connected subwoofers can be calibrated independently with Audyssey Sub EQ HT for more seamless bass performance tailored to your room. No audible peaks or dips — just powerful, room-filling bass.
“Roon Tested” Certified
All new Denon AV amplifiers are now Roon Tested. Get more out of your digital music library with searchable, surfable information about your favourite artists and songs. Find lyrics, concert dates, photos, bios, reviews and more. Subscription required.
Advanced Sound Processing
Experience extraordinary sound quality from both music and movies.
DSP Power Processing
Inherited from the Denon flagship AVC-X8500H, a sophisticated digital audio processing system that incorporates two dual SHARC+ core DSP chips is adopted into the AVC-X6700H. This allows up to 13 channel audio decoding and processing capability including DTS:X Pro support, and newly introduced 13 channel DTS:X reproduction (via a future firmware update).
Pre-Amplifier Mode at Amp Assign
With the new Pre-Amplifier Mode, your Denon AV amplifier works as a perfect AV pre-processor with the latest HDMI connectivity. Pre-Amplifier Mode provides a cleaner signal path and more tolerance in clipping level by disconnecting internal amplifiers. Modernize your AV separate system without breaking the bank.
With the Denon AVC-X6700H, it’s possible to enjoy 11.2 channel surround sound in one room and a separate source or music stream in up to two others for a total of 3 sources and 3 zones. Watch a movie in one room while another family member listens to music in a different zone without interruption.
All Zone TV Audio
Play the audio from your TV to all zones. Enjoy full discrete audio such as Dolby Atmos in the main zone for totally immersed experience while playing the same source in the second or third zone. Select “Source” for the second zone to share the main zone audio. The AVC-X6700H supports both HDMI and digital sources for your second or third zone.
Bluetooth Audio Transmission
Enjoy your favourite audio without waking your whole home by transmitting the audio coming from your AV amplifier to your Bluetooth headphones. The AVC-X6700H even allows you to play the audio on both Bluetooth headphones and connected speakers simultaneously. If you have a family member or a friend who is hearing impaired, we recommend this setup.
Front Wide Channel Support on Dolby and DTS:X
With front wide channel support, you can add two front wide speakers with both Dolby and DTS to create a more seamless front surround stage up to 9.1.2 or 9.1.4 speaker configurations. 9.1.4 setup requires additional 2 channel amplifications connected to the AVC-X6700H.
Easy Setup Experience
The included AVC-X6700H Quick Start Guide provides simple, clear instructions for how to get started. Once you connect your TV to the AVC-X6700H via HDMI, the exclusive Denon Setup Assistant appears on your TV screen to walk you through setup, step by step. Also, on the back of the AV amplifier, a row of colour-coded speaker connections is laid out horizontally, making organizing and connecting speaker wires simple. The AVC-X6700H will rename HDMI inputs automatically when connected or you can rename manually for your convenience.
Quick Selects for User-Friendly Audio Tuning

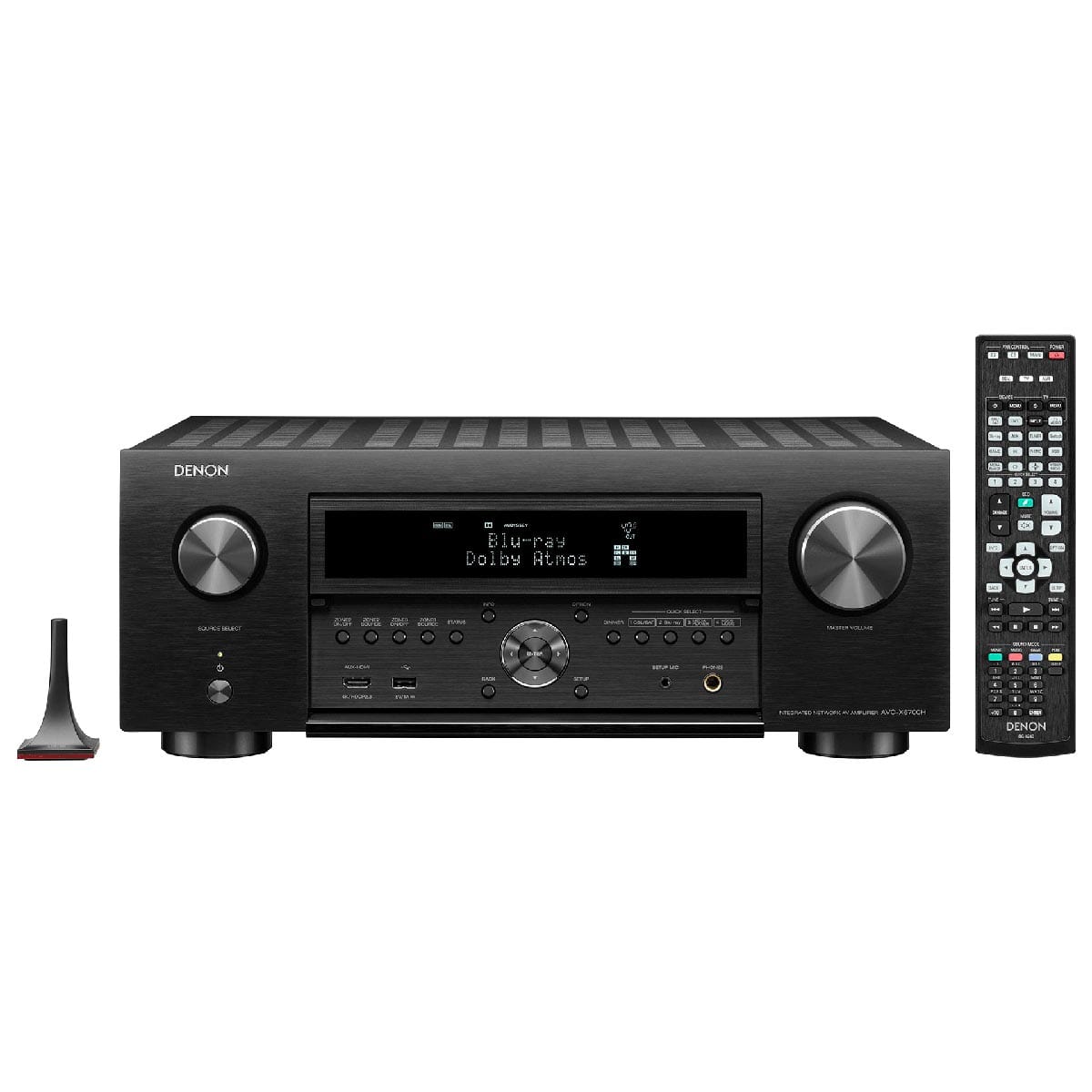

The Denon AVC-X6700H front panel features four Quick Select buttons that store your preferred audio settings for each source. Switch between TV audio, Blu-ray, media players and more, and the AVC-X6700H adjusts the EQ settings to your preferences for that media source. Use the buttons on the front panel or opt for the same Quick Selects on the AVR remote for faster control.
Smart TV Connectivity
Control the Denon AVC-X6700H with your TV remote via the HDMI CEC functionality associated with your TV. The Smart Menu home screen provides you quick access to source and surround mode selections, the setup menu and four Quick Selects.
Built-In Bluetooth, Wi-Fi and AirPlay 2 Compatibility
The heart of your wireless network. With Bluetooth and Wi-Fi wireless streaming connectivity, the Denon AVC-X6700H is equipped with an advanced dual antenna transceiver system for robust streaming even in congested urban environments. Enjoy listening to your favourite audio content wirelessly from your smart devices.
With HEOS Built-in technology play the same song in every room or select a different song for each connected room — the choice is yours. HEOS works with Amazon Alexa and Google Assistant, providing effortless voice control.
HEOS supports free and premium Spotify, Amazon Music HD, TuneIn, Sound Cloud, TIDAL and more.
Denon AVR Remote App for Seamless Control
Better control in your back pocket. The free Denon AVR Remote for iOS and Android makes using the AVC-X6700H even easier — adjust volume, turn it on or off, mute the music, select a source or switch to HEOS. Download the free Denon AVR Remote app to your smartphone or tablet today.
Audyssey MultEQ XT32 for Simple Setup and Room Calibration
Optimise your audio experience with Audyssey MultEQ XT32 for seamless setup of your listening environment. With the supplied measurement microphone, MultEQ XT32 analyses each speaker's output (including subwoofers) at up to eight measurement locations and generates precision digital filters that optimize each channel for the correct frequency and time domain response. Audyssey Dynamic Volume smooths out disruptive jumps in volume (such as TV commercials), letting you listen at lower levels while still enjoying clear dialogue, music and sound. Audyssey Dynamic EQ provides full-range clarity at any listening level, and Audyssey Low Frequency Containment uses advanced psychoacoustic algorithms to deliver a full-range balance, including deep bass, without disturbing neighbours or people in other rooms of your home. Audyssey Sub EQ HT provides individual DSP tailoring of each subwoofer in a dual subwoofer setup for deeper bass with improved definition. Plus, the Audyssey MultEQ Editor app (available for purchase) lets you view and adjust settings for detailed tuning and customize the sound more precisely to your room and tastes.
The app is available for both iOS and Android.
Dual Speaker Preset Memory
The new AVC-X6700H allows storing of two Audyssey settings as well as switching between the two settings on the fly, giving you freedom to tweak your listening experience for the content or listening environment.
12V Trigger Output
Whether it’s an automatic screen or a projector control, the AVC-X4700H comes with two 12V trigger outputs that operates even when the AV amplifier is on standby.
HEOS Built-In for Wireless Music Streaming
Enjoy your favourite music in any room of your home wirelessly with HEOS Built-in technology. Play the same song in every room or select a different song for each connected room — the choice is yours. Also works with Amazon Alexa, Google Assistant and Apple Siri to provide cutting-edge voice control and incredible sound for all your home entertainment. Connect your Denon Home speakers for a whole-home audio experience.
HEOS supports free and premium Spotify, Amazon Music HD, TuneIn, SoundCloud, TIDAL and more.
Not all music services available in all regions.
Custom Install Ready
The Denon AVC-X6700H features external control and IP control capabilities for easy customization and compatibility with third-party integration solutions. It offers IP control capability for major third-party control devices, as well as Control4 SDPP (Simple Device Detection Protocol) certification for seamless integration with Control4 home automation equipment. An IR (infrared) remote control is included on the rear panel for remote control compatibility with other components in your home theatre system, and remote monitoring capability is now supported for troubleshooting.
Amazing Sound Built on 110 Years of Innovation
As Japan’s first audio electronics manufacturer with a deep legacy of firsts - Denon is the defining audio company of Japan. Founded in 1910, we enable the moments that matter through the relentless pursuit of quality, innovation and audio performance. We innovate for a better experience.
|DTS HD Master / DTS:X||✓ / ✓|
|DTS:X Pro||✓ (Update)|
|DTS Neo:X / DTS Neural:X||- / ✓|
|Dolby TrueHD / Dolby Atmos||✓ / ✓|
|Dolby ProLogic Il / Dolby Surround||- / ✓|
|Dolby Height Virtualization||✓|
|Front Wide Speakers: Dolby / DTS||✓ / ✓|
|Auro 3D||13 Ch|
|Max Number of Processing (Preamp) Channels||13.2|
|Mono Block Power Amp Construction||✓|
|Discrete Power Amplifier||11|
|110th Anniversary Audio Tuning||-|
|Iron Diecast Feet||-|
|Copper Plated Transformer Base||-|
|Premium Speaker Terminals||-|
|All Black Interior||-|
|D.D.S.C. HD Digital||✓ (32 Bit)|
|High Grade Audio Components||✓|
|Gold Plated RCA Terminals||✓|
|Clock Jitter Reducer||✓|
|Alpha Processing||AL32 Processing Multichannel|
|Audyssey Dynamic EQ / Dynamic Volume||✓ / ✓|
|Audyssey APP Support||✓|
|Speaker Setup Presets||2|
|Compressed Audio Restorer||✓|
|HEOS Multiroom and Streaming||✓|
|Lossy Formats: MP3 / WMA / AAC||✓ / ✓ / ✓|
|Lossless Formats: FLAC / ALAC / WAV||✓ / ✓ / ✓|
|DSD Audio Streaming||Up to DSD5.6|
|FLAC HD 192/24||✓|
|Gapless Playback||✓ (FLAC, WAV, ALAC, DSD)|
|Spotify Connect / Tidal / Deezer / Others||✓ / ✓ / ✓ / ✓|
|Amazon Prime Music / Pandora||✓ / ✓|
|Compatible with Remote APP for Smart Phones||Android / iOS|
|Compatible with Remote APP for Tablets||Android / iOS / Amazon Kindle|
|Bluetooth Headphone Transmission||✓|
|HDMI Inputs: Back / Front||7 / 1|
|HDCP 2.3 Support||✓|
|HDMI Outputs: Main / Zone||2 / 1|
|HDMI Max. Resolution (8K / 4K)||8K/60 / 4K/120|
|Video Conversion Analogue -> HDMI||✓|
|HDMI to HDMI Scaling||Up to 8K 60/50|
|HDMI: 8K / 4K / CEC / eARC||✓ / ✓ / ✓ / ✓|
|HDMI: Dolby Vision / HDR 10+ / Dynamic HDR / HLG||✓ / ✓ / ✓ / ✓|
|HDMI: ALLM / QMS / QFT / VRR||✓ / ✓ / ✓ / ✓|
|HDMI Pass-Through in Standby Mode||✓|
|DSD Audio Capability||✓|
|Multiroom / CI|
|HEOS Multi-Room Integrated||✓|
|TV Sound Grouping||✓|
|Main Room Multi-Channel Audio - Zone Stereo Downmix||✓|
|Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analogue||✓ (2 Ch) / ✓ (2 Ch) / ✓ / ✓|
|Zone Audio Output: Speaker / Preout||✓ / ✓|
|Zone HDMI Output from HDMI Source||✓|
|Web Browser Setup||✓|
|IP Control / RS232 Control / Web Control / App Control||✓ / ✓ / ✓ / ✓|
|Remote In / Out||✓ / ✓|
|DC Trigger Output||2|
|Voice Control - Amazon Alexa / Google Assist / Apple Siri / Microphone Built-In||✓ / ✓ / ✓ / -|
|Auto Speaker Setup by Microphone||Audyssey MultEQ XT32|
|FL Display||2 Lines|
|Graphic User Interface - GUI||Advanced|
|Quick Select Plus / Quick Select||✓ / -|
|Firmware Update by Network / USB||✓ / ✓|
|Variable Cross Over||✓|
|Optimised Bass Redirection||✓|
|Auto Power Off||✓|

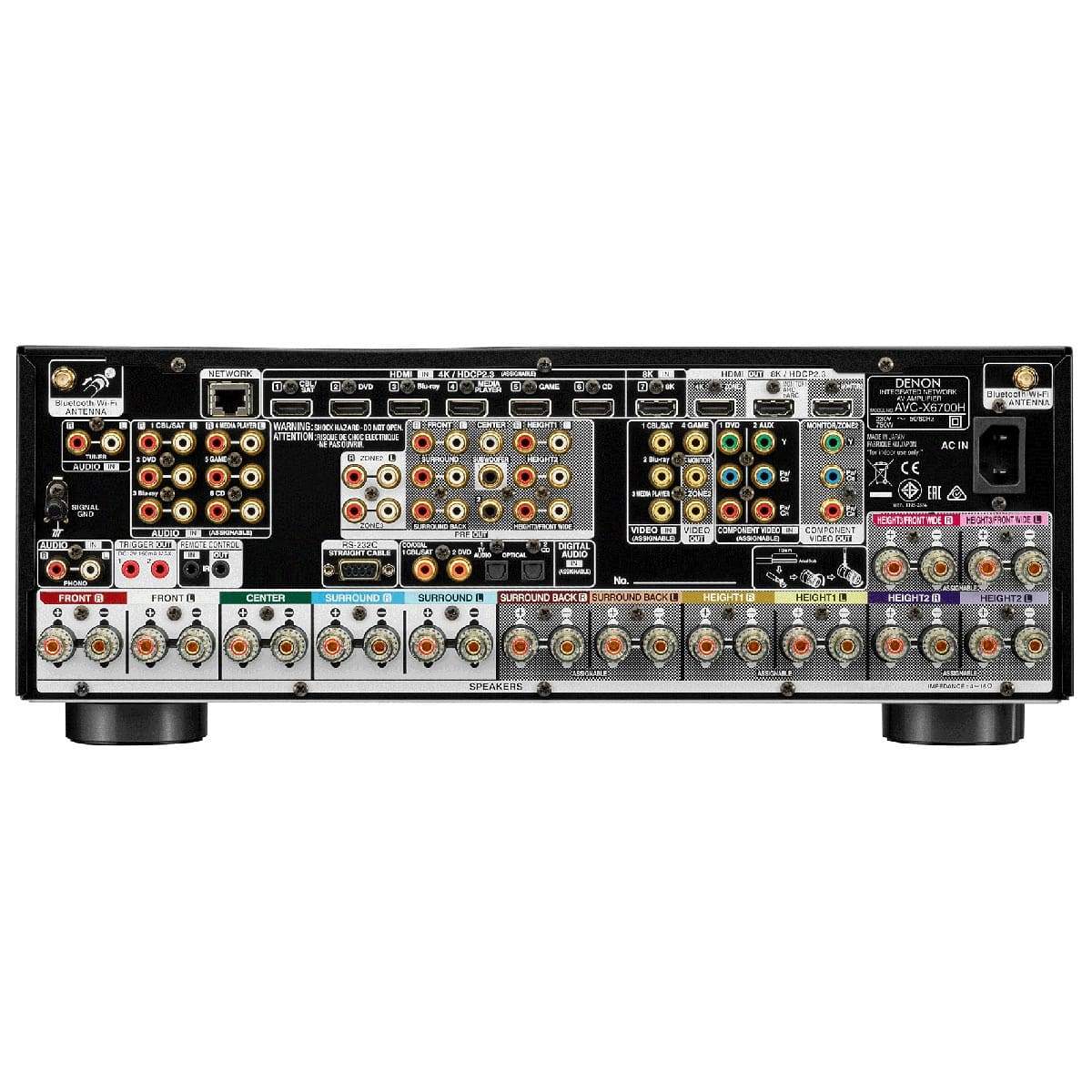

|Inputs / Outputs|
|Composite In / Out||4 / 2|
|Component In / Out||2 / 1|
|HDMI In / Out||7+1 / 3|
|Multi-Room Video Out: Video / HDMI||✓ / ✓|
|Analogue In / Out||7 / -|
|Phono (MM) In||✓|
|Digital In: Optical / Coaxial||2 / 2|
|Multi-Room Out: Analogue / Digital||2 / -|
|Multichannel Preout||✓ (13.2)|
|Subwoofer Out||2 (Independent)|
|7.1 Multichannel Input||-|
|Speaker Terminal: Gold Plated Screw / Regular Screw||✓ / -|
|Number of Speaker Terminals||13|
|Multi-Room Speaker Terminal||Assignable|
|Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB||- / - / - / ✓ / ✓|
|USB Audio / Made for iPod / Made for iPhone||✓ / ✓ (AirPlay) / ✓ (AirPlay)|
|DAB / DAB+ tuner||-|
|FM Tuner with RDS||-|
|Number of Poweramps||11|
|Power Output (8 Ohm, 20 Hz - 20 kHz, 0.05% 2 Ch Driven)||140 W|
|Power Output (6 Ohm, 1 kHz, 0.7% 2 Ch Driven)||175 W|
|Power Output (6 Ohm, 1 kHz, 1% 1 Ch Driven)||205 W|
|Available Colours: Black / Premium Silver||✓ / -|
|Metal Front Panel||✓|
|System Remote Control||RC-1240|
|Pre-Programmed / Learnable / LCD Display||✓ / - / -|
|Power Consumption||750 W|
|Power Consumption No-Sound (ECO On / Off)||65 W / 110 W|
|Standby Consumption||0.1 W|
|CEC Standby Consumption||0.5 W|
|Network Control On Consumption||3.7 W|
|Dimensions - Antenna: Horizontal (W x D x H)||434 x 389 x 167 mm|
|Dimensions - Antenna: Vertical (W x D x H)||434 x 389 x 235 mm|
|Dimensions - No Antenna (W x D x H)||434 x 379 x 167 mm|
|Carton Maximum Dimensions (W x D x H)||531 x 464 x 302 mm|
|Carton Weight (Inc. Product)||17.4 kg|
CHT Solutions has been very prompt to respond and ship the items. I will never hesitate to buy from them again. More power to CHT Solutions!Thornleigh, NSW
CHT delivery was incredibly fast, Many thanks all for such an easy purchase process and super fast delivery. 5 stars from meMalaga, WA
Buying from CHT Solutions was easy and their price was great and I would recommend then to anyone seeking good Hi Fi equipment.Woonona, NSW
Fast delivery and great products. Would recommend them to anyone needing great service for sound advice.Truganina, VIC
CHT delivered the unit to South Australia within a couple of days. Amazing! Their phone customer service was professional and courteous. Will happily purchase from them againTranmere, SA
